CTNCDP 10G -12ML MINI FLUX NO CLEAN DISPENSING PEN

Code: 38410016

0.0240 kg
9342114004477
EACH
Low Stock
$12.10 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

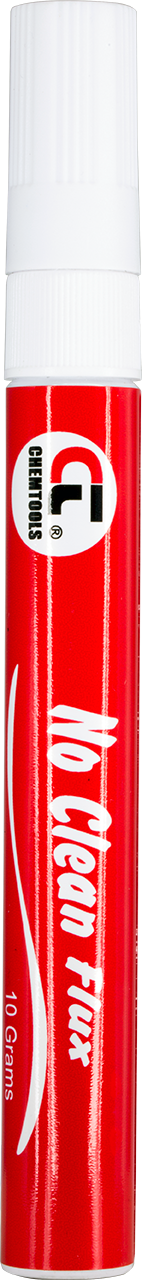

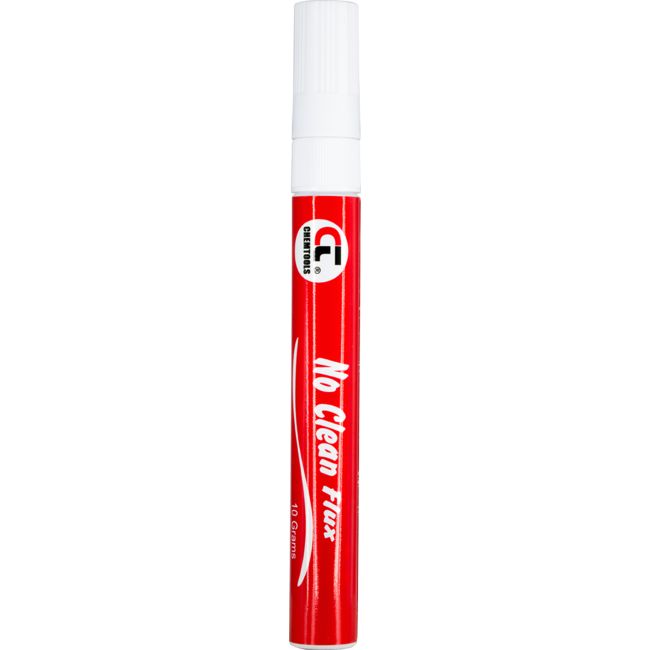

10mL FLUX PEN / MINI FLUXER - CHEMTOOLS

Ideal for surface mount work and rework, the chemtools flux pen makes touching up circuit boards a breeze. Suppliedin a pen for easy application, simply depress the tip to start the flow of flux. Contains professional NC264-5 "low clean" non agressive flux thereby eliminatingthe need to clean the circuit board after use.

Flux pens provide a very controlled method of applying liquid flux during rework applications, allowing flux to be contained to the areas being reworked.
NC264-5 is a low residue flux that offers very good activity and performs well with bare copper, solder coated, and organic coated PWBs, leaving negligible post process residues that are non conductive, and do not require post-process cleaning. NC264-5 has a unique chemistry and wide process window.

Contents: 10ml

Features:

  • Resin and Halide Free
  • Very Good Wetting
  • Reduces Bridging
  • Wide Process Window

Description:

NC 264-5 is a resin-free, halide-free, wave solder flux designed to enhance wetting and prevent bridging duringthe wave soldering process. NC 264-5 offers an enhanced activity level, as well as lower surface tension than other flux chemistries. NC 264-5 performs well with bare copper, solder coated and organic coated PWBs. This materialleaves negligible post-process residues that are non-conductive and do not require post-process cleaning for most assemblies.

Physical Properties:

SOLIDS CONTENT: 3.5%
FLUX DENSITY: .80 ± .01
ACID NUMBER: 19.4MG KOH/GRAM ± .5

Handling:

  • NC 264-5 has an unopened shelf life of1 year when stored at room temperature.
  • Do not store near fire or flame. Keep away from sunlight as it may degrade product.
  • NC 264-5 is shipped ready-to-use. Nomixing is necessary.
  • Do not mix used and unused chemical in the same container. Reseal any opened containers.
