PRO1369 WIRELESS IR REPEATER SYSTEM

Wirelesss IR Repeater system

Do you want to control Audio and Video Devices that are located in another room?
Are you tired of leaving cabinets open so your remote can operate your devices?

Then try this wireless IR repeater system!

Features

• AS/NZS 4268 regulation compliant
• Foxtel compatible
• RF: 915MHz technology to ignore current 433 MHz RF-interference
• Range up to 100-200 meters
• IR carrier tuning freq: 20 KHZ - 60 KHz
• Compatible with CE EMC regulation
• TX: 2mW(CE)/ 10mW(CE) / 20mW (Hi-Power)
• RX listen mode current 3.8 mA only
• HIgh receiving sensitivity (−90dBm)

Specifications

IR:

• Compatible with all universal full band carrier frequency infrared remote
• Better IR receive sensitivity(distance), over 7 meter

RF:

• Long range transmission over 200 meter(open space)
• 915 MHz RF technology to ignore current 433MHz RF-interference
• FSK modulation:
  • Better signal sensitivity than ASK modulation
  • Better anti RF-interference than ASK modulation
  • Better noise suppression
  • Digital encrypted function ensures safety and reliability
  • Support one receiver to Multi transmitter

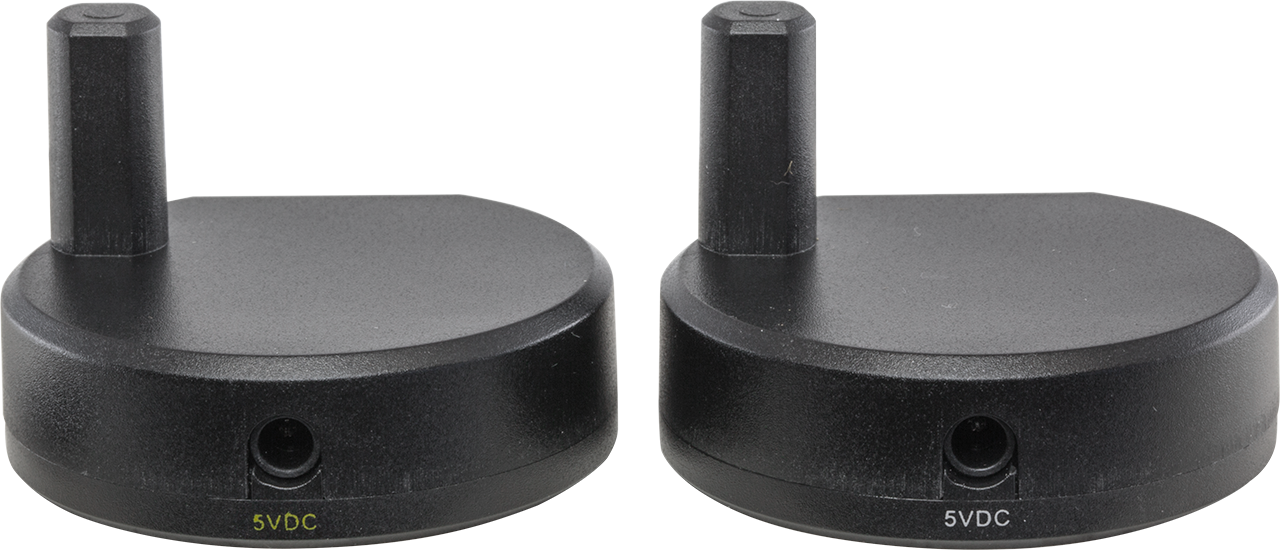

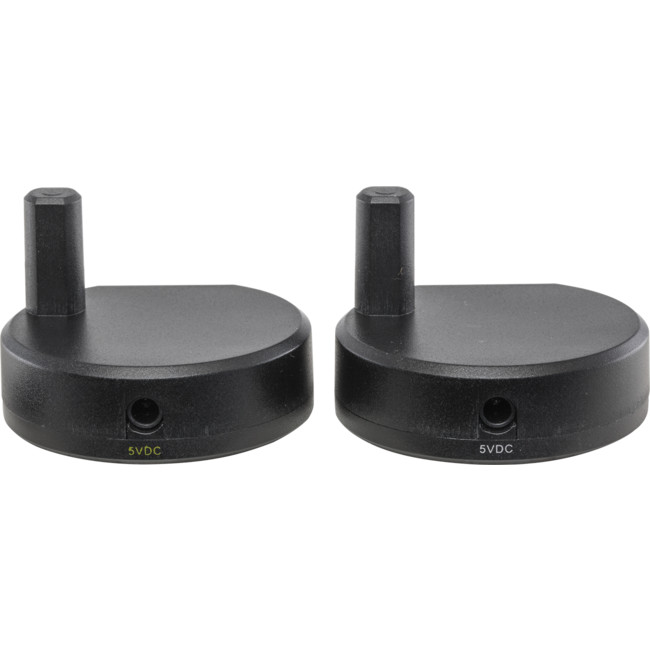

  Power supply: 5V 0.5A
