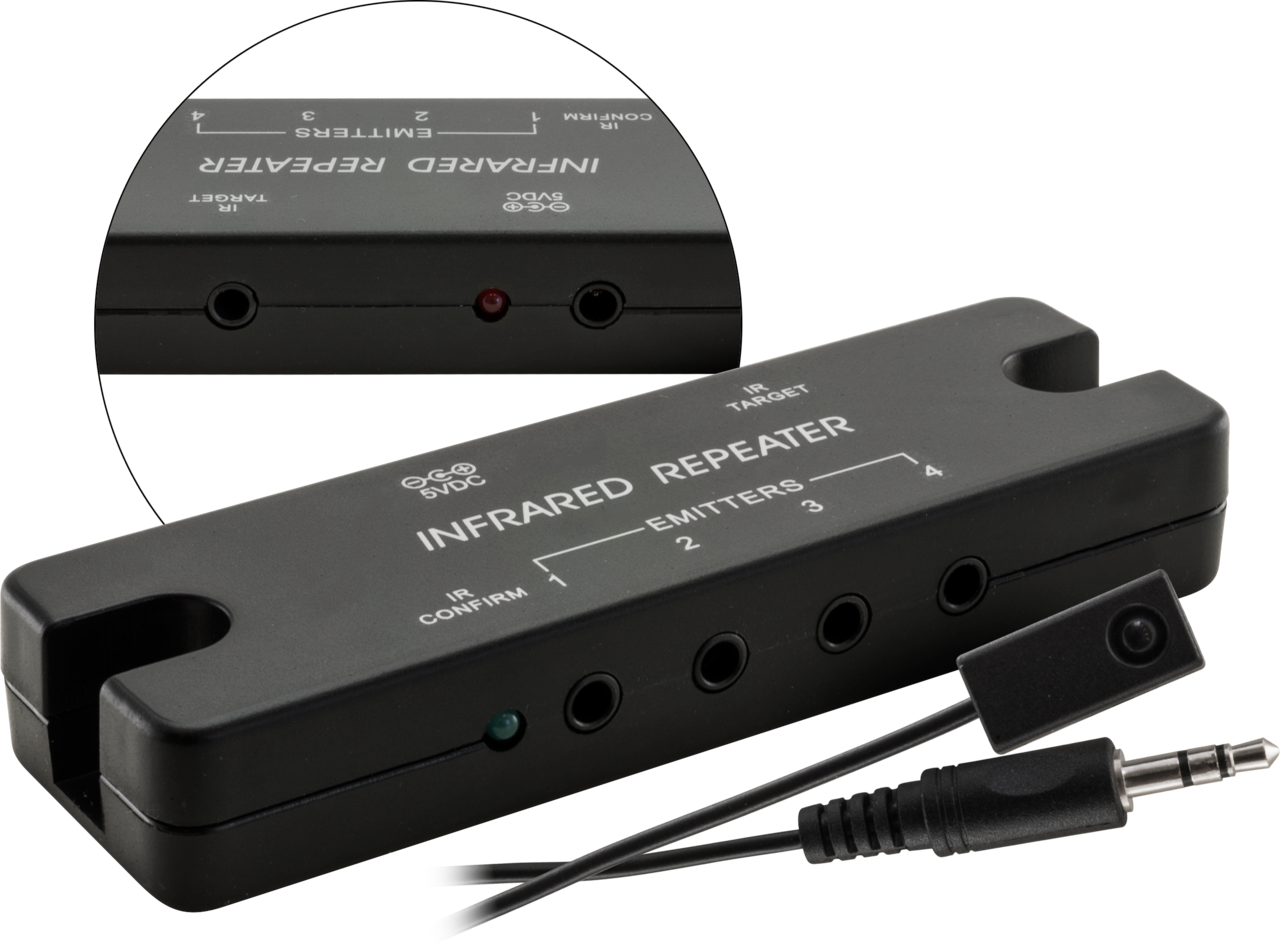

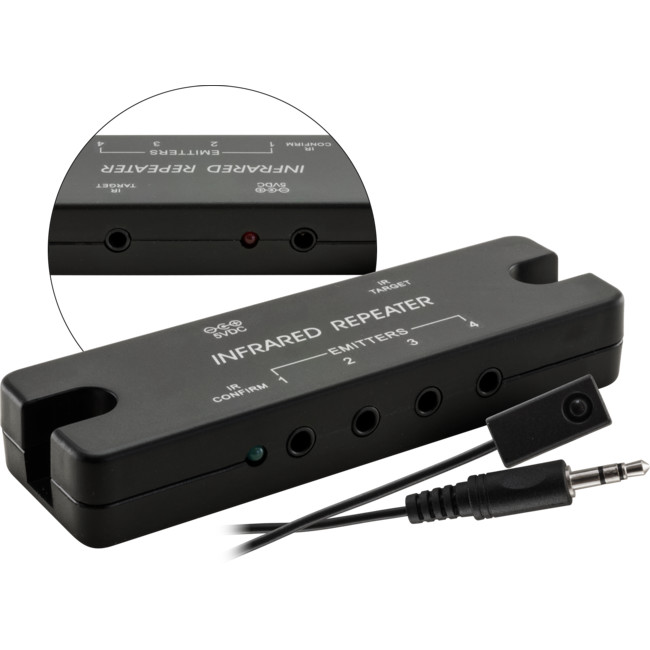

PRO1326 COMPACT IR REPEATER KIT

FOXTEL IQ COMPATIBLE

Code: 37168700

0.2350 kg
9328202015204
EACH
32
In Stock
DON'T PAY $49.5
$20 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

Hide your AV equipment in a cupboard or rack without losing the ability to control them with their Remote Controls. Installing the Compact IR Repeater kit is quick and simple, and expandable offering extra output ports for more emitters/equipment!

Features

  • Four amplified emitter output connections
  • convenient IR confirmation LED
  • Power indication LED
  • Compact size for mounting near audio equipment
  • IR receiver and emitters supplied
  • Compatible with Foxtel IQ2

In The Box

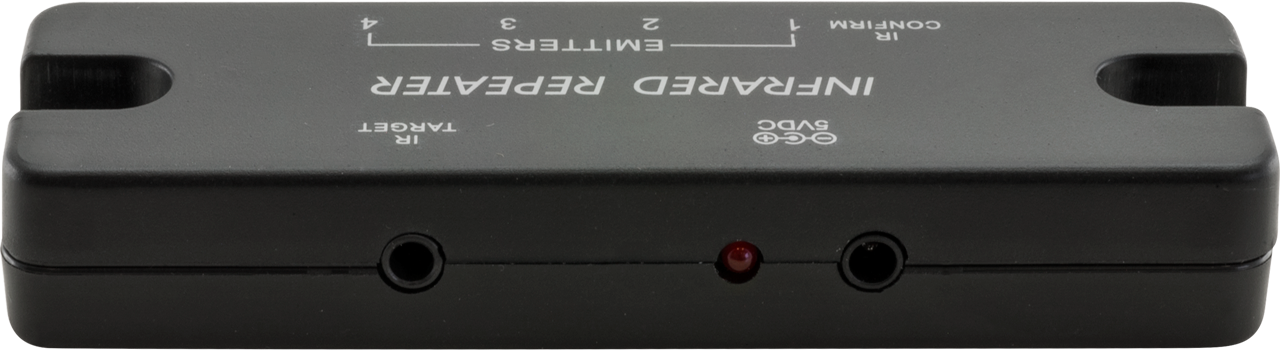

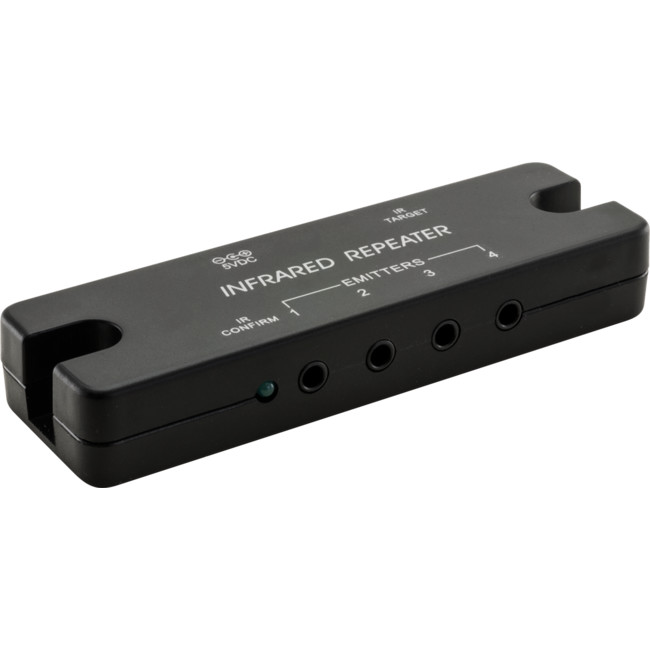

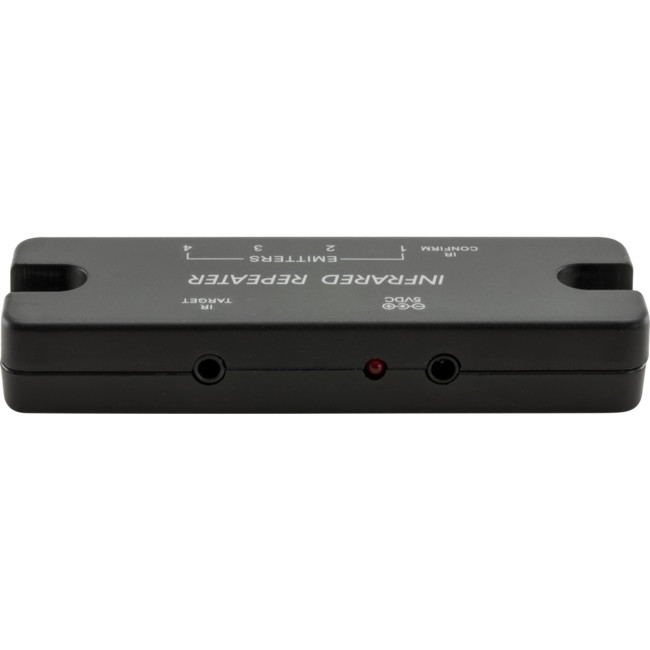

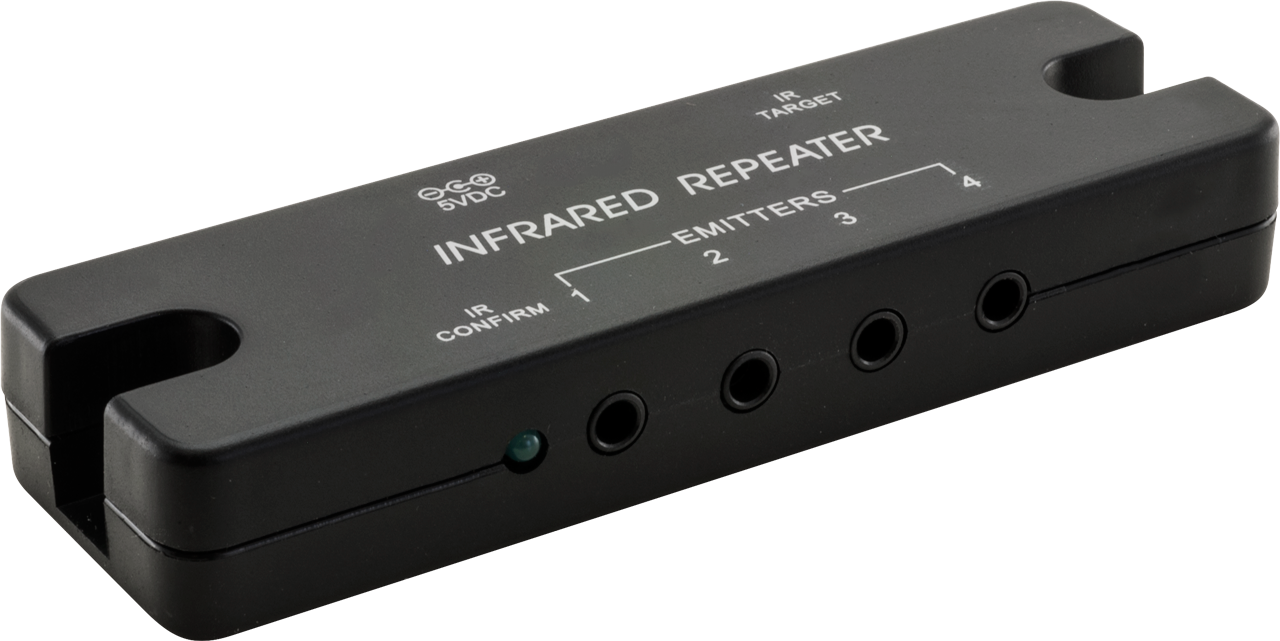

  • 1x Compact IR Repeater Box

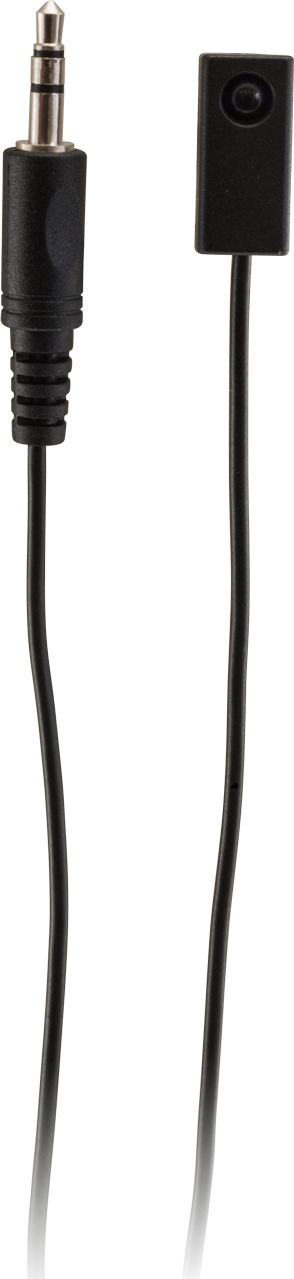

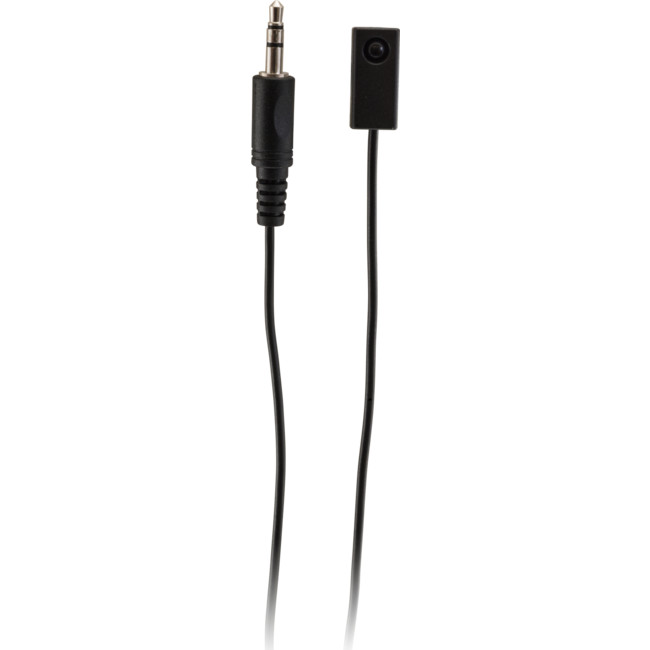

  • 1x IR Receiver (3.5mm Stereo plug)

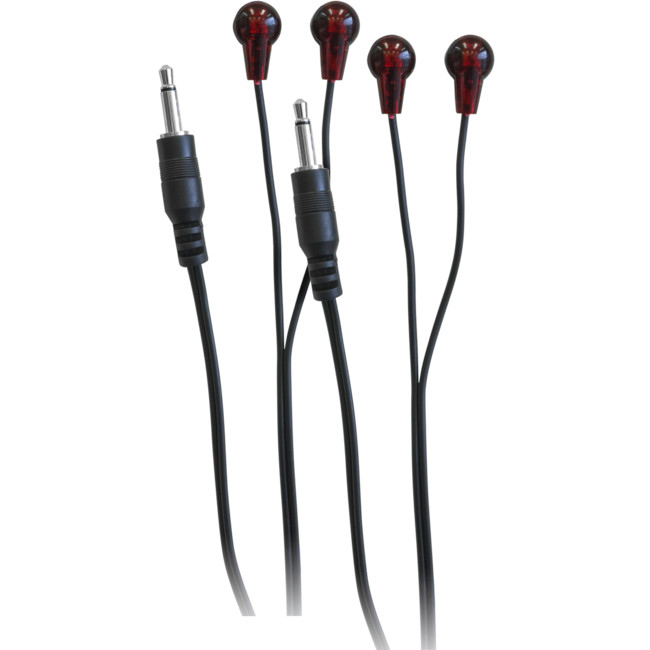

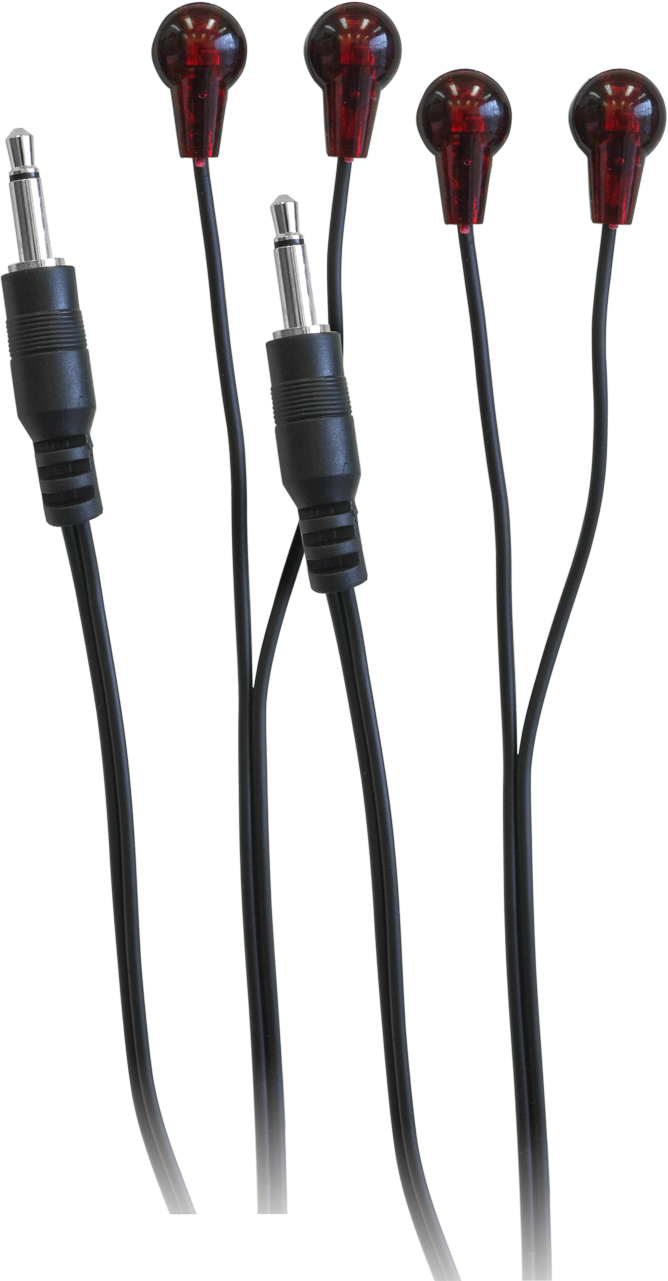

  • 2x Dual IR Emitters (3.5mm Mono plug)
  • 1x Power Adapter (5VDC / 500mA)
  • 2x Mounting Screws

Specifications

Repeater Box Receive/Transmit Frequency 38kHz ~ 56kHz
Power 5VDC / 500mA
Dimensions 104x32x17mm
Weight 25g
IR Receiver Range 40ft @ 38kHz
25ft @ 56kHz
Connector 3.5mm stereo plug
  Tip: Signal
Ring: V
Sleeve: Gnd
Cable Length 3metres
Dimensions 20x9.4x7mm (excl cable)
Weight 21g
IR Emitter Emitters/LEDs 2x (Dual)
IR Wavelength 940nm
Cable Length 3metres
Connector 3.5mm mono plug
Tip: Signal
Sleeve: Gnd

FAQs

Can I use the PRO1326 with other Pro2 accessorieslike IR hubs, IR targets and IR wall plates?
The accessories are designed to be compatible with the PRO1187 IR block but not the PRO1326. Since the Vcc output voltage from IR Receiver socket (on thePRO1326) is 5 volts (not 12 volts like the PRO1183) so you can?t connect the output of the PRO1326 to many of the otherPro2 IR accessories.

Why the IR confirmation blue LED stays on?

Please make sure IR target has been plugged in. Once plugged in, the IR confirmatino light will be off and only blinks when it receives IR signal.
