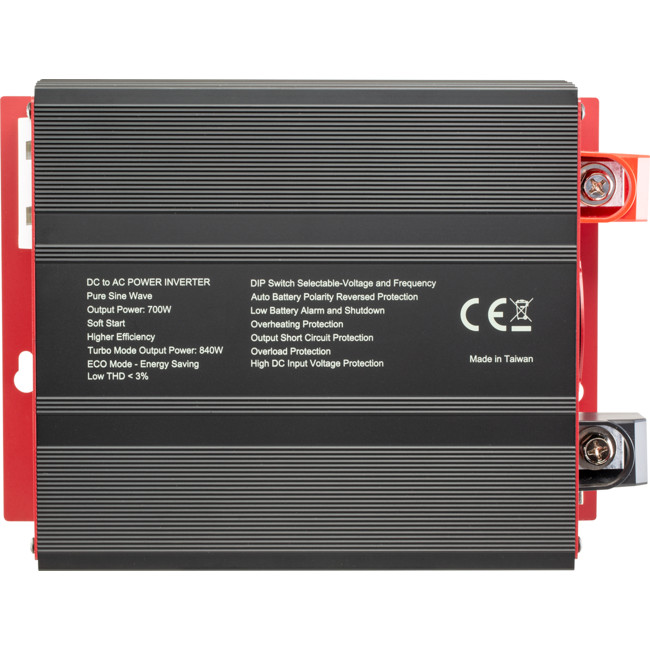

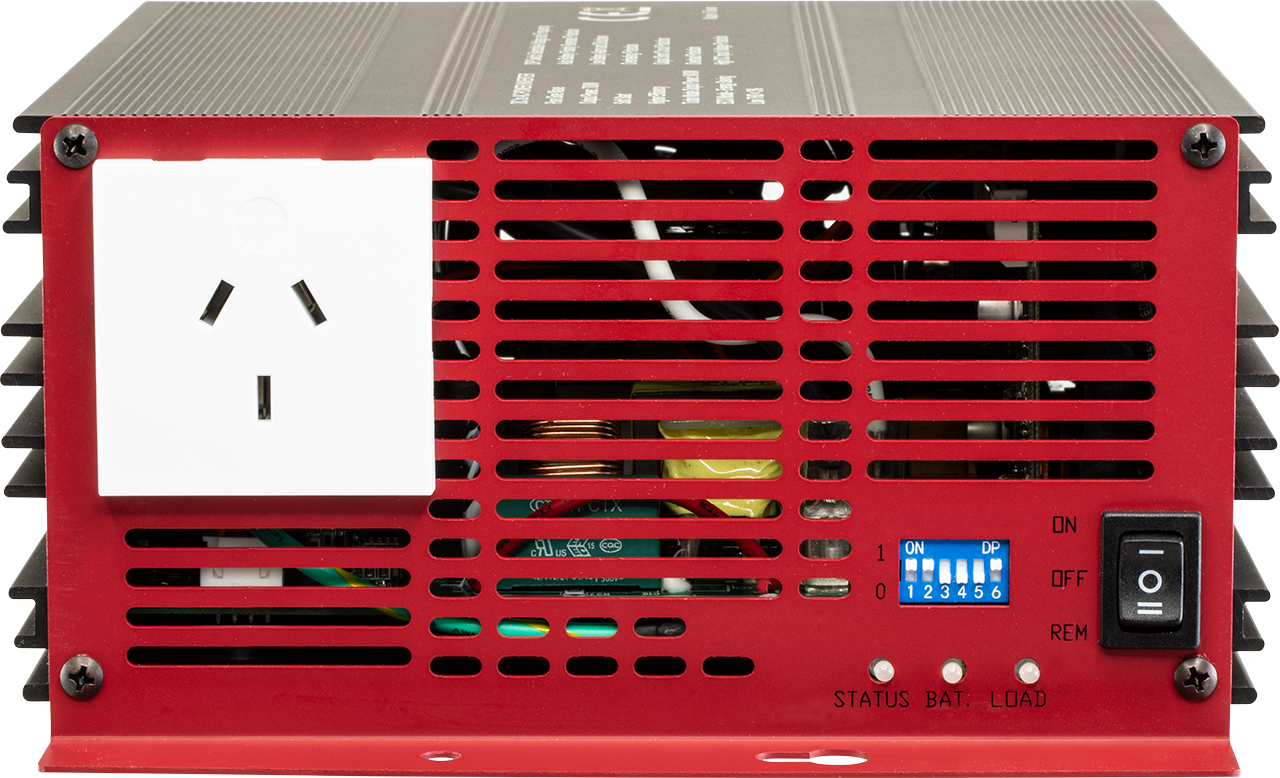

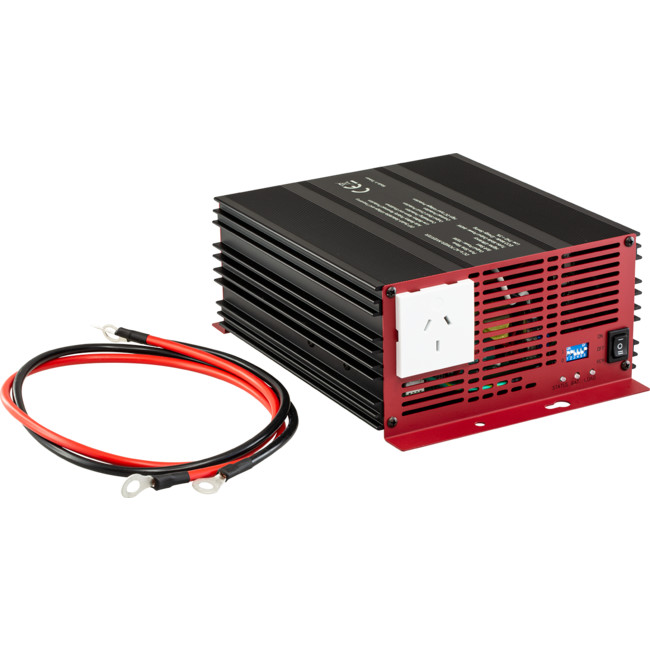

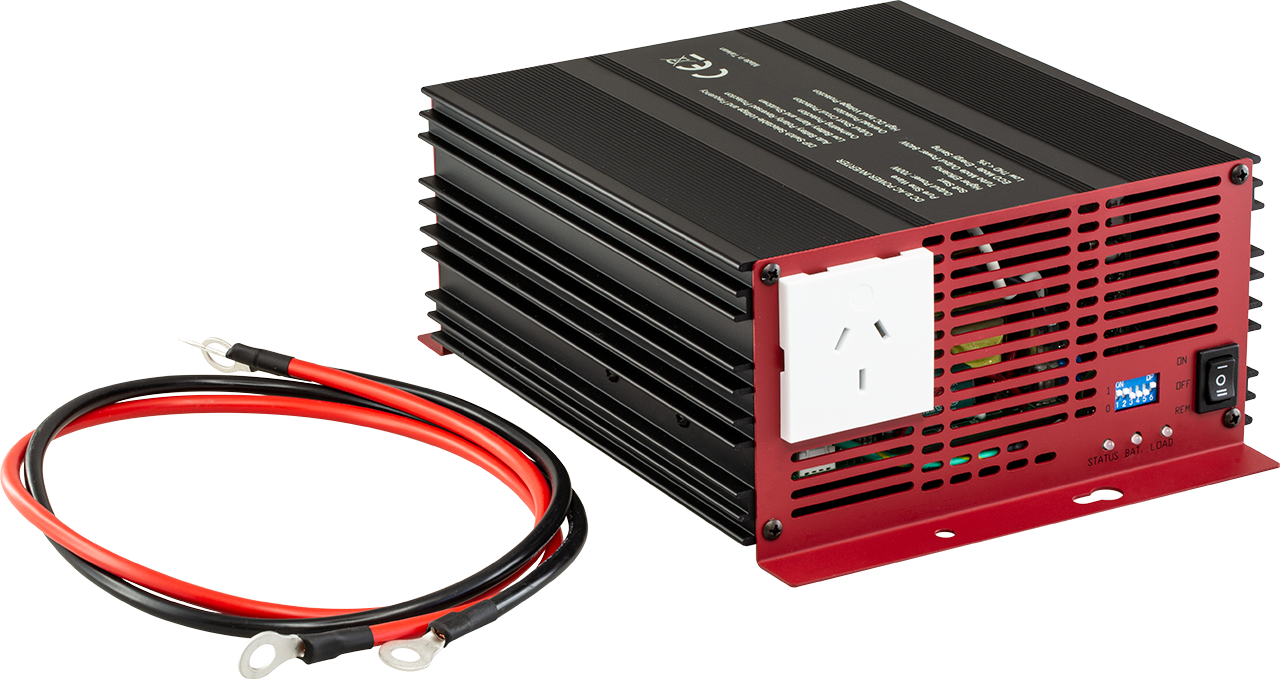

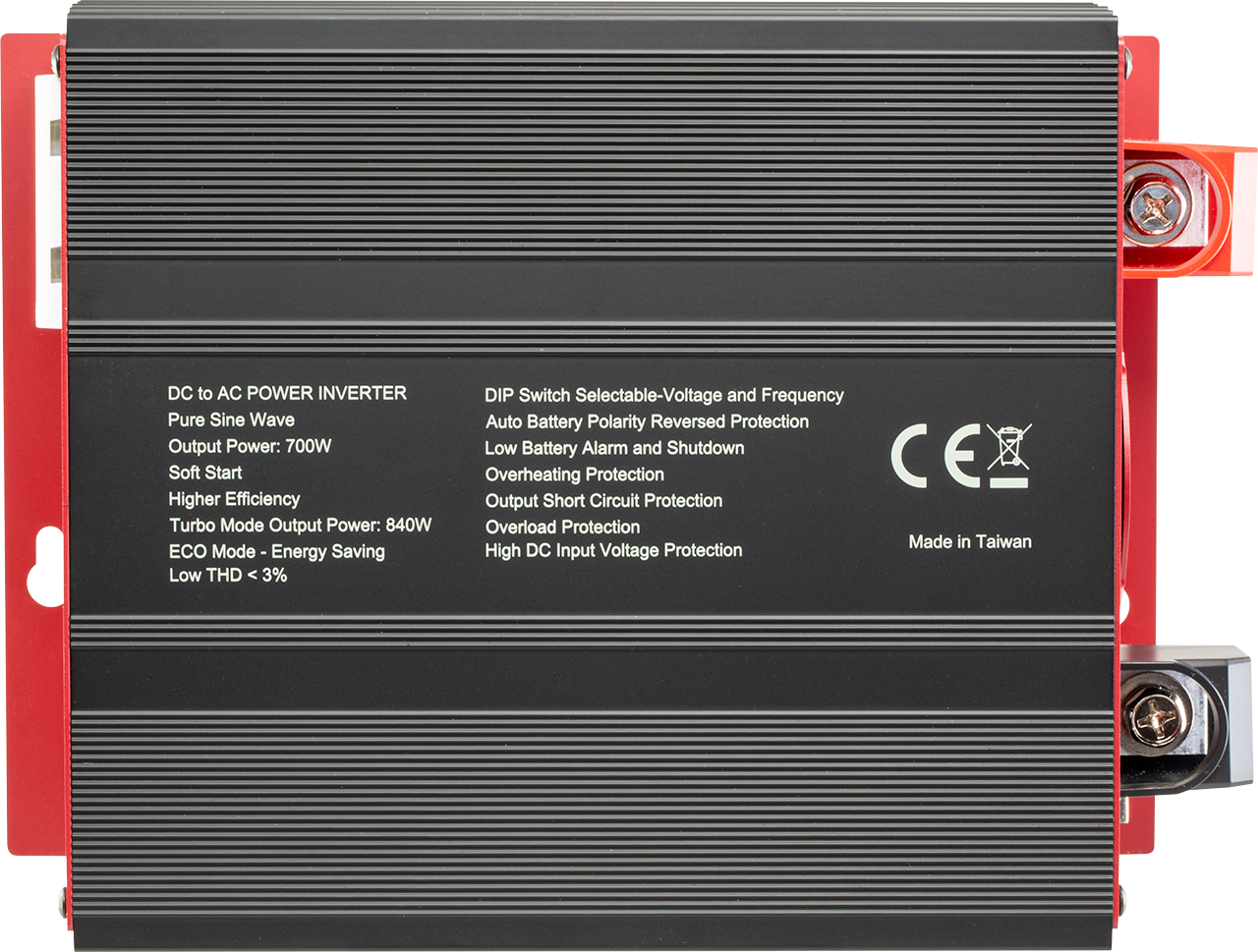

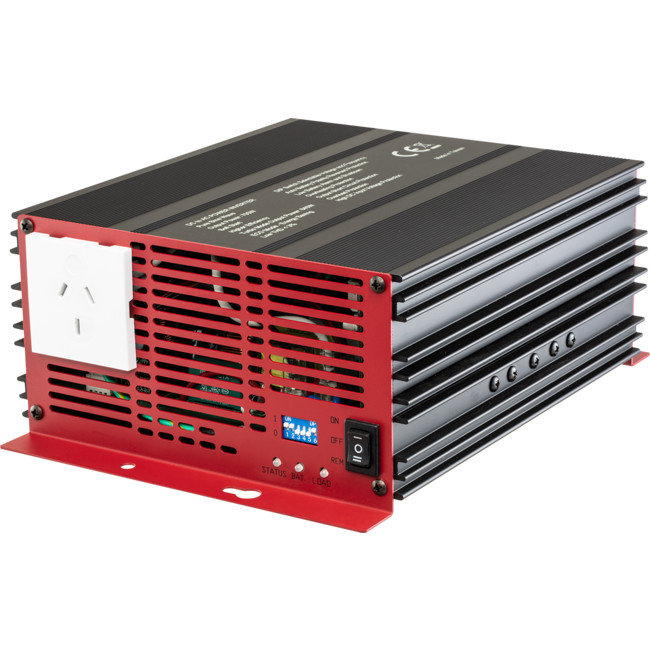

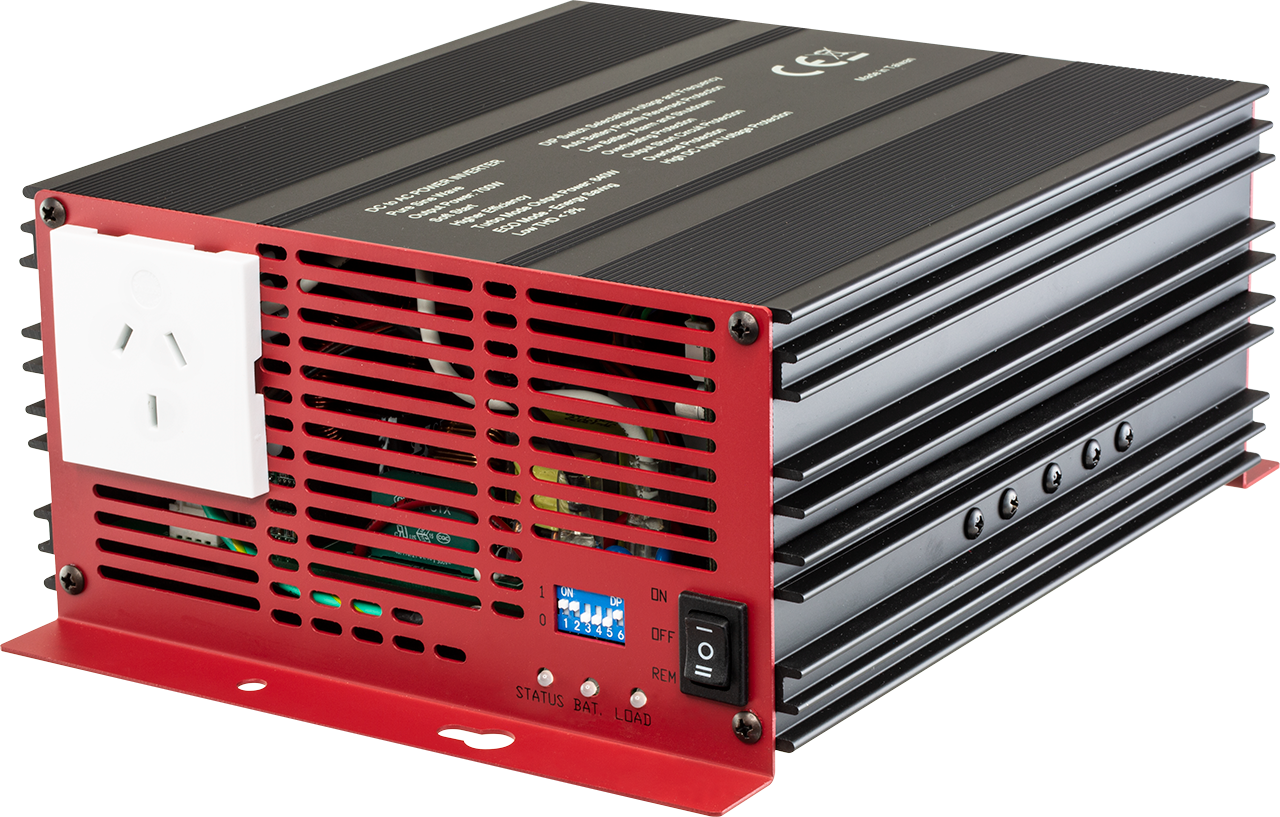

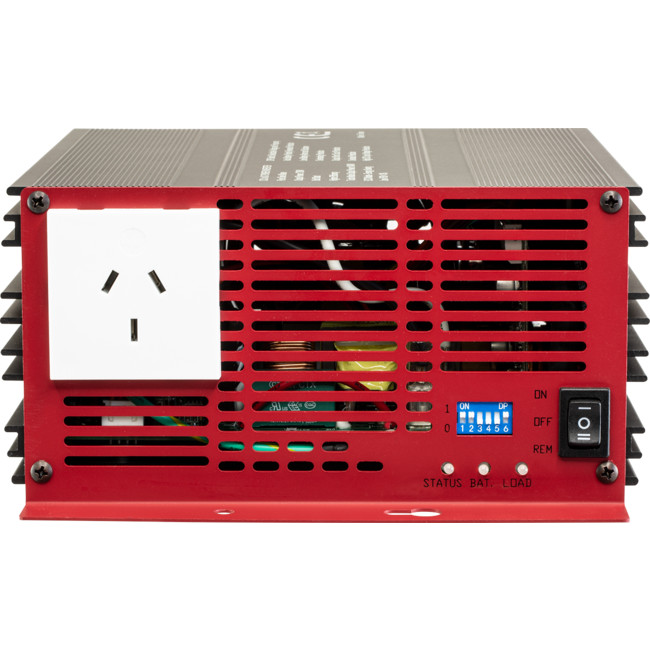

TSI700W 700W TRUE SINE WAVE INVERTER

Code: 33779035

3.60 kg
9328202032287
EACH
3
Low Stock
$495 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

This is a state-of-the-art DC to AC pure sine wave power inverter. With advanced digital signal processing technology, the power inverter has multiple functions such as power turbo mode, power-saving mode, adjustable output voltage / frequency, fan speed control etc.
The power inverter has outstanding protection included input DC polarity reversed protection, input DC over/under voltage protection, internal over-temperature protection, overload protection and output short circuit protection.

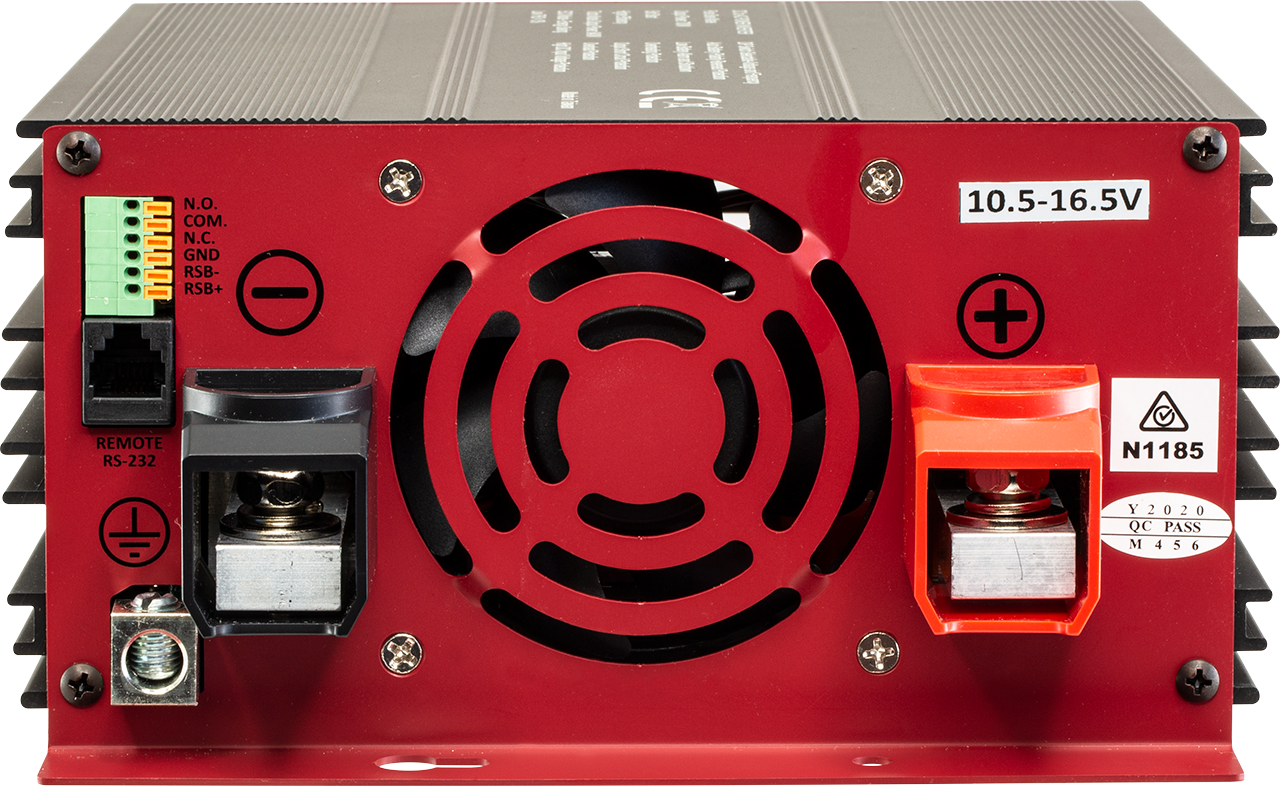

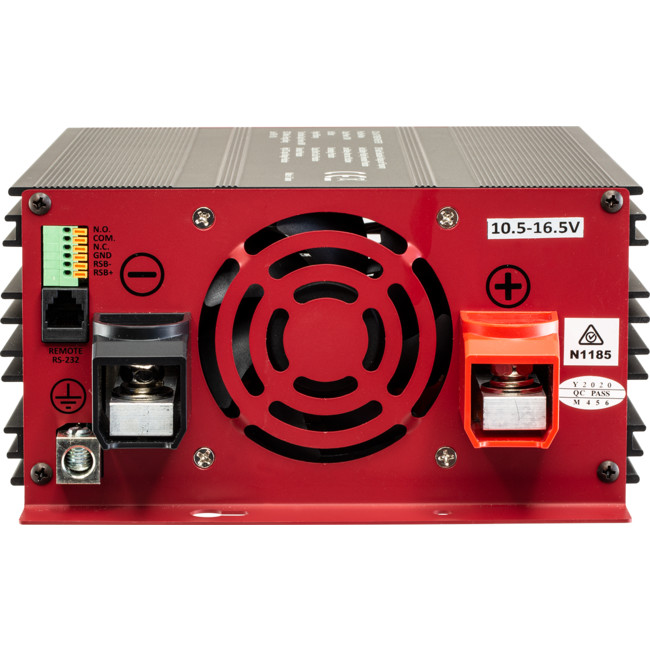

With RS232 communication port, it can be easily monitor the status of the power inverter.

Three types of remote controls available as optional accessories, regular or with LCD display, or Bluetooth ( Android system only)

Features

  • DC input polarity reversed protection: no components will be damaged;
  • Input DC over/under voltage protection;
  • Internal over-temperature protection;
  • Output overload protection;
  • Output short circuit protection;
  • Adjustable AC output voltage and frequency;
  • Fan speed control;
  • ECO mode available: power consumption <1W;
  • Turbo mode available: 120% continuous output power when temperature <30 ? C;
  • High efficiency: max up to 93%;
  • Low THD: <3.0%;
  • With RS232 communication port;
  • With dry contact terminal;
  • Optional remote LCD display controller;
  • Optional regular remote controller;
  • Optional Bluetooth remote controller; (Android system only)

Specifications

Capacity 700W
Output Power
Continuous 700W
Surge 1400W
Turbo Mode 840W
Output Voltage 200VAC / 220VAC / 230VAC / 240VAC (Dip Switch Selectable)
Output Frequency 50Hz / 60Hz (Dip Switch Selectable)
Wave Form Pure Sine Wave
THD <3.0% (Normal Voltage * 1.1)
Input Voltage Range
12VDC 10.5VDC ~ 16.5VDC
24VDC 21.0VDC ~ 33.0VDC
Max Efficiency
12VDC 92%
24VDC 93%
No Load Power Consumption
12VDC < 1.26A
24VDC < 0.63A
ECO Mode < 1W
High Battery Alarm
12VDC 16.0VDC
24VDC 32.0VDC
Protection DC Input Polarity Reversed / DC UnderVoltage / DC Over Voltage /
Output Short Circuit / Overload / Over Temperature
Environment
Operating Temperature
Storage Temperature
Humidity
-20 ? C ~ 60 ? C (De-rating Begin 40 ? C ~ 60 ? C)
-30 ? C ~ 70 ? C
95%, non-condensing
Dimension (L * W * H) mm 210*187*96
Weight (kgs) 2.5
Remote Control (Option) Yes
GFCI (Option) Yes
*GFCI receptacles
