SM530C 5.1V DC 3A POWER SUPPLY

5.1V 3A Power Supply designed specifically for the Raspberry Pi 4

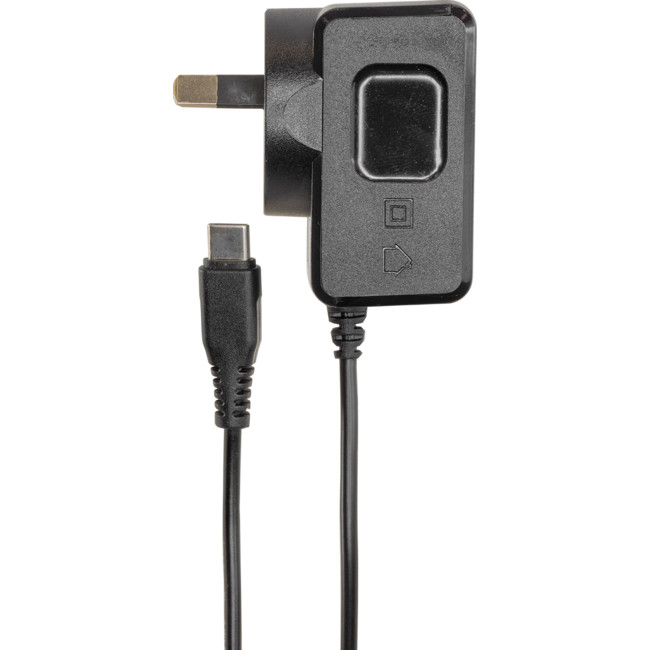

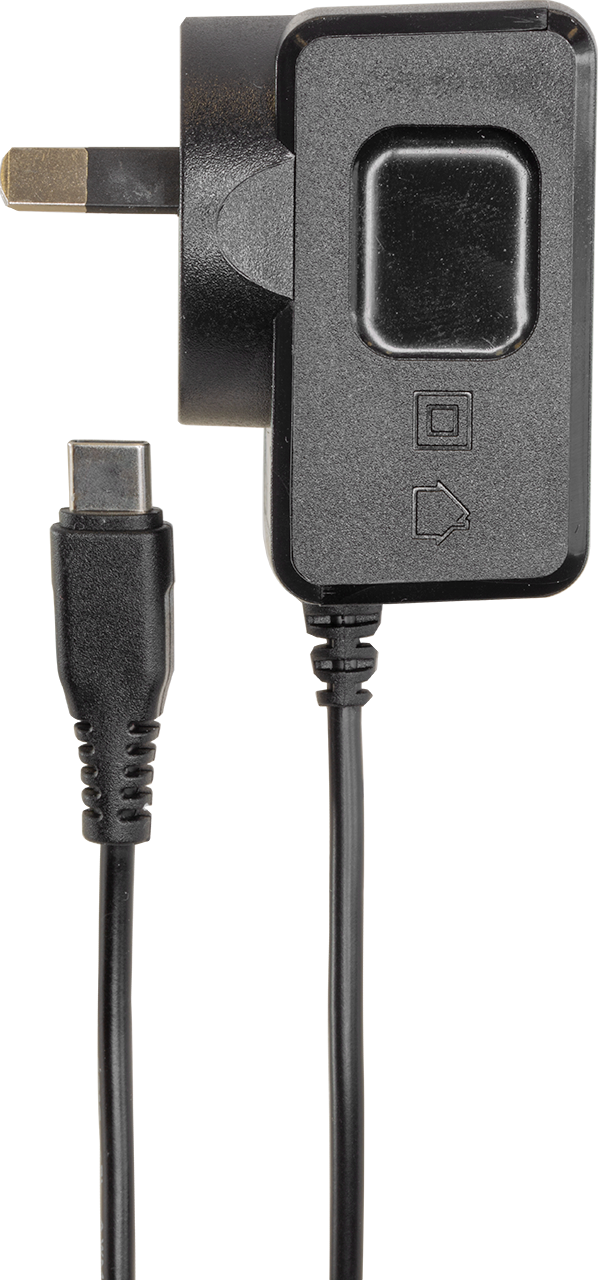

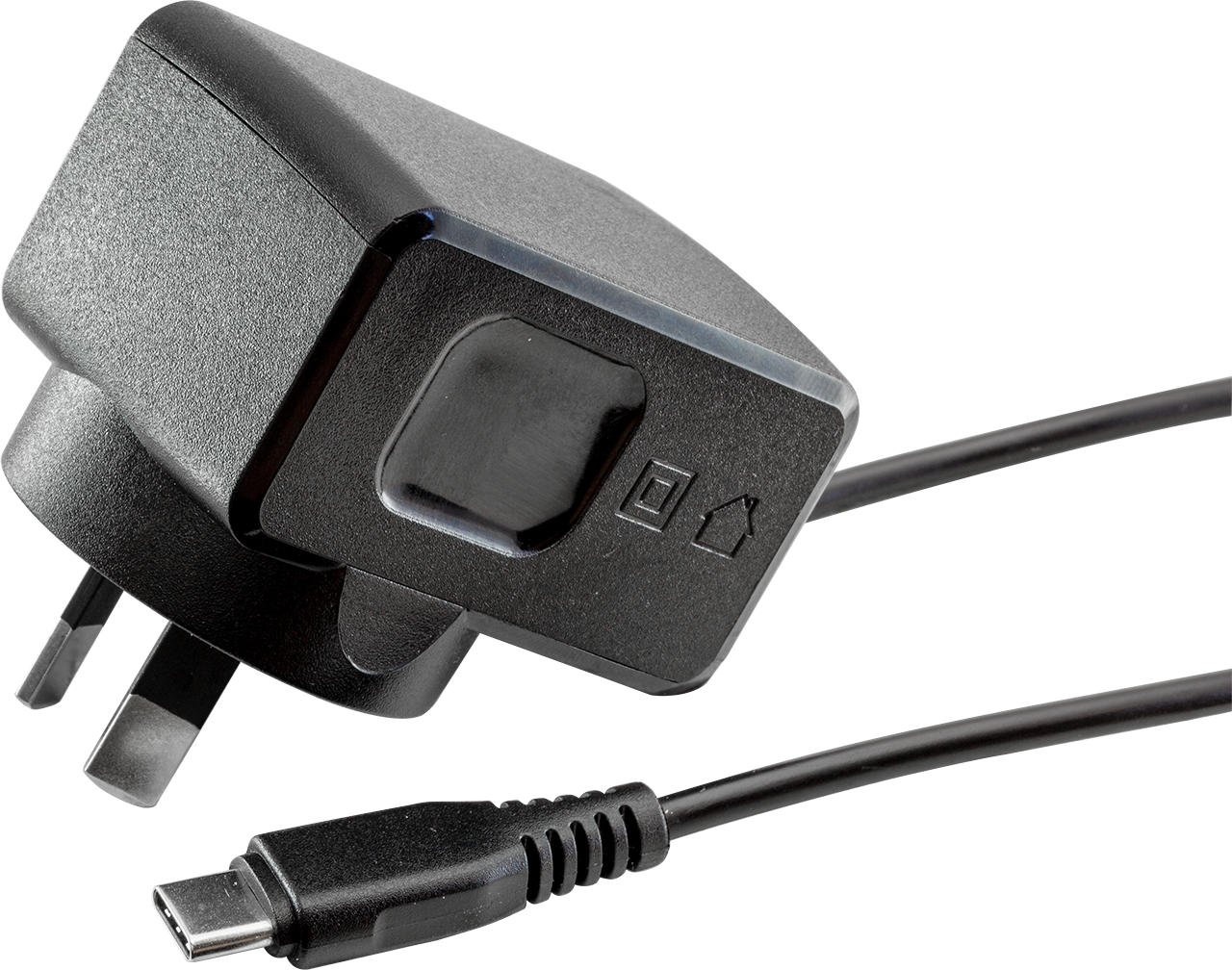

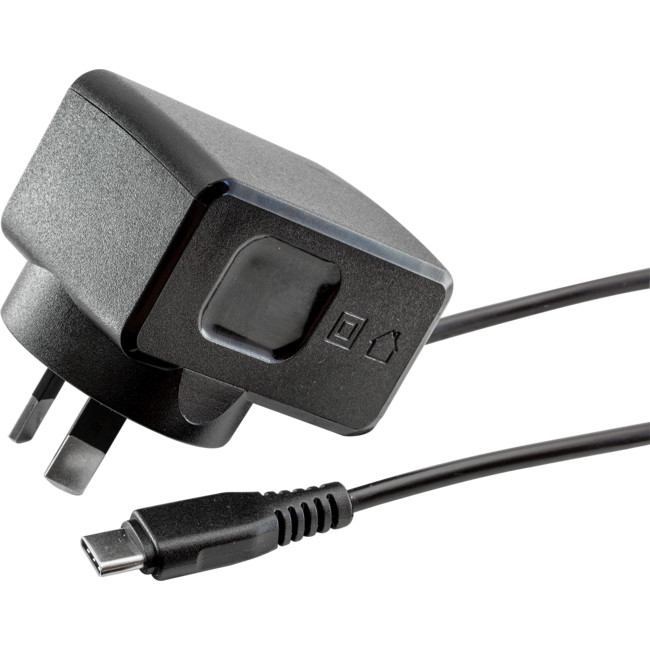

The new Raspberry Pi 4 is out and now features a type-C port for power instead of the ageing micro-USB. The Doss SM534C was designed specifically for the Raspberry Pi 4 and is fully approved for Australia!

Your powerboard will love the compact and narrow design, fitting right in with the rest of your devices without requiring wide-spaced sockets on your board!

• Compatible with Raspberry Pi 4 Model B (all variants)
• AU plug
• USB Type-C plug
• 5.1V 3A output providing reliable power
• High quality and durable 18 gauge 1.2 metre cable
• Compact and narrow design fits in anyway powerboard

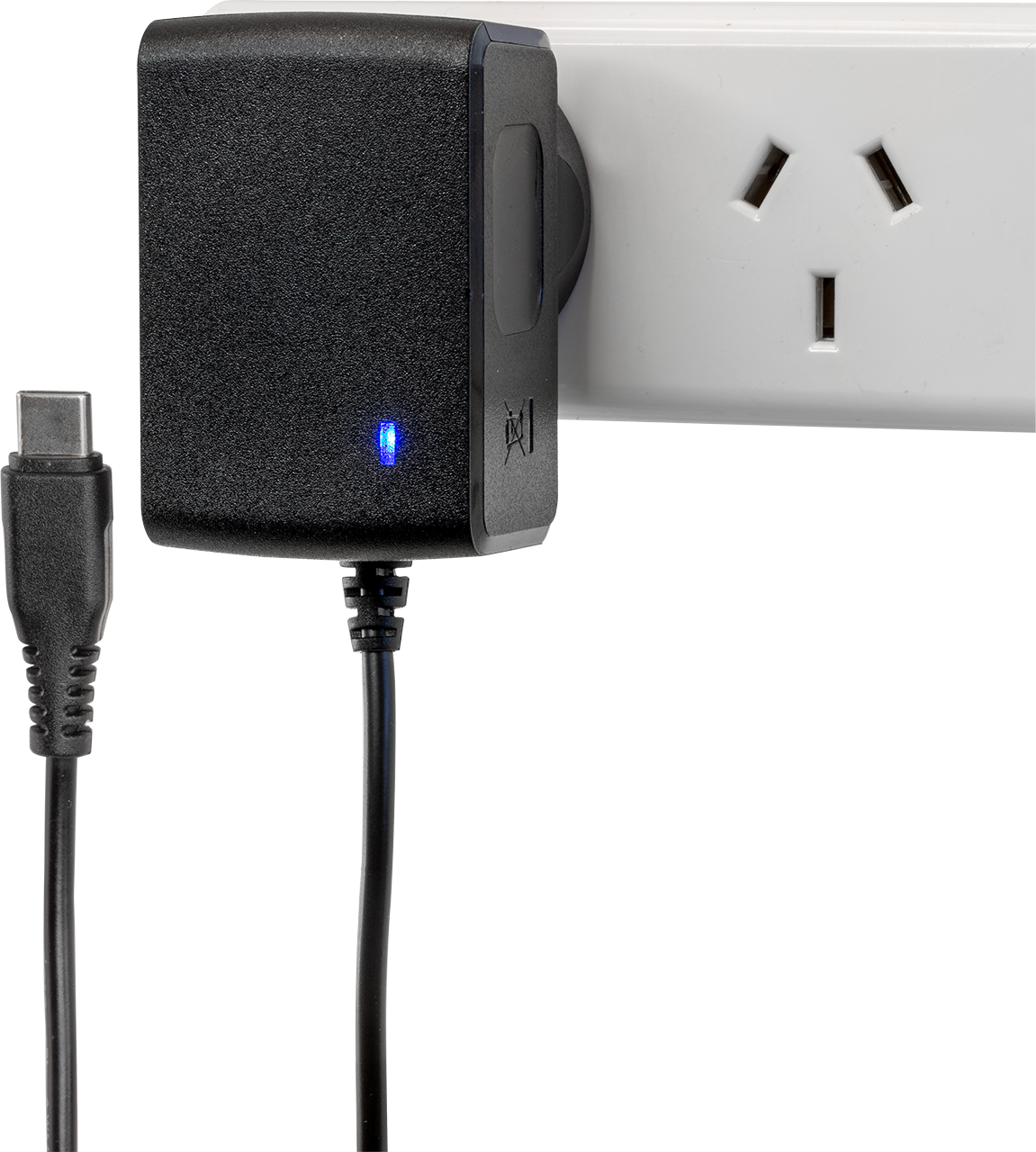

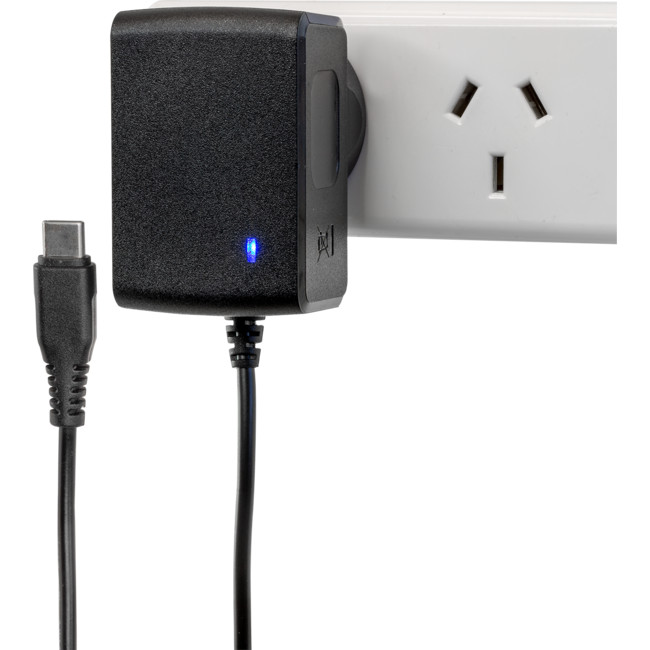

• Blue power indicator LED
• Switch mode and regulated
• Short-circuit proof
• Fully approved for Australia

Specifications

• Input: 100~230V ~ 50/60Hz 0.4A
• Output: 5.1V 3000mA 15.3W LPS

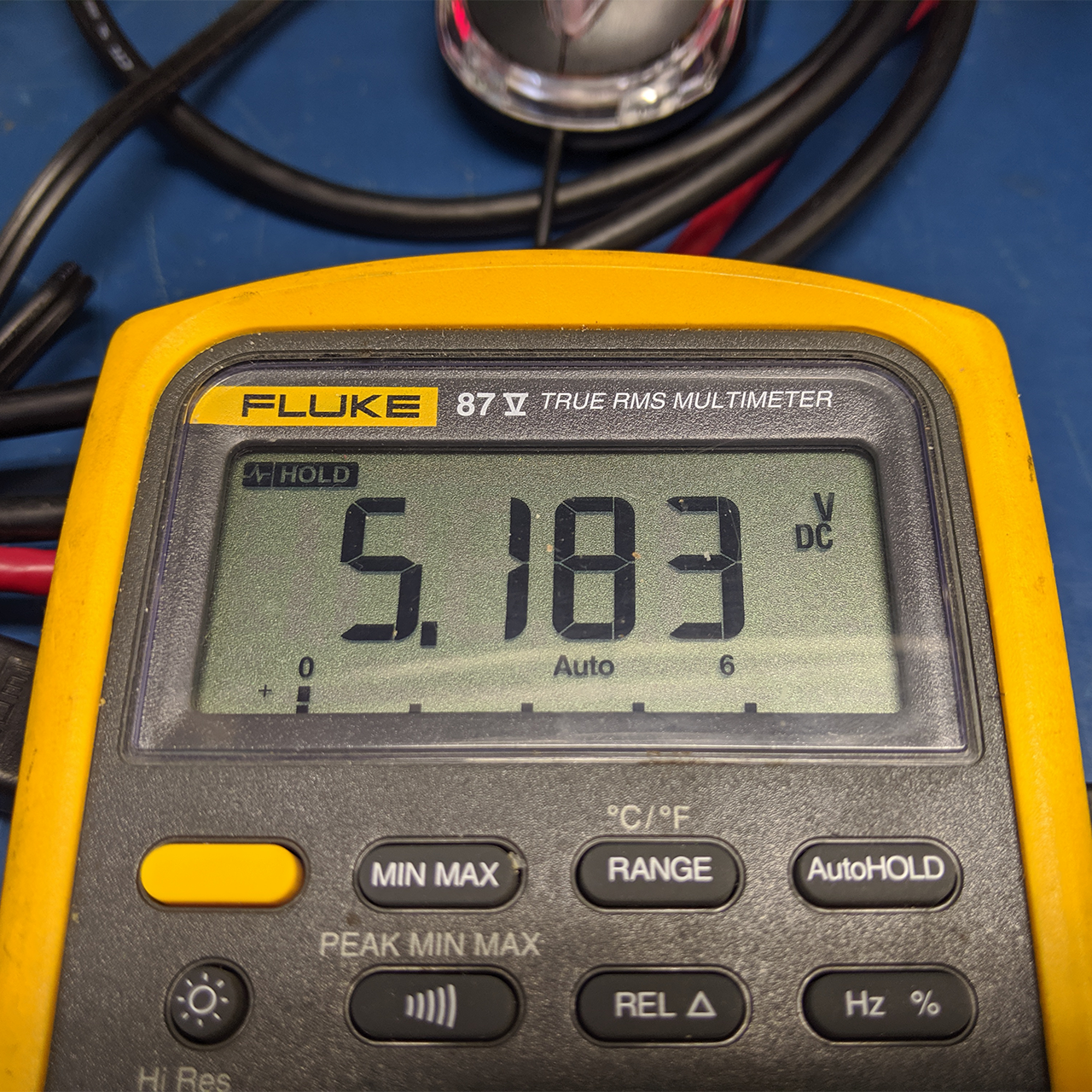

  Actual voltage tested at 5.18V
• Cable: 1.2 metre 18AWG
• Efficiency level: VI
• HWD: 31 (H) x 34.2 (W) x 58 (D) mm
• Approval number: ULL-100656

Why does the packaging and label state 5.0V?

While the SM530C was going through the certification and approval process, the initial sample was 5.0V. Since then we have revised the design and have tested the output at an average 5.18V. Please note the voltage outputs always have an allowed tolerance that could be less or more.

Is it safe?

Doss have been in the power supply business for decades. Our range of switch mode, bench-top, DC and AC power supplies are being used all across Australia from households to schools, to labs, and more!
