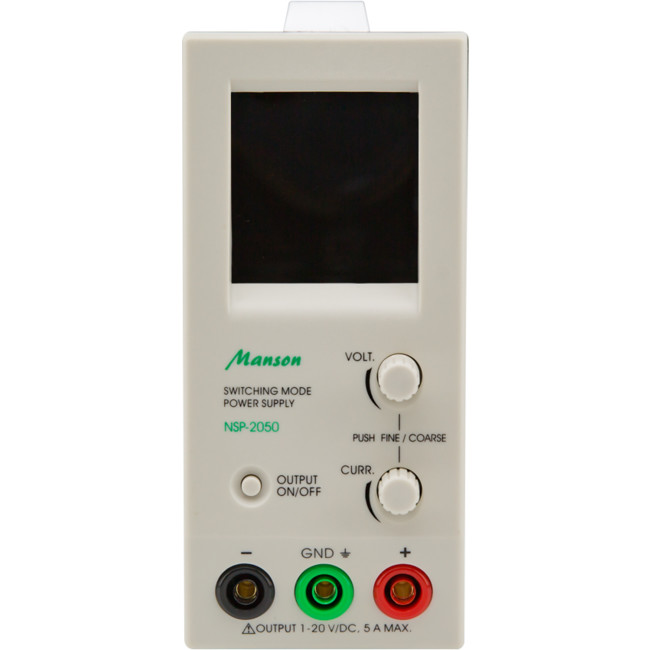

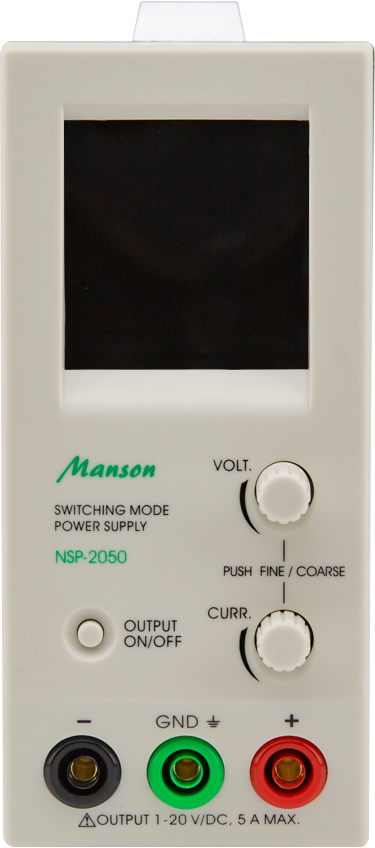

NSP2050 1-20VDC 5A SLIM MULTI-VOLTAGE

1-20VDC 5A SLIM MULTI-VOLTAGE

SWITCHMODE POWER SUPPLY

This series of 100W Switching Mode Power Supplies with Current Limiting Control is designed with the objectives of high accuracy, compactness and easy portability.

4 digit display LCD of voltage and current for high precision. The slim tower housing makes it ideal for tight work bench. It is light and conviently portable and a collapsible handle. The large and illuminated LCD display provides clear and sharp radings even under dim light. The output power on-off switch allows safe and handy operations. The Tracking OVP (output over voltage protection) ensures a better and tighter protection to voltage sensitive loads. It has good line and load regulations, high efficiency and low ripple and nose that are tyical of advanced switching mode power supply.

It meets the CE safety standards EN-61010 for laboratory grade power supply and respective EMC standards.

Features

• Automatic Cross over CV and CC mode
• Illuminated LCD indications of A, V, Output ON/OFF, CC and CV
• 4 digit displays of Volt and Amp meters
• Voltage and Current Controls
• Compact slim tower housing with collapsible handle
• Output power on off switch at front panel
• Natural Convection
• Tracking OVP (output over voltage protection), Short Circuit, overload and over temperature protections
• Good line, load regulations and low ruppple and noise
• Rotary encoder control
• CE approvals

Specifications

Includes IEC mains cable, test leads (safety plugs to alligator clips) and instruction manual

NSP-xxxx Output On/Off Function

Some novice users may find this feature confusing, assuming that when the device is powered then there is always output, or that this button turns the unit on or off.This video seeks to explain this feature.

Using the 3-stage adjustment knobs

Setting the Current and Voltage
