THOR DRM95-30A HIGH CAPACITY AC MAINS FILTERED PROTECTION
The Ultimate protection
SmartBoard Smart Series with unique Dynamic Active Tracking™ is the most comprehensive and advance solution to protect your electronic equipment.
Improving flickering from LED or reducing re-programming from PLC and specialised lighting systems like CBUS/Dynaliteto stopping spikes/surges or electrical noise contaminating whole circuits.
DRM95 is relied on in these and many more similar type applications.
The Thor SmartBrain not only protects from surges, it also filters and cleans electrical frequency noise to give you unbeatable sound and video quality.
Enjoy a truer AV experience with better picture quality and purer sound.
Can also improve computer gaming speeds and fix internet dropouts.
Key Features
- 2320 Joules Power protection
- Max EMI / RFI noise filtration
- 1 Nano second reaction speed
- Dynamic Active tracking filter
- Spike surge protection
- 30 amp
- Needs Electrician to install
- Maunufactured in Australia
- 6 year warranty replacement
Technical Smarts
- Product Dimensions: 105mm(W) x 96mm(H) x 60mm(D)
- Supply voltage 240/V AC 50Hz
- Maximum current rating 30amps/7200 W (VA)
- Clamping Voltage 275VAC
- Reaction speed less than 1 nanosecond
- Maximum transient spike impulse current (Amps) 76,000 amps
- Maximum Energy Dissipation (Joules) 2320 Joules
- EMI/RFI Noise Reduction Filter Types - Dynamic Active Tracking (SmartBrain Active Filter)
- Protected AC Incorporating 32 separate protection components
- Earth Leakage Range Less than 1 milli amp
- Operating Conditions Indoor/AC Mains
- Operating Temperatures -10C/ 60C
- Protection Modes on all 3 conductors Active/Neutral/Earth

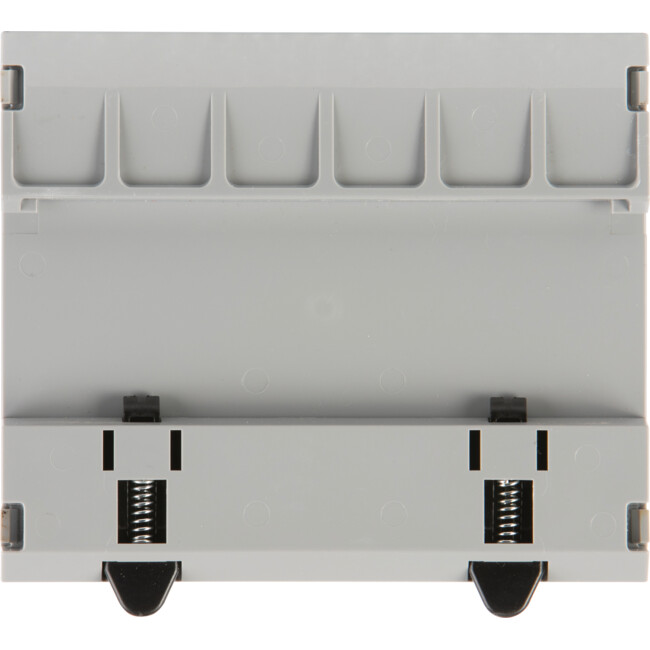

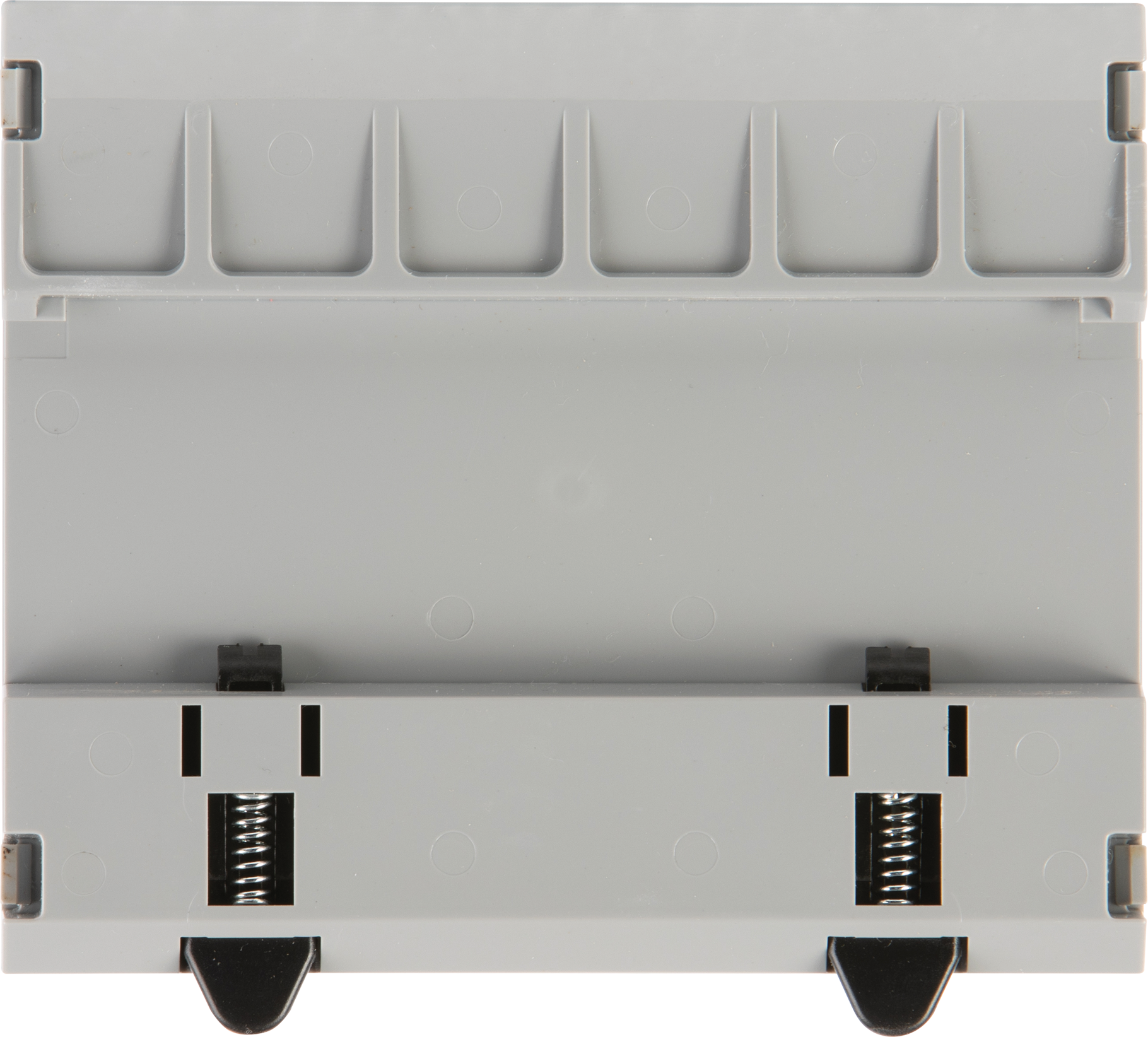

- Enclosure - Wide din rail 105mm
- Model No. DRM95 30A
Inside the Brain
SmartBrain has a premium filter technology called DynamicActive Tracking.
This unique filter has the best chance of "cleaning" electrical noise because it shields around 40% more frequencies when compared to other filters.
It is an Active filter and can "clean" unwanted frequencies on both the upward curve and the downward curve of a sine wave (power).
Most other filters only work at the crest of the wave andtherefore miss a huge section of these unwanted frequencies that can generate noise on sensitive electronic devices.
Protects
- Whole circuit filtered protection
- LED lighting systems
- CBUS and Dynalite systems
- AV and sound circuits
- Air conditioners
- PCB or other type sensitive electronics
