THOR E1/45S SMART PROTECT 4
SMART TECHNOLOGY POWER PROTECTION AND FILTRATION
Universal Filter and Surge Protector with 4 outlets with space saving angle plug for power packs.
Earth detection and protection LED’s, Coax/F-Type Aerial and RJ45 Data Protection.
1 metre extension cord, space saving flat head plug,
20 separate AC components plus 10 DC components provide apowerful barrier against transient spikes and interferences ? major causes of hardware and data failure.
Multiple application identity tags, 6-year product replacement warranty, and $75,000 connected equipment warranty.
What's different about Thor - CHIPS
| THOR filters more unwanted noise from power lines for best possible picture and sound as well as fastest streaming and other signal processing |
| THOR has the highest joule ratings in their classesas well as a bulletproof design for handing power spikes ofany size or duration |
| Unlike designs which allow excessive power to reachplugged in products for some time THOR designs kick in and protect in less than one millionth of a second |
| All THOR products are backed by a Connected Equipment Warranty which will pay for the cost of surge damaged product repairs or replacement in the unlikely eventof failure |
| All THOR products use fire resistant technologies as well as overload failsafe circuits to ensure they protect lives just as much as products |
Key Features
- 3637 Joules Power protection
- High EMI / RFI noise filtration
- 1 Nano second reaction speed
- Up to $75K connected equipment warranty
- 4 PROTECTED OUTLETS
- EARTH DETECTION CIRCUIT
- LARGE PLUG ADAPTOR
- AERIAL PROTECTION
- PAY TV PROTECTION
- DATA/VOICE PROTECTION
- 1.2 M CABLE LENGTH
- FIRE RETARDENT
- 6 YEAR REPLACEMENT WARRANTY
Clever protection for smart technology
SmartProtect 4 does more than protect your valuable electronic equipment.
The space saving design now means you can have surge protection and filtration anywhere.
Smart Brain
The Thor SmartBrain not only protects from surges, it also filters and cleans electrical frequency noise to give you unbeatable sound and video quality.
Enjoy a truer AV experience with better picture quality and purer sound.
Protects
- OLED/LCD TV
- HIFI AND HOME THEATRE
- ACTIVE / PASSIVE SPEAKERS
- COMPUTERS - LAPTOP & TABLETS
- PRINTERS & SCANNERS
Ideal For
- Home Theatre
- High Definition TV
- Bedroom/Office AV
- Home office IT system
- Office computer system
TECHNICAL SMARTS
- Product Dimensions: 350mm (L) x 35mm (H) x 70mm (W)
- Supply voltage 240/V AC 50/Hz
- Maximum current rating 10amps/2400W(VA)
- Reaction time less than 1 nanosecond
- Maximum translent spike impulse current 86,000 amps (equivalent to 21,500 amps using UL 1449 standard)
- Maximum energy dissipation 3637 Joules (equivalent to 846 Joules using UL1449 standard)
- Protection modes (all 4 outlets protects on all 3 conductors). Active/Neutral, Active/Earth, Neutral/Earth
- EMI/RFI noise reduction filter type
- Total number of protected AC outlets: 4
- Pay TV'F' type connection: 1 in and 1 out

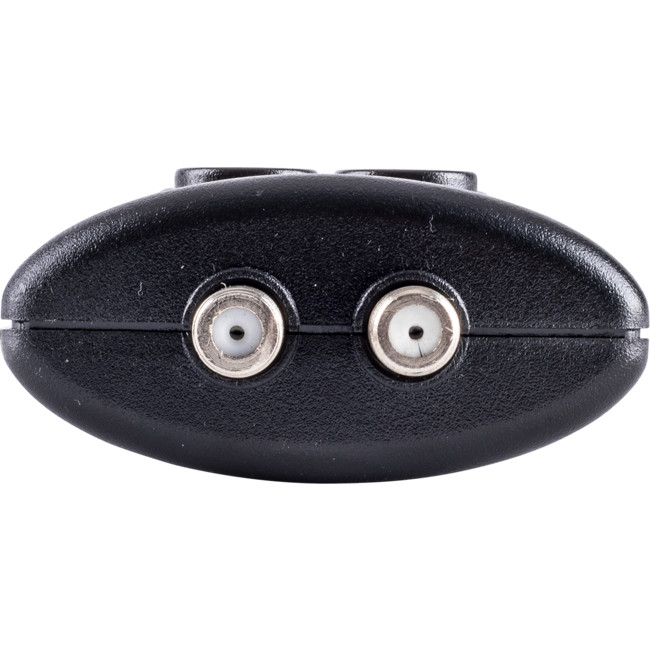

- AV/TV antenna coax connection: 1 in and 1 out
- RJ 45 data protection: 1 in and 1 out
- Earth potential rise protection
- Earth leakage range less than 1 milli amp
- Operating conditions: Indoor/AC mains
- Operating temperatures: -10C/ 60C
- Cable length: 1.2m
- Model No: E1/45S
INSIDE THE BRAIN
All serious power protection diverts excess energy to earth first.
If there is good earth connection then the protector will last longer.
E1/45S has an earth detection LED for this reason. SmartBrain entry level filter is a passive technology.
Managing to cover a more comprehensive range of shielding to like competitors by “cleaning” a wider range of unwanted frequency noise.
The filter works both ways. Stopping noise from robbingequipment performance as well as connected devices’ noise contaminating power.
