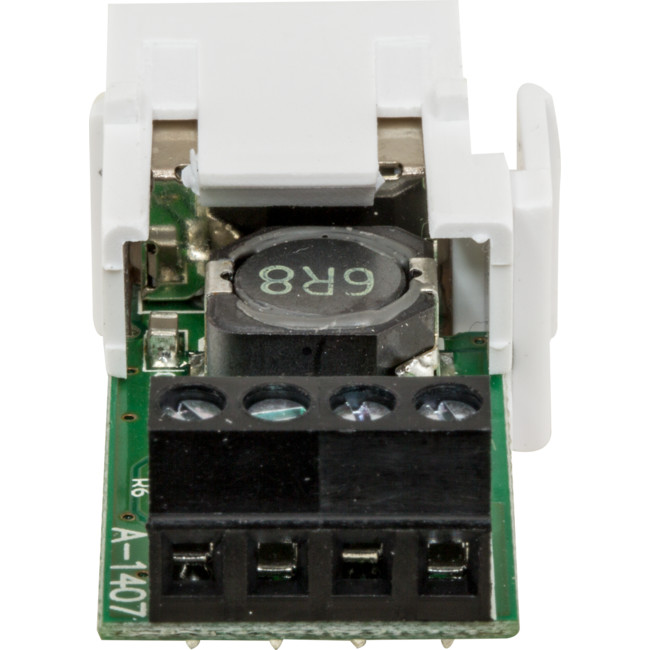

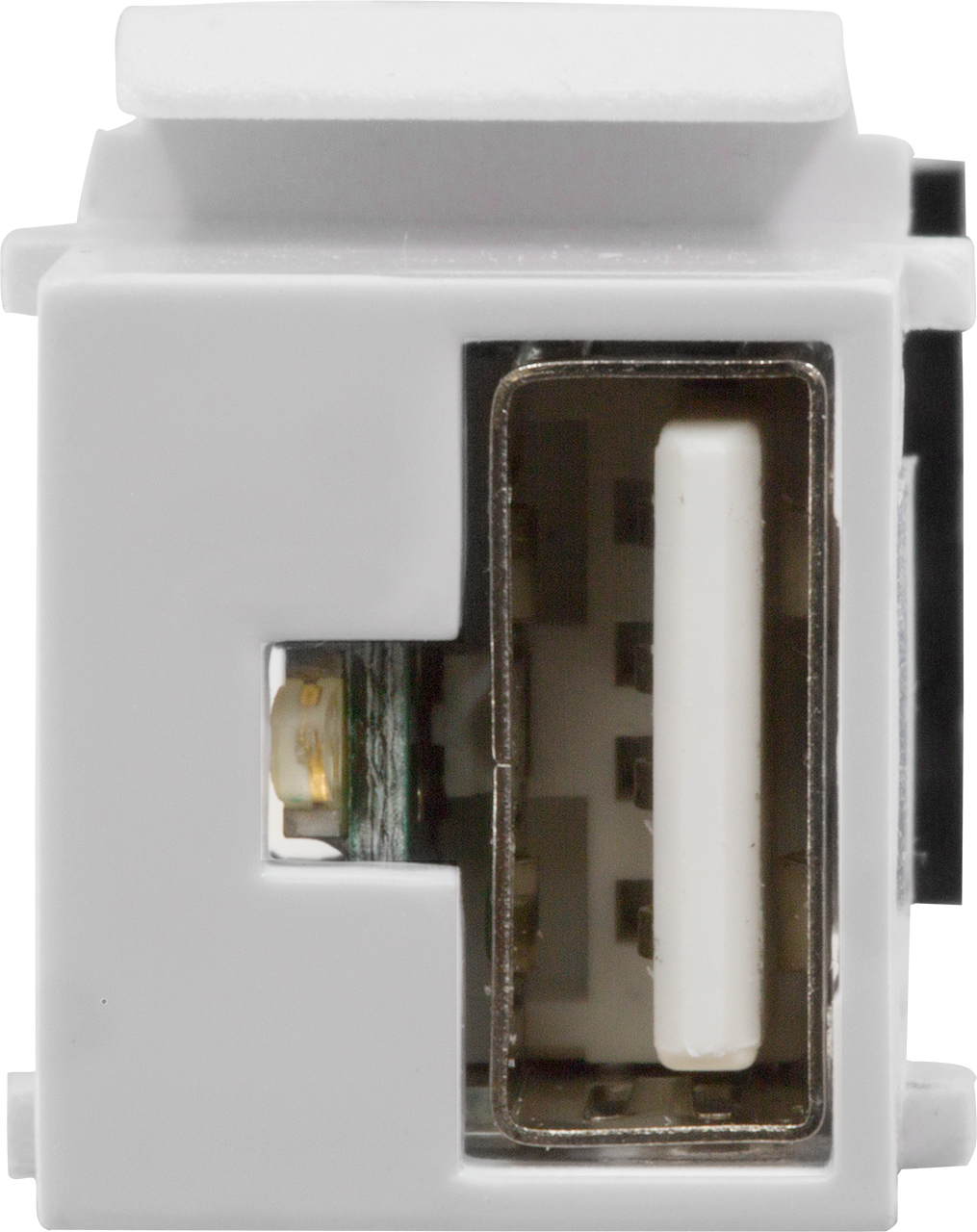

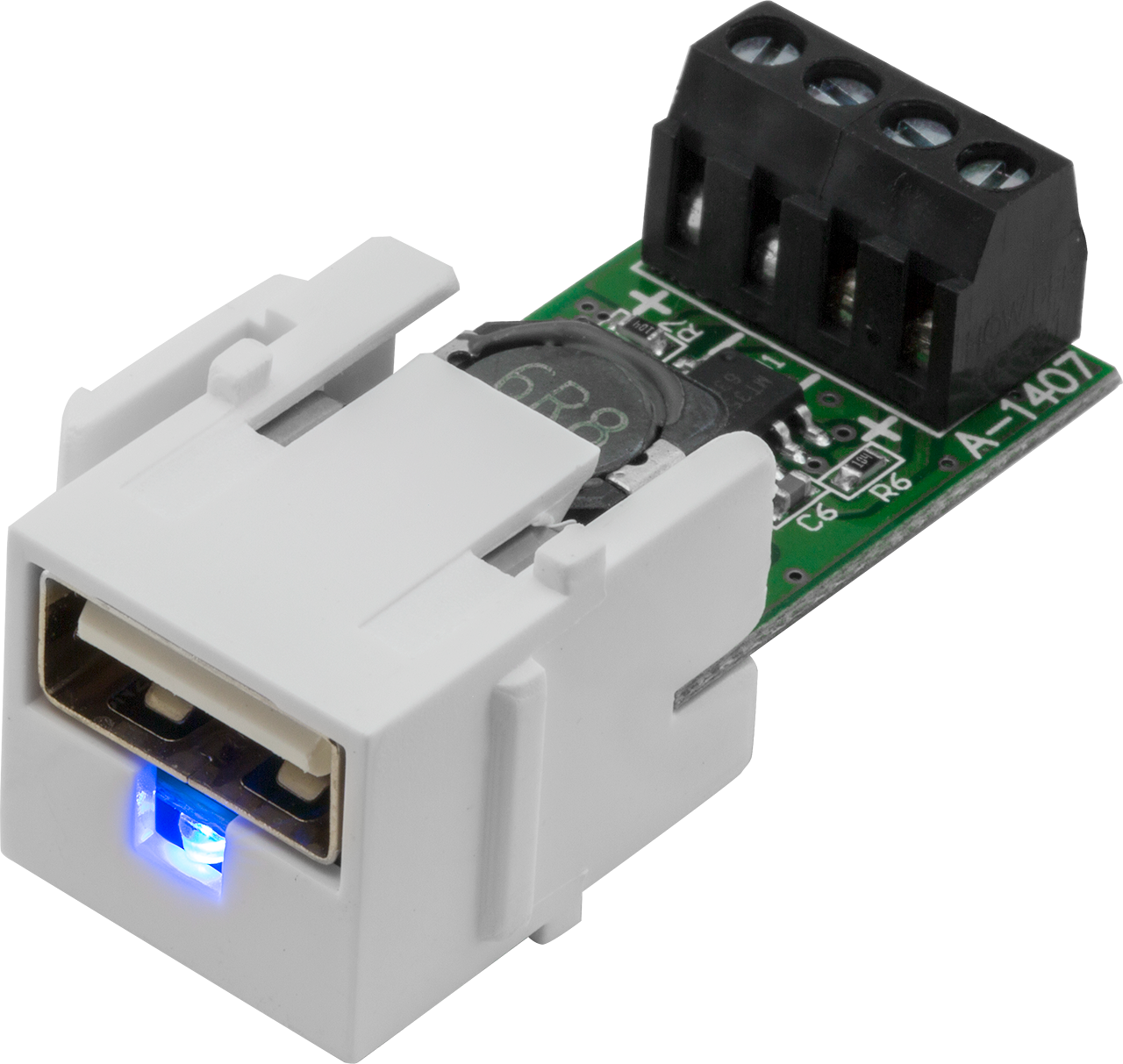

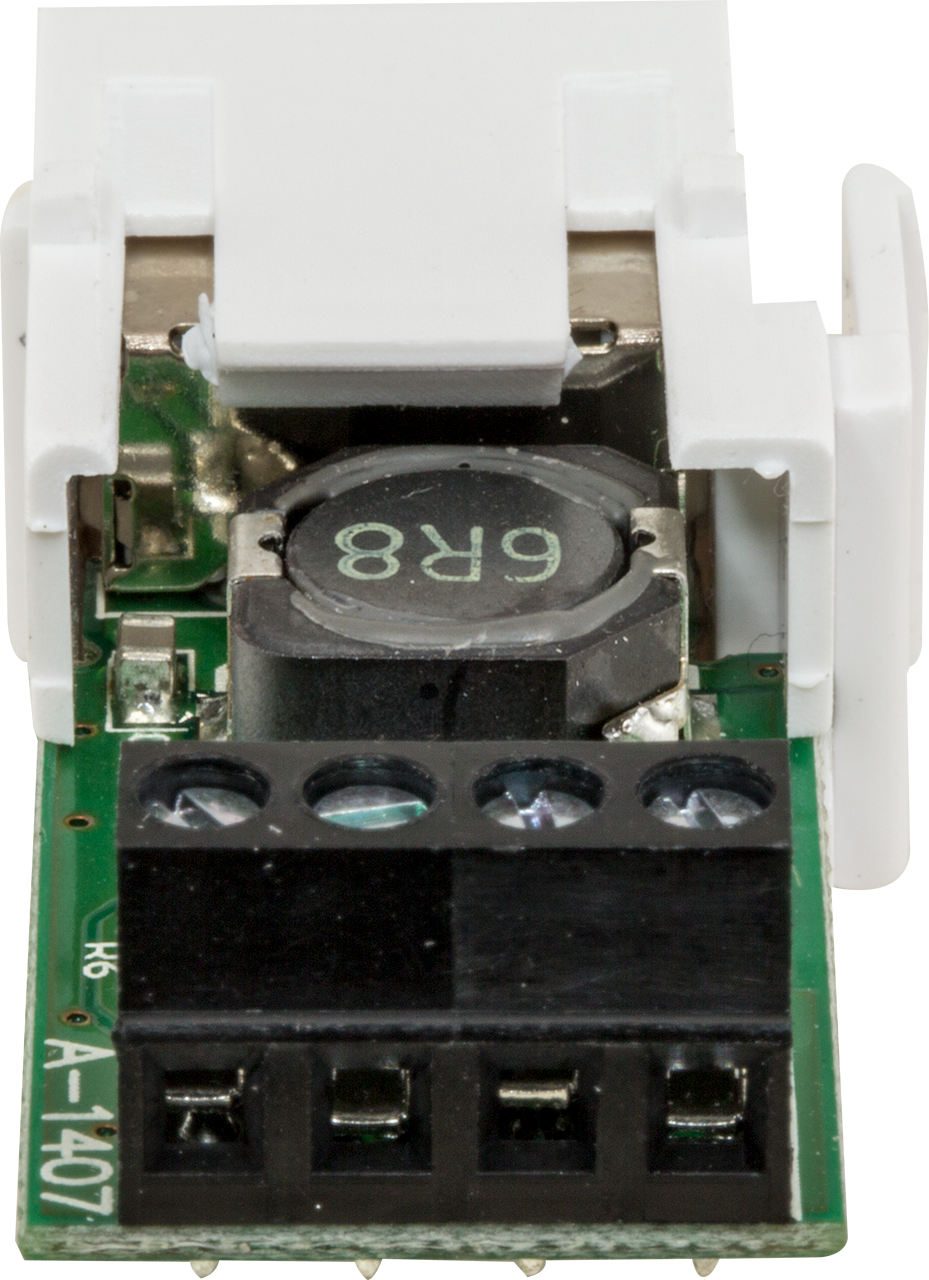

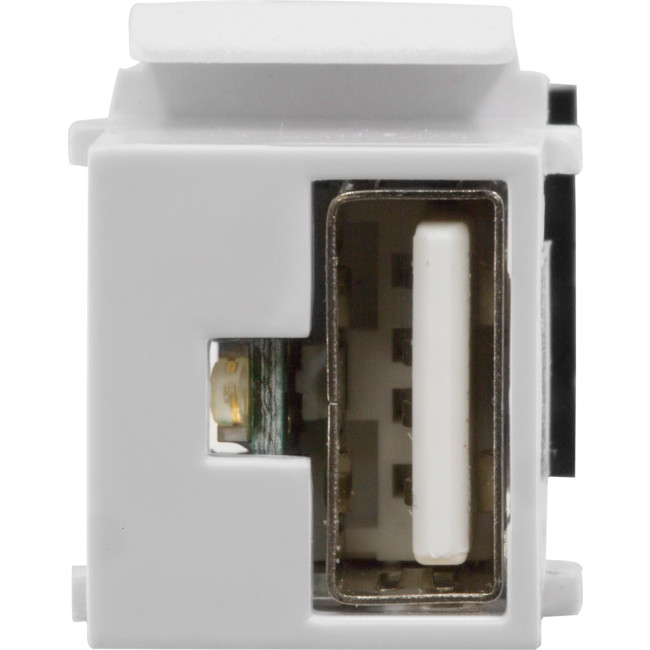

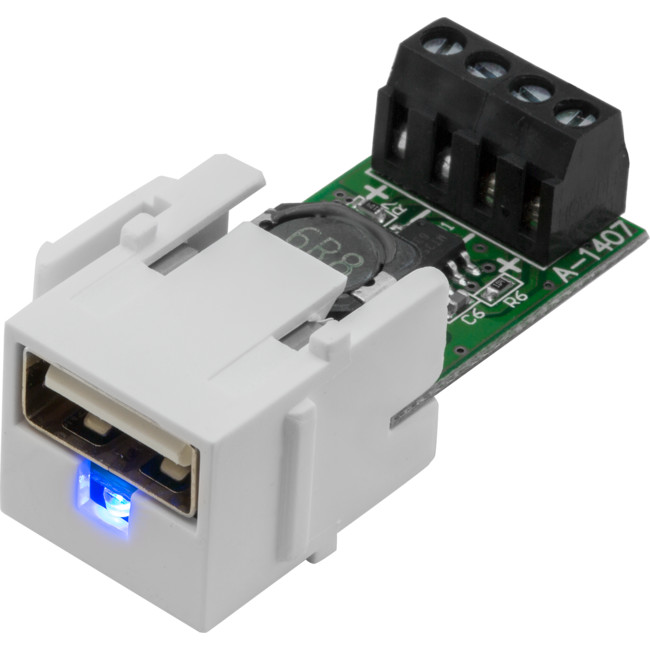

PK4918 5V USB KEYSTONE INSERT

SUITS MWI13KS MW13FR

Code: 30634918

0.0280 kg
9328202020697
EACH
In Stock
$24.95 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

Features

  • Single output current up to 2.8A, which suits the latest tablet power consumption;
  • Can be daisy-chained to the next PK4918 USB socket, depends on the power input, up to 12x USB;
  • Snap and fits in all keystone wall plates, or be part of the PRO2 modular wall plate range;
  • Synchronous rectification and high efficiency, up to 92% from 12V to 5V 1A;
  • 400W TVS diode to protect your USB device from the 5V output;
  • Input with reverse polarity protection diode, protect your device from damaging when the input connection is incorrect;
  • Using the latest USB identification circuit, perfectlycompatible with smartphones and tablets;
  • Output voltage indicator (Blue);
  • Provides complete fault protection such as input under-voltage lockout, output short circuit protection, over current protection, and thermal shutdown;
  • Perfect for equipment racks, Conference rooms, A V Systems, Planes, Yachts, RV’s, Busses, Bars, Gyms;
  • Can be powered by any power wire or UTP cable fromDC 6-24V.

Specifications:

  • Dimensions:41L x 17W x 21H mm
  • Main chip type: Non-isolated synchronous rectification
  • Input voltage: DC 6~24V
  • Output voltage: 5V
  • Output current: 2.8A Max
  • Conversion efficiency: 12V to 5V 1A up to 92%
  • Switch frequency: 410 kHz
  • Output ripple: 10mV around (12V to 5V @2A)
  • Static current: 0.5 mA

Connection Diagram

FAQ

Q:What is the maximum number of devices that can be daisy-chained together?
A:It depends on the power input voltage. Please refer to the following table for the suggested estimated number of this product that is daisy-chained.

Power input source The estimated maximum number of this product
12V/1A 3
12V/2A 6
24V/1A 6
24V/2A 12
