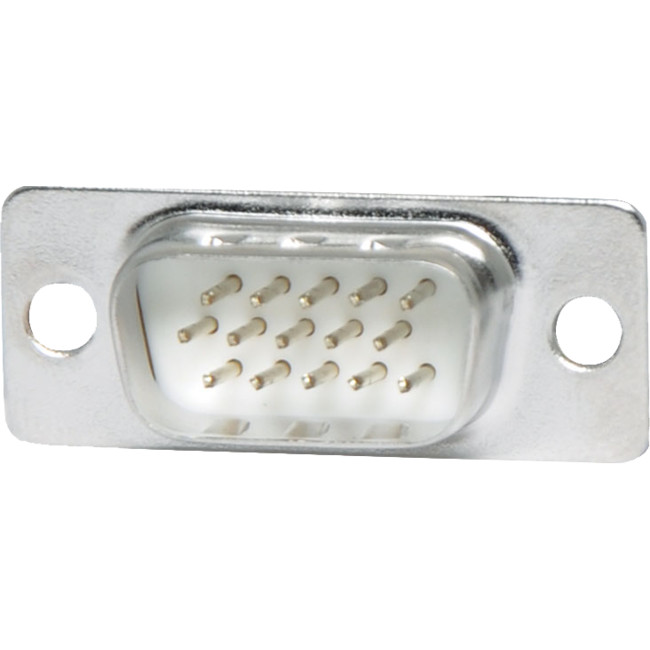

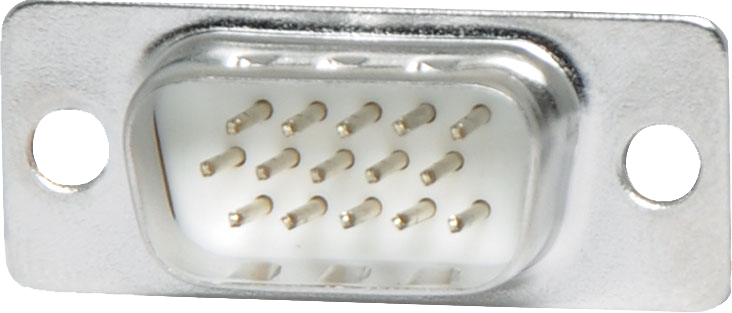

PJ1115 HD15 WAY HIGH DENSITY 'D' PLUG

VGA DB15 SOLDER

Code: 30571115

0.0040 kg
N/A
EACH
In Stock
$1.70 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

OUPIIN D-Series and Flat Cable Connectors are utilised worldwide in digital and computer-based applications. They feature low contact resistance, excellent mechanical characteristics and long term reliability.

Dimensions:
A: 17
B: 25
C: 31
D: 19

Specifications

  • Contact Resistance: 30M Ohm max @ 100mA DC
  • Insulator Resistance: 1000M Ohm @ 500V DC
  • Current Rating: 1A
  • Contact Material: Gold plated brass
  • (Female IDC Connectors gold plated phosphor bronze)
  • Housing: PBT & 30% Glass Fibre
