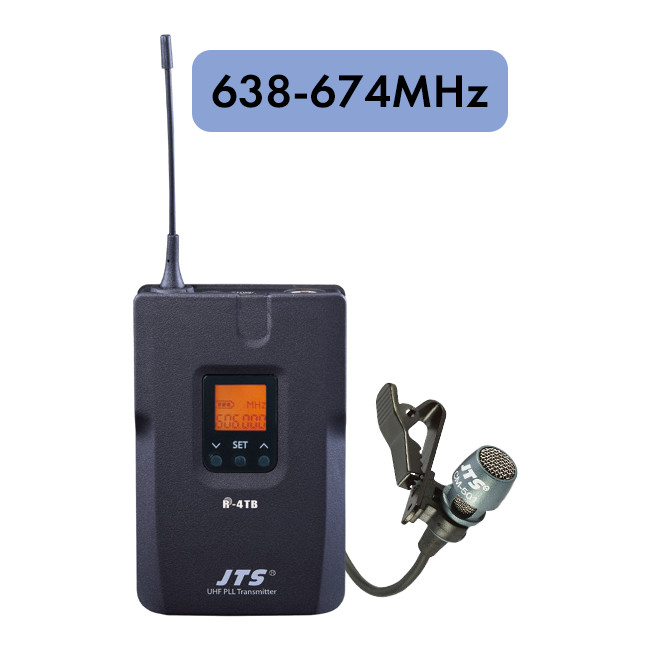

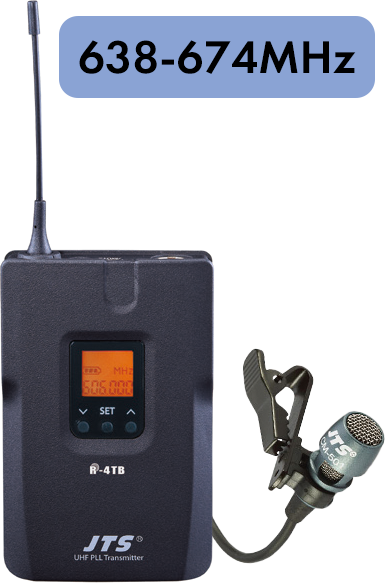

R4TBB4 BELT PACK TX 638-674 MHZ & CM501 LAPEL MIC

SUITS R4B1 RECEIVER

Code: 28732677

EACH
Special
Buy-In
TRADE ALERT!
$379 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

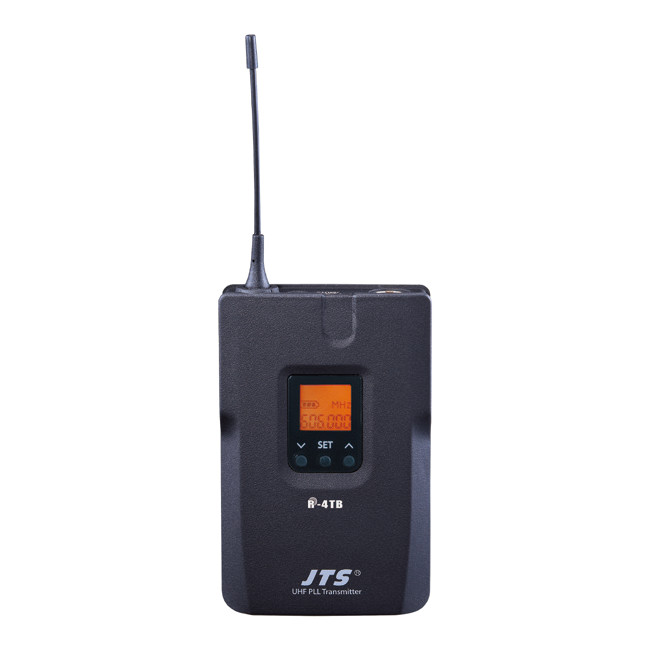

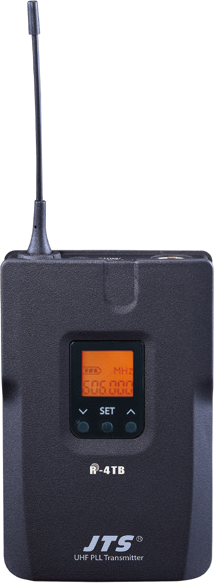

JTS R4TBB4 transmitter belt-pack inc CM-501 lapel mic for R-4 system- 638-674MHZ

R-4TB

  • 2400 to 3000 selectable frequencies
  • Preset 15 groups each of up to 63 compatible channels
  • Phase-Locked Loop (PLL) synthesized tune
  • Extended dynamic range and smooth frequency response.
  • Adjustable transmission power between Low and High
  • The panel Lock-On function prevents tampering and RF interruption
  • Together with JTS various music instrument mics, headset mics and tie clip mics this bodypack is versatile for all applications.

NEWEST FEATURE:

  • It is designed with slot-in charging feature with two AA NiMH rechargeable batteries.



SPECIFICATIONS

Frequency Preparation

PLL Synthesised Control
Carrier Frequency Range UHF 470-960 MHz
Bandwidth 108MHz
THD <0.6% @ 1KHz
RF outputs Low / High
Stability < ±10KHz
Frequency Deviation ±48KHz (Peak)
LCD display Group, Channel, Frequency, Battery Status, User Name, GAIN Adjust
Controls

Power ON/OFF, AF Level, Frequency (Up/Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
Spurious Emissions <-50 dBC
Audio Frequency Response 50Hz ~ 18kHz
Battery UM3, AA x2
Dimensions / Weight 62.3mm (W) x97.5mm (H) x20mm (D) / 75g

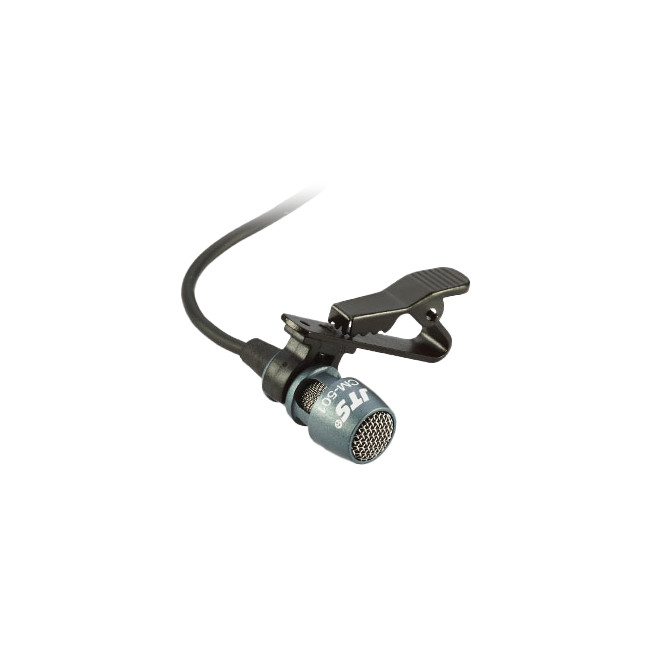

CM-501

  • Uni-direction for high-quality voice pick-up.
  • Wide dynamic range and frequency response for excellent sound reinforcement.
  • Small size for minimum visibility.
  • Together with clip for easy attaching to a tie, lapel, dress etc.

Specifications

Connector 4P Mini XLR
Frequency Response 100-15000Hz
Polar Pattern Cardiod
Sensitivity 60±3 dB* (1mV)*0dB=1V/ bar
Impedance 2.2kΩ
Max. SPL for 1% THD 130dB
Dimensions Ø10.1mm(W)* 26.4mm(H)
Weight 130g
