K360360300 3M HDMI CABLE PRS SERIES 3

PASSIVE COPPER-18GBPS 4K/UHD

Code: 27330740

0.1650 kg
9340382006537
EACH
Low Stock
$51 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

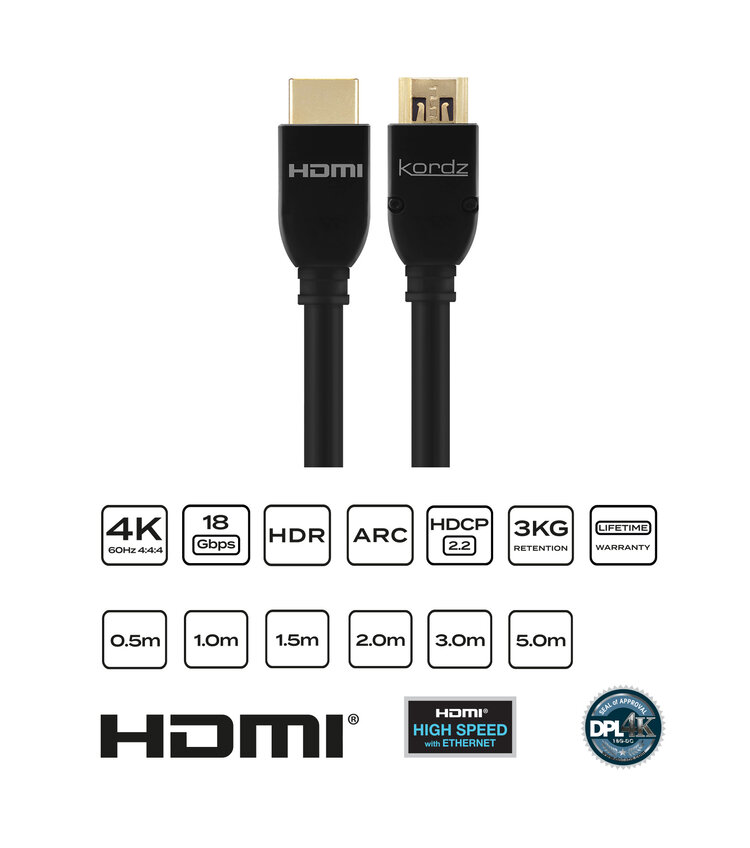

4K UHD 18Gbps PASSIVE HDMI CABLE

Kordz PRS3 features a narrow profile full metal die-cast shell assembly behind a unique grip tab HDMI connector for 3kg receptacle retention capacity.

Engineered for high performance applications andto mitigate connector dropout potential - not suitable for repeated plug/unplug events.

  • DPL Certified 4K 18G-DC

  • High Speed with Ethernet on all lengths

  • Passive in lengths 0.5m - 5m / 1.64’ - 16.4’

  • 18mm wide connector engineered to fit through1”/25mm conduit

  • Induction soldered pin transitions for benchmark inter-terminal uniformity

  • Unique grip tab connectors with 3kg retentionfor permanent installations

  • 100% of units tested on the production line for electrical continuity on all pins, with full Bit Error Rate (BER) application test

  • UL CMG fire rated in all lengths

  • Lifetime warranty




4K CERTIFICATIONS


DPL Laboratories 4K-18G Deep Colour
DPL Laboratories, Inc. are experts on high-band- width digital signalling solutions.

The respected DPL 4K Product Certification Program is designed to combat the fears of cable and display manufacturers and end users alike.



Technical Specification

HDMI CERTIFICATION ≤ 5.0m PASSIVE

  • HDMI CTS Certification:High Speed with Ethernet
  • DPL Labs Certified Data Rate: 6.0Gbpsc, 17.82Gbps aggregate
  • Supported Data Rate: > 6.0Gbpsc, 17.82Gbps aggregate (4K UHD)
  • Supported HDMI Clock: 27-340MHz

MECHANICAL

  • Cable Diameter: 0.5m - 3.0m: 30 AWG, 5.7mm/0.22” Ø | 5m: 28 AWG, 6.5mm/0.26” Ø
  • Mounting Length:0.5m - 3.0m: 30AWG, 47.0mm/1.85” | 5m: 28 AWG, 56mm/2.20”
  • Cable Bend Radius:0.5m - 3.0m: 30 AWG, 24.0mm/0.94” | 5m: 28 AWG, 28.0mm/1.02”
  • Retention Force (nominal):29.7N (3kg / 6.6lbs) 10/-5%

CONSTRUCTION

  • Primary Conductors: Solid 28-30 AWG OFC, length dependent
  • Insulation on TMDS:Foam-PE
  • Insulation on 4C HEAC Pairs: HDPE/Foamed PE, length dependent
  • Shielding on TMDS Pairs: Al/Mylar
  • Shielding Overall: Al/Mylar Al braid 80% coverage
  • Cable Jacket: UL CMG fire rated PVC
  • HDMI Connector Shell: Pressed steel with dual grip tabs, 1µ” 24K Gold plated
  • HDMI Connector Pins: Solid OFC, 15µ” 24K Gold plated
  • Termination: Contactless IR inductionsoldering
  • HDMI Backshell:Charcoal powder coatedwith stoving varnish die-cast zinc alloy shell assembly

Physical Dimensions




APPLICATION SPECIFICATIONS

Video Format Support - Data rate per channel / Aggregate, TMDS Bandwidth

480i/p, 576i/p: ≤ 540Mbpsc/1.62Gbps, 270MHz
720p/1080i: 742.5Mbpsc/2.22Gbps, 371.25MHz
1080p -8-bit RGB/YCbCr 4:4:4, 10/12-bit 4:2:2 or 4:2:0:
23.98/24/29.97/30 -742.5Mbpsc/2.22Gbps, 371.25MHz
50/59.94/60 -1.485Gbpsc/4.455Gbps, 742.5MHz
3D-24/30 -1.485Gbpsc/4.455Gbps, 742.5MHz
3D-50/60 -2.97Gbpsc/8.91Gbps, 1.485GHz
1080p - 10/12/16-bit RGB/YCbCr 4:4:4:
50/59.94/60fps -1.86-2.97Gbpsc/5.57-8.91Gbps, ≤ 1.485GHz
2160p (UHD/4K)
HDMI 1.4b - 8-bit RGB/YCbCr 4:4:4, 10/12-bit 4:2:2 or 4:2:0:
4096x2160p/24 (SMPTE) -2.97Gbpsc/8.91Gbps, 1.485GHz
3840x2160p/23.98/24/29.97/30 -2.97Gbpsc/8.91Gbps, 1.485GHz
HDMI 2.0 - 8-bit YCbCr 4:2:0:
2160p*/50/59.94/60 - 2.97Gbpsc/8.91Gbps, 1.485GHz
VESA Graphics: Supports all as defined by HDMI 2.0 specification, up to 17.82Gbps
Color Spaces: RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, ITU-BT.2020
Audio Formats Support: PCM 2.0-7.1, DD/DTS HD 7.1, 3D Audio (10.2 | 22.2 | 30.2ch)
HDMI Audio Return Channel: Supported, System dependant.

MODELS

Length: 0.5m, 1’7”
Model:K36036-0050-CH
AWG:30
Technology: Passive

Length: 1.0m, 3’3”
Model:K36036-0100-CH
AWG:30
Technology: Passive

Length: 1.5m, 4’11"
Model: K36036-0150-CH
AWG:30
Technology: Passive

Length: 2.0m, 6’6”
Model: K36036-0200-CH
AWG:30
Technology: Passive

Length: 3.0m, 9’10"
Model:K36036-0300-CH
AWG:30
Technology: Passive

Length: 5.0m, 16'4"
Model: K36036-0500-CH
AWG: 28
Technology: Passive
