IMU100KIT CONTROL AND OPERATION UNIT KIT

REQUIRES IME100 MIC

Code: 21817865

EACH
5
Special
Buy-In
DON'T PAY $2226
TRADE ALERT!
$2035 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

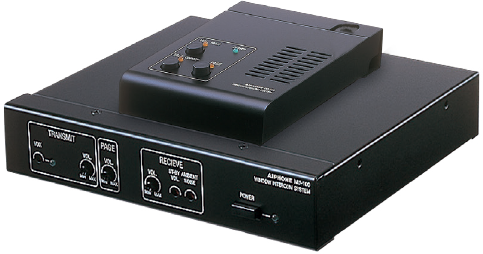

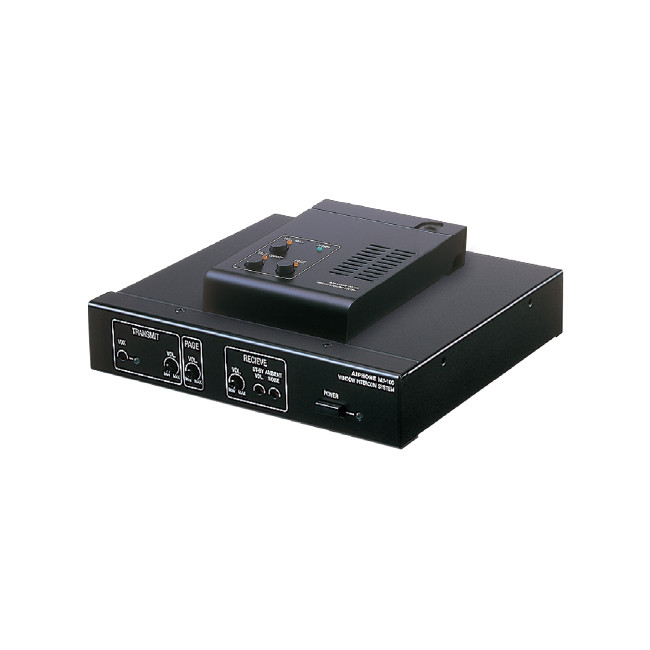

AIPHONE IMU-100

Controller and Operation Station Kit for IM System

Requires IME-100 Gooseneck microphone

Features

  • VOX sensitivity adjustment
  • VOX operation LED
  • Transmit, speaker, receive, and standby volume control
  • Ambient noise cancelling control
  • Can be desk mounted or mounted under the counter with the supplied bracket
  • Volume control switch (hi / lo)
  • Socket for optional gooseneck microphone
  • Designed for desk mounting
  • Can mount up to 6' away from the MU-100 via the supplied connector



Specifications

Temp Rating 14°~ 140°F (-10°~ 60°C)
Communication Hands-free (VOX) or push-to-talk (simplex)
  Transmit output: 3W 4Ω
  Receive output: 1.5W 16Ω
Headset 3.5mm plug
  Rated Input: 40mW or more
  Max Input: 100mW or more
  Impedance: 32Ω
Wired Type Speaker Driver to Control Unit: 2 x 2-cond., overallshield - use Aiphone #822202 or #821802
Distance Speaker Driver to Control Unit: 66'(22AWG / 18AWG)
