IX Series 2 Peer-to-Peer IP Video Intercom with SIP Capability
Redefining what one IP system can do
The IX Series 2 offers the power of an Enterprise platform with the simplicity of a single system.
It’s a platform for enterprise security and communications that grows with you.
It expands your network across multiple security layers for one, very powerful solution.
No annual Aiphone licensing fees. No proprietary servers.No need to train your staff on multiple systems.
Combine that with built-inbackwards/forwards compatibility and Aiphones freakish reliability, and you canfeel confident in your choice for years to come.
Utilizing SIP, register any IX Series 2 station to Cisco Unified Call Manager® and place or forward calls to an external phone number.
Master stations can now serve a dual role as a single command point, controlling security layers such as access control and emergency communications.
With picture-in-picture, master stations can toggle between ONVIF® Profile S IP cameras and the new 1.3 megapixel cameras on IX Series 2 video stations.
Line supervision ensures all stations are online while device check verifies every button, station speaker, and microphone are operating properly.
The IX Series is a perfect solution for commercial sites,industrial facilities, schools, campuses, parking garages, retail, emergency call and correctional applications.

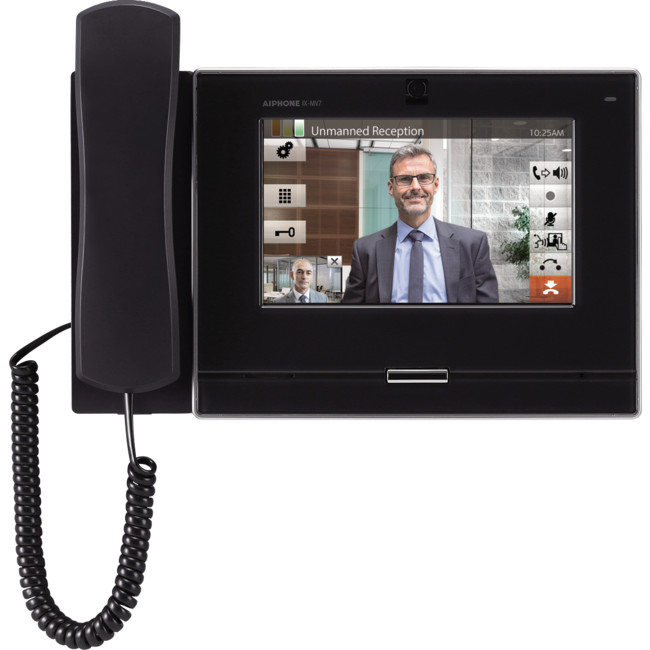

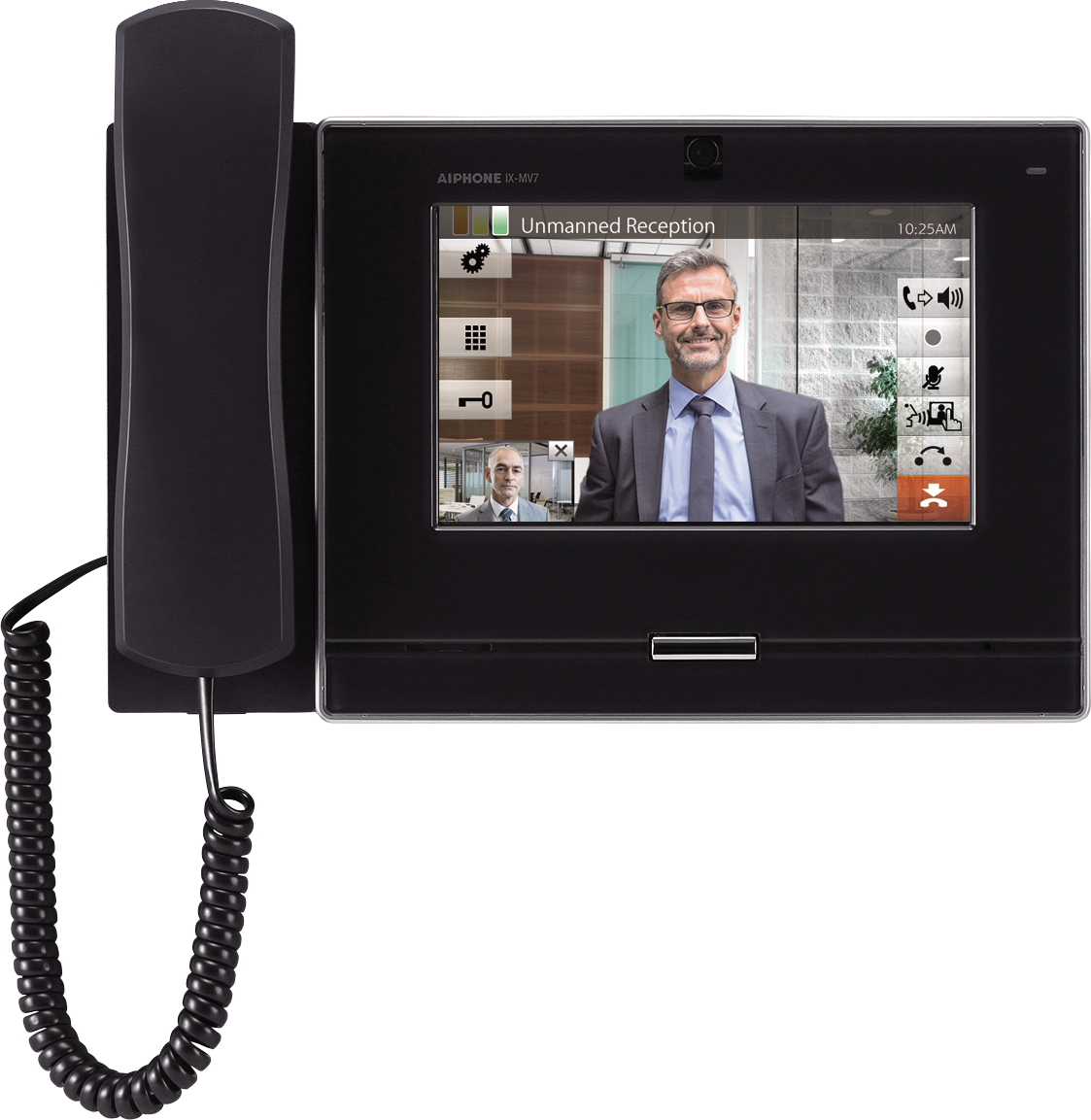

IX-MV7-HB - Video Master Station 7" Touchscreen and Privacy Handset (Black)
Aiphone IX-MV7-HB is an IP master station with a large 7"touchscreen display, handset, and integrated 720p camera.
IX-MV7-HB is much more than just a network-connected intercom: it offers video conferencing, IP camera integration, receptionist device, and more.
The built-in 720p camera with privacy shutter works both for point-to-point video conferencing and for security.
Using the large color display, you can view video from a connected Aiphone master station or a compatible IP camera.
IX-MV7-HB features picture-in-picture mode, so you can see both video feeds at once. Switch between them by tapping.
The touchscreen display makes operating the device as intuitive as using a smartphone.
Aiphone IX-MV7-HB lets you communicate hands-free like anintercom or speakerphone, using push-to-talk, or through thehandset.
It supports SIP and integrates with Cisco Unified Call Manager. Record audio and video in the master station using a microSD card.
It supports PoE and is ONVIF Profile S compliant for integration with standards-based IP security cameras.
Aiphone IX-MV7-HB comes in black.
Features
- SIP 2.0 Compliant allowing integration with Cisco Unified Call Manager®.
- ONVIF® Profile S Compliant
- 802.3af PoE, Class 0
- 7inch TFT LCD touchscreen
- Use built-in cameras for two-way master-to-master video conferencing (w/ privacy shutter)
- Hands-free, push-to-talk or handset audio communication
- 8 customizable speed dial buttons
- Turn your master into a virtual receptionist – ideal for unmanned waiting areas or unstaffed lunch hours
- Capture and store the audio and video of active conversations on a microSD™ card (not provided by Aiphone)
- Picture-in-Picture (PIP) allows an ONVIF Profile S IP camera and an Aiphone video intercom to be viewed simultaneously
- 2 contact outputs, 4 trigger inputs
- 8Ω 1/2 watt speaker output provides better coverage for announcements
- 600Ω audio input.
- 2-year warranty!
Specifications
| Power Source | PoE (IEEE 802.3af class 0) or 24V DC (PS-2420UL) |
| Power Draw | 4.32 Watts |
| Camera | ?” CMOS 720p |
| Min. illumination | 5 lux |
| Audio Codec | G.711 (µ-law, A law), G.722 |
| Video Codec | H.264/AVC, motion JPEG |
| Network Protocols | IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP,RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS |
| Port Security | IEEE 802.1X |
| Operating Temp | -40° – 140°F (-40° – 60°C) |
| Dimensions | 204mm H x 280mm W x 55.5mm D |
| Mounting | Multi-angled desk stand (30°, 45°, 60°), or wall mount with included bracket. |
