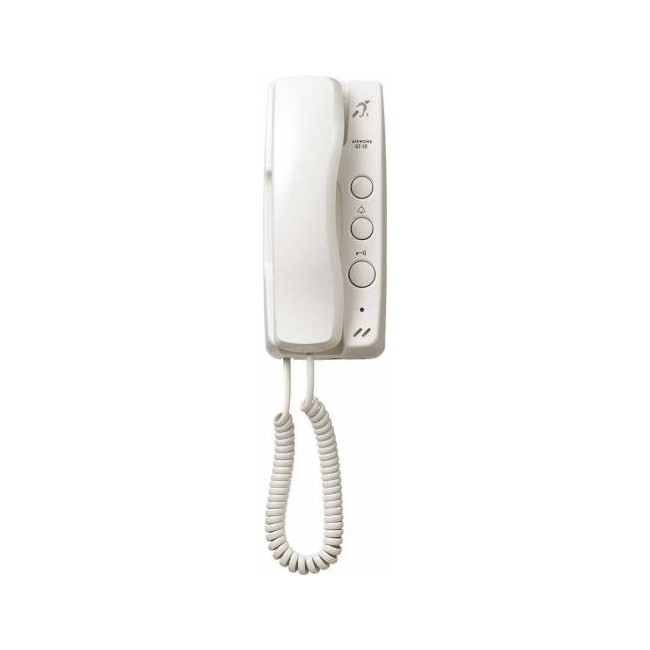

GT1D AUDIO 2-WIRE HANDSET STATION

The GT-1D is an audio only tenant station for the GT series Multi-Unit entry system.

It is equipped with Door Release, Option, and Guard buttons.

When a visitor calls, the tenant station rings and the call is answered by picking up the handset.

The GT-1D also has the capability of calling the Concierge/Security Guard station(s), turning on a light while speaking with a visitor at the entrance, and receiving an emergency tone from a pull cord or panic call button.

The GT-1D is designed to be surface mounted.

Up to four units can be used in the same tenant location.

Communication is hands-free at the entrance station whena tenant answers the call, and is simultaneous via the tenant’s handset station when speaking with the visitor.

FEATURES

• Handset communication for privacy
• Guard or Concierge call
• Door release to calling entrance
• Secondary option button triggers a normally open contact on the back of the unit to trigger external devices

SPECIFICATIONS:

• Temp. Rating - 14°~ 140°F (-10°~ 60°C)
• Material - Plastic
• Mounting - Wall mount
• Call tone volume control
• Wire Type - 2-cond., solid, non-shielded PE insulation- use Aiphone #871802
