JOW2D TWO VIDEO DOOR STATION ADAPTOR

SUITS JO1MD / JO1MDW

Code: 21810930

0.2930 kg
788255348701
EACH
Out of Stock!
TRADE ALERT!
$495 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

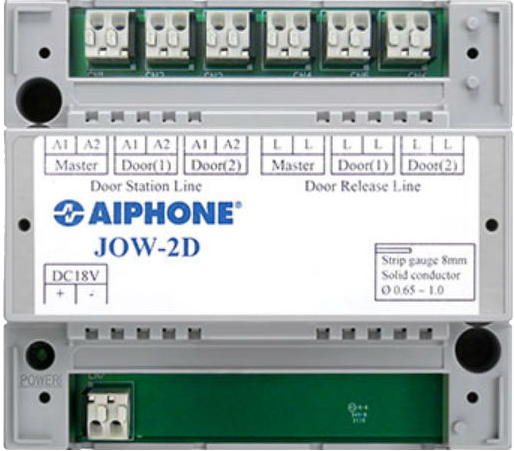

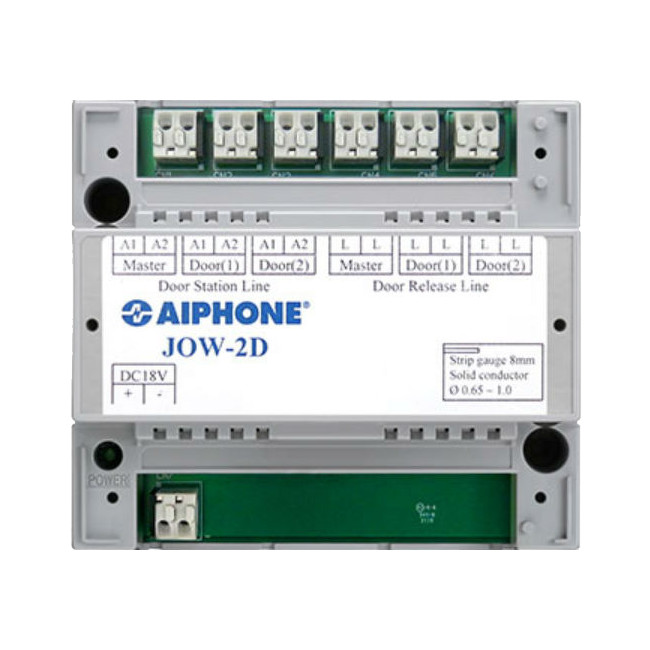

JOW-2D DUAL DOOR STATION ADAPTOR FOR JO SERIES

The JOW-2D is an adaptor for the JO Series video intercomsystem.

It allows two video door stations to be used in a standard or app-enabled system.

The adaptor has inputs for two JO Series video door stations and outputs to control door release for each of those door stations.

When either door station calls in, that image will be displayed on the inside station(s).

The person at the JO-1MDW, JO-1MD, or JO-1FD, answers the call, and if they decide to grant the visitor entry, pushes the door release button to activate the electric lock only at the associated door.

If one door station is in use, the call button on the other door station will not activate a call-in.

Use the JOW-2D with JO Series systems that include the JO-1MDW app-compatible master station or the JO-1MD standard master station.

Note: Only door 1 can be monitored by the master station.







SPECIFICATIONS

  • Power
18V DC (share PS-1820UL with JO master station)
  • Current consumption
100mA (max), 18mA (standby)
  • Relay Outputs
When using JO-1MDW only: 24V DC, 1A
When using JO-1MD or JO-1FD: 24V DC, 500mA
  • Operating Temperature
32° ~ 104° F (0° ~ 40°C)
  • Mounting
Mount to W-DIN11 (sold separately)
  • Dimensions
4-¼" H x 4-13/16" W x 2-3/8" D
