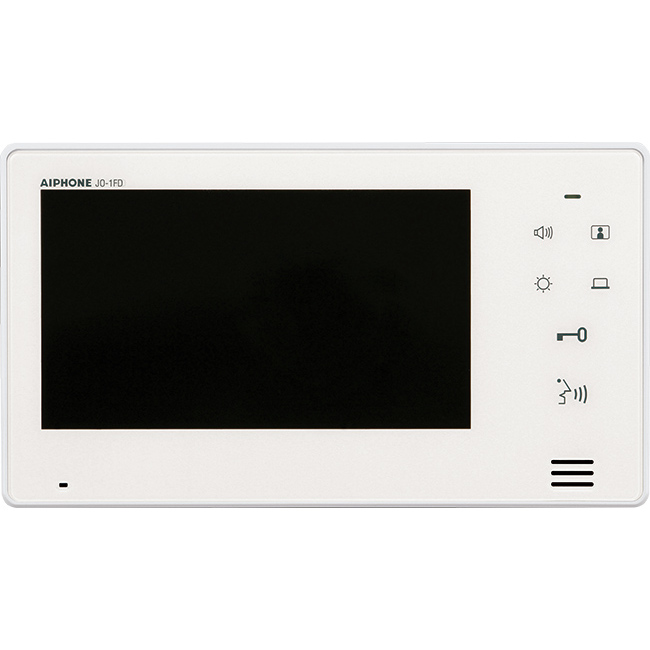

JO1FD 7" COLOUR EXPANSION STATION

The Aiphone JO1FD Expansion monitor to suit JO Series intercom kits

The JO1FD can be added to the JOS1F, JOS1V and JOS1A - Kits

Aiphone JO series intercom kits can be expanded to a maximum of 2 monitors by the addition of 1 x JO1FD expansionmonitor.

NOTE: When expanding a JO series intercom kit the JO1MD MASTER station location MUST be shifted to the last point and the JO1FD the first Internal from the door station

The JO series is a stylish design 7" screen that delivers high quality images. The JO Series can accommodate one door and up to two inside stations.

Easy to identify and use touch buttons makes it simple tooperate allowing identification and communication withvisitors at locked doors.

Door / gate release button allows you to accept your visitor with out leaving the screen.

The JO series is equiped with an advanced light adjustment feature to compensate for varying light levels

FEATURES:

• Power Source 18V DC
• Communication
  • Hands-free: Auto-voice actuation
  • PTT: Push-to-talk, release-to-listen
• Video Monitor 7" color LCD screen
• Door Release Contact rating: 24V AC/DC, 500mA - use RY-18L for larger contact rating
• Min. Illumination 5 lux at 1'6"
• Wiring Door to master: 2 conductor, mid cap, solid, non-shielded
• Wiring Expansion unit to Master 4 conductors ( 2pr )
• Wire Type KBWIRE

SPECIFICATIONS:
