JXDVFAC MARINE GRADE PANEL WITH AC10U

SUITS JO - JP SERIES

Code: 21810721

1.52 kg
EACH
Low Stock
DON'T PAY $1099
TRADE ALERT!
$979 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

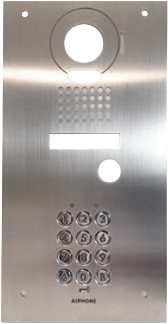

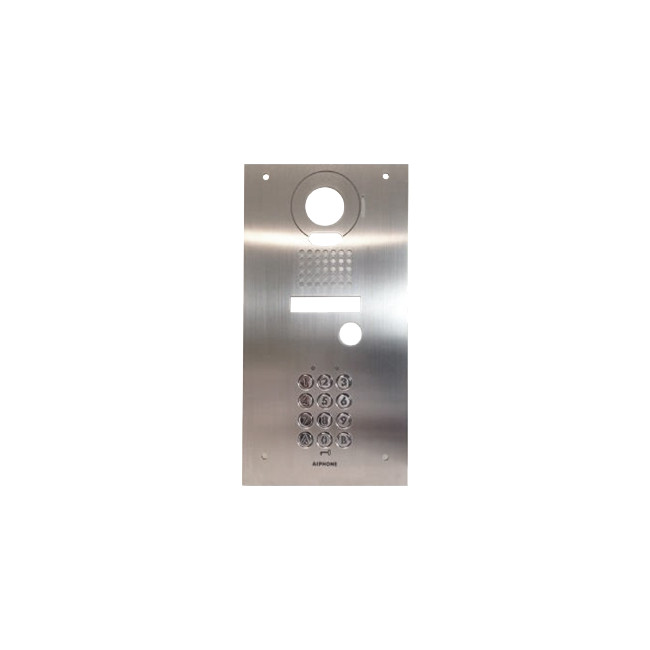

Jx-DVF-AC KEYPAD INTEGRATED FLUSH MOUNT PLATE

FOR JO-DVF and JP-DVF Cameras NOT supplied with mountingplate

The JX-DVF-AC is a Marine Grade panel with an intergrated- AC10U key pad and is for attaching existing JO-DVF or JP-DVF onto the Jx-DVF-AC

The Jx-DVF-AC is only compatible with JO-DVF and JP-DVF entrnace station, therefore the JOS-1F kit or the JPS-4AEDF kit can also be used

Package contents

  • Jx-DVF-AC ( AC10U ) mounted
  • Back box for Jx-DVF-AC

Note: still requires power supply for access control

NOTE:

When dismantling existing plate from JO-DVF / JP-DVF keepthe following to re-assemble on JX-DVF-AC plate

  • Security Screws
  • 4 x Nuts & Washers
  • 4 x White plastic stand offs
  • Black plastic LED Casing



Specifications

GENERAL



  • Dimensions
  • Door station
 295(H) x 144(W) x 8(D) ( Recess: 30)mm

  • Flush Mount Back Box
 263(H) x 114(W) x 45(D)


  • Access Control Key Pad
  • Power Supply
 12 - 24V AC
    12 - 24V DC

  • Power consumption
 DC - Max: 70mA
    AC - Max: 100mA


  • Number of relay circuits
 2

  • Relay Contact
 N/O, N/C

  • Relay Contact Capacity
 24V DC, 3A ( resistive load ) 1A ( Inductive load )




 24V AC, 3A ( resistive load ) 1A ( Inductive load )
