UE2P 2 PORT USB 2.0 CAT5 EXTENDER

KRYSMA USB 2.0 INDUSTRIAL 2-PORT CAT5 EXTENDER KIT 50M

Krysma USB 2.0 CAT5/6 Extender can be used to extend the distance between a USB peripheral device and host computer by up to 50m.

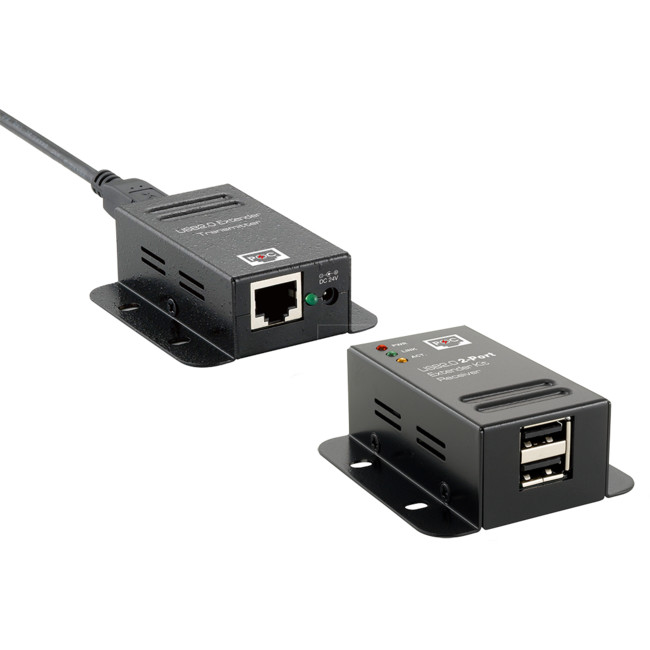

It consists of a local unit which connects to the computer and a remote unit that connects up a USB peripheral. Standard, low cost CAT5/5e/6 network cable (not included) is then used to bridge the connection between the two units.

The Extender features Power over CAT5/6, this requires a single power supply to be connected to the Transmitter/Localunit, and this handy feature allows the Receiver/Remote unitand connected devices to be located more freely as no power supply is required.

For added convenience both the Transmitter and Receiver units both feature integrated mounting brackets making installation even easier.

Specifications

General

• USB 2.0 interface, backwards compatible with USB 1.1/1.0
• Maximum distance between Local and Remote Unit: 50m
• Connection via CAT5 (or higher) cable
• Power over CAT5 requires a single power supply to be connected to the Transmitter only
• Plug & Play installation, no drivers required
• Compatible with all OS with USB support

Transmitter

• Ports: USB 2.0 Type B Female , RJ45 Female, 3.5/1.35mmOuter/Inner DC socket
• Dimensions (WxDxH): 60x67x23mm (includes mounting brackets)
• Metal Housing

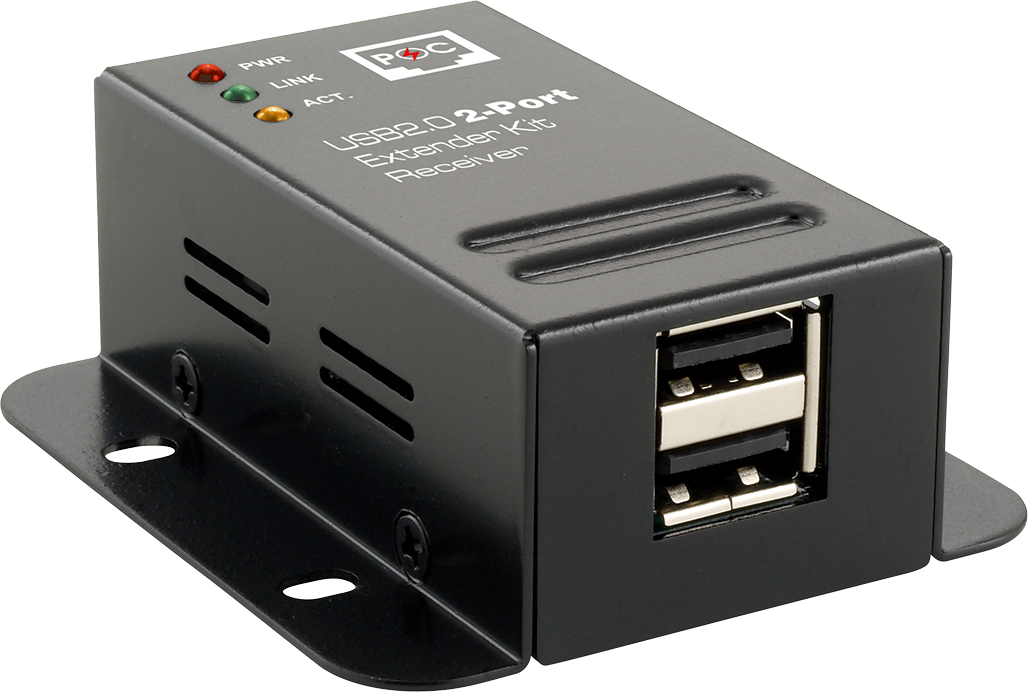

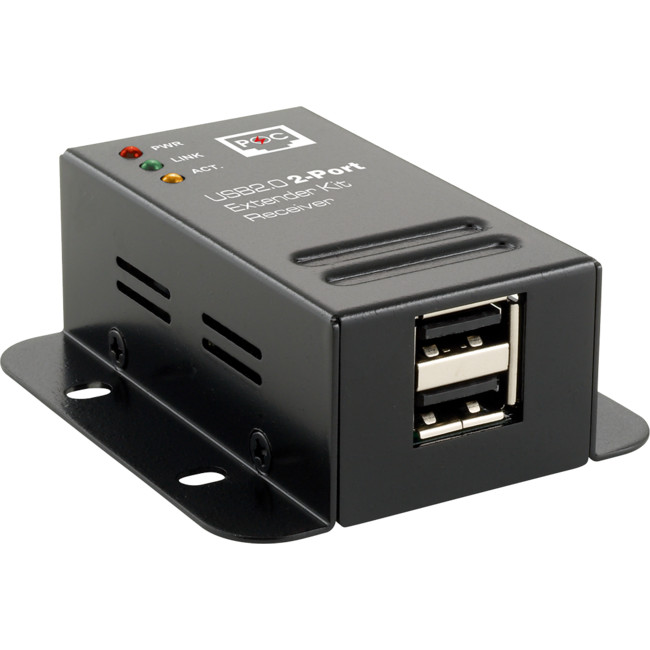

Receiver

• Ports: RJ45 Female, 2 x USB 2.0 Type A Female
• Dimensions (WxDxH): 60x67x23mm (includes mounting brackets)
• Metal Housing


• Temperature Range: 0° – 40°C (operating), -10° – 70°C (storage)
• Humidity: max. 80% (operating), max. 95% (storage)

Package Contents

• USB 2.0 2 Port CAT5/6 Extender
• Power Adapter
• USB 2.0 Type A/B Cable
• User Manual
