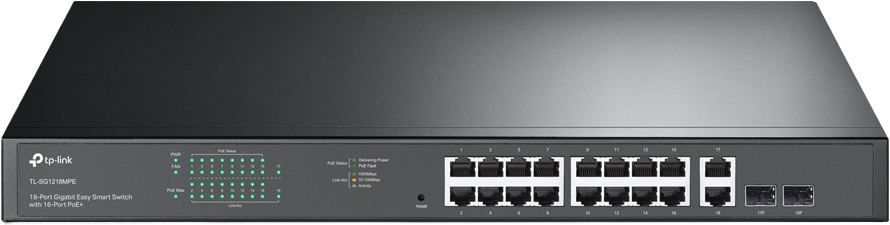

  • SG1218MPE 16 PORT GIGA POE SWITCH EASY SMART OMADA 250W

SG1218MPE 16 PORT GIGA POE SWITCH EASY SMART

OMADA 250W

Code: 09051664

6935364086923
EACH
Online
Only
DON'T PAY $299
$249 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

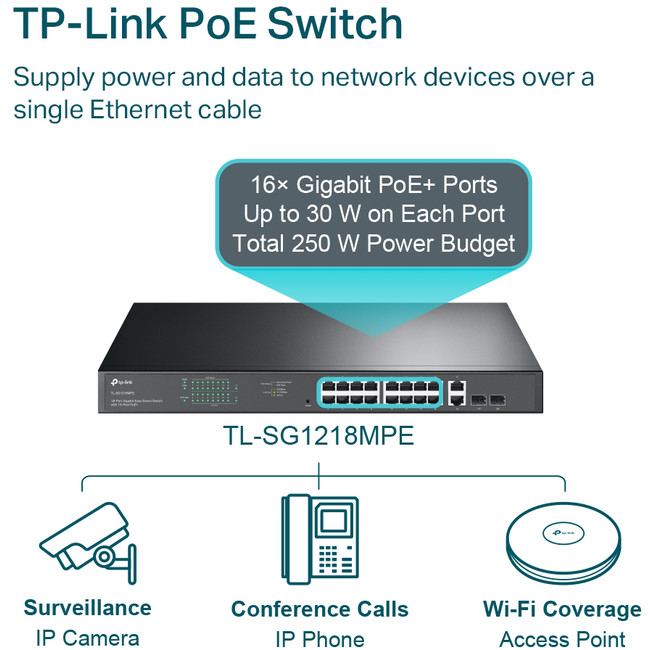

16-Port Gigabit Easy Smart PoE Switch with 2 SFP Slots

  • 16 10/100/1000Mbps RJ45 PoE Ports Switch with 2 SFP Slots
  • PoE power budget is up to 250W, making it ideal for small to medium business surveillance systems
  • Port Priorityis able toguaranteethe quality of sensitive applicationlike video monitor
  • Intelligent power management can protect the switch from overload
  • QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing
HARDWARE FEATURES
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface • 16× 10/100/1000 Mbps PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 2× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 2× Combo Gigabit SFP Ports
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-X MMF, SMF
Fan Quantity 2 Fans
Physical Security Lock Yes
Power Supply 100–240V AC, 50/60 Hz
PoE Ports (RJ45) • Standard: 802.3at/802.3af compliant
• PoE Ports: Ports 1–16
• Power Supply: 250 W
Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Mounting Rack Mountable
Max. Power Consumption • 21.4 W (220/50Hz. no PD connected)
• 296.3 W (220/50Hz. with 250 W PD connected)
Max Heat Dissipation • 72.97 BTU/h (no PD connected)
• 1010.38 BTU/h (with 250 W PD connected)
PERFORMANCE
Switching Capacity 36 Gbps
Packet Forwarding Rate 26.78 Mbps
MAC Address Table 8K
Packet Buffer Memory 4.1 Mbit
Jumbo Frame 10 KB
SOFTWARE FEATURES
Quality of Service • Support Port-based 802.1p/DSCP priority
• Support 4 priority queues
• Rate Limit
• Storm Control
L2 Features • IGMP Snooping V1/V2/V3
• Static Link Aggregation
• Port Mirroring
• Cable Diagnostics
• Loop Prevention
• PoE Auto Recovery
VLAN • Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
• MTU/Port/Tag VLAN
Management Features • Web-based GUI
• Easy Smart Configuration Utility
Transmission Method Store-And-Forward
OTHERS
Certification CE, FCC, RoHS
Package Content • TL-SG1218MPE
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet
Environment • Operating Temperature: 0–50 °C (32–122 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
