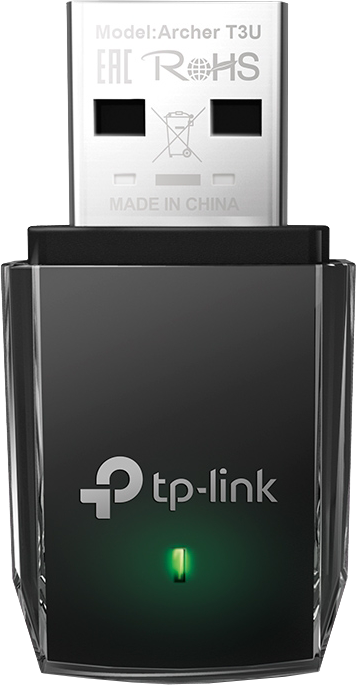

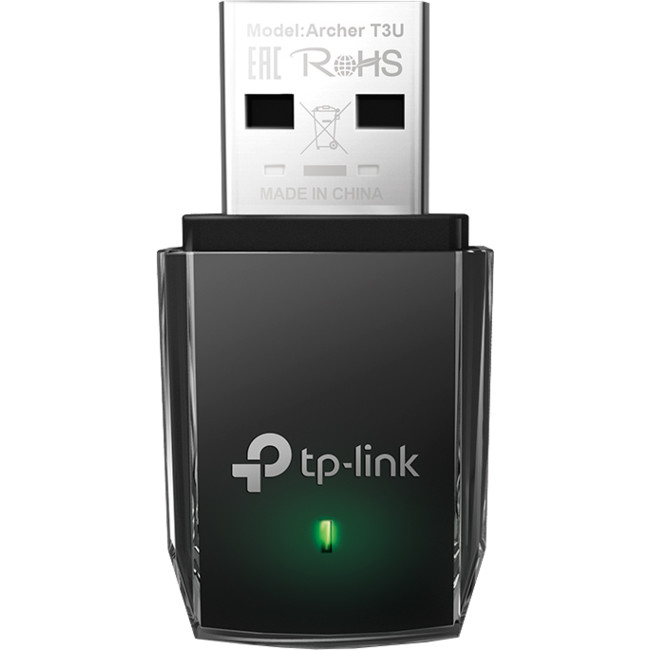

ARCHERT3U AC1300 MINI USB WIFI ADAPTER

Code: 09051498

0.0650 kg
6935364083830
EACH
60
Low Stock
DON'T PAY $45
$42 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

AC1300 Mini Wireless MU-MIMO USB Adapter

  • Ultimate Wi-Fi Speed: AC1300 (400 Mpbs on 2.4GHz band and 867 Mbps on 5GHz band) wireless speed with the next generation Wi-Fi – 802.11ac.
  • Dual Band Wireless: 2.4GHz and 5GHz band for flexible connectivity.
  • Mini Design: Mini-sized design for convenient portability with a reliable high performance.
  • Super Speed USB 3.0 Port: Up to 10× faster transfer speeds than USB 2.
  • MU-MIMO: Delivers highly efficient wireless connection.
  • Supported Operating System: Windows 10/8.1/8/7/XP, Mac OS X (Mac OS 10.15 will be supported soon.)

Specifications


HARDWARE FEATURESInterfaceUSB 3.0
Dimensions (W×D×H)40.5mm × 19.72mm × 10.29mm (1.59″ × 0.78″ × 0.41″)
Antenna TypeOmni Directional
WIRELESS FEATURESWireless Standards
  • IEEE 802.11ac, IEEE 802.11a
  • IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency
  • 5GHz
  • 2.4GHz
Signal Rate5GHz
  • 11ac: Up to 867Mbps (dynamic)
  • 11n: Up to 300Mbps (dynamic)
  • 11a: Up to 54Mbps (dynamic)
2.4GHz
  • 11n: Up to 400Mbps (dynamic)
  • 11g: Up to 54Mbps (dynamic)
  • 11b: Up to 11Mbps (dynamic)
Reception Sensitivity5GHz
  • 11a 6Mbps: −91dBm
  • 11a 54Mbps: −76dBm
  • 11n HT20: −71dBm
  • 11n HT40: −70dBm
  • 11ac HT20: −68dBm
  • 11ac HT40: −64dBm
  • 11ac HT80: −62dBm
2.4GHz
  • 11b 11Mbps: −86dBm
  • 11g 54Mbps: −73dBm
  • 11n HT20: −71dBm
  • 11n HT40: −70dBm
Transmit Power<23dBm (EIRP)
Wireless ModesAd-Hoc / Infrastructure Mode
Wireless SecuritySupport 64/128 bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Modulation TechnologyDBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
ENVIRONMENTOperating Temperature0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature−40°C~70°C (−40°F~158°F)
Operating Humidity10%~90% non-condensing
Storage Humidity5%~90% non-condensing
OTHERSCertificationCE, FCC, RoHS
Package Contents

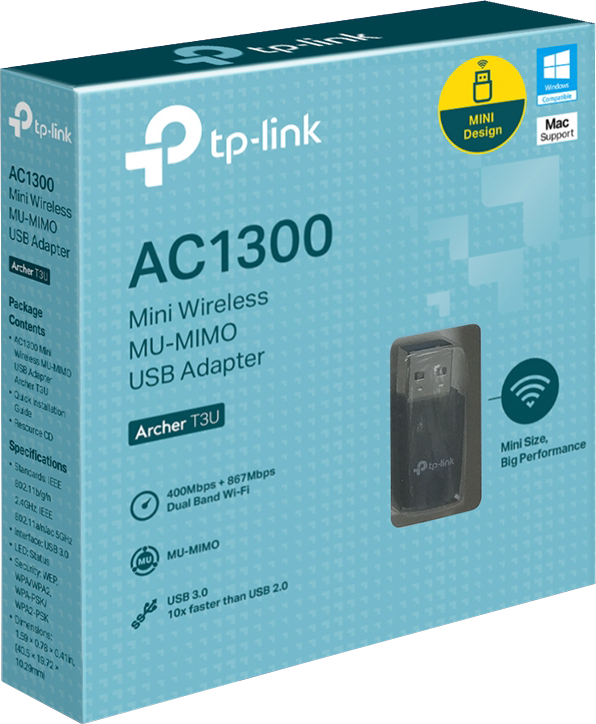

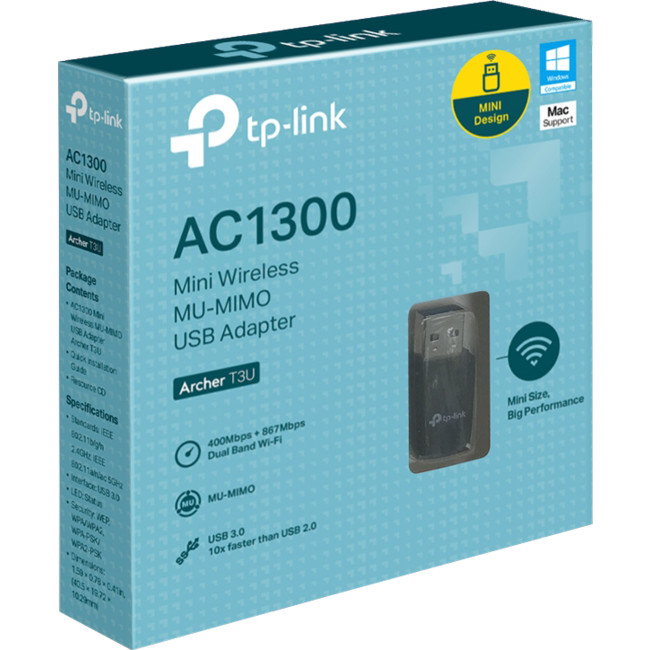

  • AC1300 Mini Wireless MU-MIMO USB Adapter Archer T3U
  • Quick Installation Guide
  • Resource CD
System RequirementsWindows 10/8.1/8/7/XP, Mac OS X
