NBE-5AC-GEN2 NANOBEAM AC ACCESS POINT

AIRMAX 5AC 19DBI

Code: 09051360

1.11 kg
817882023375
EACH
10
Low Stock
$199 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

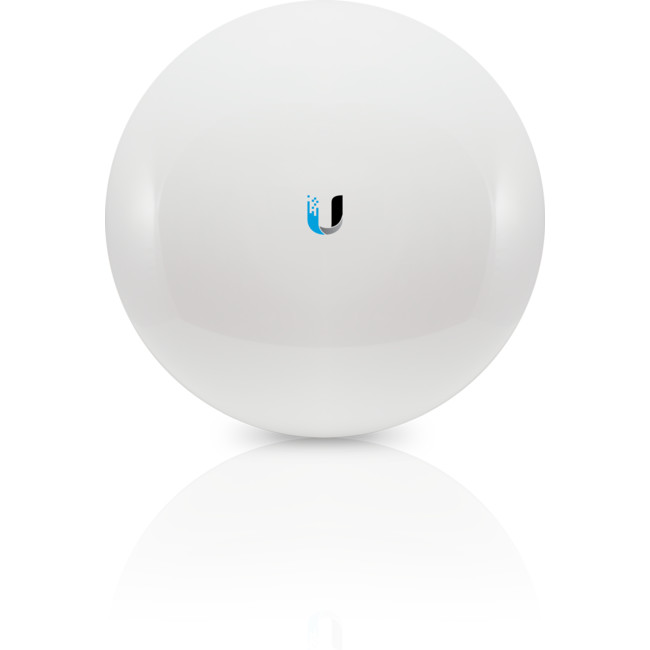

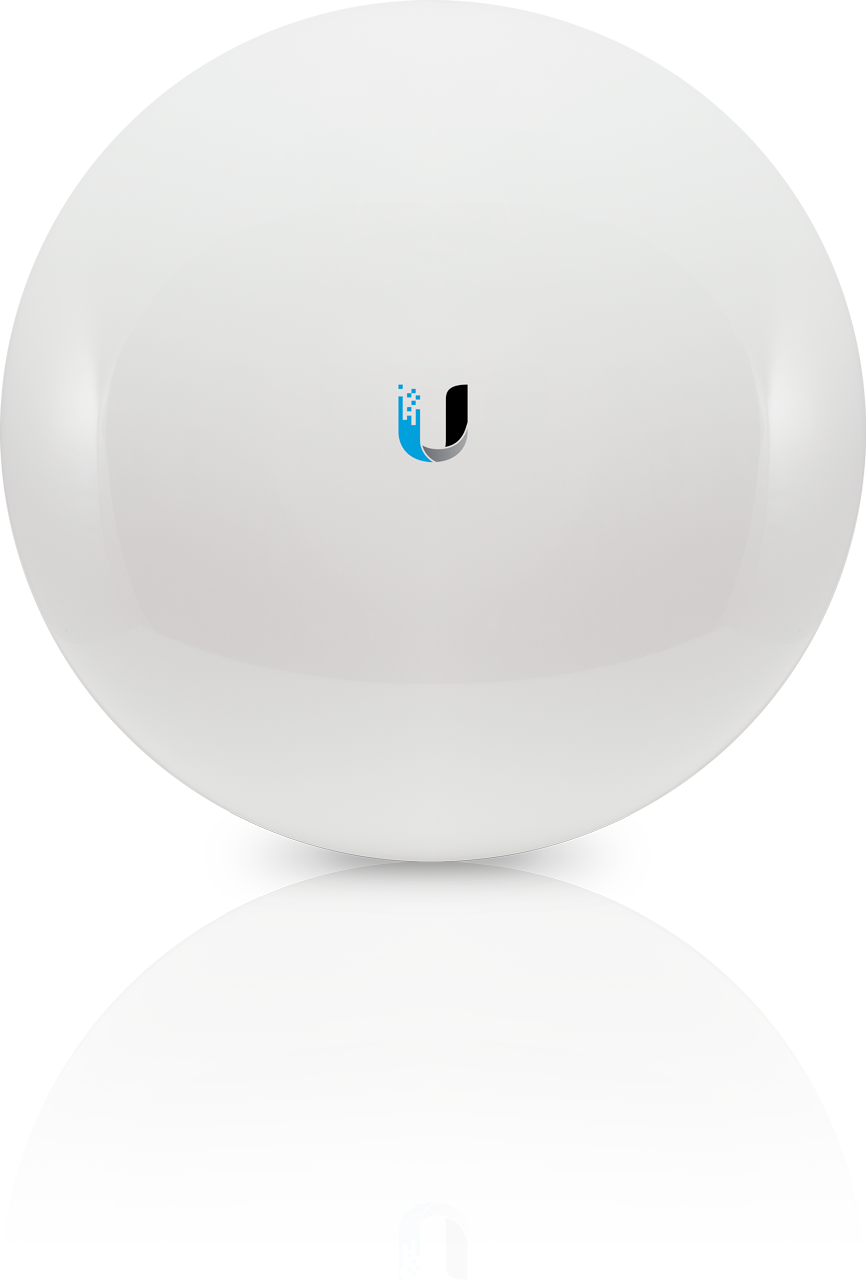

Ubiquiti NanoBeam 5AC Gen2

The sleek NanoBeam design with proprietary airMAX ac chipset and dedicated management Wi-Fi for easy UNMS mobile app support and fast setup. This airMAX ac CPE pivots on a ball joint for mounting and alignment flexibility.

Features:

  • New antenna
  • Improved radio design
  • Improved surge protection
  • Management WiFi Radio/UNMS mobile app
  • AirOS 8

Specifications

Dimensions (Mount Included) 189 x 189 x 125 mm (7.44 x 7.44 x 4.92")
Weight (Mount Included) 530 g (1.17 lb)
Gain 19 dBi
Networking Interface (2) 10/100/1000 Ethernet Port, Wi-Fi for Management
Enclosure Outdoor UV Stabilized Plastic
Max. Power Consumption 8W
Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
Power Method Passive PoE (Pairs 4, 5 ; 7, 8 Return)
Wind Loading 45.4 N @ 200 km/h (10.2 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
Certifications CE, FCC, IC
Mounting Pole-Mount (Kit Included)
Wall-Mount (Not Included)
ESD/EMP Protection ± 24kV Contact/Air
Operating Temperature -40 to 80°C (-40 to 176 F)
Operating Humidity 5 to 95% Noncondensing
Salt Fog Test IEC 68-2-11 (ASTM B117),
Equivalent: MIL-STD-810 G Method 509.5
Vibration Test IEC 68-2-6
Temperature Shock Test IEC 68-2-14
UV Test IEC 68-2-5 at 40°C (104° F),
Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test ETS 300 019-1-4,
Equivalent: MIL-STD-810 G Method 506.5
Operating Frequency Worldwide: 5150-5875 MHz
USA: U-NII-1: 5150-5250 MHz,
U-NII-2A: 5250-5350 MHz,
U-NII-2A: 5240-5725 MHz,
U-NII-3: 5725-5850 MHz
