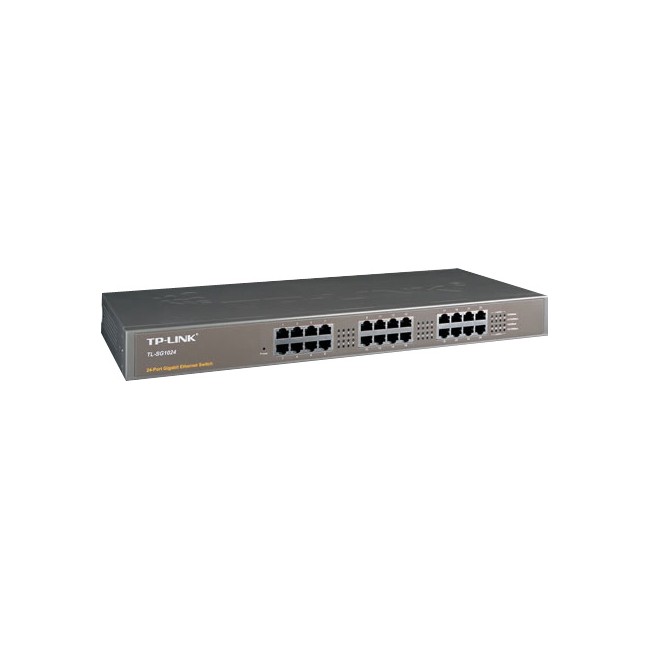

TLSG1024 24 PORT GIGABIT NETWORK SWITCH

METAL RACK MOUNT 10/100/1000M

Code: 09051084

2.74 kg
6935364020101
EACH
6
Low Stock
$159 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

TP-LINK TLSG1024 24-port Unmanaged Gigabit Rackmount Switch

The TL-SG1024 is specially designed for Ethernet (10Mbps), Fast Ethernet (100Mbps) and Gigabit Ethernet (1000Mbps) with seamless link. Each port supports up to 2000Mbps throughput in full duplex mode. It is the perfect choice to improve the performance of Offices and work group networks.

Features

  • All ports support full/half duplex transfer mode for 10Mbps/100Mbps and full duplex transfer mode for 1000Mbps
  • Supports Auto-MDI/MDIX function
  • Supports IEEE 802.3X flow control for full-duplex mode and back pressure flow control for half-duplex mode
  • Store and forward Switching scheme
  • Standard 19″ rack-mountable steel case

SPECIFICATIONS


Standards and Protocols
  • IEEE802.3, 802.3u, 802.3ab, 802.3x
  • CSMA/CD, TCP/IP
Basic Functions
  • Wire-speed Performance
  • MAC Address Auto-Learning and Auto-aging
  • IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
Backbound Bandwidth48Gbps
MAC Address Table8k
Forwarding Rate
  • 10BASE-T: 14880pps/port
  • 100BASE-TX: 148800pps/port
  • 1000BASE-T: 1488000pps/port
Transmission MethodStore-and-Forward
Ports24 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Network Media
  • 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ù STP (maximum 100m)
  • 100Base-Tx: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ù STP (maximum 100m)
  • 1000Base-T: UTP category 5, 5e cable (maximum 100m)
LED IndicatorsPower, Link/Act
Safety & EmissionFCC, CE
Dimensions (W×D×H)440mm × 180mm × 44mm (17.3″ × 7.1″ × 1.7″)
Environment
  • Operating Temperature: 0°C~40°C (32°F~104°F)
  • Storage Temperature: −40°C~70°C (−40°F~158°F)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing
Power100-240V AC, 50/60Hz
