MC200CM GIGABIT ETHERNET MEDIA CONVERT

SC MULTI-MODE UPTO 550M

Code: 09051069

0.4450 kg
6935364030438
EACH
30
Low Stock
$49 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

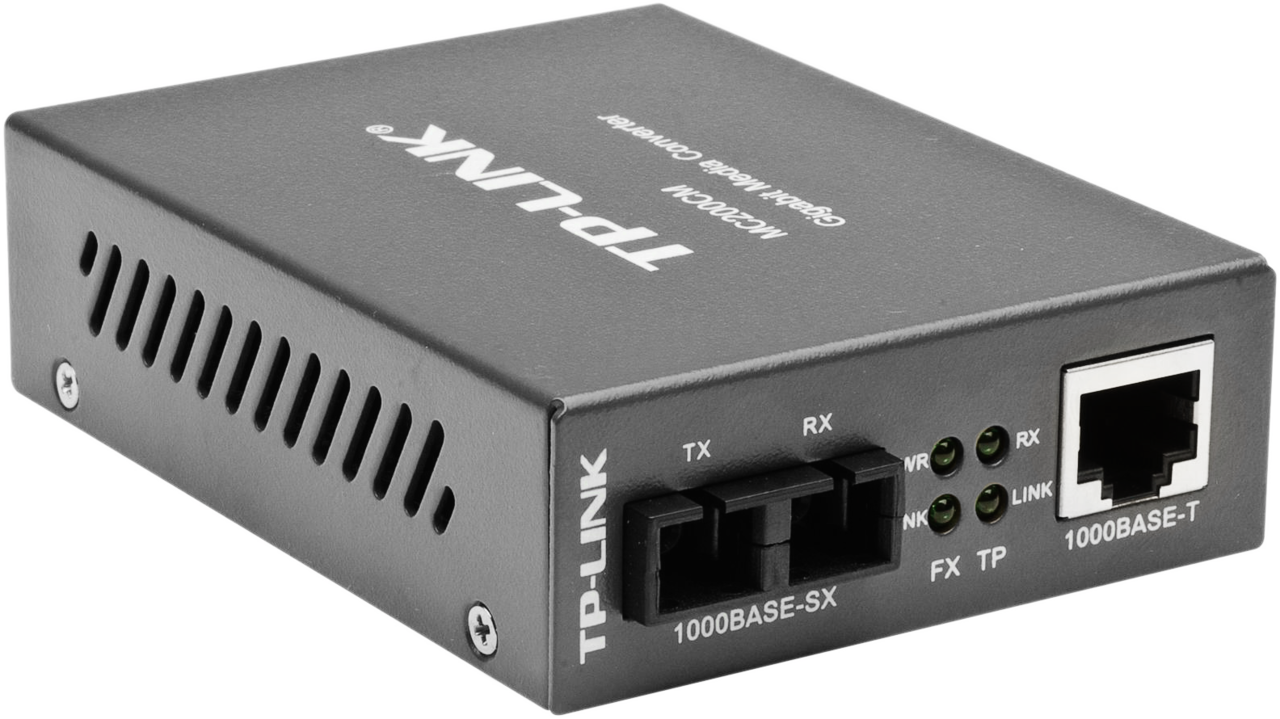

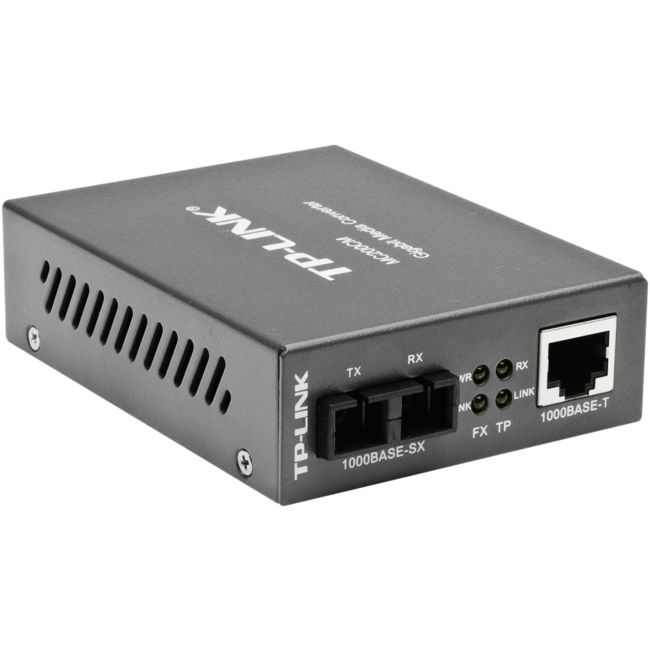

MC200CM TP-LINK Gigabit Ethernet Media Converter (SC, multi-mode) Extends Up to 550 meters

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilising the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.


Features

  • Works at 1000Mbps in Full-Duplex mode for both TX port and FX port
  • Supports auto MDI/MDIX for TX port
  • Provides switch configuration of Force / Auto transfer mode for FX port
  • Extends fiber distance up to 0.5km
  • Easy-to-view LED indicators provide status to monitornetwork activity easily
  • External power supply

SPECIFICATIONS


Standards and Protocols IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Basic Function
  • Full Duplex Flow Control (IEEE 802.3x)
  • Extends fiber distance up to 0.5km using 50/125umfiber
  • Extends fiber distance up to 0.22km using 62.5/125um fiber
Ports
  • 1 × 1000M SC port
  • 1 × 1000M RJ45 port (Auto MDI/MDIX)
Wave Length 850nm
Network Media 1000BASE-FX Multi-mode Fiber
Network Media 1000BASE-T
  • UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100 ohm STP (maximum 100m)
LED Indicators PWR, LINK, RX
Dimensions (WxDxH) 94.5mm × 73.0mm × 27.0mm (3.7″ × 2.9″ × 1.1″)
Power Supply External Power Adapter
Safety & Emission FCC, CE, RoH
Environment
  • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
  • Storage Temperature: −40°C ~ 70°C (−40°F ~ 158°F)
  • Operating Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 90% non-condensing
