TA995 DUAL BAND IP 4G PTT AND 80CH UHF

{tab Overview}

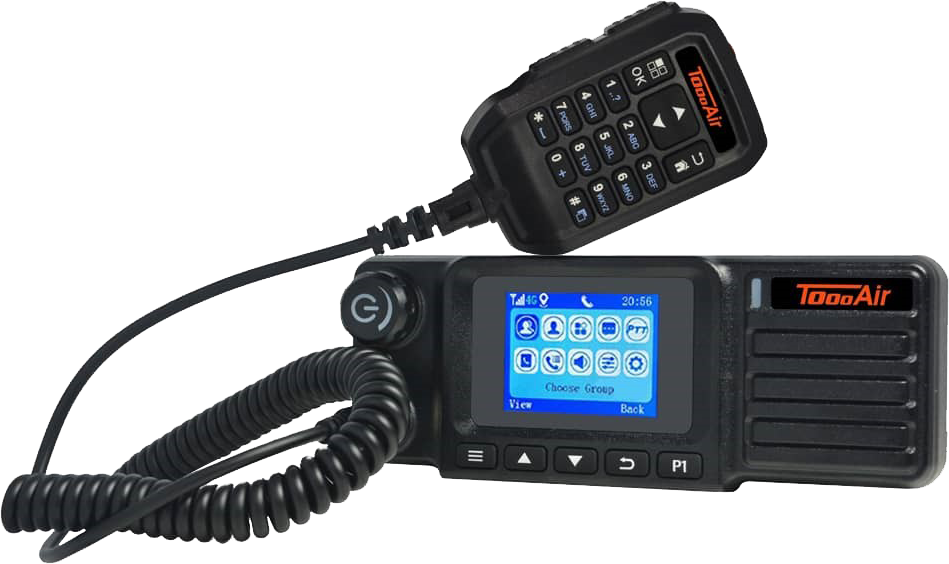

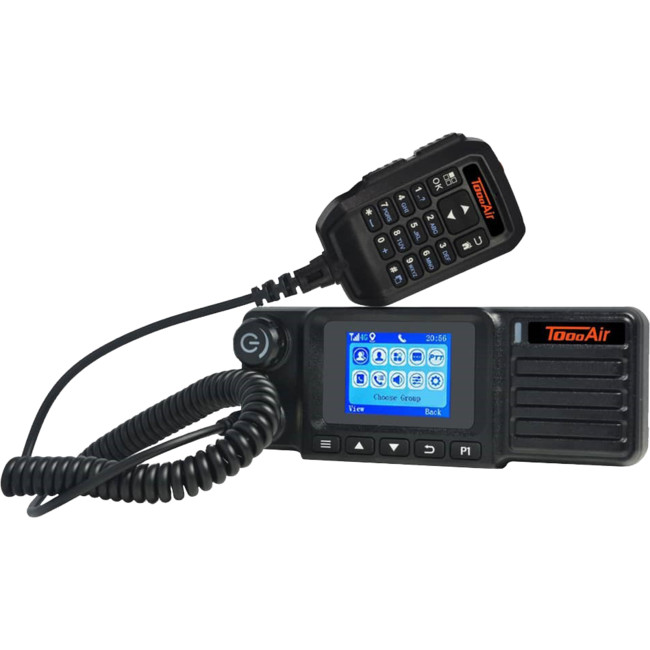

TA995 DUAL BAND IP 4G PTT & 80CH UHF MOBILE RADIO - TOOOAIR

The TA-995 mobile radio is the only one of its kind in Australia, incorporating both PTToC and UHF simultaneously. This mobile offers the full features of PTToC including; GPS Tracking, SOS duress alert, encrypted private network and voice recordings. Alongside the PTToC features is the analogue UHF capability offering 80 channel CB, 40 pre-programmable channels and 78 user programmable receive only frequencies.

The mobile radio is easily operated by a keypad microphone which enables unique features like quick diallingand quick search across multiple groups. The quick dialling feature allows users to simply dial a 3-digit number to commence a private call with a user. The keypad microphone also comes equipped with 2 PTT tactile buttons one for PTToCand the other for UHF transmission, allowing the user to transmit into either mode at the press of a button.

{tab Features}

Group Call (One to Many)

• User can select pre-programmed groups and instigate a group call and talk to all members of the group. User can also be part of multiple groups and choose a primary group for transmission.

Individual Private Call (One to One)

• User can select an individual radio or the dispatcher and perform a one on one private call outside the group.

Internal GPS Engine

• The internal GPS engine reports its position every 60 seconds to the dispatcher (Programmable). GPS acquisition status is shown on the radio LCD display.

Voice Recordings

• The unit can have all the transmissions that are broadcasted or received recorded to the device. The recordings can be easily accessed through the user-friendly GUI.

Adjustable Sound Quality

• The TA-995 comes with several sound adjustments including speaker and microphone variable settings with the ability to choose between 4K and 8K voice.

Dedicated SOS

• A dedicated SOS button that when held in for 3 secondssends an alert to all other units and an alert showing wherethe user is located on the Dispatcher map display.

Twin Antenna

• Maximum performance is achieved across the wide band of 400MHz UHF and 3G/4G/4GX Telstra bands utilizing twin antenna design.

Dual PTT / Keypad Microphone

• The keypad microphone is a one of a kind including 0-9numerical keys and 2 tactile push-to-talk buttons for quick transmission select between different modes.

{tab Specs}

Model Number: TA-995
Colours: Black
Dimensions: 190mm x 135mm x 72mm
Weight: 940g
Working Temperature: -30° to 75°

Working Voltage: 12V ~ 24V
Working Current: 500mA @ LTE
220mA @ WCDMA
Idle Current: 150mA
Peak Current: 3A
Audio Output: 3W

LTE FDD: Band 1/2/3/5/7/8/28A/28B/40
WCDMA: Band 1/5
Maximum Output Power: LTE: 23dBm ± 2.7dBm (Power Class 3)
WCDMA: 24dBm 2.5dBm / -1.5dBm (Power Class 3)
Receiving Sensitivity: LTE FDD: =-100 dBm
WCDMA 850: =-108 dBm
WCDMA 1900: =-109 dBm

GPS: GPS Positioning, 1.57542GHz
Sensitivity: Catch -144dBm, Track -159dBm
Data Speed Rate: LTE FDD-Uplink 50 Mbps / Downlink 150 Mbps
WCDMA-Uplink 5.76 Mbps / Downlink 42 Mbps
Protocol: Support embedded TCP& UDP Protocols Support Protocols PAP and CHAP used for PPP connection
3GPP TS27.005,27.007

UHF Spectrum: 400MHz - 480MHz
Channel Space: 25 / 12.5KHz
Frequency Stability: ± 2.5 ppm
Band Width: Wide / Narrow
Transmit Power: 10W (Max 5W CB Only)
Modulation: 16KFF3E / 11KFF3E
Spurious Emissions: =36dBm / =36dBm
Adjacent Channel Power: =70dB / =60dB
RF Sensitivity: 12dB SINAD =0.20µV / =0.20µV
Adjacent Channel Selectivity: =60dB / =55dB
Intermodulation Rejection: =65dB / =60dB
Spurious Response: =65dB / =65dB
