MX44KVM 4X4 USB KVM MATRIX - USB 3.0, WEB GUI

FRONT PANEL IR, TCP/IP, RS232 WITH LOOP THROUGH

Code: 07351390

EACH
Special
Buy-In
TRADE ALERT!
$1129 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

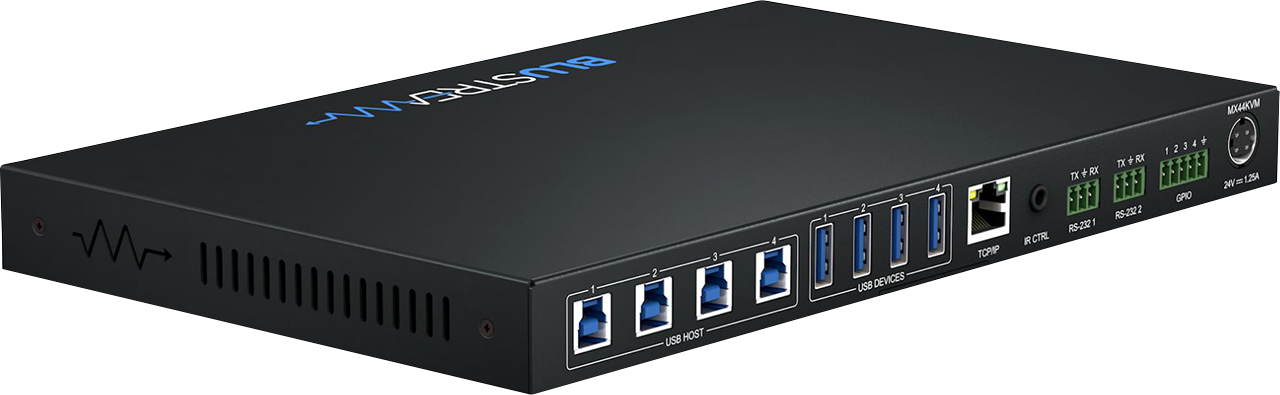

Blustream MX44KVM 4x4 USB KVM Matrix

Our 4x4 USB 3.0 KVM Matrix offers unprecedented performance and value for the custom and commercial installation market.

The MX44KVM is a USB 3.0 Matrix package allowing 4x USB peripheral devices to be shared between 4x host devices, supporting plug-and-play capabilities, and USB data transfer rates up to 5Gbps.

The Matrix provides advanced features including cascading of multiple MX44KVM units, GPIO functionality for 3rd party product triggers, an in-built web browser interface module for control and configuration of the Matrix, along with RS-232 for seamless control integration.

An RS-232 loop-through connection allows for the MX44KVM to be intrinsically linked to any Blustream video matrix product for the addition of KVM support to our video-only switching products.

GPIOKVMPlug PlayRS 232 ControlUSB 3.0WEB GUI

Key Features:

  • 4x4 USB KVM Matrix allowing up to 4 x USB peripheral devices to be shared between 4 x host devices
  • USB 3.0 connectivity with data transfer rates up to 5Gbps
  • Backwards compatible with USB 2.0 and 1.1
  • Plug-and-play with no drivers, downloads, or software required
  • USB-A connections provide 5V / 900mA
  • Features 4 x configurable GPIO ports for integration with 3rd party products
  • Features RS-232 loop-through for repetition of incoming RS-232 commands to additional Blustream products
  • Assignable inputs and outputs allowing automated switching when used with existing Blustream Matrix products
  • Web interface module for control and configuration of the MX44KVM
  • Control via front panel, IR, RS-232, and TCP/IP

Specifications:

  • USB Device: 4 x USB Type A, female
  • USB Host: 4 x USB Type B, female
  • RS-232 serial port: 2 x 3-pin Phoenix connector
  • IR Input port: 1 x 3.5mm stereo jack
  • TCP/IP Control: 1 x RJ45, female
  • GPIO Control: 1 x 5-pin Phoenix connector
  • Dimensions (W x D x H): 273mm x 168mm x 25mm
  • Shipping Weight: 2.65kg
  • Operating Temperature: 32°F to 104°F (-5°C to 55°C)
  • Storage Temperature: -4°F to 140°F (-25°C to 70°C)
  • Power Supply: 24V/1.25A DC, 4-pin DIN connector

Box Contents:

1 x MX44KVM
1 x Mounting kit
1 x USB-A to USB-B cable (1m)
1 x IRR receiver
1 x IRCAB control cable (3.5mm - 3.5mm cable)
2 x 3-pin Phoenix connector
1 x 5-pin Phoenix connector
4 x Isolation feet
1 x 24V/1.25A DC power supply
1 x Quick Reference Guide
