HDMIIPECOV2 HDMI OVER IP DISTRIBUTION

HDMIIPECOV2 PRO2 HDMI OVER IP DISTRIBUTION

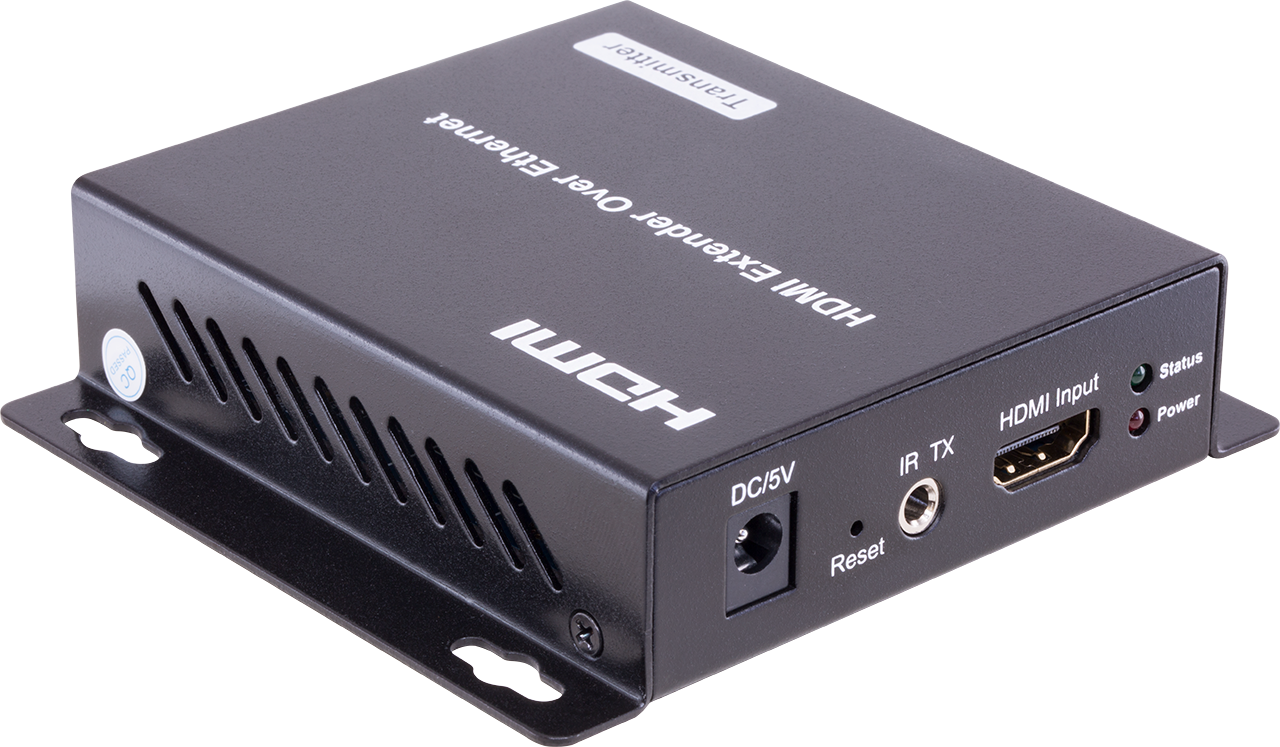

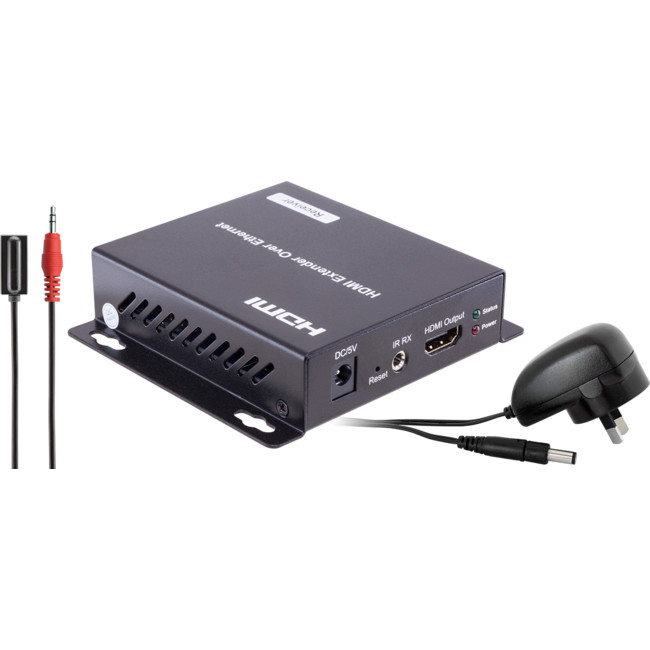

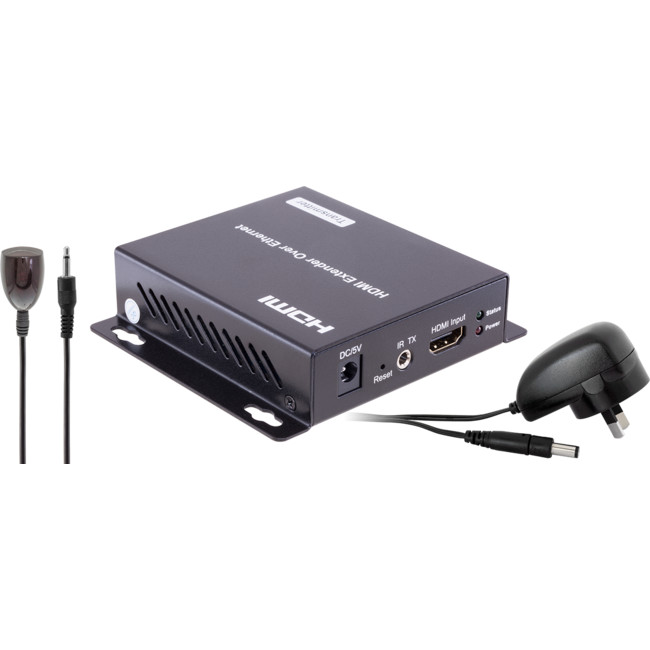

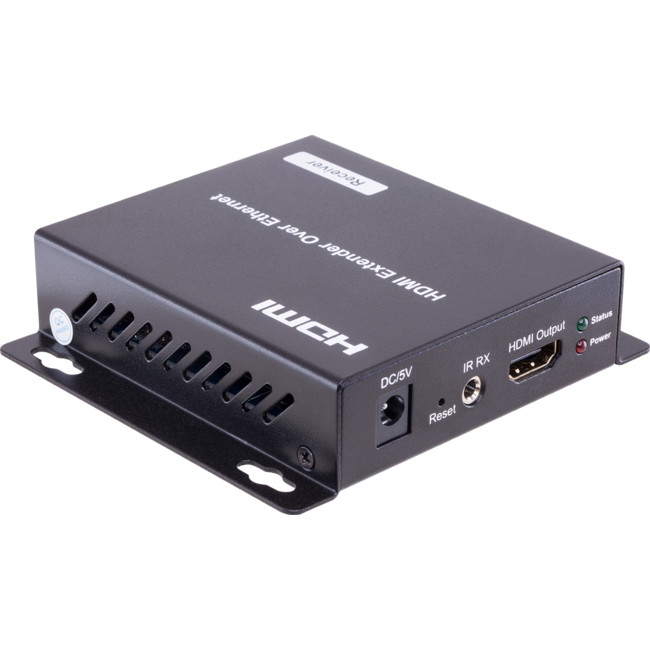

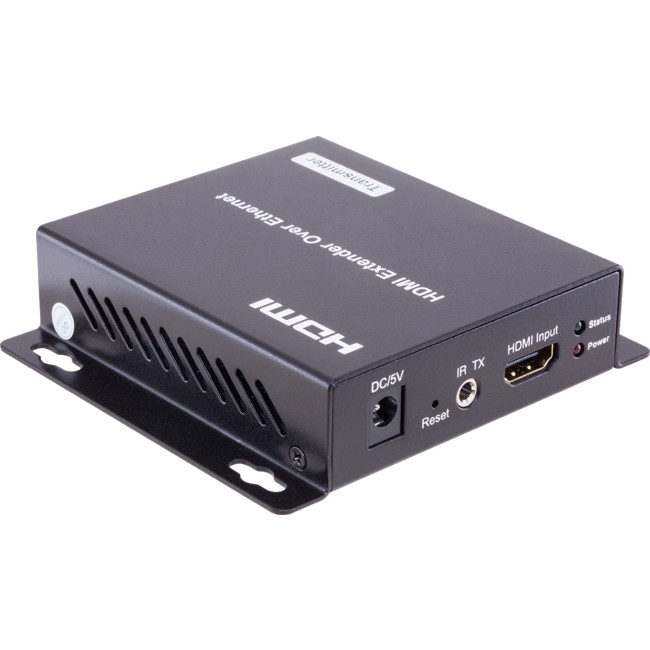

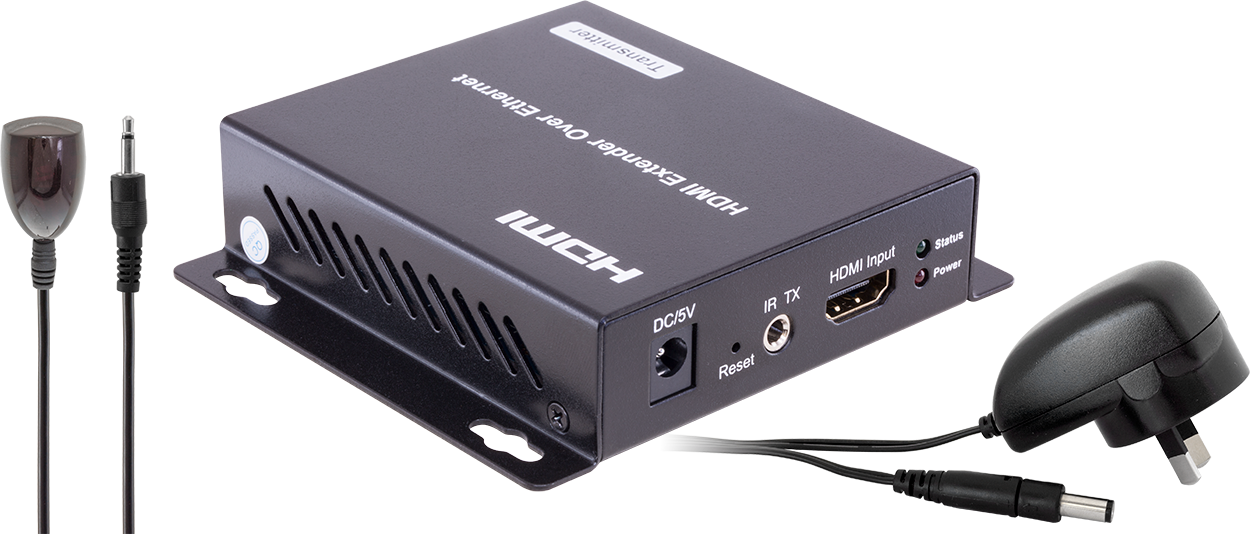

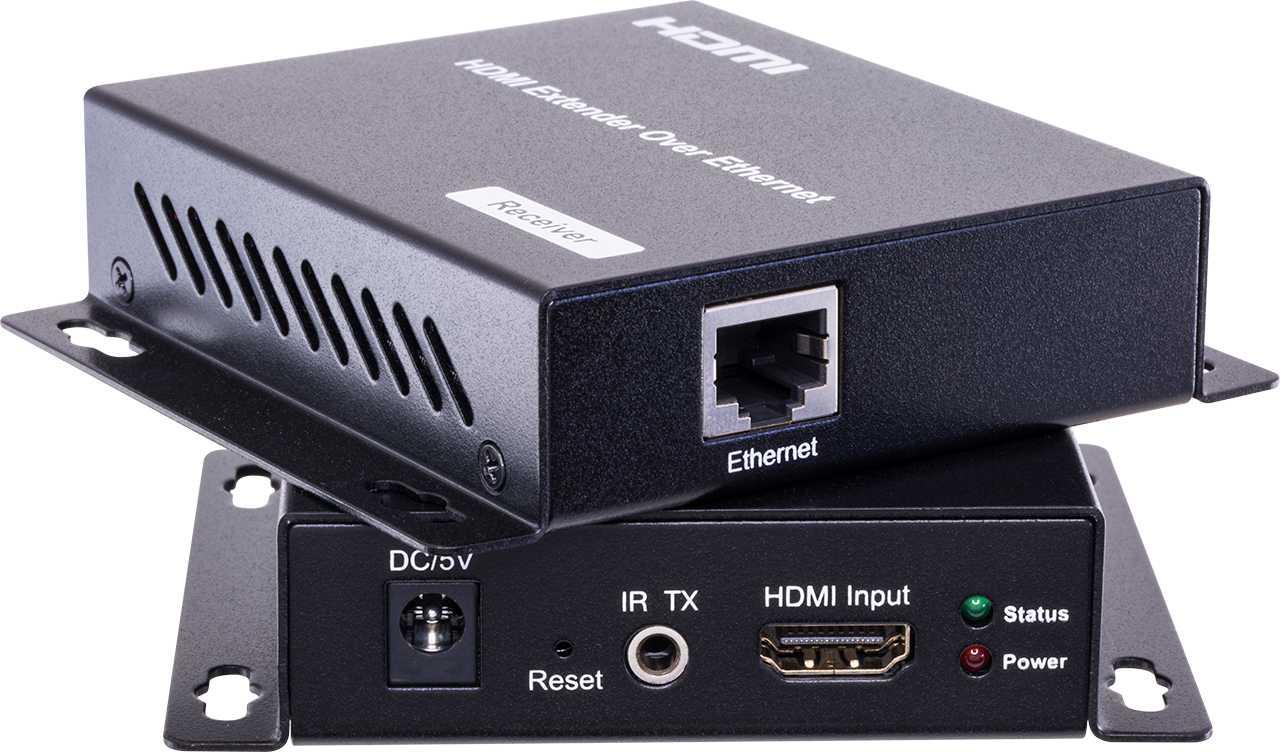

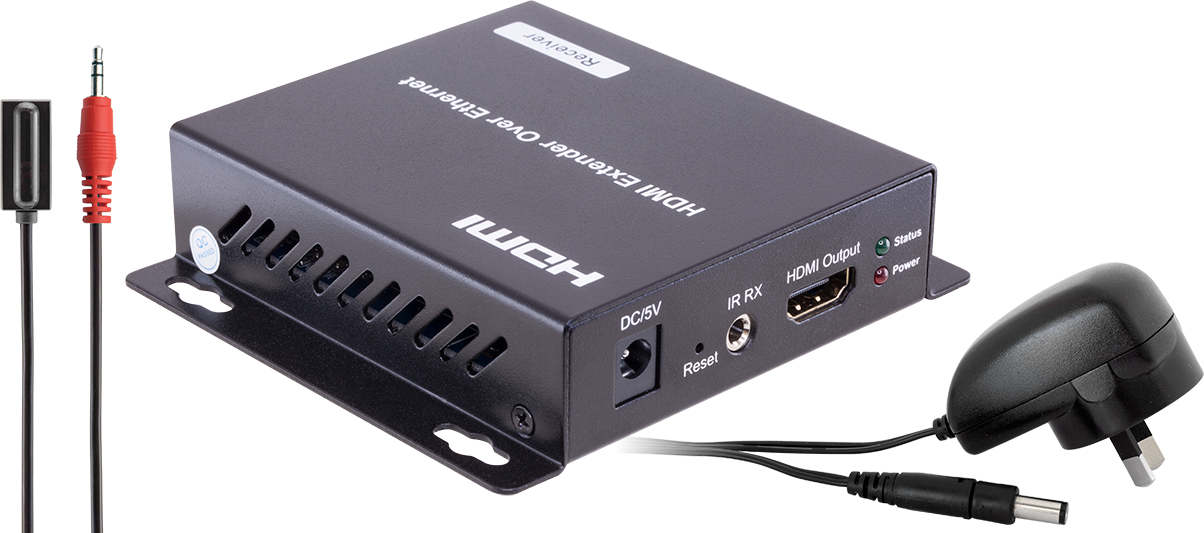

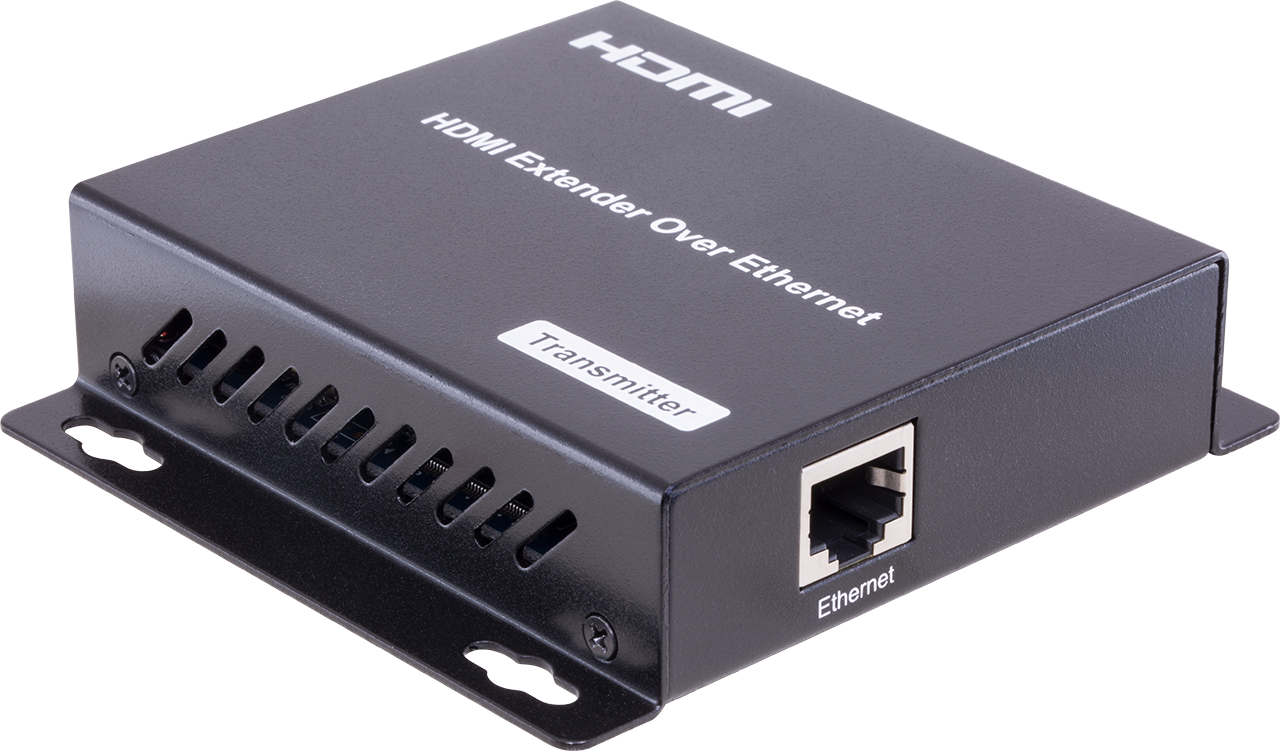

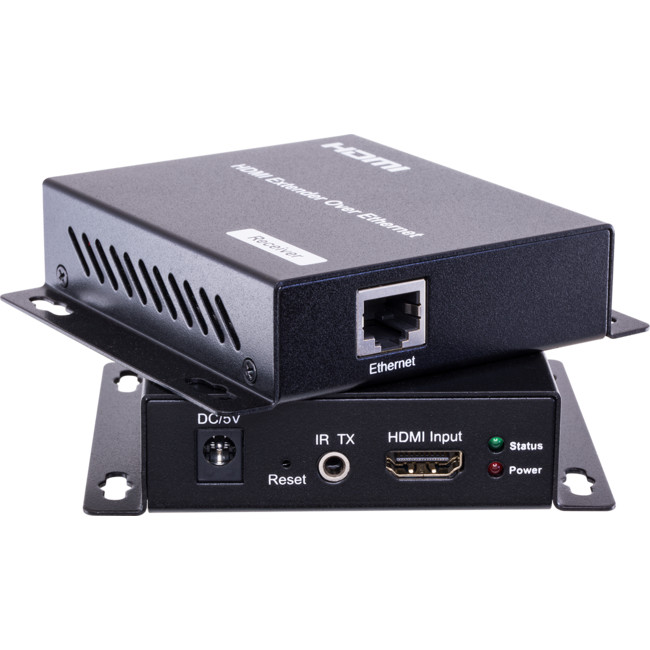

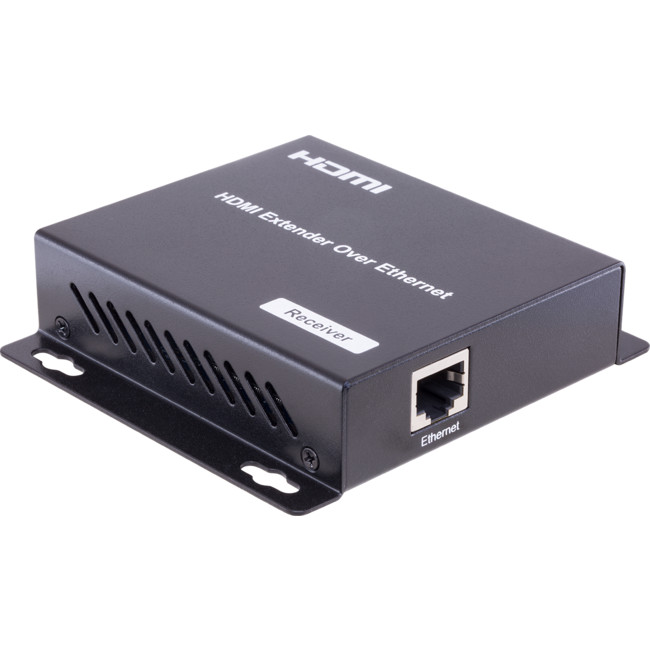

HDMIIPECOV2 is a budget option for extending HDMI source over network, using MJPEG compression. It supports one to one and one to many operation.

• Extends 1080p HDMI signals up to 120m over single UTP CAT5e/CAT6 cable
• Supports point to point, point to many
• MJPEG compression
• HDCP compliant
• With wideband IR (38-56kHz) control
• Supports TCP/IP protocol
• With mounting ears
• Default TX IP: 192.168.168.55
• Default RX IP: 192.168.168.56

Applications

Specifications

FAQ

Is the HDMIIPECOV2 suitable for many-to-many applications?
Yes, however it is not as easy to setup nor is it recommended for reasons explained below:

• The HDMIIPECOV2 uses MJPEG compression which requires very high bandwidth and is likely to saturate your network bandwidth when used in a many-to-many scenario. For this type of application we strongly recommend the Pro2
• HDMIIPPRO which uses H.264 compression that utilises substantially lower bandwidth when compared to MJPEG. The other issue with many-to-many applications is that it requires you have a managed network switch, and set up different VLANs for each transmitter used and then change the receiver IP address accordingly. For example, you set VLAN 1 for Transmitter 1 (eg. Foxtel), VLAN2 for Transmitter 2 (eg. DVD player), when you want the Receiver 1 to pick up the Foxtel, you change the Receiver 1 IP address to the same subnet as VLAN 1 and if you want to display the DVD player, you would change it to the same subnet as VLAN2.
