HDMIKVMIP HDMI KVM OVER IP EXTENDER

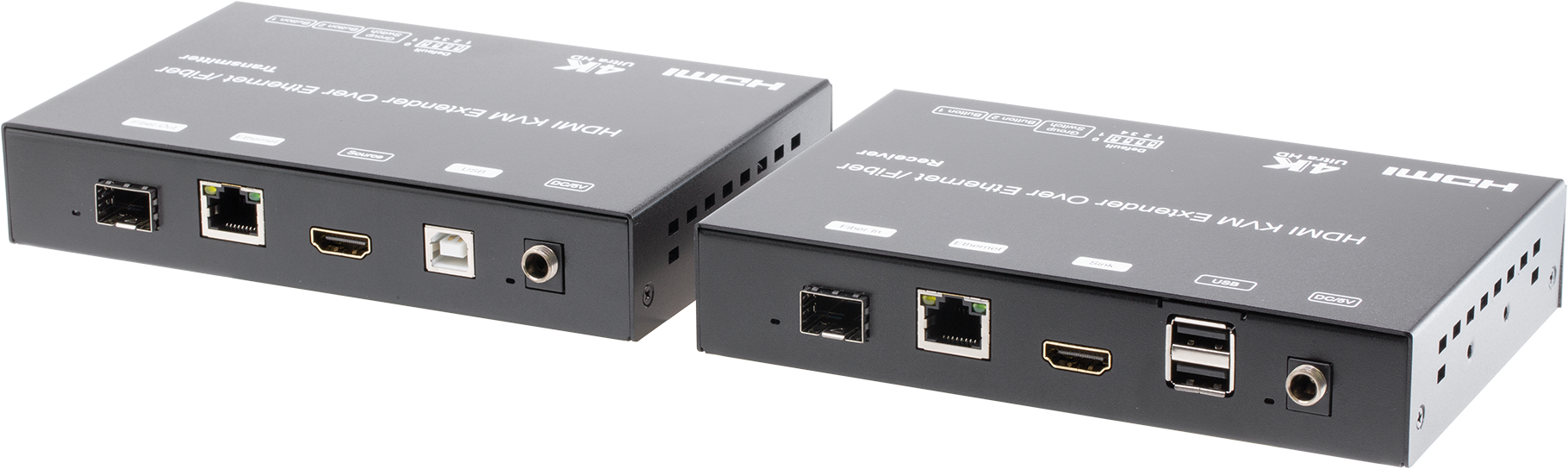

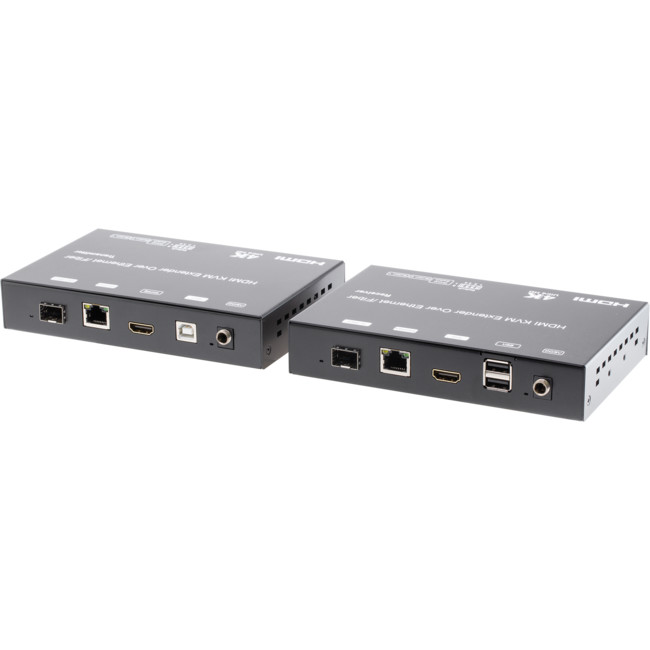

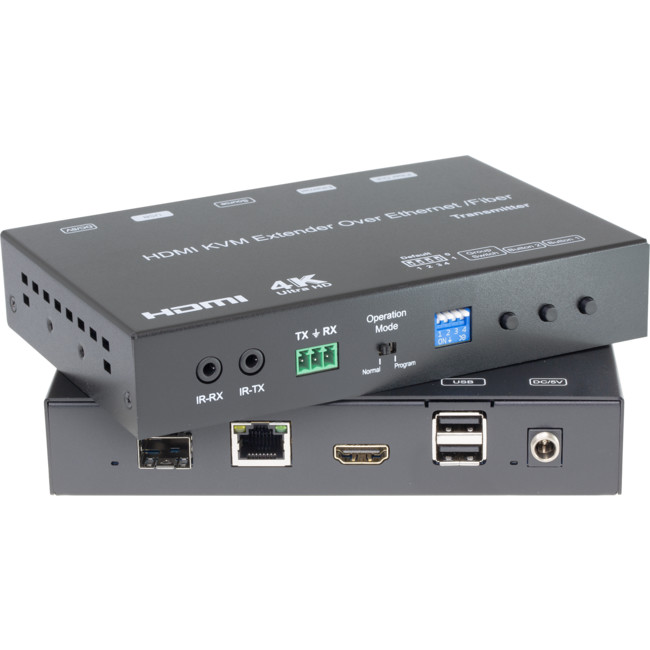

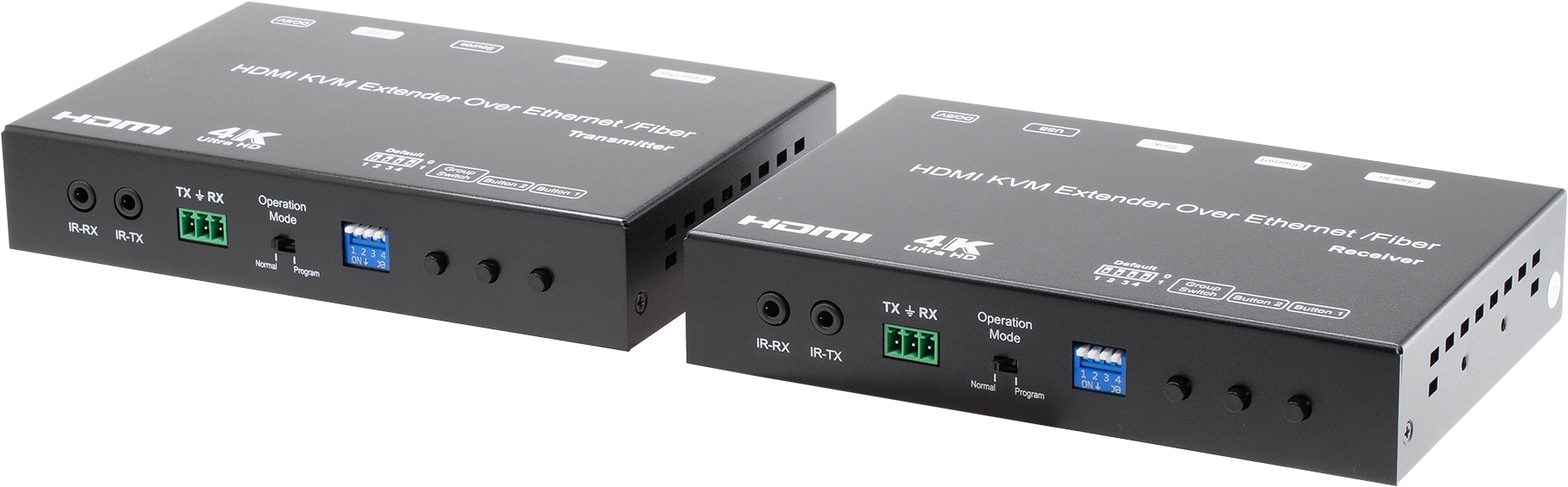

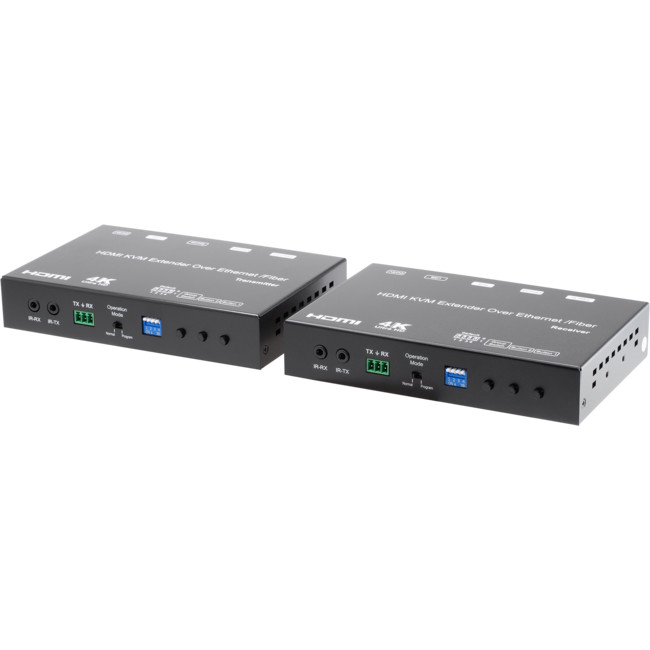

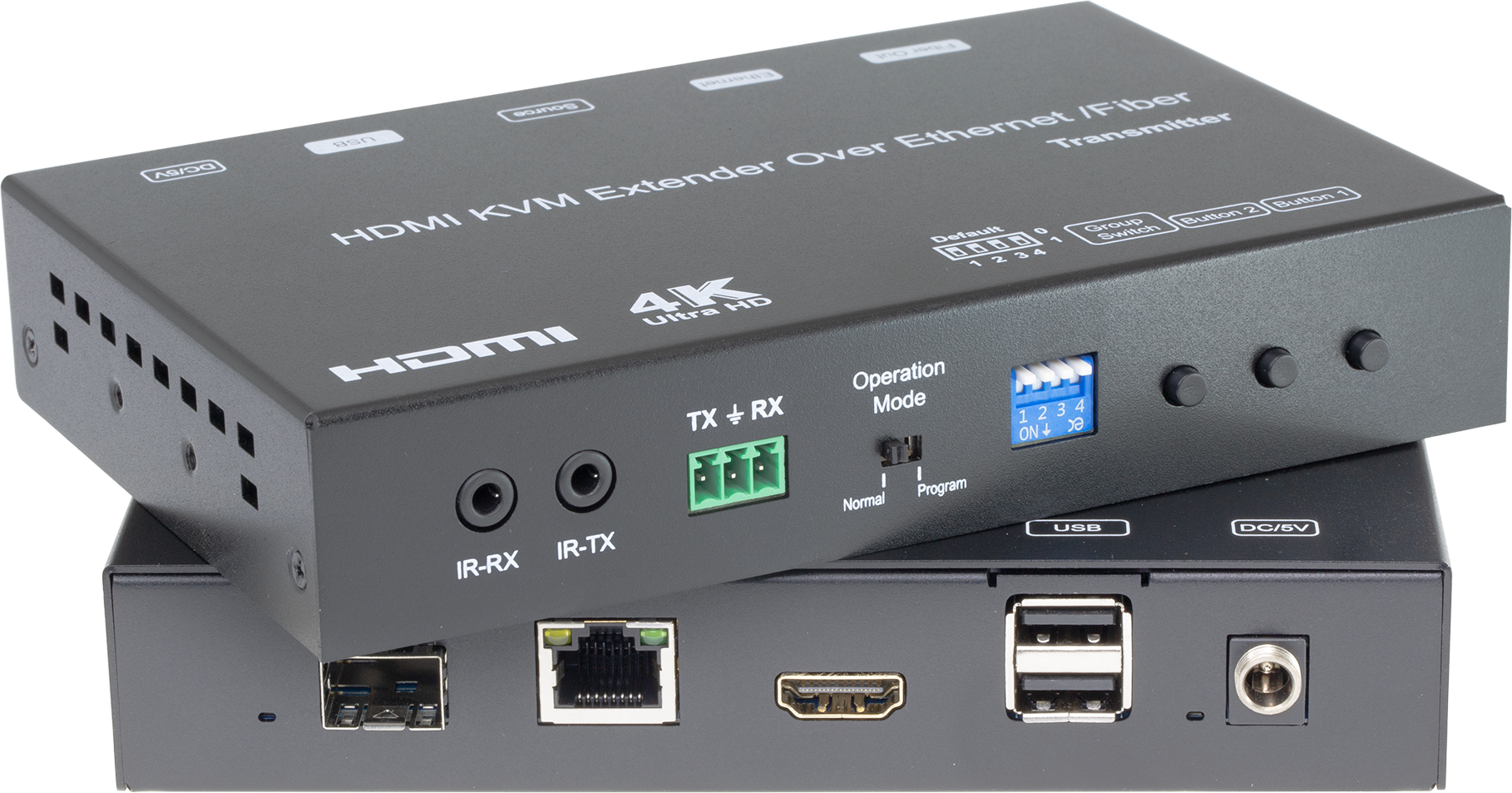

HDMIKVMIP 4K HDMI & USB over IP Extender

This extender transmits high-quality audio, video, and USB signals over a Local Area Network (LAN). Designed for KVM extension, it supports multiple configurations, including point-to-point, point-to-multipoint, and multipoint-to-multipoint setups, as well as video wall broadcasting. Simple installation using a Gigabit Ethernet switch (with IGMP support) and CAT5e/6 cables for extension. It is managed via USB, RS232, IR, or web browser to deliver UHD high-resolution video extension over an IP network.

Features

• 4K UHD HDMI over IP extension
• USB 2.0 over IP extension
• RS232 bi-directional extension and RS232 control
• 4 bits switch for 16 stream channel selection
• Support Dolby True HD, DTS-HD Master Audio
• Support two way Wide Band IR extension (38khz-56khz)
• Transmit over single Cat5e/6 cable up to 120m
• Transmitter over Fiber Optical cable up to 60km (Single Mode)
• Networking environment under Giga Ethernet switch and CAT5e cable
• Point to point extension, Unicast, Multicast and Video Wall system (Max 8x16)
• Output video rotation
• Output video partial enlargement
• HDCP 1.4 compliant

Note: When transmitted over Fiber, 4Kx2K requires a minimum 3.125G module.

Specifications

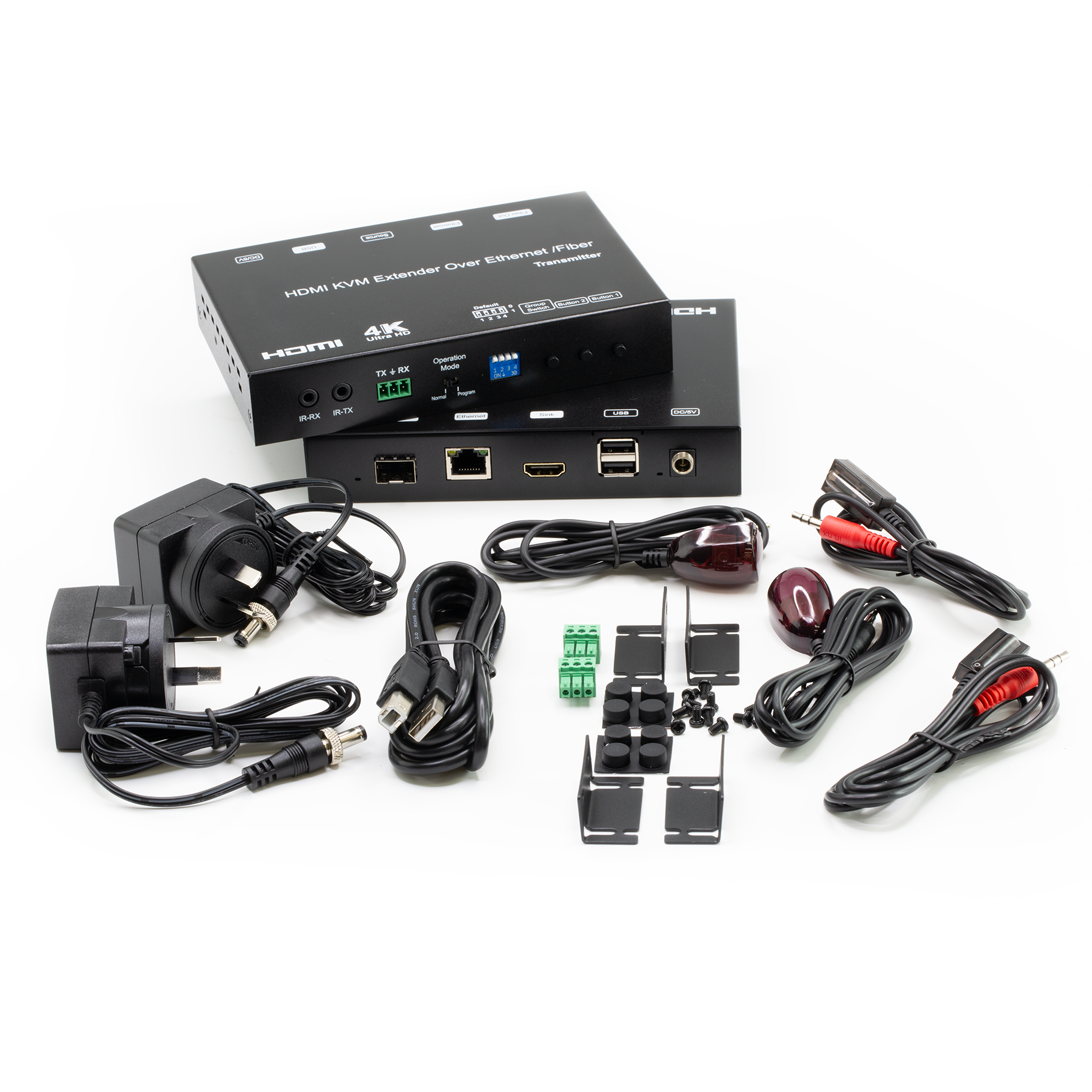

What is in the box?

• HDMIKVMIP Transmitter & Receiver x 1 pair
• Power adapter DC 5V 2A x 2pcs
• IR TX cables x 2pcs
• IR RX cables x 2pcs
• Phoenix plugs for RS232 cable termination x2pcs
• Screws x 8pcs
• Detachable mounting ears x4pcs
• Operating Instruction manual disc x1pc
