ACM210 ADVANCED CONTROL MODULE FOR TCP/IP, RS-232 AND IR

SUITS IP300UHD, IP350UHD, IP200UHD, IP250UHD & IP50HD

Code: 07350938

EACH
Special
Buy-In
TRADE ALERT!
$999 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

Blustream ACM210 Advanced Control Module

Description

Our Multicast distribution platform allows distribution of HDMI video over a 1Gb Network switch. The ACM210 Advanced Control Module allows for third party control of the Multicast system using TCP/IP, RS-232 and IR.

The ACM210 includes a web interface module for control and configuration of the Multicast system and features 'drag and drop' source selection with video preview and independent routing of video, audio, IR, RS-232, USB / KVM and CEC.

Major third party drivers simplify Multicast product installation and negate the need for an understanding of complex network infrastructures.

Key Features

  • Web interface module for configuration and control of the Blustream Multicast system

  • Intuitive 'drag & drop' source selection with video preview feature for active monitoring of system status

  • Advanced signal management for independent routing of IR, RS-232, USB / KVM, audio and video

  • Auto system configuration

  • 2 x RJ45 LAN connections to bridge existing network to Multicast video distribution network, resulting in:

    - Better system performance as network traffic is separated

    - No advanced network setup required

    - Independent IP address per LAN connection

    - Allows simplified TCP/IP control of Multicast system

  • RS-232 integration for control of Multicast system

  • IR integration for control of Multicast system

  • PoE (Power over Ethernet) to power Blustream product from PoE switch

  • Local 12V power supply (optional) should Ethernet switch not support PoE

  • Support for iOS and Android App control

  • 3rd Party drivers available for major control brands

Specifications

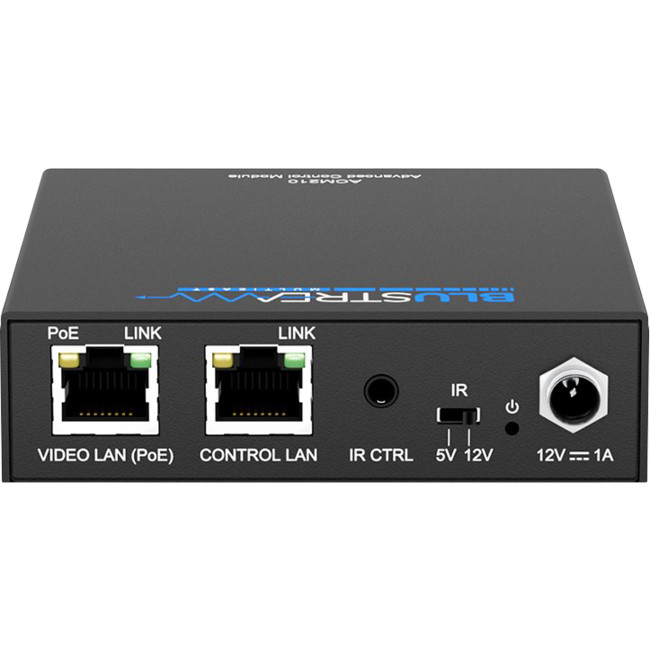

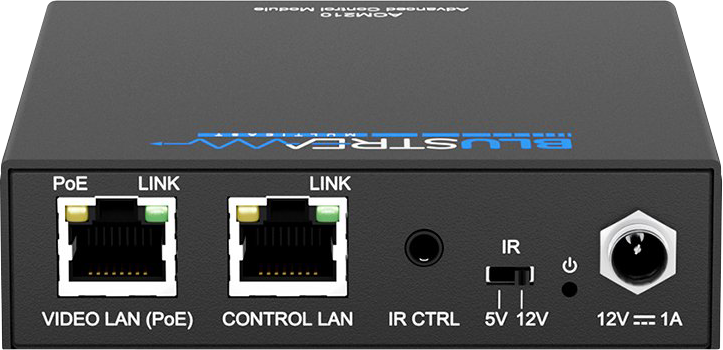

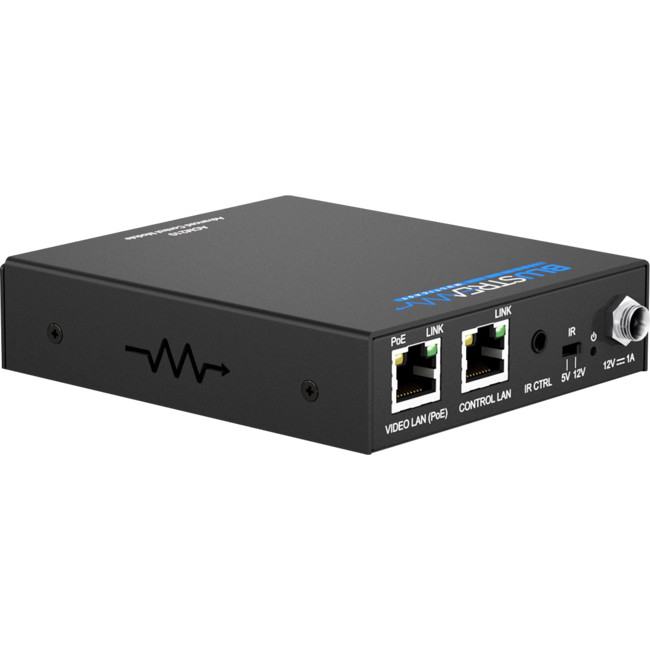

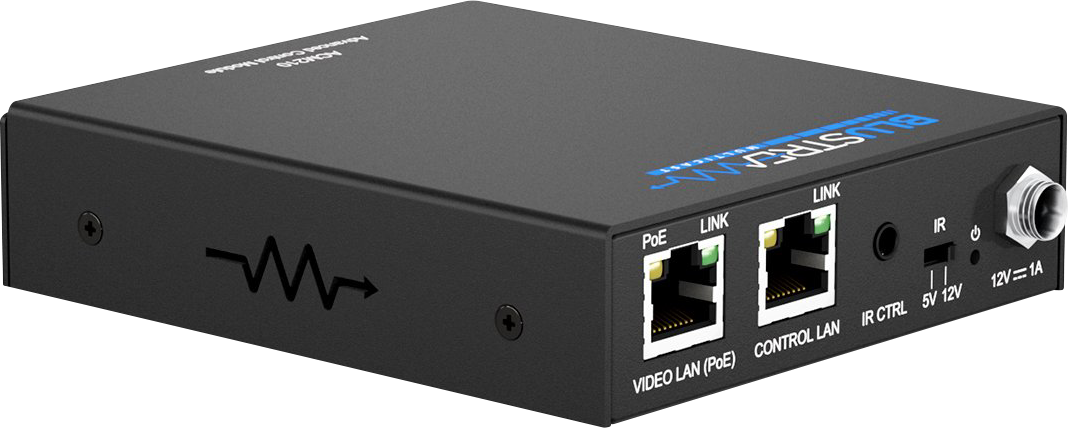

  • Ethernet Port: 2 x LAN RJ45 connector (1 x PoE support)

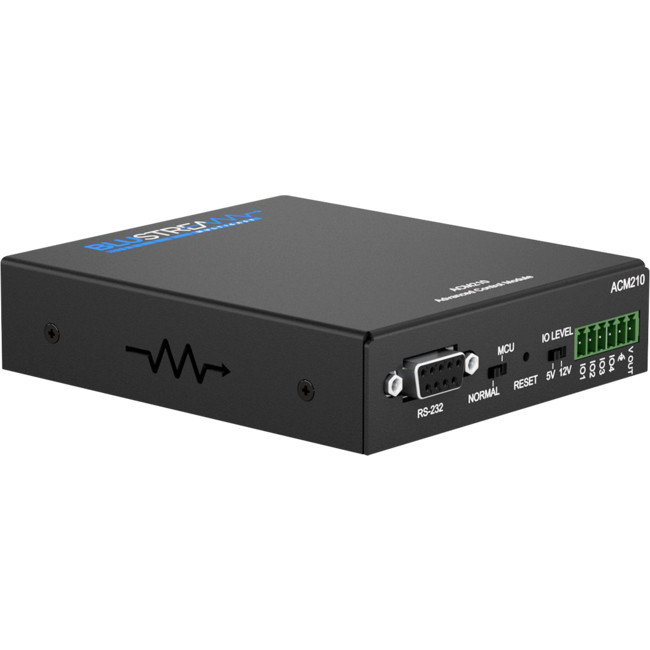

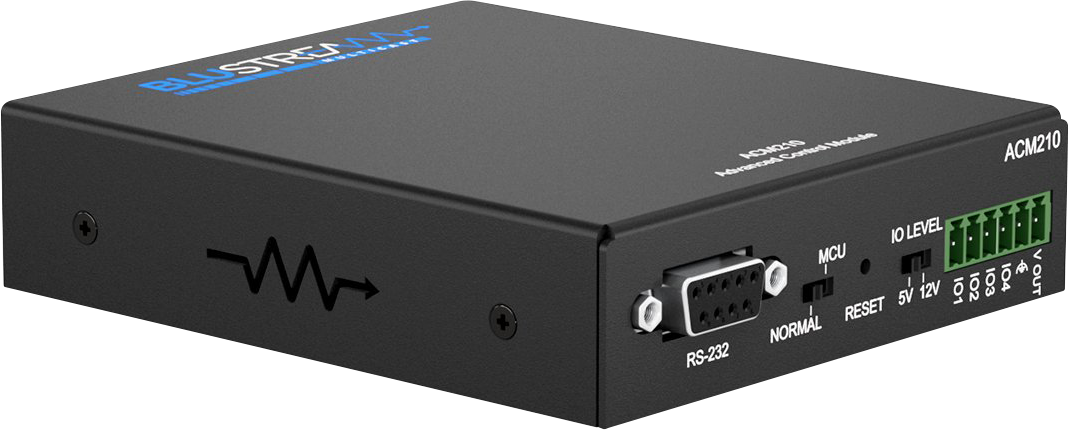

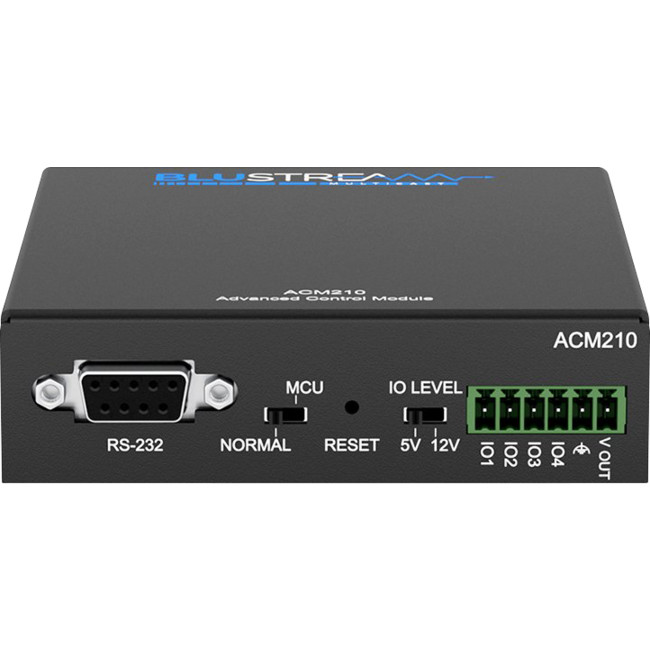

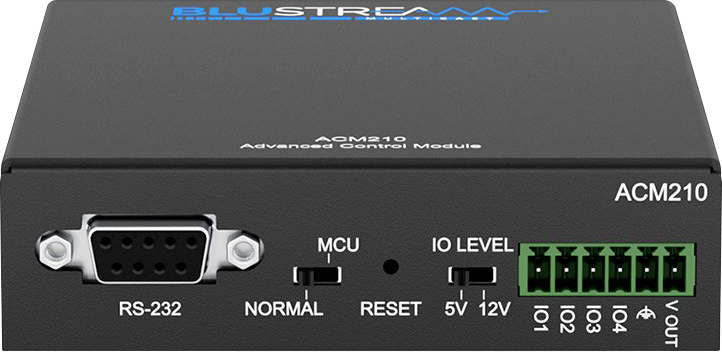

  • RS-232 Serial Port: 1 x DB-9 female

  • GPIO Port: 1 x 6-Pin Phoenix connector

  • IR Input Port: 1 x 3.5mm stereo jack

  • PoE consumption: 4.0W (typical), 4.5W (max load)

  • Dimensions (W x D x H ): 96mm x 110mm x 26mm

  • Shipping Weight: 0.6kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)



Box Contents

1 x ACM210
1 x IR Control Cable - 3.5mm to 3.5mm Cable
1 x 6-pin Phoenix Connector
1 x Mounting Kit
