Name: IP300UHD-WP-TX IP 18Gbps MULTICAST UHD VDEO WALLPLATE HDMI /USB-C TX OVER 1GB NETWORK
Brand: BLUSTREAM
SKU: 07350926
Price: 1599 AUD
Availability: InStock

HDMI /USB-C TX OVER 1GB NETWORK

Code: 07350926

EACH

Special
Buy-In

TRADE ALERT!

$1599 inc GST

Increase value Decrease value

Qty	Each (inc GST)	Each

Request Price Match

Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.

Click here if you agree to these terms and to show the Add To Cart button.

View Product

Freight Estimator Enter 4 digit postcode

{tab Overview}

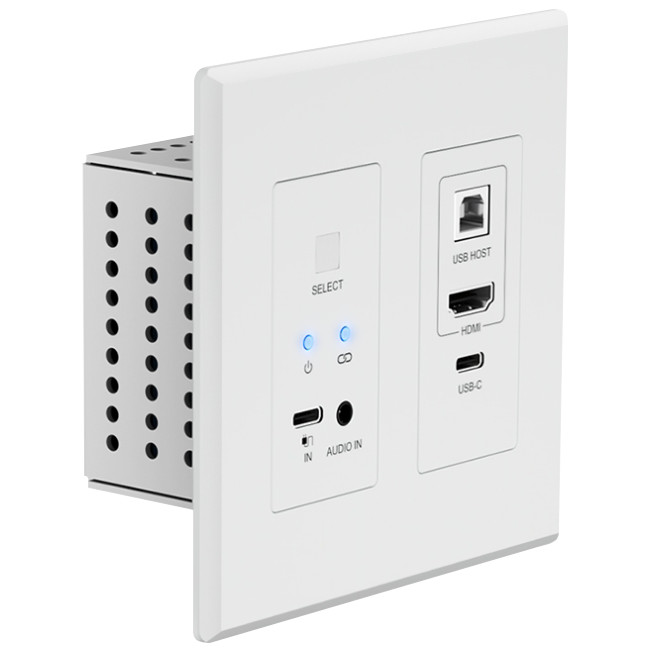

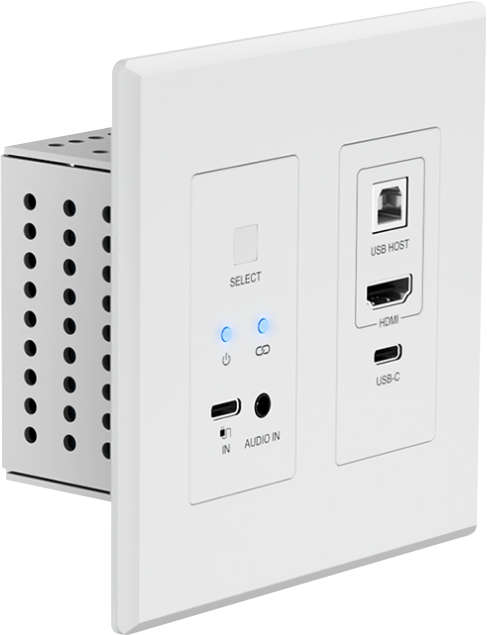

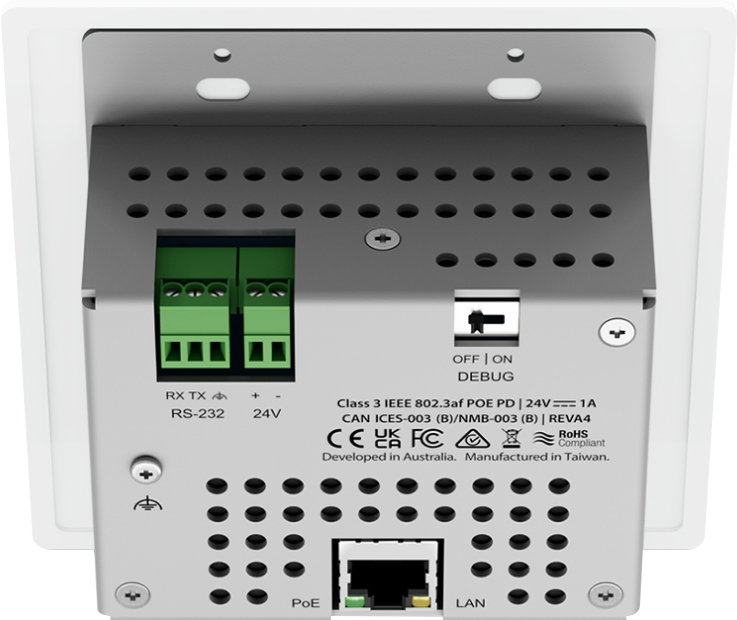

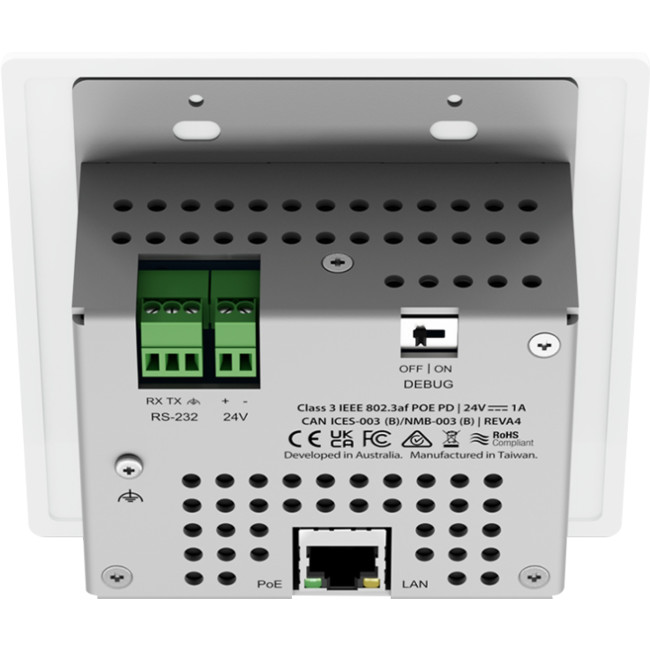

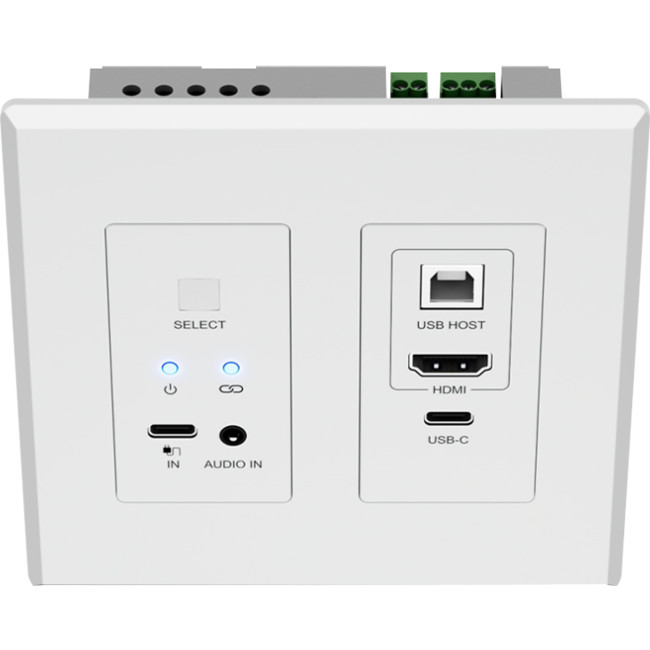

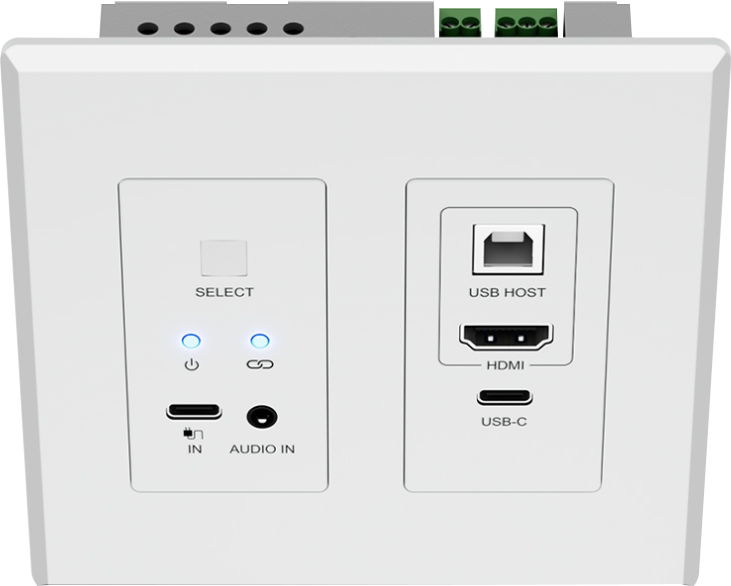

Blustream IP300UHD-WP-TX IP Multicast HDMI 2.0 & USB-C Video Wallplate Transmitter

Blustream's HDMI 2.0 Multicast distribution platform allows virtually latency free (1 frame) distribution of HDMI video over a 1Gb Managed Network.

The IP300UHD-WP Transmitter is an industry leading 4K HDMI 2.0 HDCP 2.2 transmitter that, using visually lossless compression technology, delivers switchable HDMI or USB-C, Bi-directional RS-232 & USB/KVM up to lengths of 100m over standard network architecture.

The IP300UHD-WP can be powered via PoE from the network switch or locally should the switch not support PoE. The IP300UHD-WP is compatible with our IP300UHD-TX/RX and IP350UHD-TX/RX products and with multiple configuration options available, the Multicast solution is ideal for both commercial and residential installations.

Key Features

Advanced 4K HDMI 2.0, or USB-C video over 1GB Network
Virtually unlimited system size
Extends HDMI or USB-C up to a distance of 100m over a single CAT cable
Manual and/or auto source switching of inputs
Supports up to 4K UHD 60Hz 4:4:4
Supports HDR, HDR10+ & Dolby Vision
Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
Advanced signal management for independent routing of RS-232, USB/KVM, audio and video
PoE (Power over Ethernet) to power Blustream products from PoE switch
Local 24V power supply (should Ethernet switch not support PoE) - PSU sold separately (part code: PS241-2PH)
HDCP 2.2 compliant with advanced EDID management
Compatible with Blustream IP300UHD-TX/RX and IP350UHD-TX/RX products
Dual US Decora faceplate surround and backbox compatibility
Our IP300 Series Multicast system features flexible deployment options including:

Matrix distribution (requires 1GB network switch)
Video wall (requires 1GB network switch)
One-to-one HDMI extender (no network switch required)
One-to-many HDMI extender (no network switch required)

{tab Specifications}

Specifications

Video Input	1 × HDMI Type-A, Female 1 × USB Type-C, Female
Video Output	1 × LAN RJ45 connector
Audio input	1 × 3.5mm stereo jack
Ethernet port	1 × LAN RJ45 connector
USB Charge port	1 × USB Type-C, female
USB/KVM Port	1 × USB Type-B
RS-232 serial port	1 × 3-Pin Phoenix connector
Debug Mode	2-step switch
Casing Dimensions (W×H×D)	90mm × 106mm × 52mm (without faceplate)
Faceplate Dimensions (W×H×D)	115mm × 115mm × 6mm
Backbox Mounting Depth	45mm
Shipping Weight	0.6kg
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	−20°C to 60°C (−4°F to 140°F)
Power Supply	PoE / 24V 1A DC (PSU: PS241-2PH - sold separately)

Box Contents

1 × IP300UHD-WP-TX
1 × 2-piece Dual US Decora Faceplate (plastic) with backbox screws
