HD41QMV2 4-WAY HDMI QUAD MULTI-VIEWER

4 IN 1 OUT SEAMLESS SWITCH IR

Code: 07350815

9328202033604
EACH
10
In Stock
TRADE ALERT!
$299 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

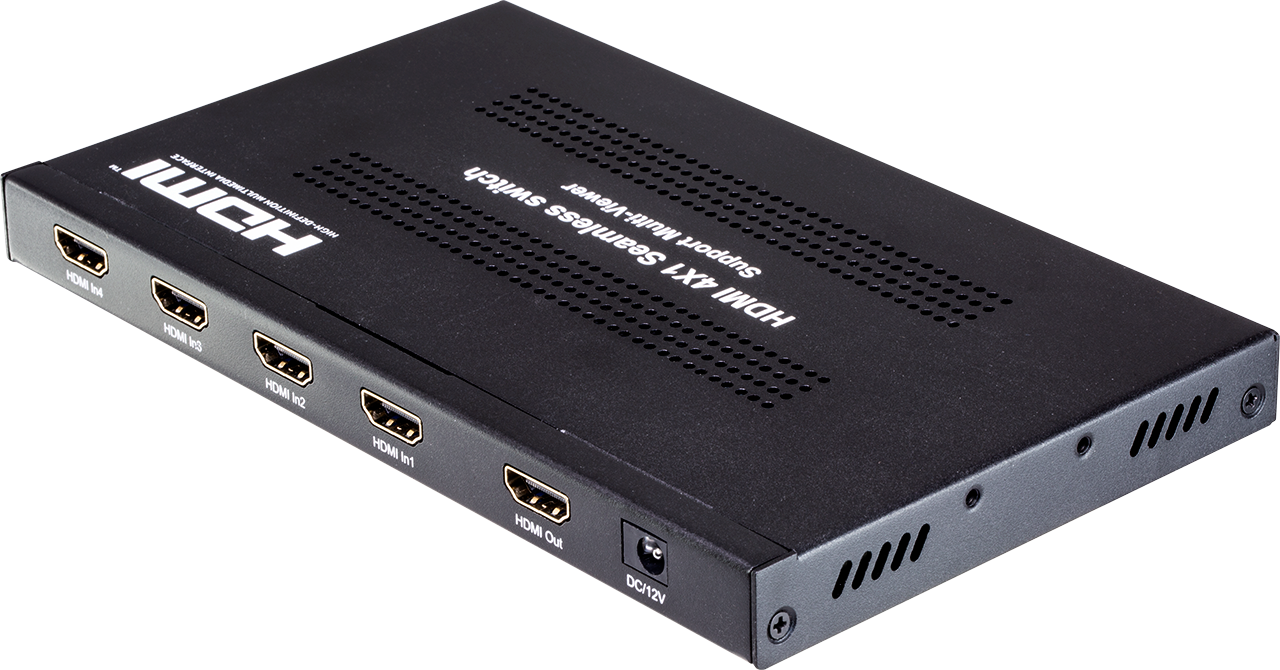

HD41QMV2 PRO2 4-WAY HDMI QUAD MULTI-VIEWER

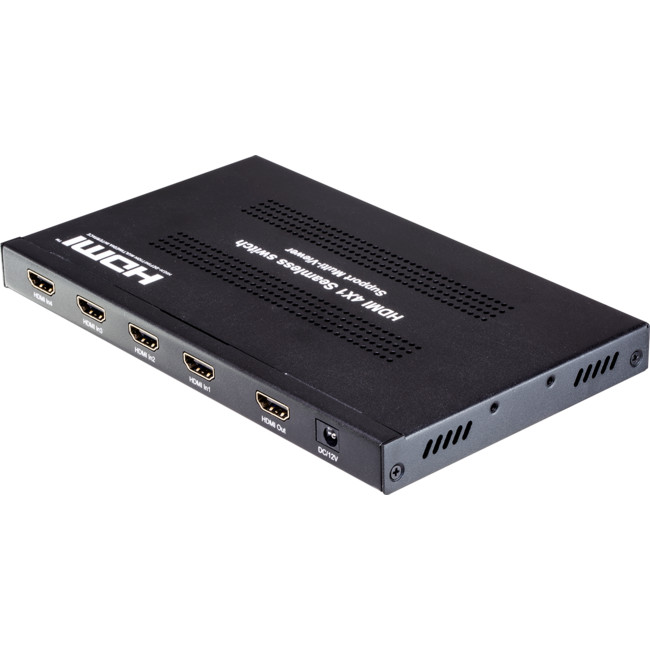

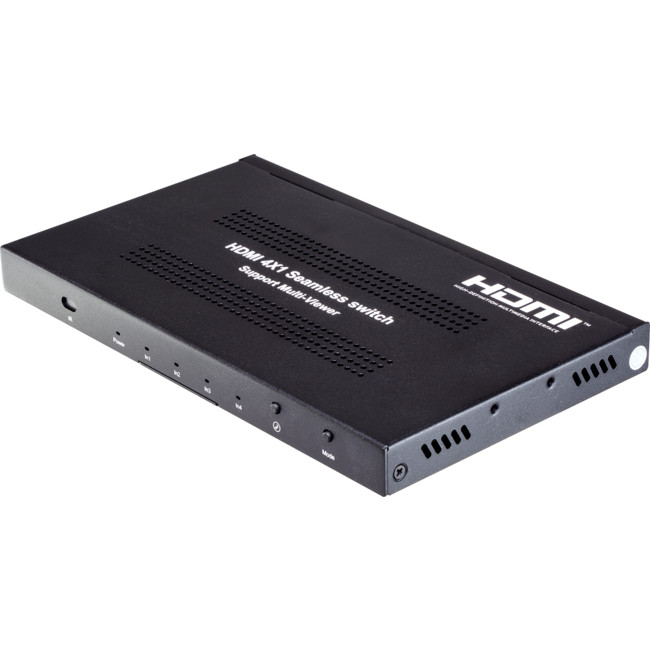

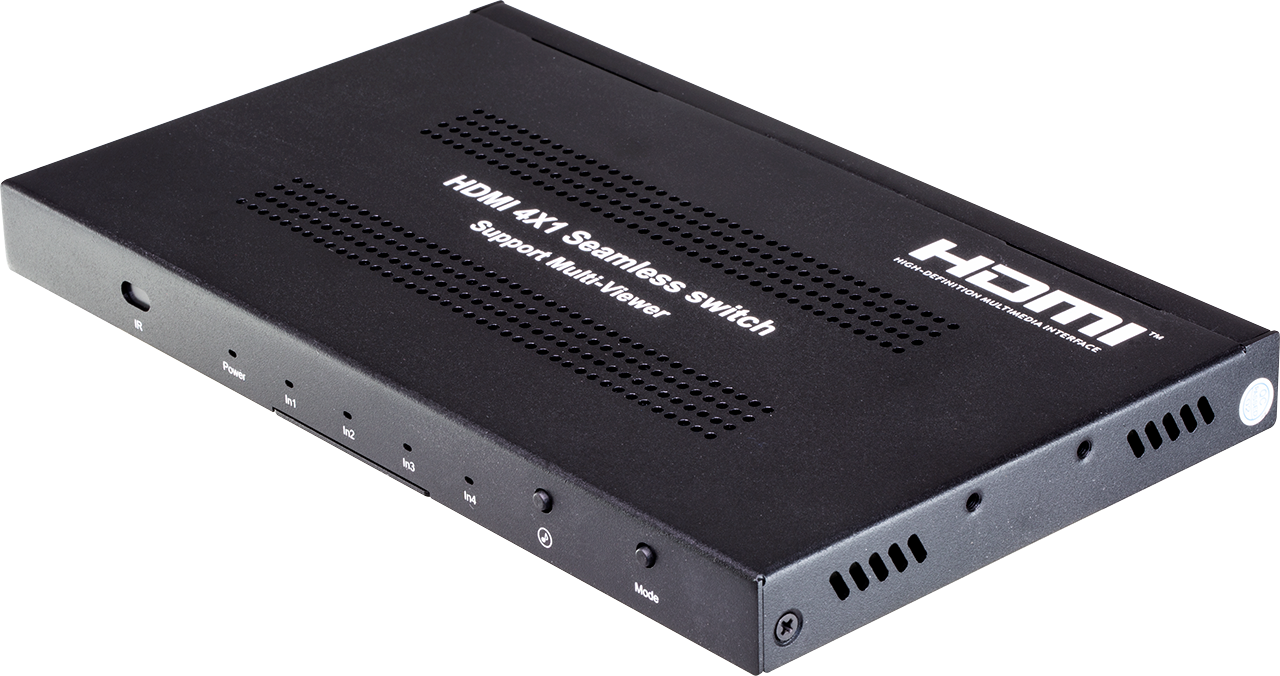

This HD41QMV2 quad multi-viewer with a seamless switching feature allows you simultaneously and synchronously monitor/view 4 different HD video sources on a single display. Easily switch from the 5 display modes via the IR remote control or the button at the front panel.

  • Supports 4 × HDMI input, 1 × HDMI output, up to 1080p 60hz resolution
  • View 4 × HD video sources simultaneously on a single display
  • Seamless switching 4 × HD video sources between 5 display modes
  • Supports Audio Switching

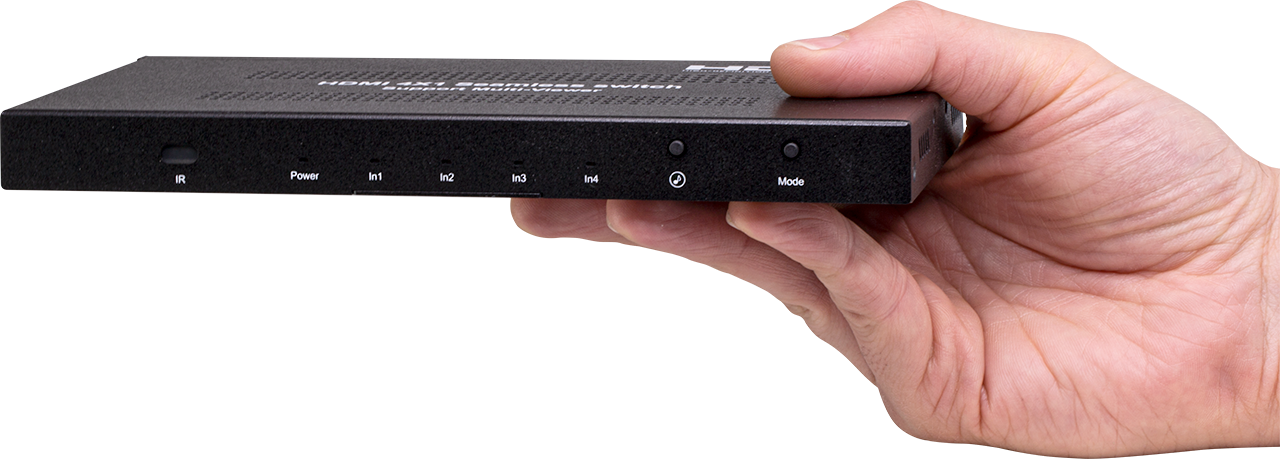

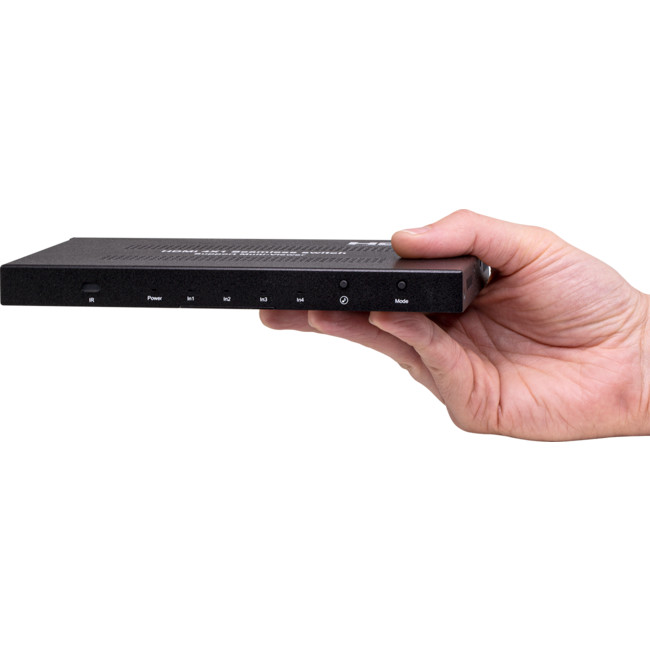

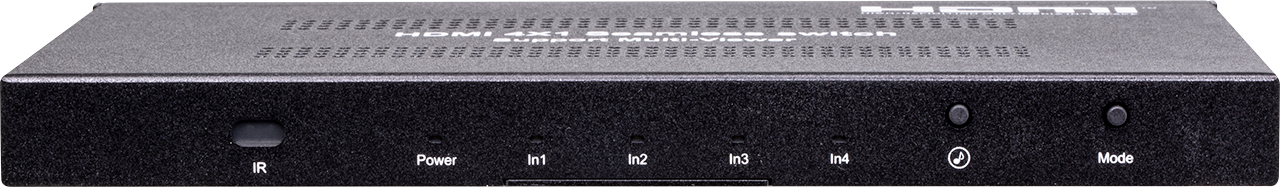

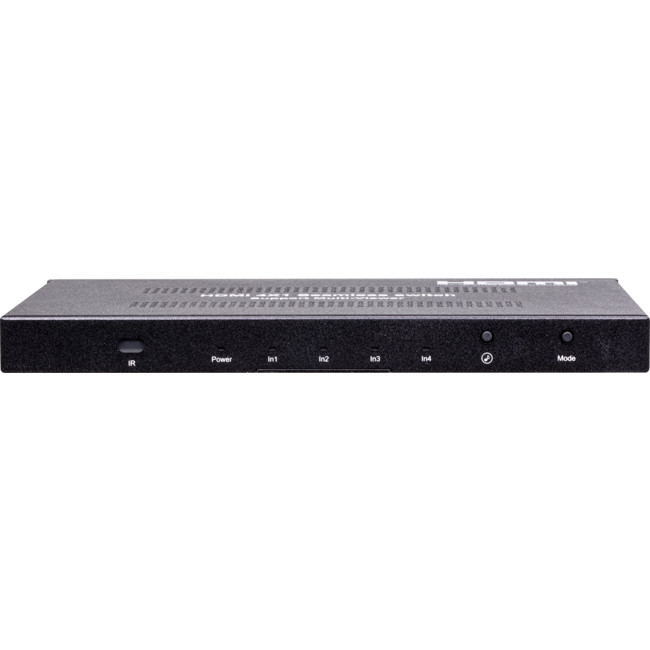

  • IR remote control and Panel Button Control
  • Support audio output format: PCM2.0
  • Easy to mount with the mounting ears supplied

Specifications


Operating Temperature Range0°C to +40°C (32°F to +104°F)
Operating Humidity Range5 to 90%RH (No Condensation)
Bandwidth Frequency4.95Gbps
HDCPHDCP1.4

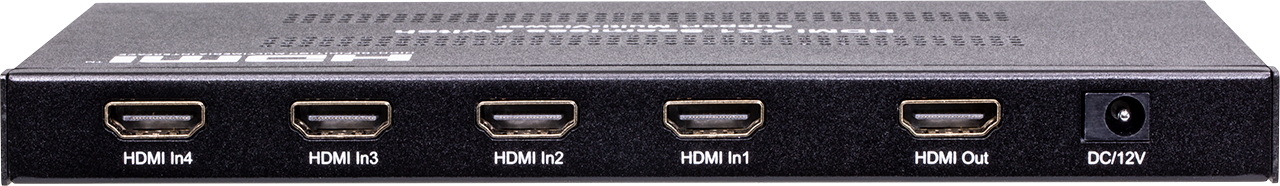

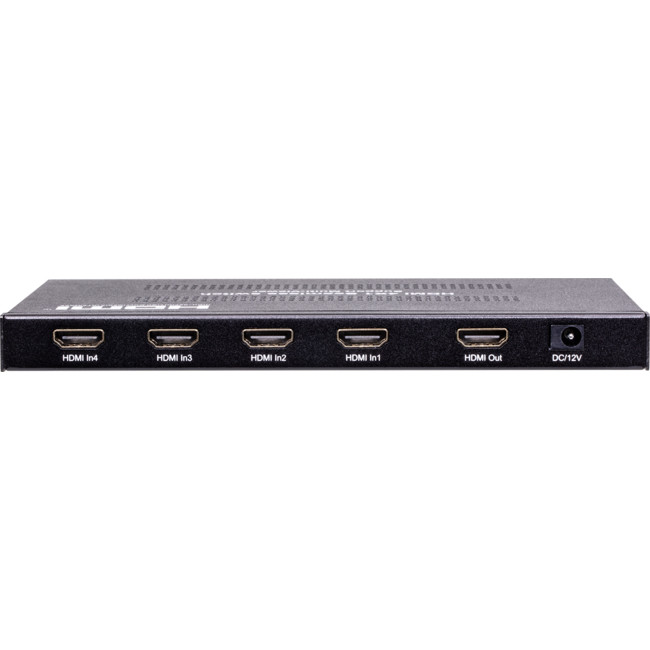

Input Ports4 × HDMI (socket)
Output Ports1 × HDMI outputs (socket)
TV Resolution
  • 50Hz: 576i; 576p; 720p; 1080i; 1080p
  • 60Hz/59.94Hz: 480i; 480p; 720p; 1080p
  • 30/29.97/24/25Hz: 1080p
Dimensions (L×W×H)190.4mm × 113mm × 17mm
Power Consumption7W (Max), 12V DC 1A, power supply included
Transmission DistanceInput 8m, Output 15m (Maximum) over standard HDMI cable/26AWG
Net Weight480g
IR Remote Control BatteryCR2025 button cell

Display modes

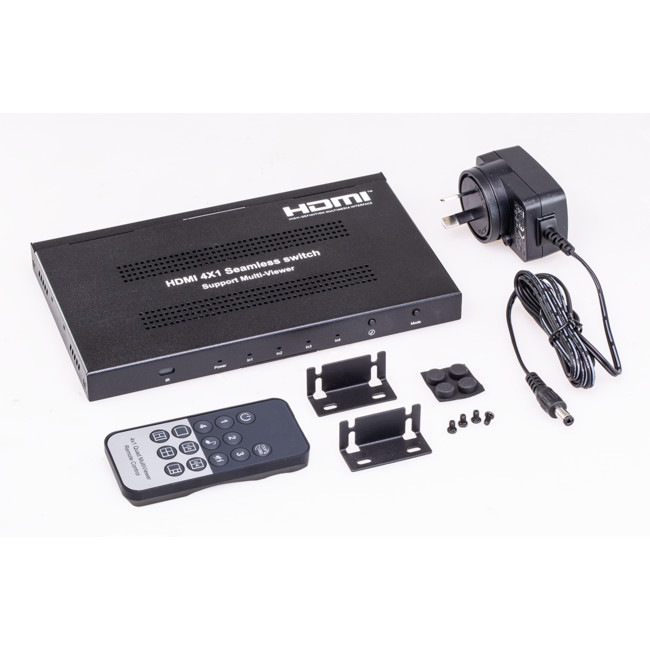

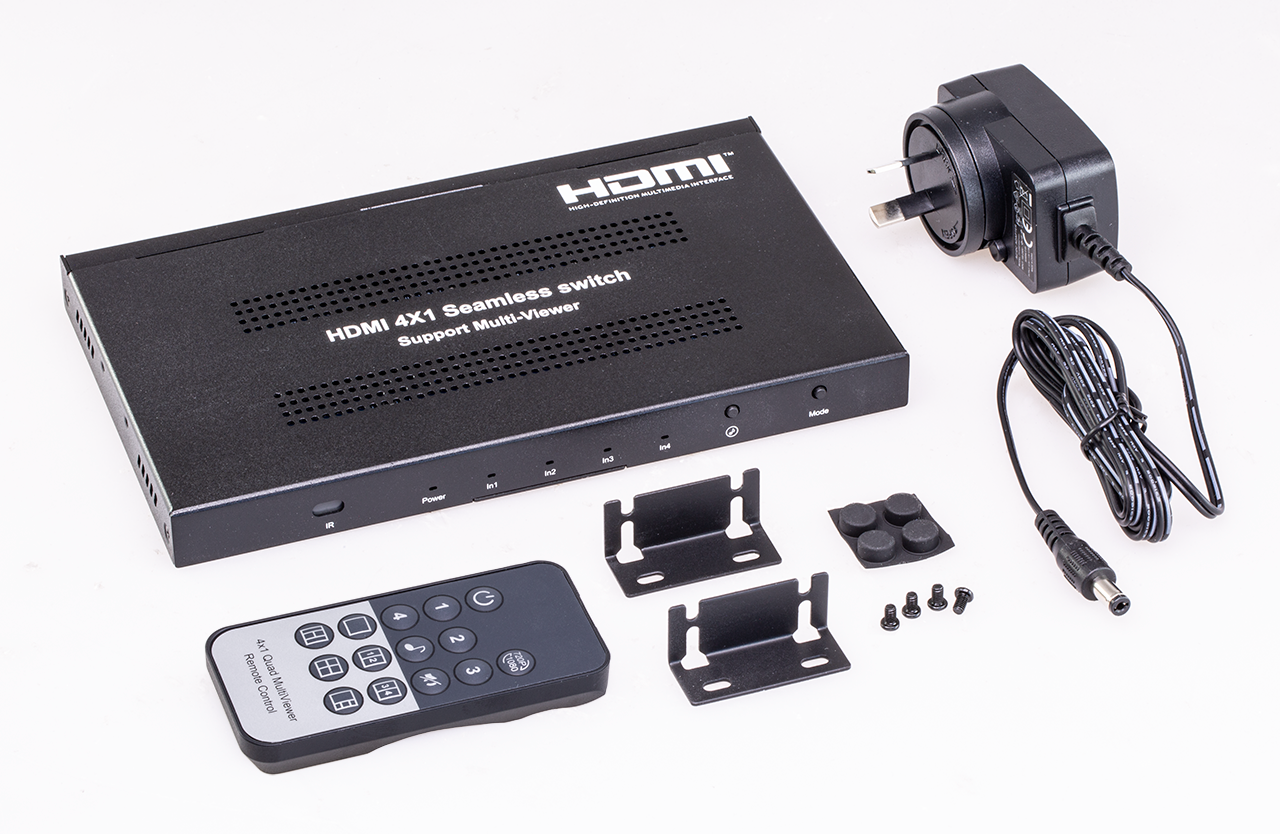

What's In The Box?


  • HD41QMV2 × 1pc
  • 12V 1A DC Power supply × 1pc

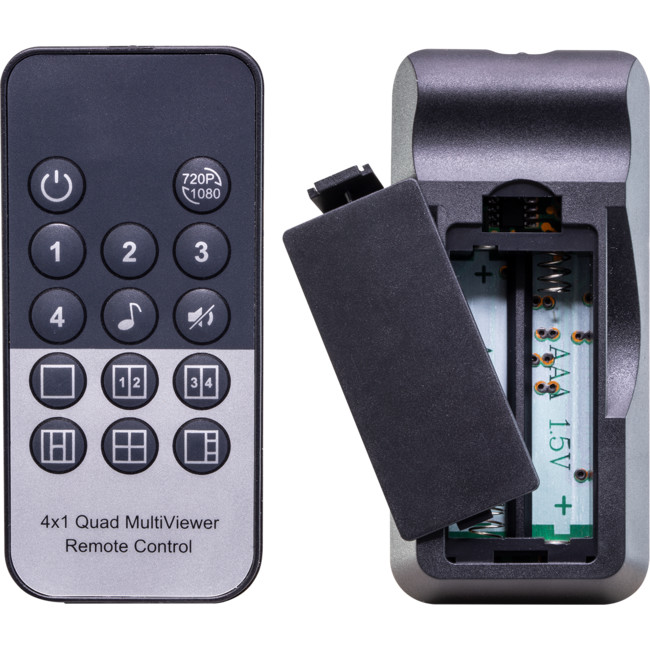

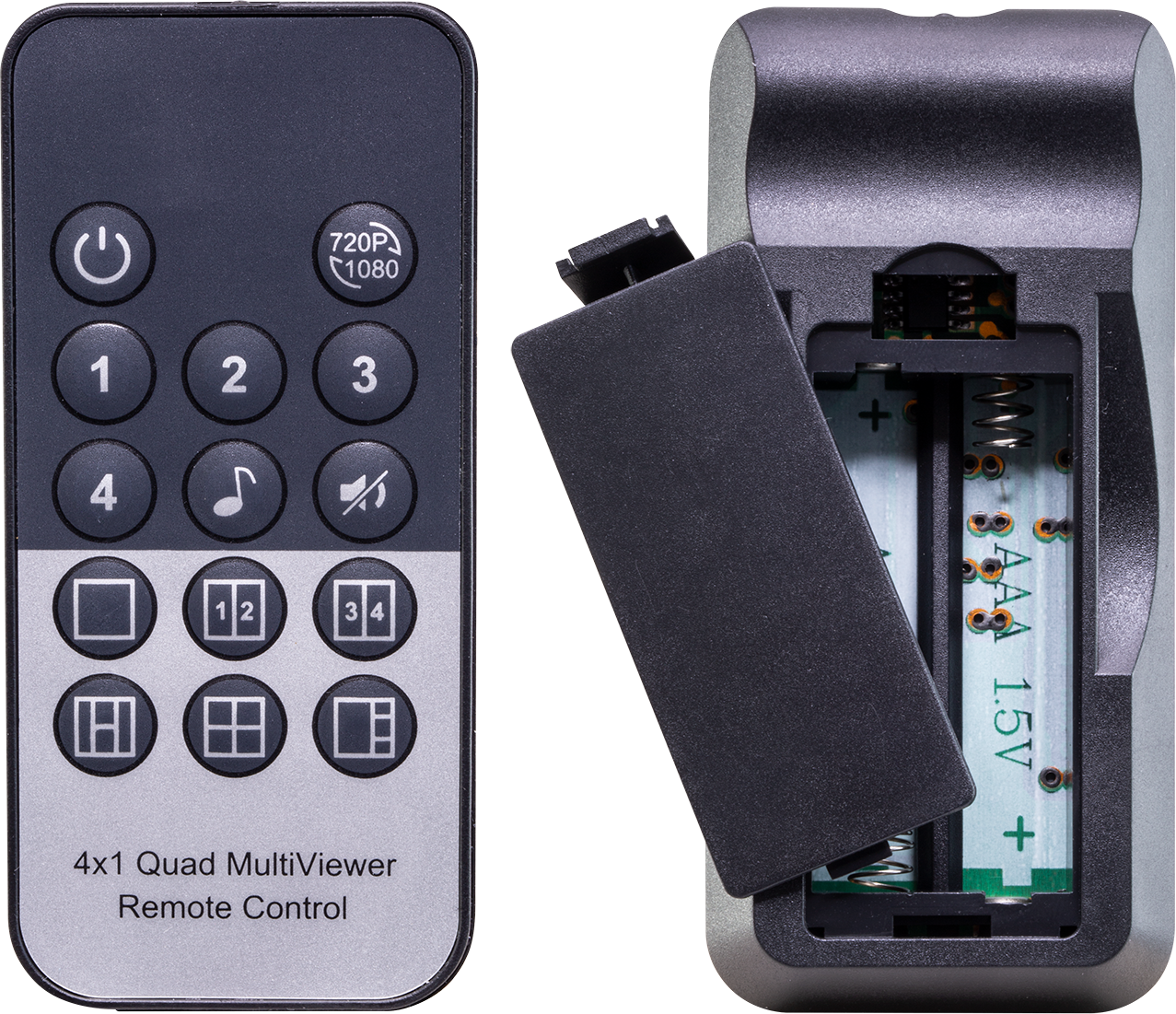

  • IR remote controller × 1pc
  • Instruction manual × 1pc
  • Mounting ear × 1 pair
Manual PDF file
IR HEX Code PDF file
