AT81CP P MOUNT CARTRIDGE INCL. STYLUS

AUDIO TECHNICA

Code: 07160525

0.0070 kg
4961310059569
EACH
Low Stock
$79.20 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

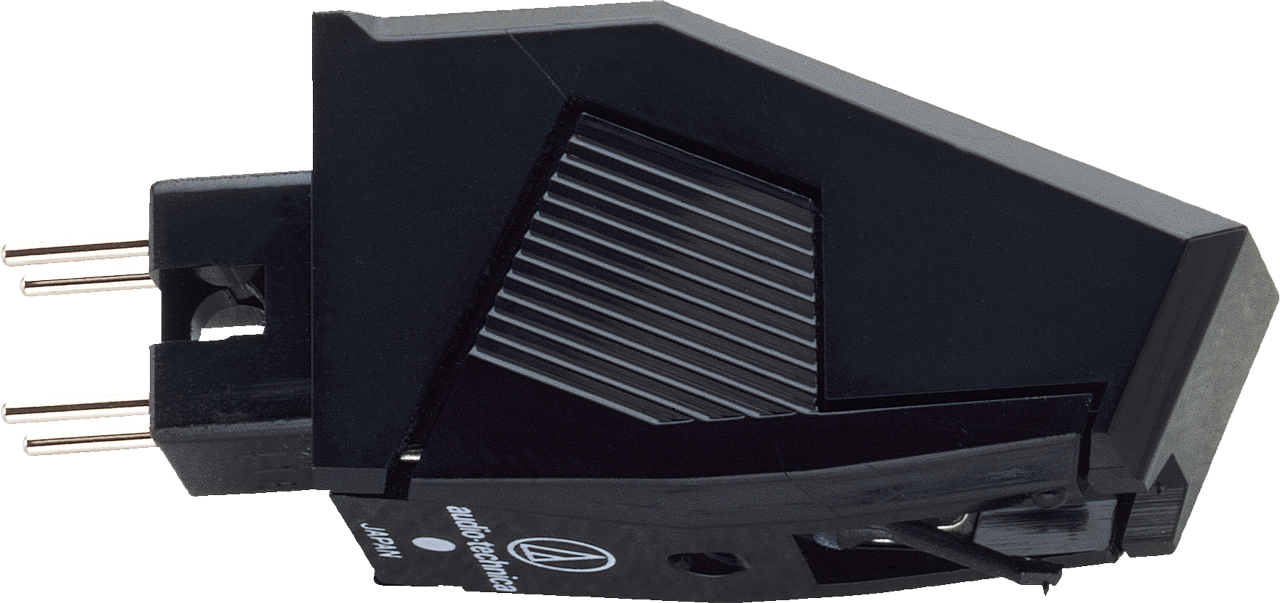

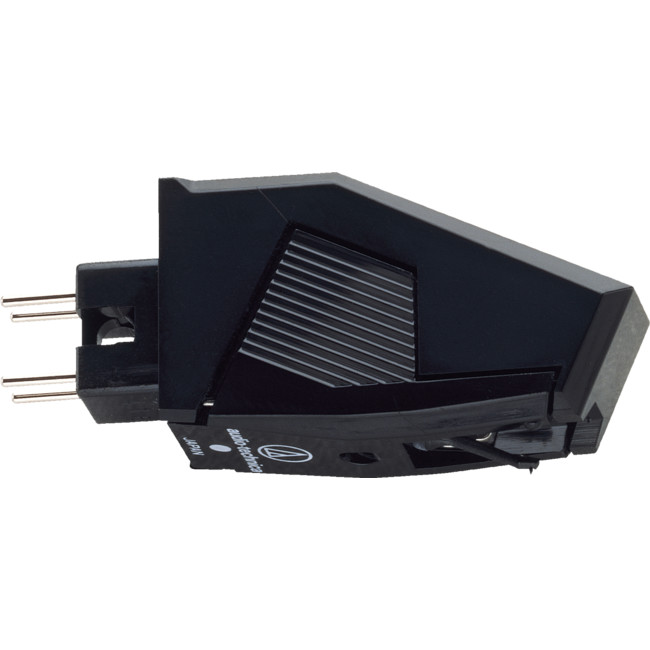

AT81CP P-mount T4P Moving Magnet Cartridge "Plug-in Mount Style"

This 0.6 mil conical cartridge fits P-mount turntables.

Specifications:
  • Frequency Response: 20 - 20,000Hz
  • Channel Separation: 18dB at 1kHz
  • Vertical Tracking Angle: 20°
  • Stylus Construction: Bonded round shank
  • Recommended Load Impedance: 47,000 ohms
  • Coil Inductance: 400mH (1kHz
  • Output Voltage: 3.5mV (mV at 1 kHz, 5 cm/sec)
  • Output Channel Balance: 2.5dB
  • Stylus Shape: 0.6 mil conical
  • Cantilever: Carbon Fibre Reinforced ABS
  • Mount: P-mount
  • Dimensions (HxWxD): 10.0 x 15.3 x 35.1 mm
  • Recommended Load Capacitance: 100-200 pF
  • Type: Dual Magnet
  • Weight: 6.0g
