RG6QDR-100M QUAD SHIELD RG6 - 100M ROLL

75 OHM COAX CABLE - PER ROLL

Code: 05052076

5.50 kg
9328202014351
ROLL
2
In Stock
TRADE ALERT!
$59.95 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

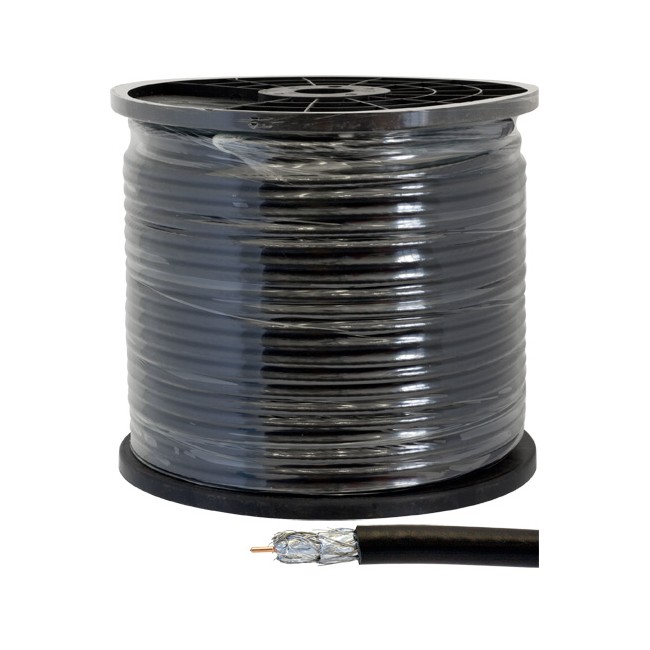

Doss RG6QUAD – 100m Roll

Inner conductor is a copper clad steel wire within a gas injected polythene foam dielectric. The sheilding is 2 × screening of aluminium tapecovered with woven aluminium braid outer conductor.

  • 1.02mm copper clad steel centre conductor (Conductivity 20%)
  • 2 × Aluminium 45% braid & 2 × Sealed APA tape
  • Dielectric: 4.57mm Foam Polyethylene
  • First Shield: Bonded AL Foil
  • Second Shield: 45% AL Braiding
  • Thrid Shield: AL/PET
  • Fourth Shield: 45% AL Braiding
  • Suitable for UHF, Pay, Satellite – Ø7.40mm Jacket
  • Nominal Impedance: 75Ω ±3
  • Nominal Velocity of Propagation: 85%
  • Nominal Capacitance: 50pF/M
  • Speaker Test: 4000V AC
  • Attenuation (dB/100m):
    • 4.538 @ 55MHz
    • 8.522 @ 211MHz
    • 12.828 @ 450MHz
    • 18.254 @ 870MHz
    • 19.642 @ 1000MHz
    • 23.899 @ 1440MHz
    • 29.673 @ 2150MHz
    • 35.386 @ 3000MHz
