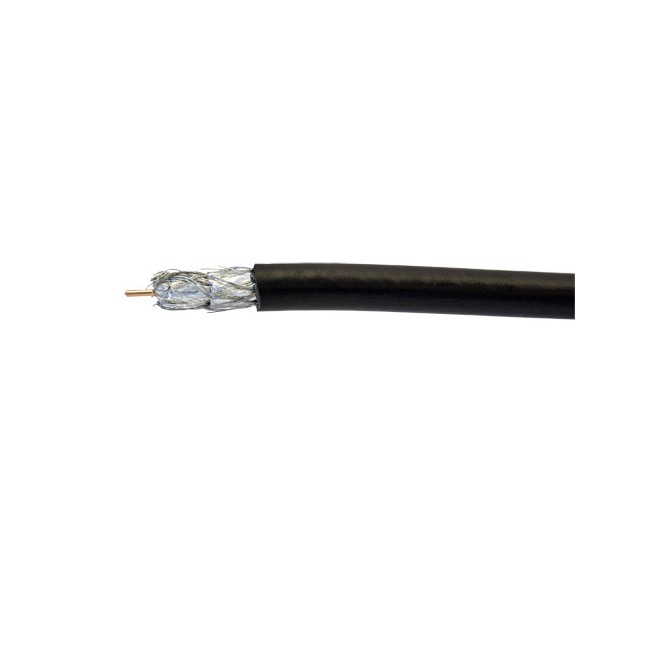

RG6QDB-1M QUAD SHIELD RG6 CABLE 1M

75OHM COAX - 05052100

Code: 05052070

0.0500 kg
9328202002471
MT
305
In Stock
TRADE ALERT!
$0.70 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode
METRE CODE:
Please note that this product is sold in METRES.
The product is also available in ROLLS. If you want to order the product in ROLLS, please use CODE 05052100

Inner conductor is a copper clad steel wire within a gas injected polythene foam dielectric. The sheilding is 2 × screening of aluminium tape covered with woven aluminium braid outer conductor.

  • 1.02mm copper clad steel centre conductor (Conductivity 20%)
  • 2 × Aluminium 45% braid & 2 × Sealed APA tape
  • Dielectric: 4.57mm Foam Polyethylene
  • First Shield: Bonded AL Foil
  • Second Shield: 45% AL Braiding
  • Thrid Shield: AL/PET
  • Fourth Shield: 45% AL Braiding
  • Suitable for UHF, Pay, Satellite – Ø7.40mm Jacket
  • Nominal Impedance: 75Ω ±3
  • Nominal Velocity of Propagation: 85%
  • Nominal Capacitance: 50pF/M
  • Speaker Test: 4000V AC
  • Attenuation (dB/100m):
    • 4.538 @ 55MHz
    • 8.522 @ 211MHz
    • 12.828 @ 450MHz
    • 18.254 @ 870MHz
    • 19.642 @ 1000MHz
    • 23.899 @ 1440MHz
    • 29.673 @ 2150MHz
    • 35.386 @ 3000MHz
