{tab Overview}
HEOS Amp
- Turn any speakers into a wireless zone!
- Features the same wireless ease of use as out self-powered HEOS speaker models.
- Featuring advanced Class D digital amplification in a sleek compact chassis.
- HEOS Amp
The HEOS Amp is designed to add HEOS multi-room audio functionality to a pair of stereo speakers, and features thesame wireless ease of use as our self-powered HEOS speaker models.
Featuring advanced Class D digital amplification, the HEOS Amp delivers 100 watts maximum power per channel, with lowest distortion and high current capability that provides reliable and stable operation with lower impedance speakers,including 4 ohm models.
With the HEOS Amp, you can enjoy listening to your favorite loudspeakers, and the high power rating means that you can enjoy room-filling sound quality even at concert hall levels

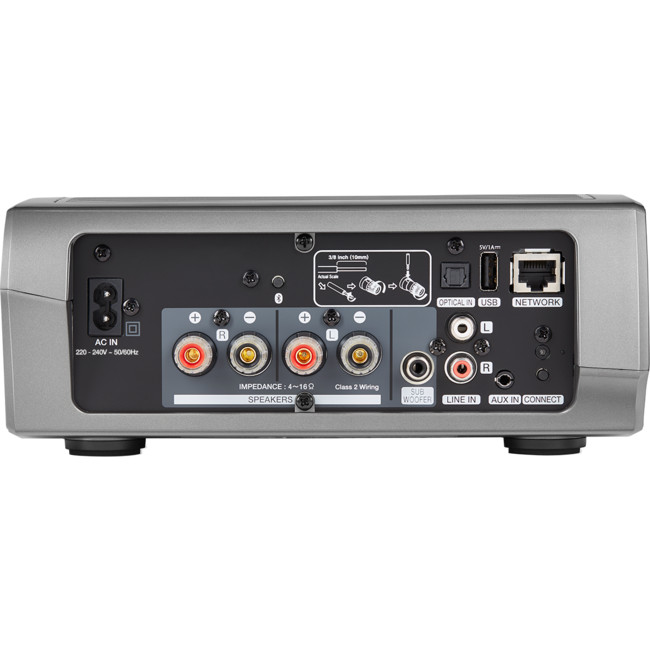

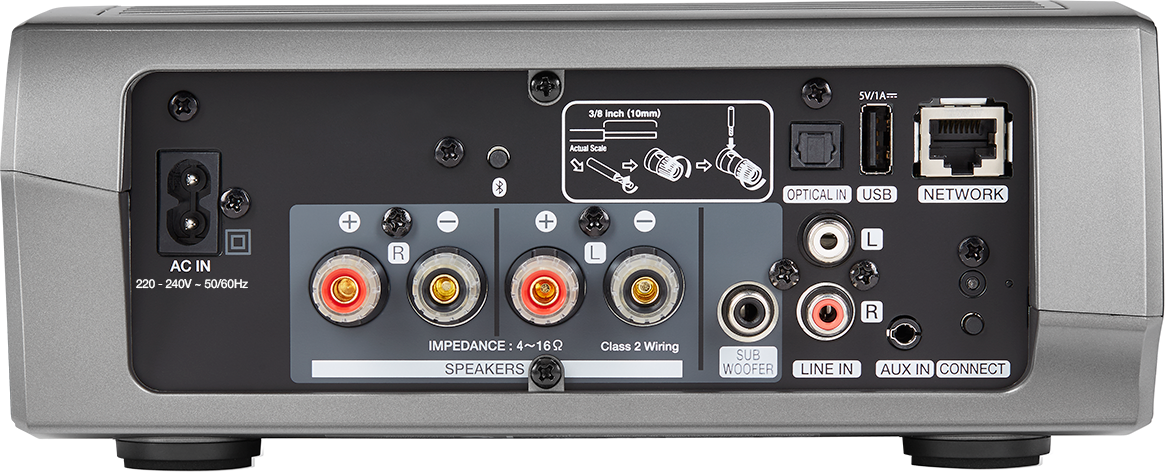

In addition to the stereo speaker outputs, the HEOS Amp features additional connectivity, including a sub output forconnection to a powered subwoofer.
There's also an analog stereo line input (via RCA jacks),and an additional auxiliary input via 3.5mm jack for direct connection to a portable player's headphone output.
An optical digital input lets you connect a digital music source such as a CD player, and a USB port lets you connect a portable thumb drive to listen to your favorite tracks. You can also use the USB port to charge your portable device. In addition to the built-in dual band ""N"" wireless system, the HEOS Amp is also equipped with an RJ-45 Ethernetport for direct connection to a wired LAN setup.
As with our HEOS wireless speaker models, you'll be able to stream your favorite music tracks and control the HEOS Amp with our HEOS App, which is available in both iOS and Android versions.
With the HEOS App, you can choose to listen to music tracks on your smartphone, tablet or portable audio player, and you also can listen to your choice of internet radio stations, and you can also listen to your favorite music streaming service.
HEOS lets you choose different songs for each room, or you can listen to the same song in all rooms. Our exclusive digital technology provides precise audio synchronization (within microseconds) to ensure top audio fidelity and stereo imaging quality.

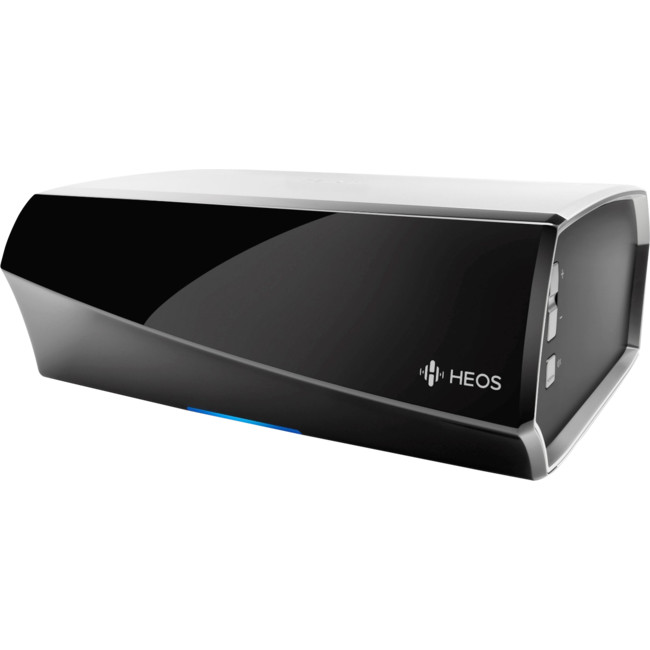

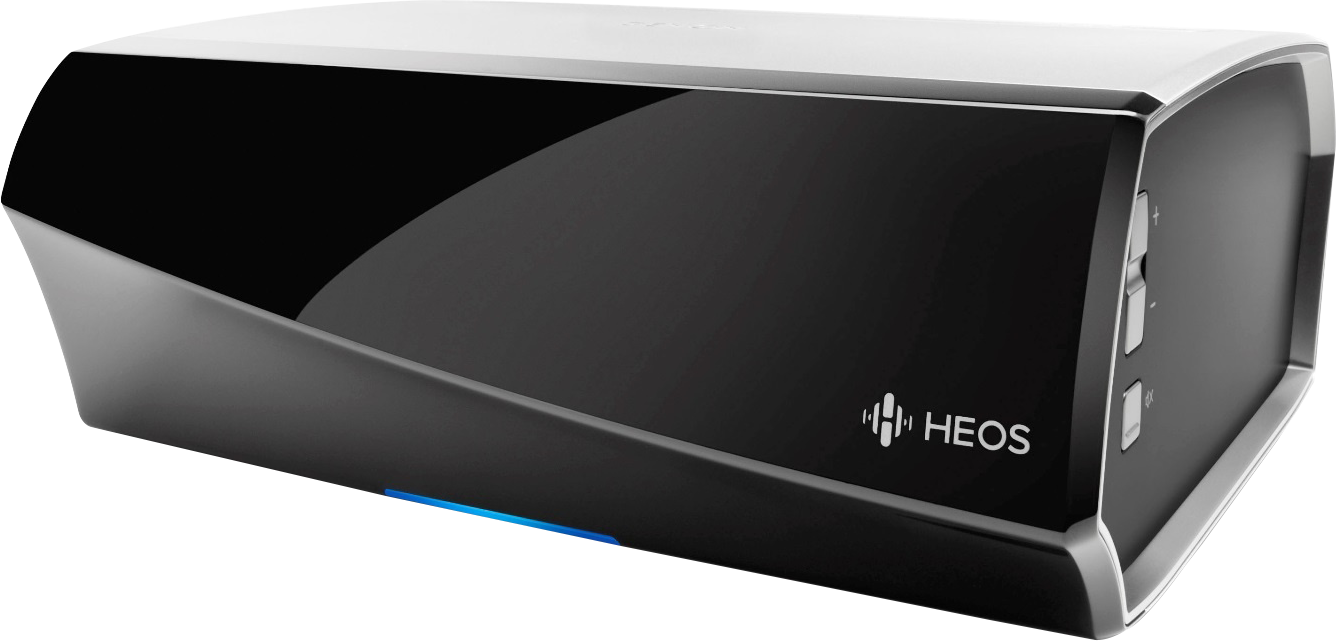

The stylish HEOS Amp enclosure features elegant silver accents, and for convenience, there are volume and mute controls discreetly placed on the side panel.
- Turn any existing pair of speakers into a HEOS zone
- 100W x 2 Class D Amplification
- 4-16 ohms
- Analog and optical digital inputs
- Subwoofer preout
- does not need bridge - easier setup
- dual band WiFi
- easier to use app
- better industrial design
- USB input directly to speaker
- tight synchronization
{tab Specifications}
Specifications
Audio System
Class D Digital Amplification
2 x 100 watts of Class D digital amplification provide high efficiency, lowest distortion and widest dynamic range.
Auxiliary Analog Line Input
The 3.5 mm stereo analog auxiliary line input lets users connect a device with analog stereo output directly to the HEOS Amp.
Optical Digital Input
The optical digital line input lets users connect a device with an optical digital output directly to the HEOS Amp.
Subwoofer Pre-out
Connect any powered subwoofer to the HEOS Amp for additional bass.
Music Sources
Music Subscription Services
The HEOS app lets you choose from popular subscription streaming services including Napster, Deezer, Spotify and TuneIn, and from other services that offer DRM-free tracks. More services will be added soon.
Internet Radio Stations
Choose from your favorite internet radio stations and listen to MP3 and WMA streaming audio.
Music Formats Supported
HEOS Amp supports MP3 and WMA music files, including purchased WMA downloads, as well as AAC (MPEG4) and FLAC (lossless) file types, along with WAV files.
Supports 32 kHz, 44.1 kHz and 48 kHz sampling rates.
Picture Formats Supported
HEOS Amp supports JPG, PNG, BMP and GIF album art pictureformats.
USB Drives Supported
HEOS Amp supports USB thumb drives via the built-in USB port. Music content on a USB drive can be played back locally, or on any or all HEOS players on your network.
Networking*
Wireless Connection
Connect to your wireless network quickly and easily.
HEOS Amp supports the latest 802.11 networks (including dual band "N") for the most reliable network connection.
Wired Connection
Connect to your home or office LAN system via the RJ-45 wired LAN port
General
Power Supply
AC 120 V, 60 Hz (North America)
AC 220 - 240 V, 50/60 Hz (Europe)
What's In The Box
HEOS Amp, AC power cord, 3.5mm setup cable, Ethernet cable for wired LAN hookup, Quick Start guide.
Controls & Indicators
Volume Up/Down ( , -)
Mute
Mute LED indicator
LED multi-function status indicator
Network connect button
Reset button (recessed)
Weight
6.2 lbs; 2.8 kg
Multiple Language Support
English, French, German, Dutch, Swedish, Spanish
Dimensions
(H x W x D)221mm x 93mm x 214mm / 8.7in x 3.7in x 8.5in
Operating Temperature Range
41°F~95°F; 5°C~35°C
Product Finish
Black Front/Sides, Silver Top and Trim
{tab About HEOS}
What is HEOS
HEOS is a wireless music system that allows you to control all your music effortlessly from anywhere in your home.
All you need is one or more HEOS speakers and the free app.
HEOS APP
ANY TUNE. ANY ROOM. ANY TIME.
HEOS gives you access to all your music, and, you can addother users to the line-up to vary the playlist or personalise the room according to the user:
His tunes in the kitchen, hers in the master bedroom. Stream from your favourite music service, phone or network.Learn More.
WIRELESS MULTI-ROOM SOUND SYSTEM
ANY ROOM. OR EVERY ROOM.
Your music is at your command. Stream or play selections from your library. Party and Family modes allow you to play one song everywhere, or different songs in every room. The choice is yours.
Learn More FAMILY OF PRODUCTS
THEY MAKE BEAUTIFUL MUSIC, TOGETHER OR APART.
Together or individually, these acoustically sculpted, stylish and powerful speakers deliver pure, precise sound.
Group them together to synchronise the sound and create the front-row experience that only HEOS delivers.
