DA11ARC 2CH HDMI ARC TO DANTE ENCODER

POE (POWER OVER THE ETHERNET)

Code: 01619038

EACH
Special
Buy-In
TRADE ALERT!
$549 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

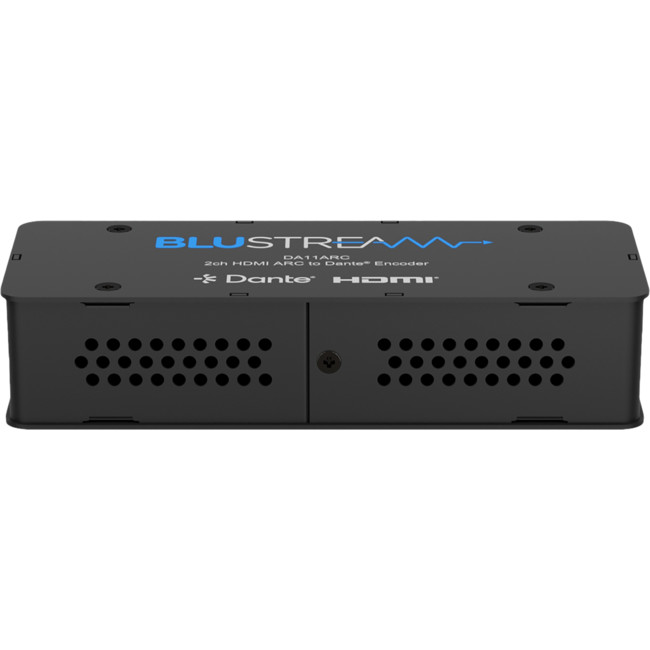

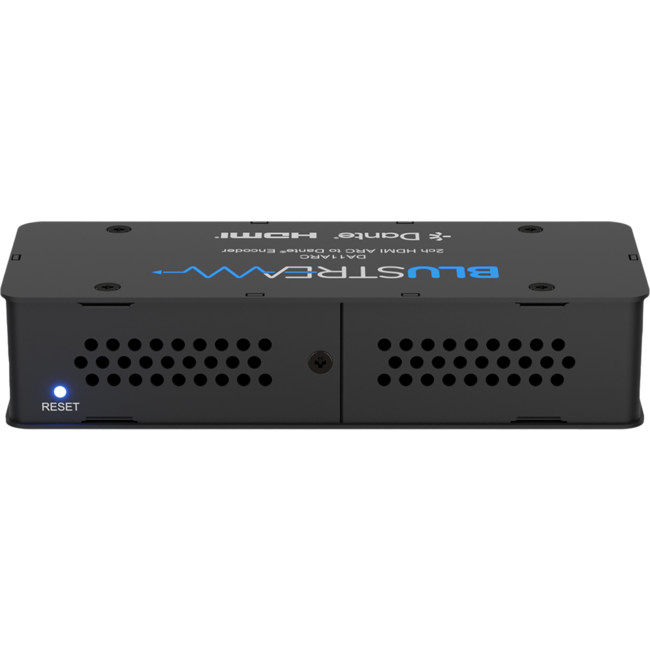

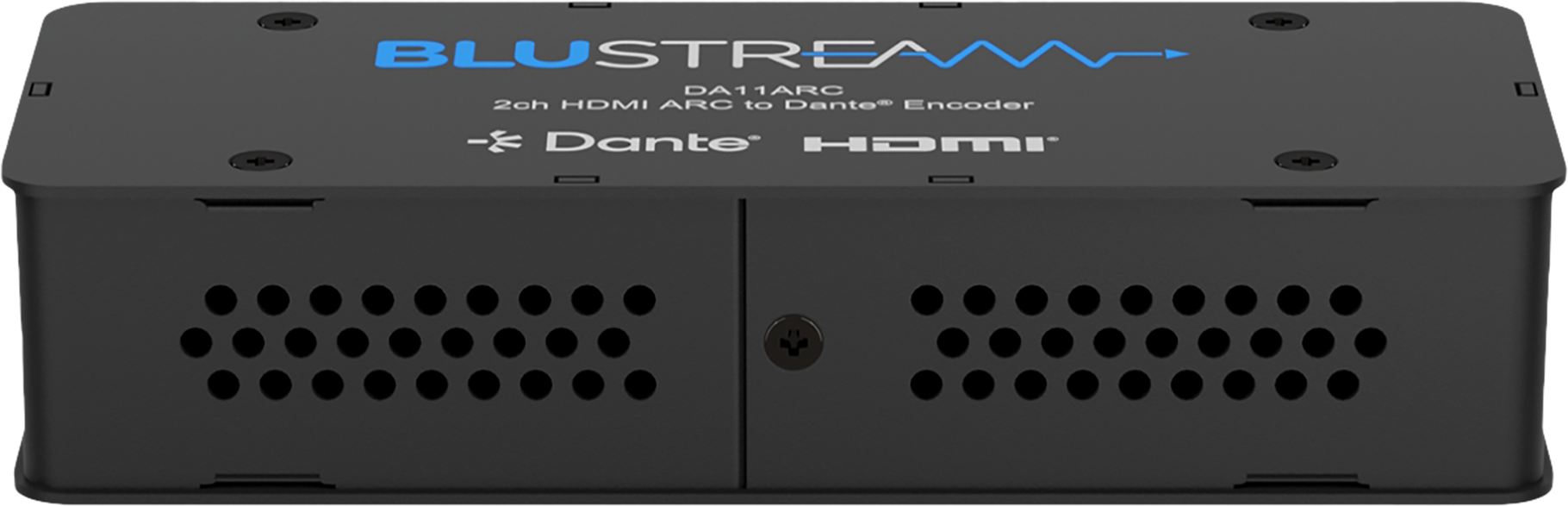

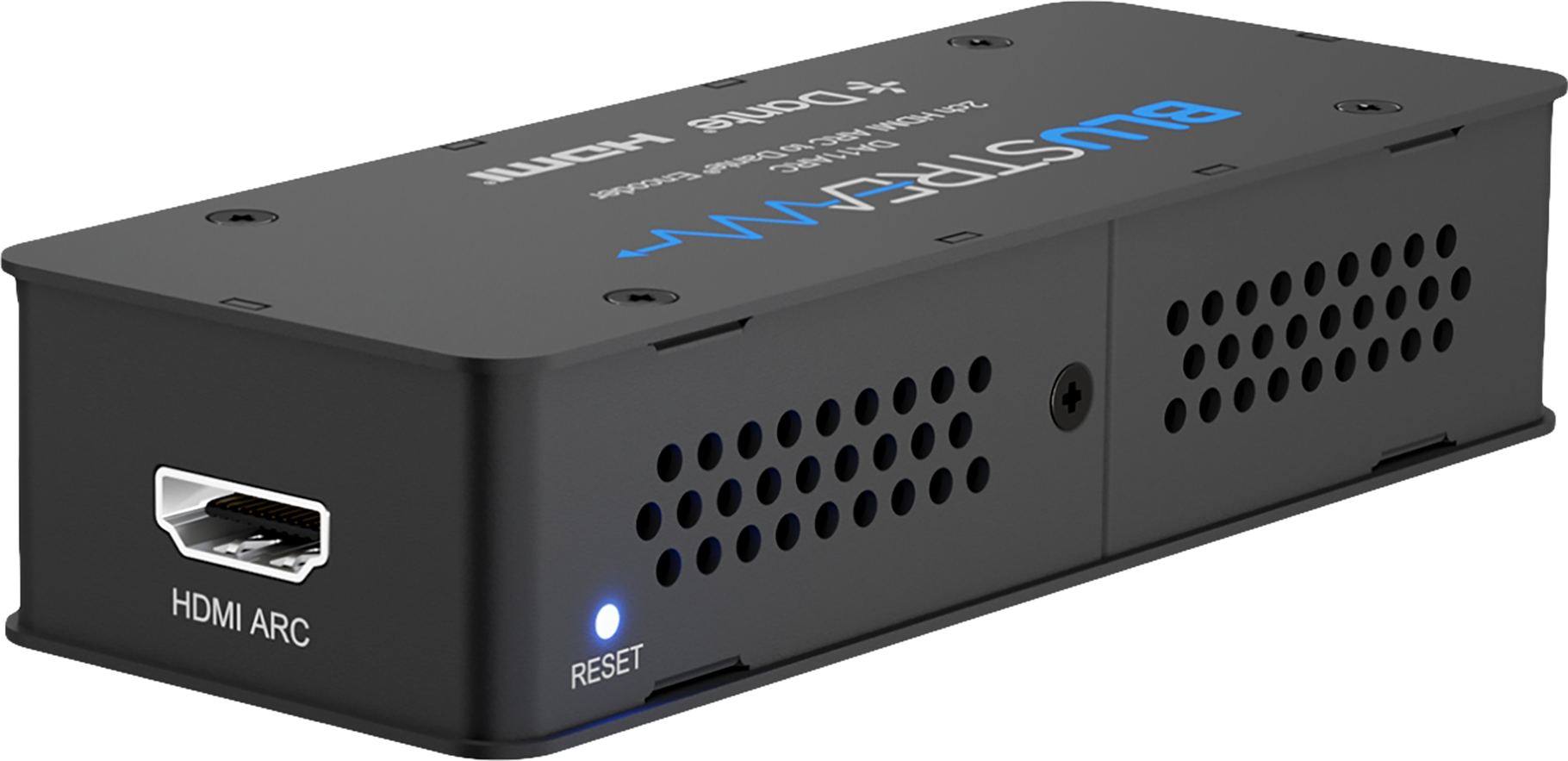

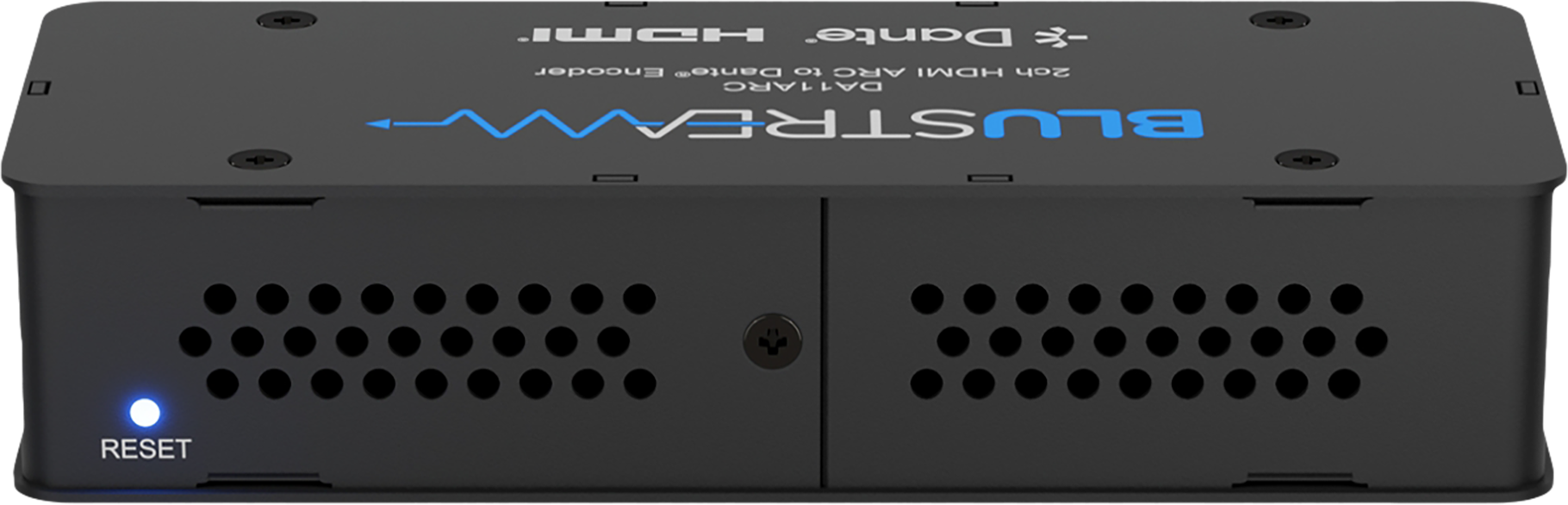

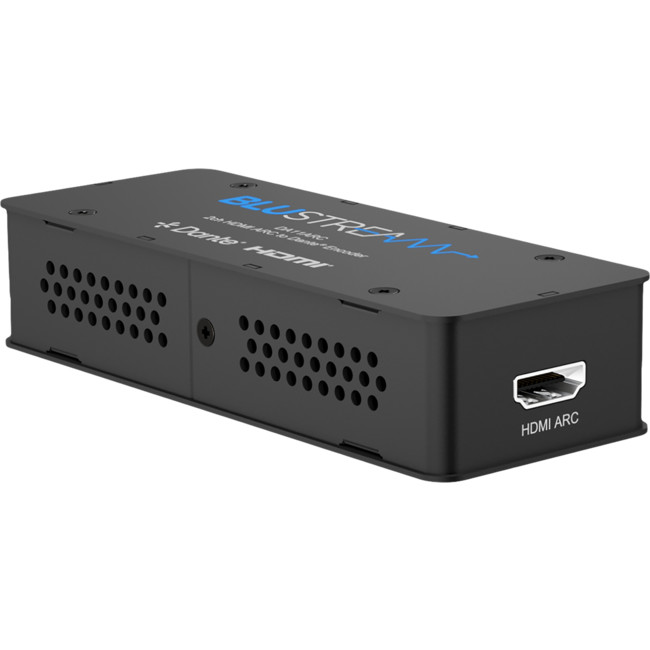

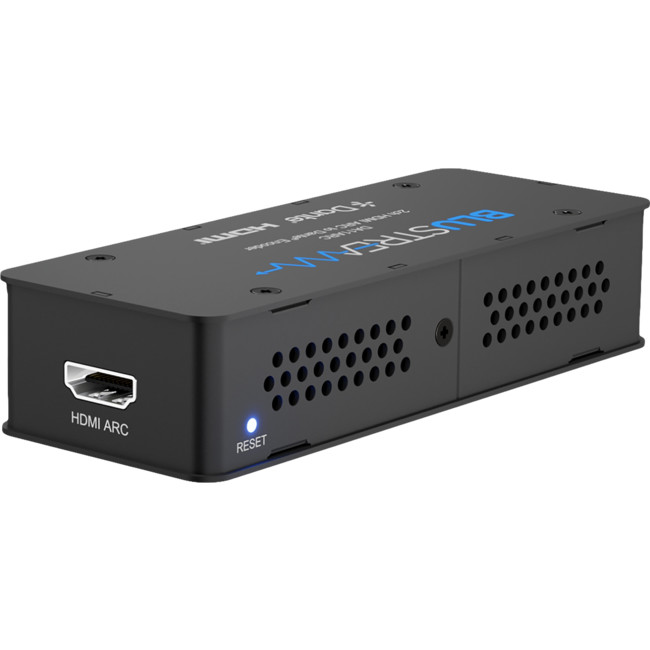

Blustream DA11ARC 2ch HDMI ARC to Dante® Encoder

Blustreams DA11ARC has been designed to encode HDMI ARC (Audio Return Channel) 2ch audio to a Dante® digital signal.

The DA11ARC is a plug & play device that is powered using PoE (Power Over Ethernet). The DA11ARC also supports AES67 RTP audio transport.


ARC Dante Plug Play PoE

Key Features

  • Encodes HDMI ARC (Audio Return Channel) 2ch audio to a Dante® digital signal
  • Supports: 44.1, 48, & 96kHz sample rates @ 24 Bit
  • Configurable Dante® device latency (supports 2, 3, 4, 5 or 10ms configurable using Dante® Controller)
  • Input sensitivity/volume control adjustable via CEC, web GUI or API
  • Supports AES67 RTP audio transport
  • Features Class 0 802.3af PoE for powering of product from any PoE switch
  • Local 12V power supply input for when network switch does not support PoE*

*PS121PH power supply sold separately

Please Note: The DA11ARC will only decode a 2ch HDMI ARC signal and is not compatible with multi-channel HDMI audio codecs.


Specifications

  • Casing Dimensions (L×W×H): 120mm × 47mm × 26mm
  • Shipping Weight: 0.3 Kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: −4°F to 140°F (−20°C to 60°C)

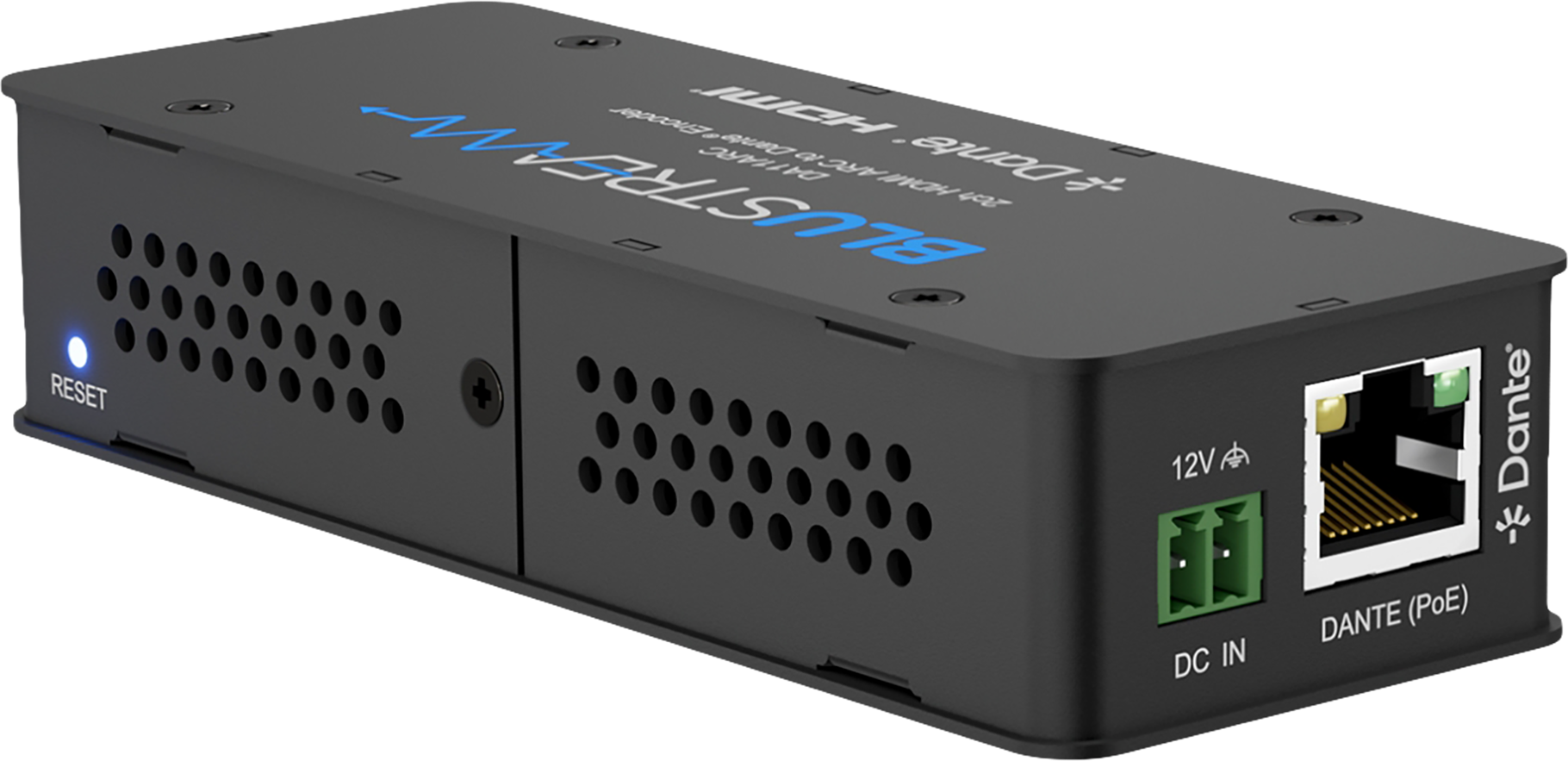

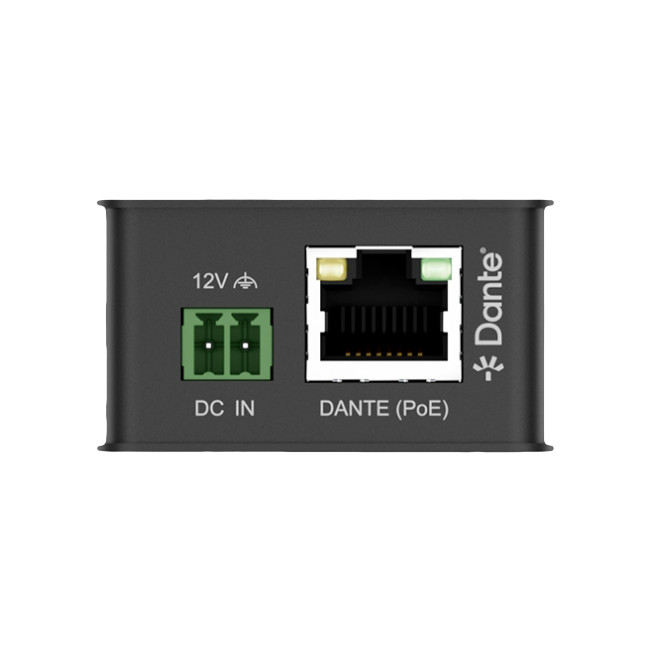

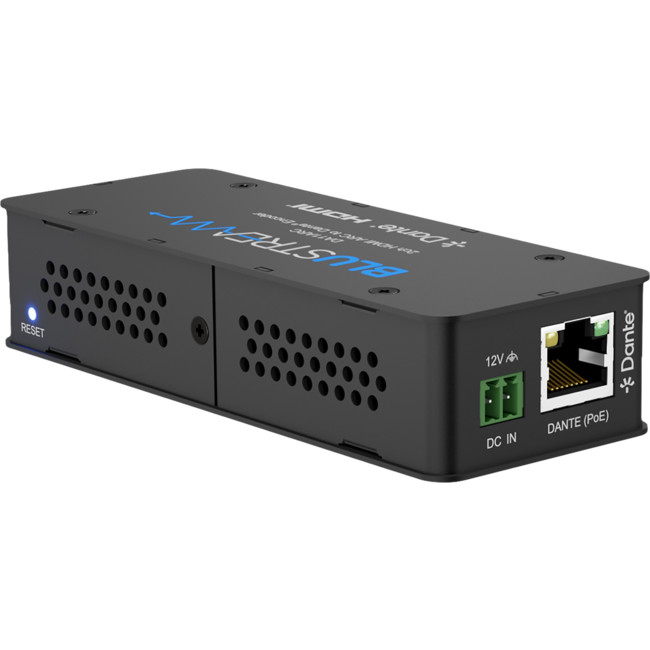

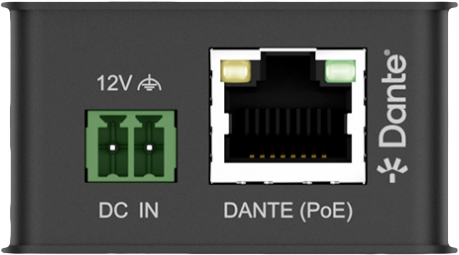

  • Power Supply: Class 0 IEEE 802.3af POE PD or 12V/1A DC 2-pin Phoenix connector
  • Audio Output Connector: 1 × RJ45, female (100 Mbps Dante® network)

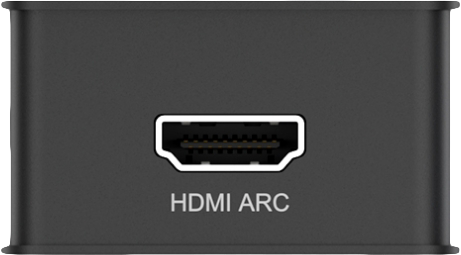

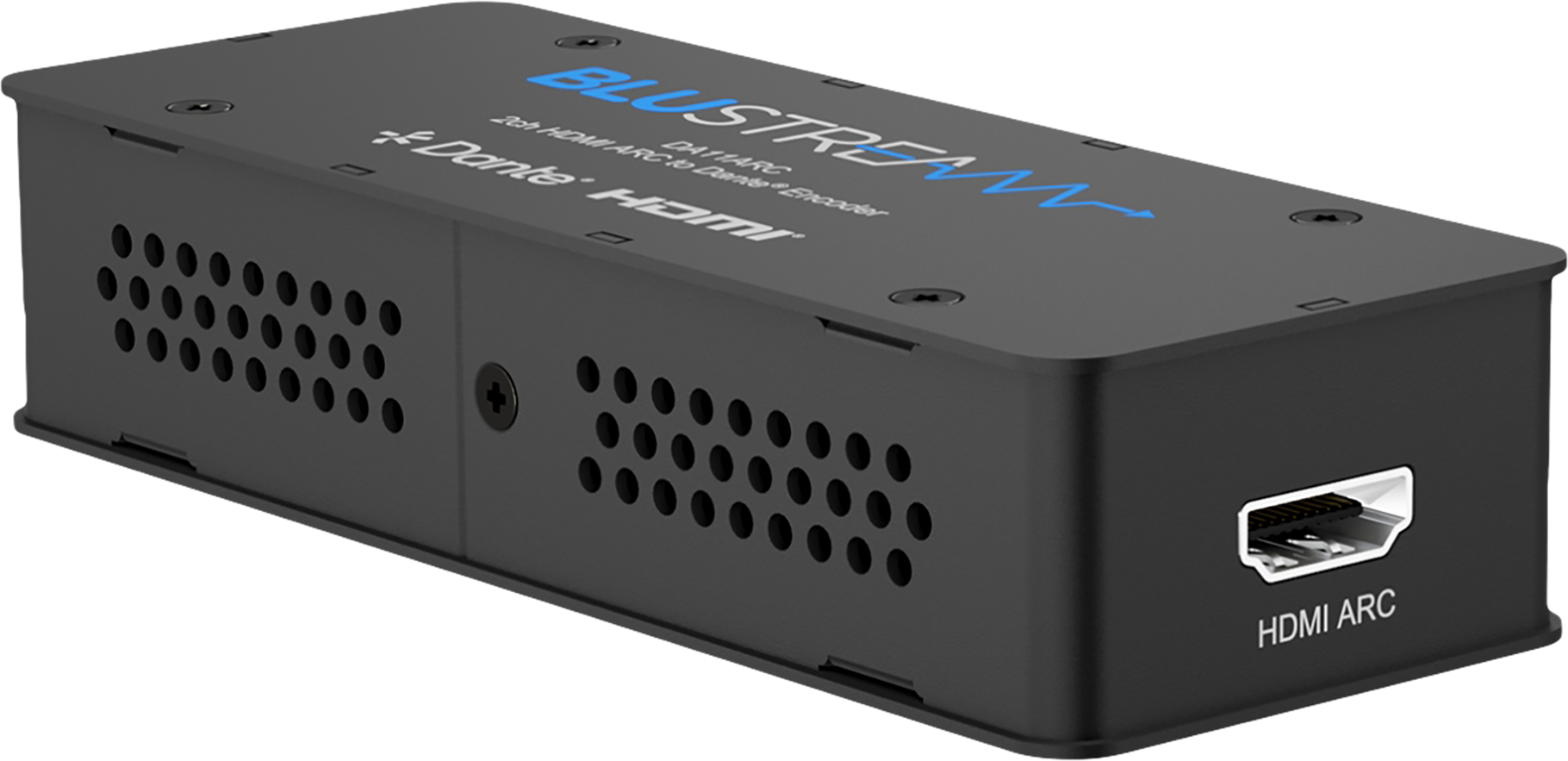

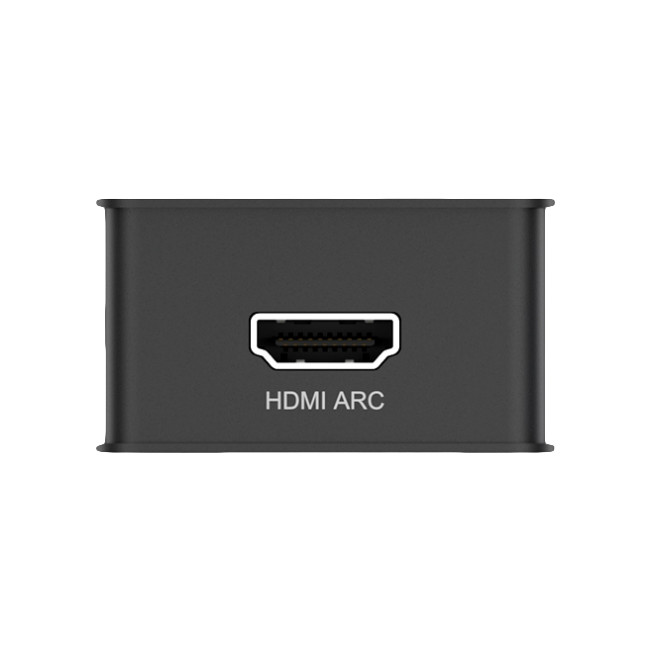

  • Audio Input Connector: 1 × HDMI, female (2ch ARC audio only)

Box Contents

  • 1 × DA11ARC
  • 1 × Quick Reference Guide

Blustream Dante audio converters
