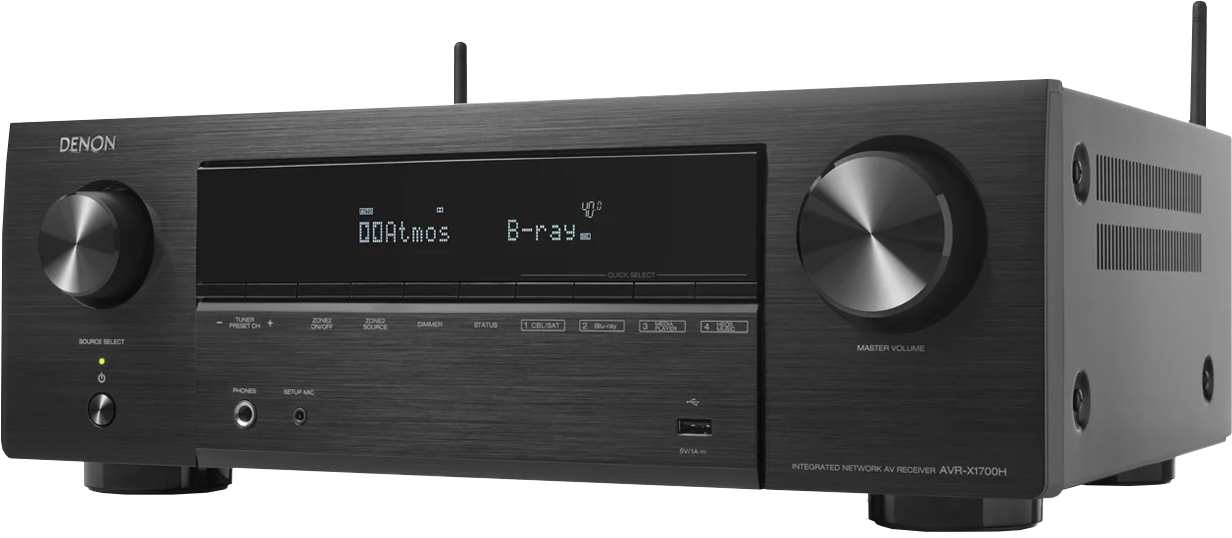

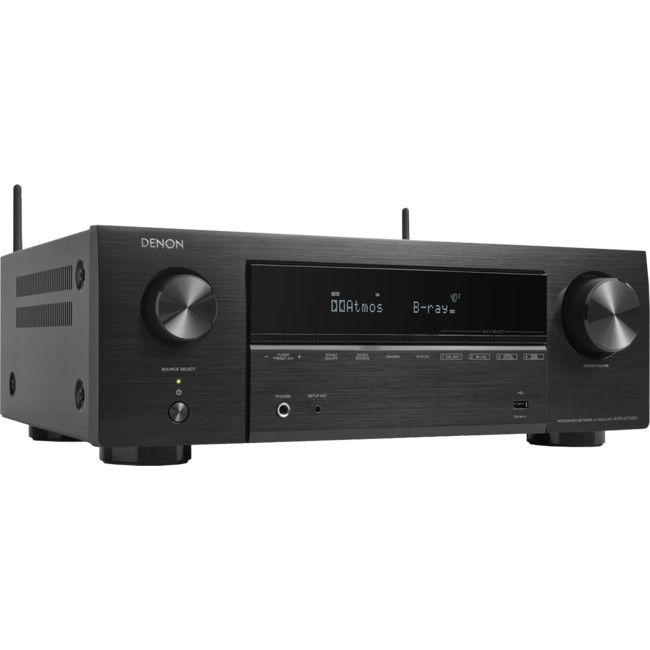

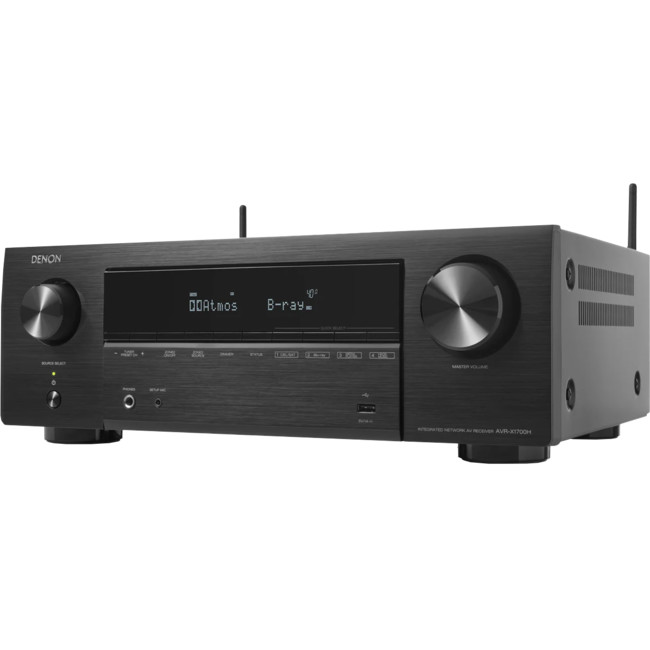

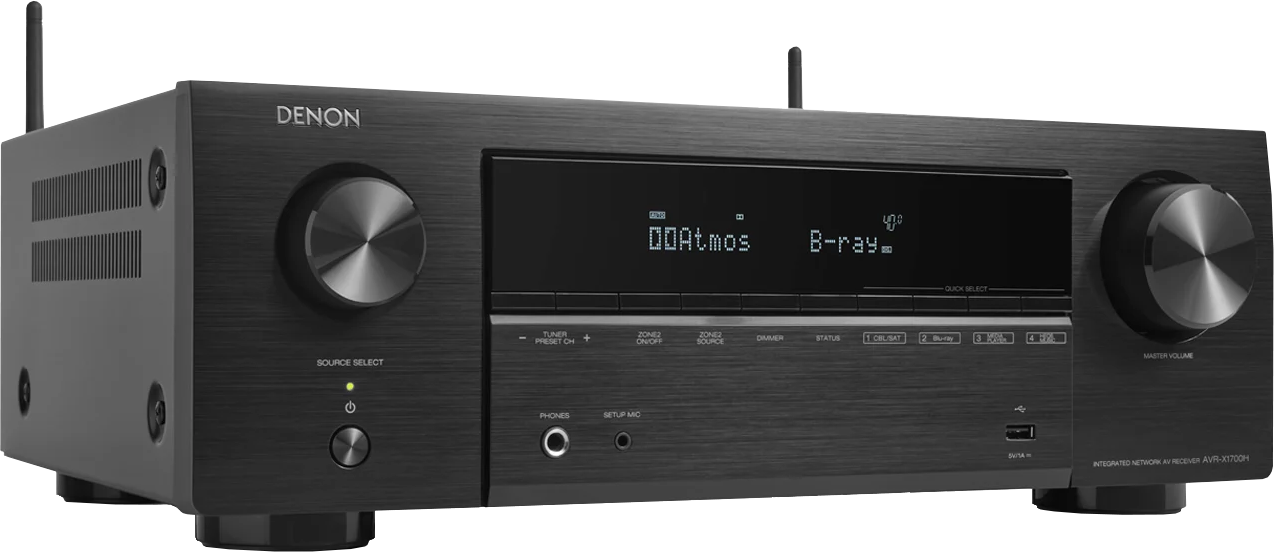

Denon - AVR-X1700H 7.2ch 8K AV Receiver with 3D Audio, Voice Control and HEOS Built-in
Denon AVR-X1700H 7.2ch 8K AV receiver with 80W per channel fully supports 3D audio formats Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X® andDTS Virtual:X™.
It features as the latest HDMI specifications such as 8K/60Hz, select 4K/120Hz pass-through VRR, ALLM, HDR10 and eARC support.
Key Features
- 7.2 channel full 8K Ultra HD 80W AV Receiver
- Dolby Atmos, Dolby Atmos Height Virtualization Technology, DTS:X, DTS Virtual:X
- 6 HDMI inputs, 1 HDMI output
- Audyssey MultEQ XT, Dynamic Volume/EQ
- Voice control with Amazon Alexa, Siri (via AirPlay 2) and Google Assistant
- AirPlay 2 / Bluetooth / Network Streaming, HEOS Built-in
Upgrade your home theater with the Denon AVR-X1700H.
With 80W per channel (8 ohms, 20Hz-20kHz, THD: 0.08%, 2 ch. driven), this performance-tuned Denon AV receiver provides a truly immersive 3D audio experience.
Supports Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X® and DTS Virtual:X™. The AVR-X1700H also supports the latest video technologies such as 8K/60Hz and select 4K/120Hz pass-through on three dedicated inputs, Dolby Vision™,HDR10, HDR10 , Dynamic HDR, HLG, as well as 8K upscaling andHDCP 2.3 support on all HDMI inputs (6 in/1 out).
The front-panel USB offers convenient audio playback of MP3 and Hi-Res audio formats (WAV, FLAC, ALAC and DSD 2.8/5.6 MHz files). Stream popular music services like Spotify®, Amazon Music HD, TIDAL, Deezer, TuneIn, Soundcloud and more wirelessly via Bluetooth, Apple AirPlay 2 and Wi-Fi with HEOS® Built-in.
The Denon AVR-X1700H works with Amazon Alexa, Google Assistant and Apple Siri for effortless voice control.*
By visually guiding you through each step in the setup process, the award-winning Denon Setup Assistant ensures youget setup right the first time.
Every home theater is different - that’s why Denon uses premium room calibration technology from Audyssey that automatically measures and optimizes your AV receiver to provide a truly immersive 3D audio experience custom-tailored to your unique listening environment.
Features
- 7.2 channel AV receiver with 80W power per channel:
- Seven powerful amplifiers tuned to provide the classic and dynamic Denon sound experience
- Supports Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X and DTS Virtual:X:
- Enjoy an immersive, three-dimensional audio experience up to 7.2.4 with an additional 2ch amplifier
- Full 8K/60Hz and 4K/120Hz support:
- With the latest HDMI support, enjoy 8K quality video from your 8K source devices.
- Three 8K input and one output allow for 8K/60Hz and 4K/120Hz pass-through. 8K upscaling is available on all 6 HDMI inputs.
- The latest in video compatibility:
- The latest HDR format support including HDR10, HDR10 , HLG, Dolby Vision, as well as Dynamic HDR, to provide the greatest picture quality for brightness, clarityand contrast.
- The latest in gaming experiences:
- With 4K/120Hz pass-through, Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM) and Quick Frame Transport (QFT), enjoy your gaming experience with amazing imaging, as well as reduced lag and latency from features.
- Award-winning Denon Setup Assistant and graphical user interface:
- Easy and intuitive out-of-box setup experience
- Amazon Alexa, Google Assistant and Apple Siri voice control:
- Use your voice to control the AVR-X1700H and wireless music services hands-free
- HEOS Built-in wireless multi-room music streaming technology:
- Listen from any room of your home for a connected,whole-home audio experience
- Smart TV connectivity:
- Control the Denon AVR-X1700H with your TV remote via HDMI CEC
- Enhanced Audio Return Channel (eARC):
- Supports the latest 3D audio formats such as DolbyAtmos and DTS:X from your TV audio signal via HDMI
- Game Mode:
- Supports Auto Low Latency Mode (ALLM) for lag-freegaming (requires supported 4K display and game console)
- Supports Spotify, Amazon Music HD, TuneIn, Deezer and more:
- Wirelessly stream and enjoy the most popular musicservices
- High-resolution DSD (2.8/5.6MHz), FLAC, ALAC and WAV support:
- High-resolution audio streaming for Hi-Fi enthusiasts
- Integrated Phono input:
- Supports vinyl records for Hi-Fi listening
- DSP chip with four 300MHz DSP cores:
- Powers the latest video, sound and processing needs
- All Zone TV audio:
- Play the audio from your TV to all zones
- Audyssey MultEQ XT calibration software:
- Delivers ultimate equalization for your unique listening environment
POWERFUL 7-CHANNEL AMPLIFIER WITH THE LATEST HOME CINEMASPECS
Featuring discrete amplifiers on all channels, the AVR-X1700H delivers high-power performance at 80W per channel (8 ohms, 20Hz-20kHz, .08%, 2 ch driven).
Low impedance drivers provide operational stability for awide range of speakers for balanced, tonal sound.
The AVR-X1700H supports three-dimensional sound formats Dolby Atmos, Dolby Atmos Height Virtualization Technology, DTS:X and DTS Virtual:X, plus an HDMI section with HDCP 2.3 support and advanced video processing with up to 8K upscaling for HDMI sources.
AMAZING 3D-SOUND
Immerse yourself in multi-dimensional audio with Dolby Atmos, DTS:X, Dolby Atmos Height Virtualization and DTS Virtual:X.
DRIVE IMMERSIVE SURROUND SOUND
Immerse yourself in multi-dimensional audio with Dolby Atmos. Set up Dolby Atmos with a 5.2.2 surround sound speaker system using Dolby Atmos elevation speakers, or dedicated overhead speakers, for the ultimate home theater experience.
Dolby Atmos Height Virtualization provides immersive audio without height channels, creating virtual height effects in a 7.2, 5.2 or 2.2 speaker arrangement.
GET CLOSER TO THE ACTION
DTS:X™ immersive audio places sound where it would occur naturally in space, creating a lifelike, multi-dimensional audio experience in the home.
The improved immersion and heightened realism draw you into the world of your favorite movies.
The included DTS Neural:X™ gives your movies, gamesand music a realism unmatched by traditional 5.1 surround sound. DTS Virtual:X provides immersive audio without heightchannels, creating virtual height effects in a 7.2, 5.2 or 2.2 speaker arrangement.
GEARED UP FOR 8K ULTRA HD
Enjoy your favorite movies, shows and games with the bestpicture quality available.
Latest HDMI specs with eARC
ADVANCED HDMI VIDEO SECTION WITH EARC
The AVR-X1700H delivers the ultimate home theater experience with 8K/60Hz pass-through, 4K/120Hz pass-through,as well as support for the latest HDMI specifications.
The new AVR-X1700H lets you build the best 4K home theater today and gives you the comfort of knowing that yourAV receiver is 8K ready when you are.
Enjoy the highest quality 3D audio and video for even themost demanding entertainment needs.
Advanced Video section
THE NEXT GENERATION IN GAMING
Showcased in the new AVR-X1700H, enjoy gaming to its fullpotential.
Game with 4K/120Hz pass-through, as well as Variable Refresh Rate (VRR), Quick Frame Transport (QFT), and Auto Low Latency Mode (ALLM), which reduced or eliminates lag andframe tearing to offer a smoother, lag-free gaming experience.
Dynamic HDR / Dolby vision
BRILLIANT COLOR – UNIVERSAL COMPATIBILITY, HDR10 AND DYNAMIC HDR
The AVR-X1700H supports High Dynamic Range video format, HDR10, Dolby Vision and HLG (Hybrid Log Gamma). Dolby Visiontransforms the viewing experiences with astonishing brightness, contrast, and color.
HLG offers HDR technology over broadcast content for a crisper, cleaner image.
The AVR-X1700H also supports HDR10 , which sends dynamic meta data to TV for more realistic images, as well as Dynamic HDR. (Some technologies are not available on all televisions.)
EASY SETUP EXPERIENCE
The included AVR-X1700H Quick Start Guide provides simple, clear instructions for how to get started.
Once you connect your TV to the AVR-X1700H via HDMI, the exclusive Denon Setup Assistant appears on your TV screen towalk you through setup, step by step.
A row of color-coded speaker connections is laid out horizontally, making organizing and connecting speaker wiressimple.
AUDYSSEY ROOM CORRECTION
The AVR-X1700H features the Audyssey MultEQ XT room acoustic measurement system.
With the supplied microphone, it precisely analyses the output of each speaker to optimize every channel.
Plus, the additional Audyssey MultEQ Editor app (available for purchase) allows advanced users to go “under the hood” for further adjustment and customization of your audio environment.
BUILT-IN BLUETOOTH AND WI-FI CONNECTIVITY
The heart of your wireless network. For Bluetooth, Wi-Fi and AirPlay 2 wireless streaming connectivity, the Denon AVR-X1700H is equipped with an advanced dual antenna transceiver system for robust streaming even in congested urban environments.
Enjoy listening to your favorite audio content wirelesslyfrom your smart devices.
With HEOS Built-in technology play the same song in everyroom or select a different song for each connected room - the choice is yours.
HEOS works with Amazon Alexa and Google Assistant, providing effortless voice control.
HEOS supports free and premium Spotify, Amazon Music HD, TuneIn, iHeart Radio, Sound Cloud, Tidal and more.
YOU’RE IN CONTROL
Better control in your back pocket.
The free Denon AVR Remote app for iOS and Android makes using the AVR-X1700H even easier -adjust volume, turn it on or off, mute the music, select a source or switch to the HEOS app for wireless music streaming.
Download the Denon AVR Remote app and the HEOS app to your smartphone today. Available for both iOS and Android.
Use Amazon Alexa, Siri, or Google Assistant to control your music.
ALL ZONE TV AUDIO
Play the audio from your TV to all zones. Supports both analog and digital audio connections.
QUICK SELECTS FOR USER-FRIENDLY AUDIO TUNING
The Denon AVR-X1700H front panel features four Quick Select buttons that store your preferred audio settings for each source.
Switch between TV audio, Blu-ray, media players and more,and the AVR-X1700H adjusts the EQ settings to your preferences for that media source.
Use the buttons on the front panel or opt for the same Quick Selects on the AV receiver remote for faster control.
Now allows for one-push all zone stereo mode via Quick Select.
ADVANCED SOUND PROCESSING
Experience extraordinary sound quality from both music and movies.
DSP POWER PROCESSING
Incredible power for your music and movie needs.
The AVR-X1700H includes an advanced DSP (Digital Sound Processor) chip for tremendous power processing.
The quadcore DSP is capable of processing over one billion computations per second, the AVR-X1700H supports thelatest video, sound and processing needs.
MULTI-SOURCE, MULTI-ROOM
With the Denon AVR-X1700H, it’s possible to enjoy 7.2 channel surround sound in one room and a separate sourceor music stream in another.
Watch a movie in one room while another family member listens to music in a different zone without interruption.
Make use of the internal amps to power the speaker or usethe zone pre-outs.
FRONT USB PORT FOR HIGH-RESOLUTION AUDIO
Enjoy superb audio fidelity with your favorite high-resolution audio tracks.
The AVR-X1700H with 32-bit D/A converters features high-resolution audio decoding with multiple lossless file types, including ALAC, FLAC and WAV at up to 24-bit/196-kHz.
It is also compatible with 2.8/5.6-MHz DSD files (DSD isthe audio coding format of SACD).
Play them from memory devices via the front panel USB, orover network sources.
The AVR-X1700H also supports other file types such as MP3and WMA.
PHONO INPUT FOR TURNTABLE/VINYL SUPPORT
For nearly 50 years, Denon has been developing turntablesand phono pre-amps.
With the included phono input, the AVR-X1700H lets you connect your turntable and play vinyl records.
Enjoy your collection with exceptional quality and sound.
DUAL SUBWOOFER OUTPUTS
Immerse yourself in evenly distributed, accurate bass.
The AVR-X1700H features two subwoofer outputs to smooth out low frequencies and provide better dispersion.
No audible peaks or dips -just powerful, room-filling bass.
WORKS WITH LATEST VOICE ASSISTANTS
Enjoy effortless voice control and total flexibility fromthe leading voice services.
Using a smart speaker or your phone, speak commands with Amazon Alexa, Google Assistant and Apple Siri. Ask to play your favorite music, turn the volume up, skip to the next track, switch inputs and more.
Switch between voice services or pick a favorite to use -the choice is yours.
Functionality varies by voice agent.
WORKS WITH AMAZON ALEXA
Control the AVR-X1700H hands-free with Amazon Alexa and your voice.
Adjust the volume, skip to the next track, switch inputsfor your different media players and more -“Just Ask.” Download the free HEOS Home Entertainment Skill to enable Amazon Alexa voice commands for your AVR-X1700H, HEOS devices and other select Denon products.
Requires Alexa app and Amazon Echo, Dot or equivalent.
WORKS WITH GOOGLE ASSISTANT
Start music in the HEOS app, then ask your Google Assistant to control volume, play, pause, skip tracks and more.
AIRPLAY 2 APPLE SIRI VOICE CONTROL
Use AirPlay 2 to stream music wirelessly to the AV receiver, or group with other AirPlay compatible speakers tofill your home with music.
Stream audio from your favorite music services like AppleMusic and Spotify or watch videos from services like YouTubeand Netflix from any iPhone, iPad, Mac or Apple TV and hear the audio perfectly synced to your speakers AirPlay 2 sources.
AirPlay 2 also supports multi-room audio – wirelessly stream content to multiple AirPlay 2 compatible devices simultaneously with improved audio buffering to ensure smooth audio playback.
AirPlay 2 provides control and grouping of compatible audio devices within the Apple Music or Home app.
Use AirPlay 2 in-app or with your voice via Siri.
HEOS BUILT-IN: WIRELESS MUSIC STREAMING
Stream your favorite music from anywhere and everywhere around your home with HEOS Built-in technology.
Enjoy high quality music from a wide range of streaming services including Spotify®, TuneIn, Amazon Music HD, iHeartRadio, Soundcloud®, Tidal, Napster, Deezer or local music sources. Control it all seamlessly with the freeHEOS app.
PLAY YOUR MUSIC ANYWHERE WITH DENON HOME SPEAKER
With the HEOS multi-room function, the Denon AVR-X1700H can connect with any other product with HEOS Built-in, like Denon Home speakers, to play music throughout your entire home.
Play the same song in every room or select a different song for each connected room ? the choice is yours.
Specifications | - 7 Power Amplifiers
- 80W Power Output (8 Ohms, 20Hz-20kHz, 0.08%THD, 2ch Drive)
- 120W Power Output (6 Ohms, 1kHz, 0.7%THD, 2ch Drive)
- 145W Power Output (6 Ohms, 1kHz, 1%THD, 1ch Drive
| General | - Handles speaker impedance between 4 and 16Ohms
- 200mV Input Sensitivity
- Frequency Response (Direct Mode) 10Hz-100kHz 1, -3dB)
- S/N Ratio: 98dB (IHF-A Weighted, Direct Mode)
- FM/AM Tuner
- Power Supply: 230V AC, 50Hz
- PEAK Power Consumption: 440W
- Idle Power Consumption: 29W (ECO On), 39W (ECO Off)
- 0.1W Standby
- 0.5W CEC Standby

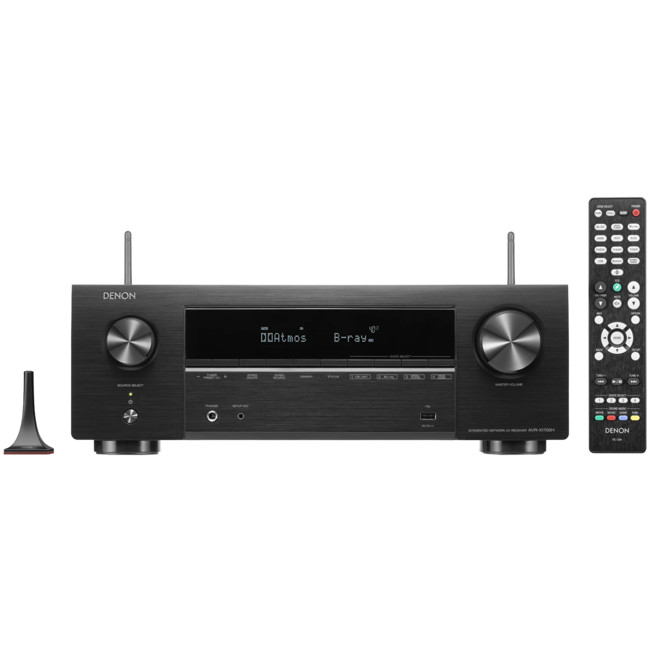

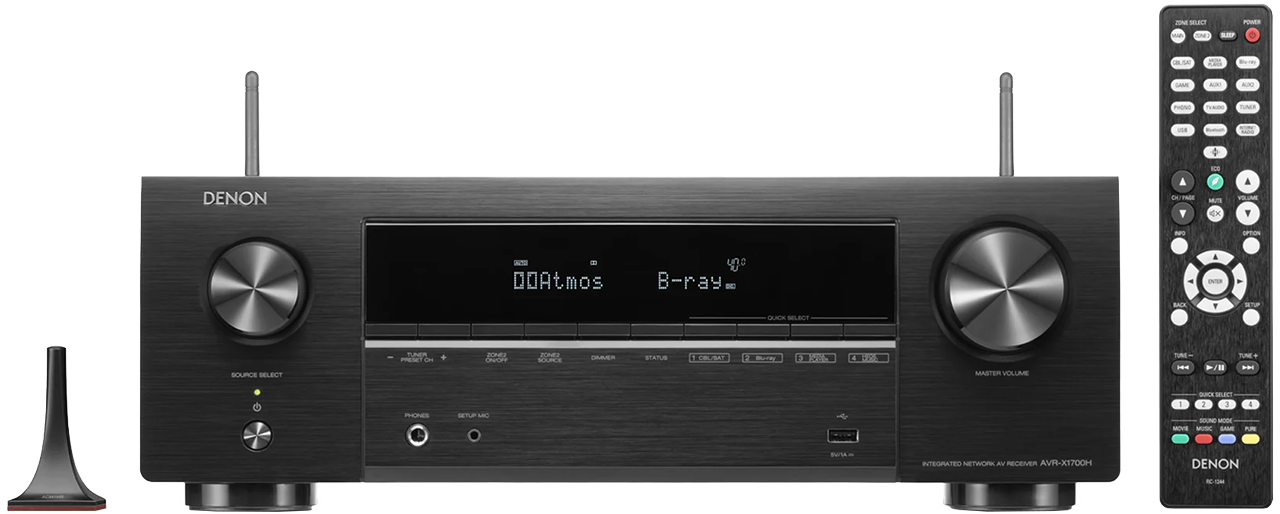

- RC-1227 System Remote Control
- Available in Black
| Dimensions | - 434mm Width
- 339mm Depth
- 151mm Height (Antenna Horizontal)
- 215mm Height (Antenna Vertical)
- 8.6kg

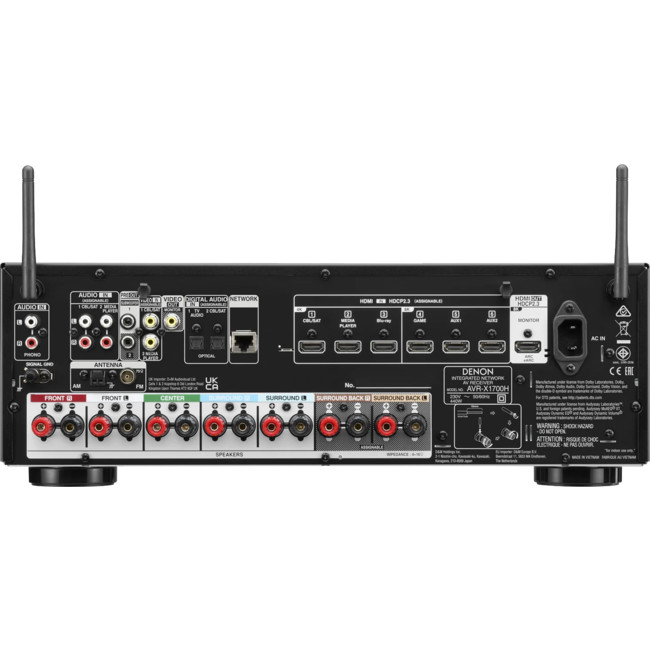

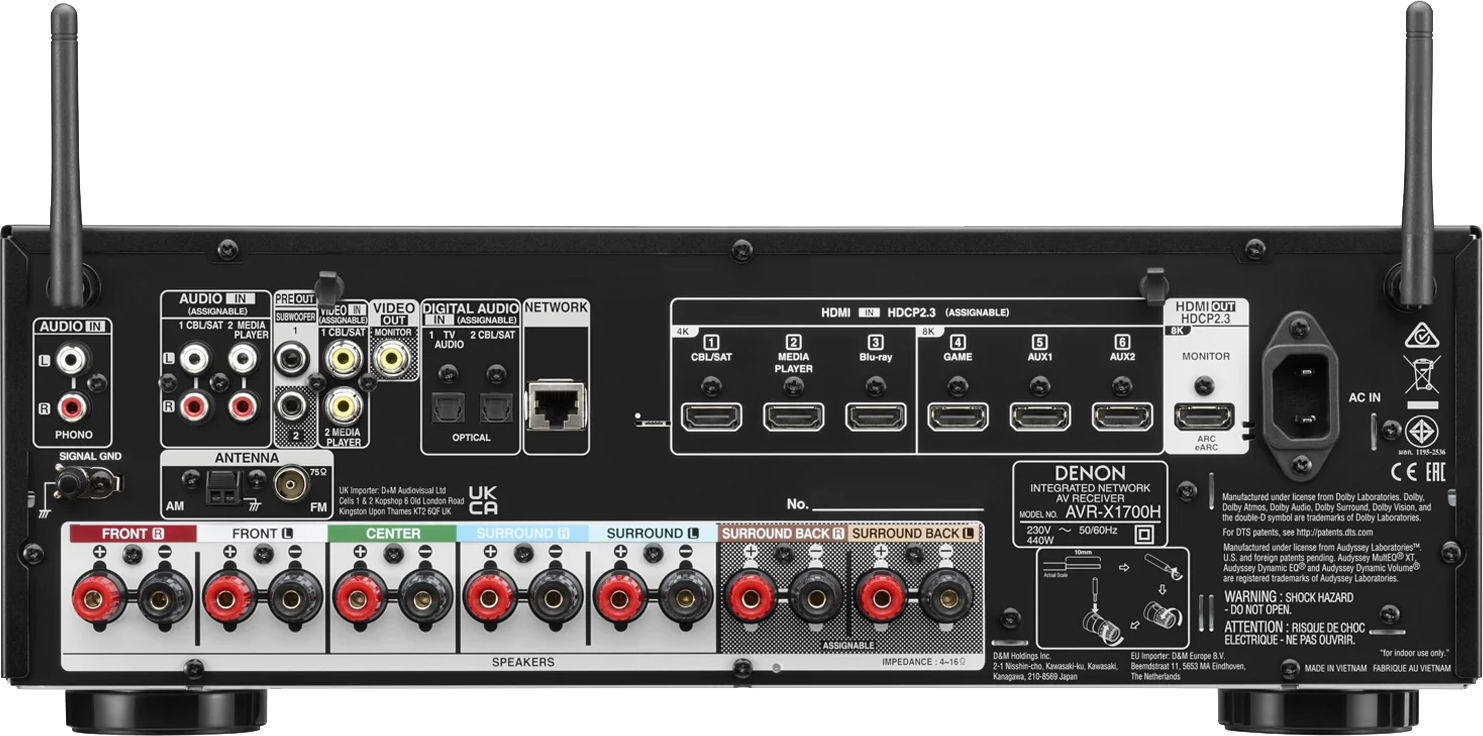

| Inputs / Outputs | - 6 HDMI Inputs (3 support 8K)
- 1 HDMI Output (eARC)
- 2 Composite Video Inputs
- 1 Composite Video Output
- 1 Phono (MM) Input
- 2 Analogue Stereo Inputs
- 2 Digital TOSLink Optical Inputs
- Front Panel USB Port for mass storage
- 0.2 channel pre-out (Subwoofer)
- 6th 7th speaker terminals assignable for2nd zone, Bi-Amp Drive, Speakers A/B, Height Channels, Rear Surround etc
- Front Panel Headphone Output (6.35mm jack)
- Ethernet port
- FM/AM Tuner
| Multichannel Surround | - 7.1 channels processing
- DTS: HD Master
- DTS: X
- DTS Neural: X
- DTS Virtual: X
- Dolby TrueHD
- Dolby Atmos
- Dolby Surround
- Dolby Height Virtualization
- Multichannel Stereo
- Dialogue Enhancer
| Sound Enhancement | - 7 Discrete Power Amplifiers
- Audyssey Dynamic EQ
- Audyssey Dynamic Volume
- 2 Speaker Setup Presets
- Audyssey MultEQ XT
- Audyssey App Support
- Compressed Audio Restorer
| Network | - Gapless playback supported with FLAC, WAV,ALAC, and DSD
- Internet Radio provided by TuneIn
- Remote App for Android, iOS, and Amazon Kindle
- HEOS Multiroom and Streaming
- MP3, WMA, AAC Lossy Format Support
- FLAC, ALAC, WAV Lossless Format support
- DSD Streaming up to DSD5.6
- 24bit, 192kHz supported with FLAC, WAV, and ALAC
- AirPlay2
- Roon Tested
- Spotify Connect
- Tidal
- Deezer
- Amazon Prime Music
- Ethernet port
- Wi-Fi
- Bluetooth
- Bluetooth Headphone Transmission
| HDMI | - 6 Rear Inputs (3 support 8K)
- 8K 60Hz
- 4K 120Hz
- 1 HDMI Main Zone Output (up to 8K)
- HDMI to HDMI scaling up to 8K 50/60Hz
- HDCP2.3 support
- CEC
- eARC
- Dolby Vision, HDR10 , Dynamic HDR, and HLGsupported
- ALLM
- QMS
- QFT
- VRR
- HDMI Pass Through in Standby Mode
| Multi-room CI | - 2 Multi Room Zones
- Zone Audio Sources: HDMI (2ch), Optical (2ch), Network, USB, Analogue
- HEOS Multiroom Integrated
- TV sound grouping
- Main Room Multichannel Audio - Zone stereodownmix
- 2nd Zone Speaker Output assignable
- Web Browser user interface
- IP Control
- App Control
| Others | - Audyssey MultEQ XT Auto Speaker Setup by Microphone
- 1 Line FL Display
- Hybrid Graphical User Interface in 9 languages
- Voice control works with Amazon Alexa, Google Assistant, and Apple Siri
- Setup Assistant
- Quick Select Plus
- Firmware update via network or USB
- Variable crossover
- Optimized Bass Redirection
- ECO Mode
- Auto Power Off
- Sleep Timer
| |
