DA11ABL-WP-EU-V2 WHITE BLUETOOTH & ANALOG AUDIO DANTE

Blustream DA11ABL-WP-EU-V2 EU White Wall Plate

With Bluetooth & Analogue Audio Dante®

The DA11ABL-WP-EU-V2 is a multi-input / output wall plate to convert Bluetooth and analogue audio within a digital Dante® networked audio system. The DA11ABL-WP-EU-V2 converts 2 input channels of Bluetooth or unbalanced audio to Dante® digital audio, and 2 channels of Dante® audio to 2 × output channels of unbalanced audio.

The DA11ABL-WP-EU-V2 is a plug & play device that is powered using PoE (Power over Ethernet), or via 12V power supply, offers support for AES67 RTP audio transport and magnetic faceplate design allows for both UK & EU backbox compatibility. The DA11ABL-WP-EU-V2 is the ideal BYOD interface to allow any Bluetooth device to stream audio wirelessly to a Dante® audio system.

Features

• Dante® network wall plate interface for Bluetooth and analogue L/R audio inputs, and L/R audio outputs.
• Converts 2ch Bluetooth, or un-balanced audio sources to Dante® audio.
• Converts 2x Dante® audio channels to un-balanced audio outputs.
• Adjustable input sensitivity from 24dBu to -28dBV and output gain from 20dBu to -28 dBV via web GUI or API.
• Dante® Audio Supports 44.1, 48, 88.2 & 96 KHz sample rates @ 16, 24 & 32 Bit.
• Configurable Dante® device latency (supports 2, 3, 4, 5 or 10ms configurable using Dante® Controller).
• Supports AES67 RTP audio transport.
• Features Class 0 IEEE 802.3af PoE for powering of product from any PoE switch.
• Supports power via 12V DC adapter (not included) for when network switch does not support PoE.

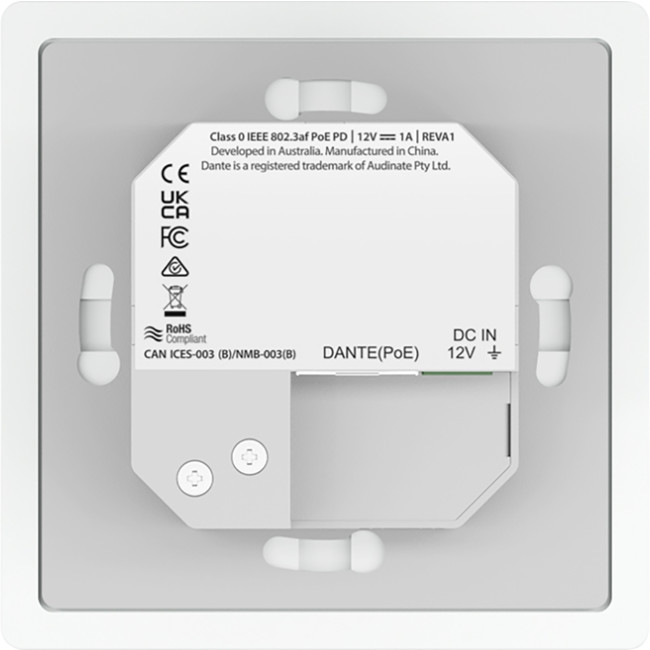

• White magnetic faceplate surround allowing for both UK & EU backbox compatibility.
• In-built web-GUI for configuration and control

Specifications

Box Contents

• 1 × DA11ABL-WP-EU-V2
• 1 × Magnetic Faceplate
• 1 × Quick Reference Guide
