PRO1328WP AUDIO AMPLIFIER WALL PLATE

MICROPHONE AND STEREO CLASS D

Code: 01458303

0.3030 kg
9328202015396
EACH
20
In Stock
TRADE ALERT!
$69 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

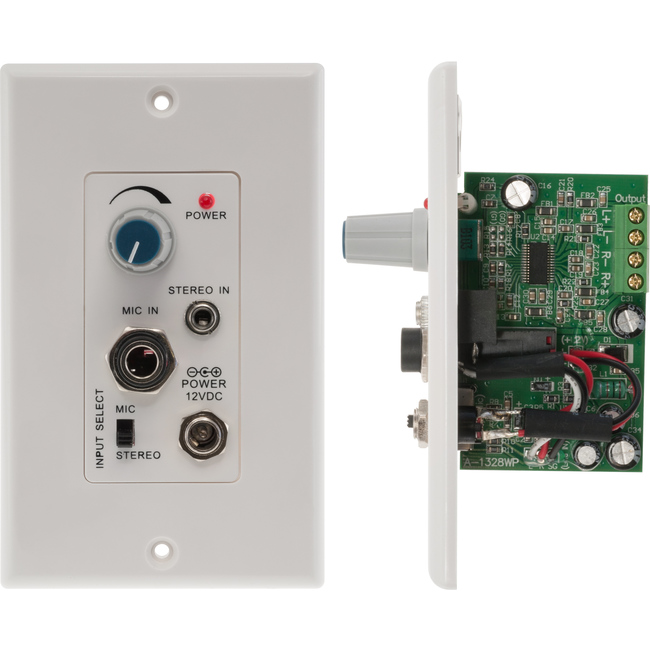

PRO1328WP PRO2 AUDIO AMPLIFIER WALL PLATE

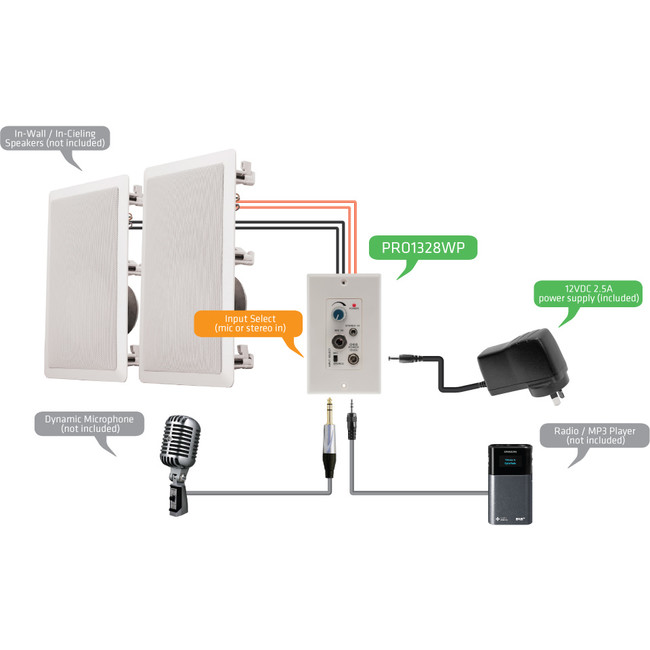

Use the PRO1328WP to power in-ceiling speakers with the audio output from any source device such as computers, DVD players, TVs and even Microphones. Alternatively the PRO1328WP is perfect for shop display installations, where basic audio amplification and compact size is required.

With the ability to switch from line-level to dynamic microphone input, the PRO1328WP can be used to give your shop displays and demonstrations more reach.

The unique Decora-style wallplate design ensures a professional and clean installation without the need to loose or extra 'boxes' lying around. Great for indoor/outdoor speaker systems where simple and discrete convenience is paramount.


Ideal For Use With:

  • DVD players
  • TVs
  • Indoor/Outdoor Speakers
  • In-ceiling/in-wall Speakers

Features

  • Switch between 3.5mm (line) or microphone inputs
  • Discrete and compact Decora-style wall-plate design
  • Suitable for 4Ω (Ohm), 6Ω (Ohm) and 8Ω (Ohm) speakers
  • Speaker screw terminals handle wire sizes from 24 to 12 gauge

Specifications


InputsDynamic microphone or stereo audio line level
Microphone Pre-Amplifier Gain40dB
Power Amplifier TypeStereo Class-D
Output Power15W (rms) per channel (@ RL = 4Ω (Ohm))
THD+N0.06% (@ RL = 8 Ω (Ohm), f = 1 kHz)
Minimum Load Resistance4Ω (Ohm)
AccessoriesIncludes Speaker Protection Circuit
Power Source12V DC / 2A (included)
Size (L×W×H)92.6mm × 73.4mm × 26.6mm
Net Weight (Unit Only)160g

Pro2 Class D Mini Amps - Range Overview May 2020
