MCR81X 8CH MICROPHONE LINE MIXER

Code: 01458275

2.87 kg
9328202033703
EACH
4
ETA
2024-12-30
TRADE ALERT!
$349 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

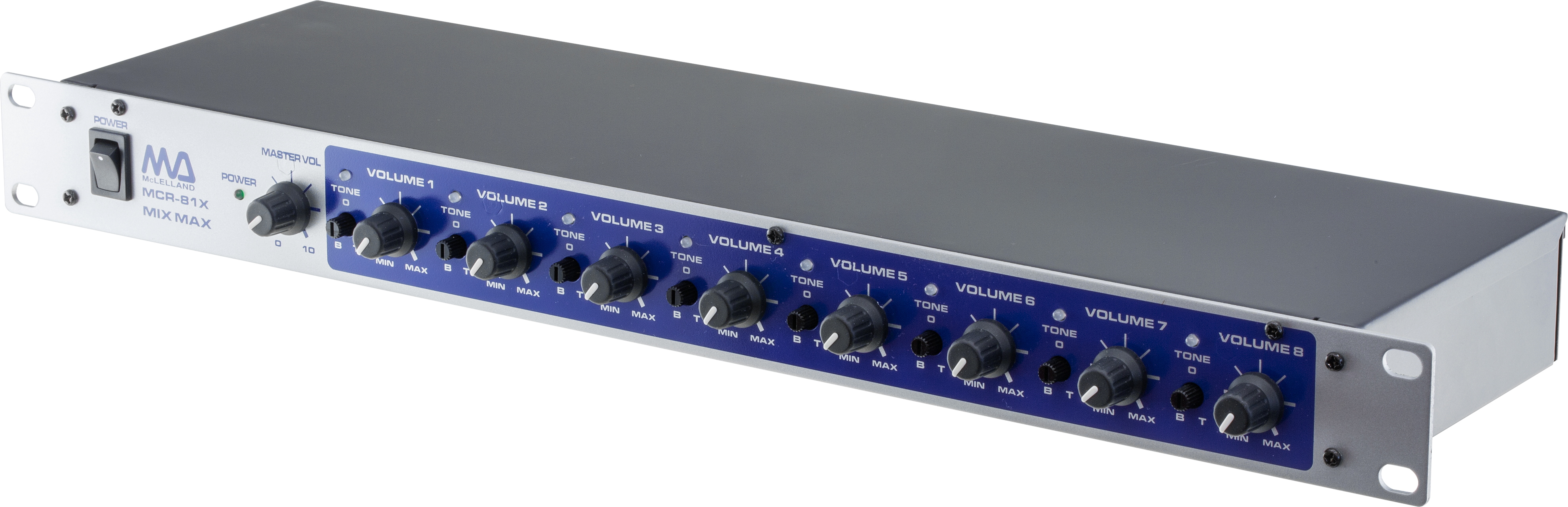

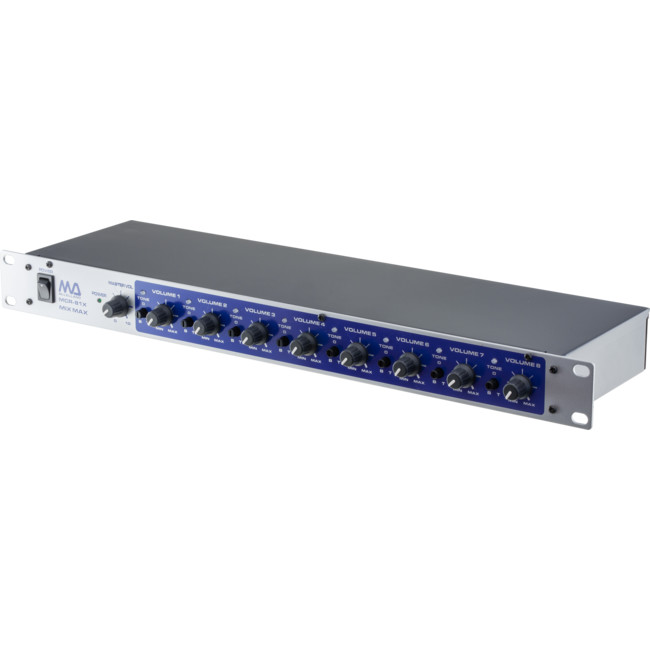

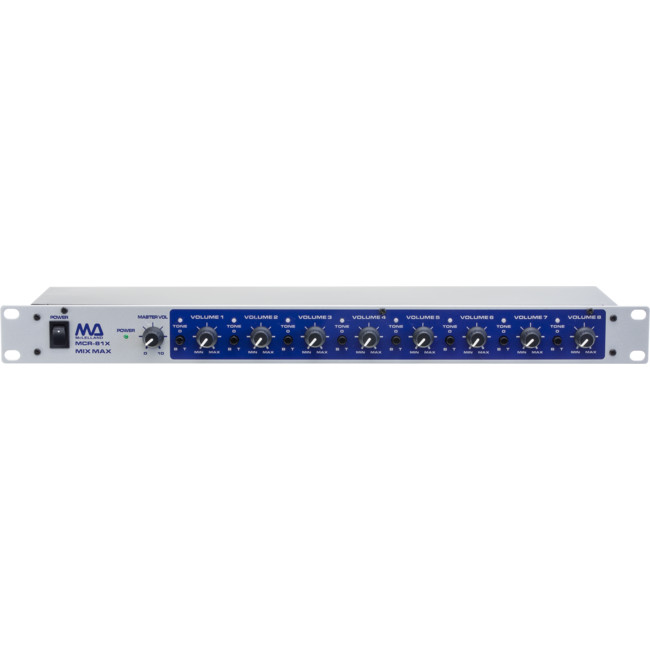

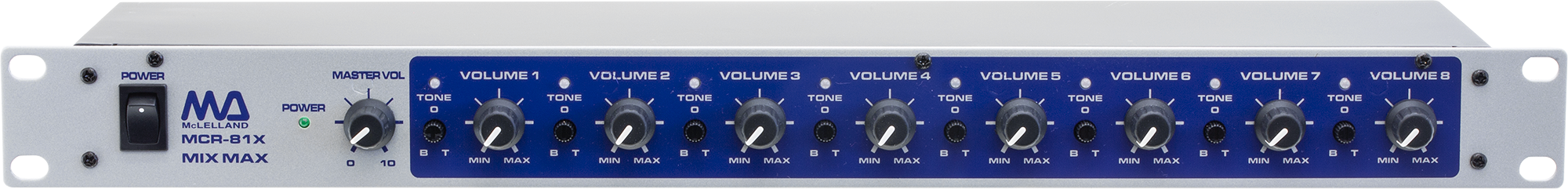

The McLelland MCR-81X 8 channel microphone/line mixer which allows to mix the microphone inputs and line inputs together, each input channel has a rotary volume control andtone control. This unit could also offer 48V phantom power to your microphones. Offering high quality sound, the McLelland MCR-81X will be the best solution for sound reinforcement, recording studio, clubs, and so on.

Features

  • 19”single rack mount microphone and line mixer
  • 8 channels total inputs

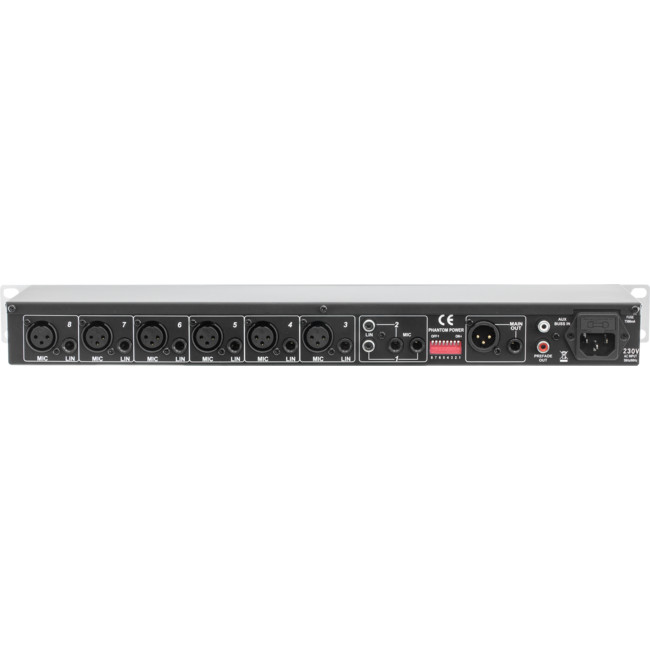

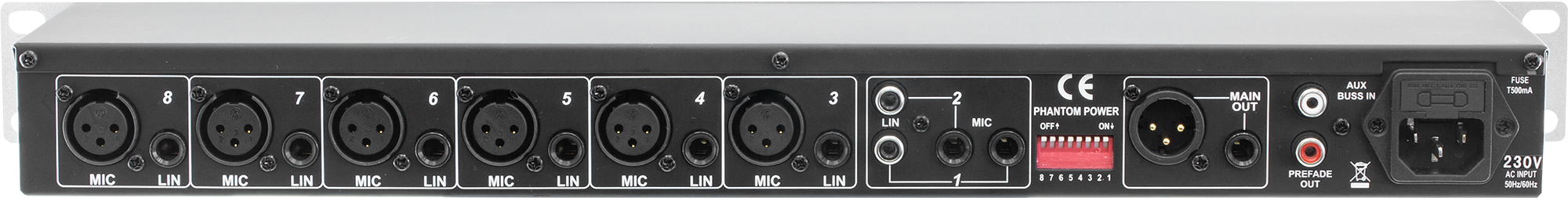

  • 6 channels XLR & 1/4” TRS input & 2 channels RCA & 1/4” TRS input
  • Single 1/4” TRS & XLR Balanced mian out
  • RCA prefader out
  • RCA Aux Bus in
  • 48V phantom power

Specifications

  • Imput Impedance: 600 Ohm(Mic XLR), 50 Ohm
  • Unbalanced(1/4” TRS), 10K Ohm(RCA Bus input)
  • Max. Input Level: 15 dBV(Mic), 22 dBV(Line)
  • Max. Gain: 55 dB(Mic), 26 dB(Line)
  • Tone Control: 20 dB Treble/Bass Cut
  • Max. Output Level: 17 dBV
  • Output Impedance: 51 Ohm
  • Phantom Power Supply: 48V
  • S/N Ratio: 106 dB
  • THD: < 0.005%
  • Dimension: 436 mm(W) x 123 mm(D) x 42.8 mm(H)
  • Weight: 2.4 kg
