VM2240 240W MANAGEMENT AMPLIFIER

TOA

Code: 01458125

EACH
Special
Buy-In
TRADE ALERT!
$2149 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

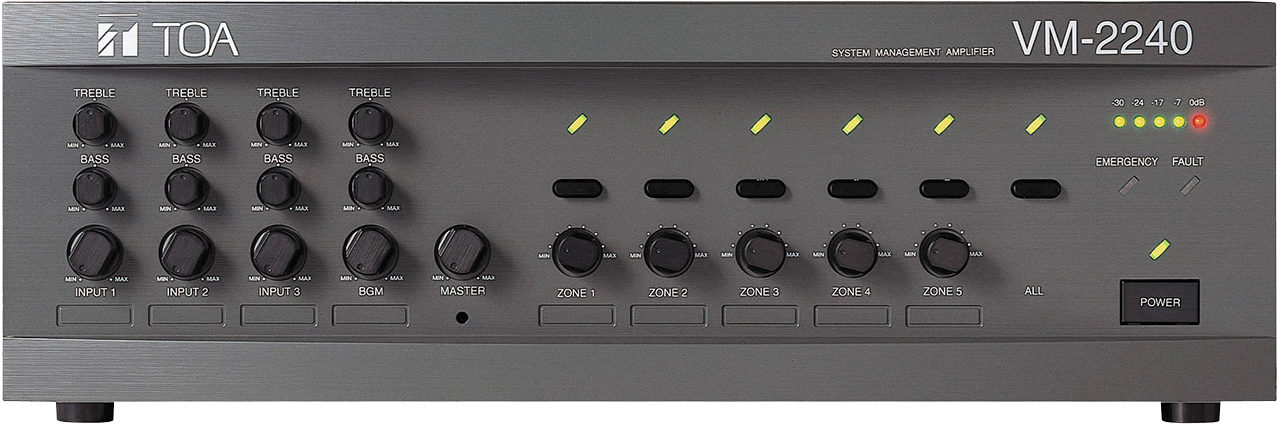

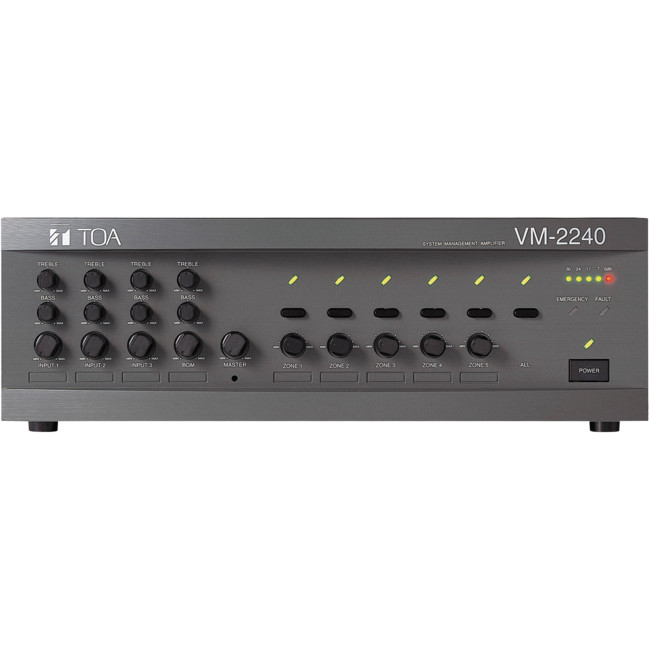

VM-2240 System Management Amplifier

The VM-2240 is a multifunctional amplifier that can be mounted in an EIA-Standard equipment rack (3-unit size).

The unit comes with 4 audio inputs including thebackground music input, and the speaker output section whichhas an internal attenuator and 5-zone selector.

It permits not only general-purpose broadcast, but also Emergency Broadcast based on the EN60849 Standard which gives pre-recorded voice instructions(*1) in the emergency situation.

Broadcast can be made from an optional RM-200M Remote Microphone as well as from the amplifier, and can be remotely controlled from external equipment.

In addition, for 100 V/42 O application the unitfeatures the surveillance function(*2) which automatically checks the system for failures. (*1) An optional EV-200M Voice Announcement Board is required. (*2) An optional SV-200MA Surveillance Board is required.



Key Features

  • 5 zone mixer amplifier, 100 volt line, 3RU
  • 3 Microphone/Auxiliary inputs and 1 BGM input
  • Selectable Phantom Power - Balanced or unbalanced
  • Mic 1 Muting, Priority Paging, paging chimes, Telephone Paging
  • Expandable up to 45 zones



Specification

Power Source AC: 230 V
DC: 24 V/15 A
Applicable cable diameter: AWG22 - AWG14
Power Consumption on AC Mains With no signal present: 54 W
Under normal operating conditions according to
EN60065: 1998 sec. 4.2: 255 W
With rated output signal: 549 W
Current Consumption on 24 V DC Power Input With no signal present: 1 A
Under normal operating conditions according to
EN60065: 1998 sec. 4.2: 5 A
With rated output signal: 14 A
Rated Output 240 W
Output Voltage /Impedance 100 V/42 O
(selectable by the internal wiring change)
Frequency Response 50 Hz - 16 kHz
Distortion 1 % or less
Signal-to-Noise Ratio 60 dB or more
Tone Control Bass: 100 Hz ±10 dB
(Inputs 1 - 3 and BGM individually adjustable.)
Remote Microphone /Expansion Amplifier Connection 2 RJ45 female connectors for connecting the RM-200M Remote
Microphone and the VM-2120 or VM-2240 unit used as an
expansion amplifier.
Maximum distance: 800 m (874.89 yd) in total
Link cable: Category 5 Shielded
Number of connectable RM-200M's: Up to 4
Twisted-Pair straight cable (TIA/EIA-568A standard)
Input Inputs 1 - 3: -60 dB(*3) (MIC)/-10 dB(*3) (LINE) (changeable)
600 O
combined XLR connector (female)/phone jack
(Only Input 1 is additionally equipped with DIN
connector(*5).)
Telephone paging input: Push-in terminal block(*6)
Voice sound: -10 dB(*3)
balanced input with shield terminal(*4)
Control: No-voltage make contact input
open voltage: 3.3 V DC
short-circuit current: under 1 mA
BGM 1 - 2: -20 dB(*3)
Power amplifier input: 0 dB(*3)
External speaker line input: 100 V line
(This input is selected when the "Unit's
broadcast cutoff" control is activated.)
Output Speaker output: Plug-in screw connector(*7)
5-zone selector with attenuator (all zones simultaneously
selectable)
Direct speaker line output: Direct output from the power amplifier
output transformer (attenuator bypassed)
Plug-in screw connector(*7)
Line output: 0 dB(*3)
Recording output: 0 dB(*3)
Preamplifier output: 0 dB(*3)
Control Input For controlling Inputs 1 - 3
No-voltage make contact input
short-circuit current: 1 mA or less
Control Input and Output D-sub connector (25-pin
Input: No-voltage make contact input
short-circuit current: 1 mA or less
Output: Open collector output
control current: 10 mA or less
(1) External control input
Activation of messages(*8)
Activation of power
Activation and stop of Emergency Broadcast
Unit's broadcast cutoff
(when activated by an external emergency equipment)
(2) Status output
Irregularity of communications with the Remote Microphone and
an expansion amplifier
AC power condition
DC power condition
Irregularity of the sound source of the Voice Announcement Board
Failure (FAULT) indication on
Power switch on
External Attenuator Control Output Plug-in screw connector(*7)
transfer type
contact current: 7 A (DC) or less
Surveillance Input and Output(*9) D-sub connector (25-pin
Input: No-voltage make contact input
Output: Open collector output
Power Supply 24 V DC/0.1 A
Unit RU-2001/-2002
Chime Tone Built-in chime: 2-tone chime/2-tone chime (fast repeat)/4-tone
chime (Up)/Single-tone chime/4-tone chime (Up &
Down)/Gong/off
Voice Announcement Board sound source: Pre-recorded chime(*8)
Function Two units stacking (VM-2120 or VM-2240)
Emergency broadcast (sequential control)
Broadcast priority control
Surveillance (failure detection) function(*9)
Power supply to only one Remote Microphone (RM-200M)
Line resistance: 40 O (one way) or less
Operating Temperature 0 °C to 40 °C (32 %? to 104 %?)
Finish Panel: ABS resin
Case: Steel plate
Dimensions 419 (W) × 143.3 (H) × 355.7 (D) mm(16.5 × 5.64" × 14)
Weight 14.5 kg (31.97 lb)
Accessory Power cable (2 m (6.56 ft)) ??1
Miniature type time-lag fuse T3.15 A ??1
Option Rack mounting bracket: MB-36
Input transformer: IT-450
Voice announcement board: EV-200M
Surveillance board: SV-200MA
