AN001T AMBIENT NOISE CONTROL MODULE

Code: 01458122

EACH
Out of Stock!
TRADE ALERT!
$569 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

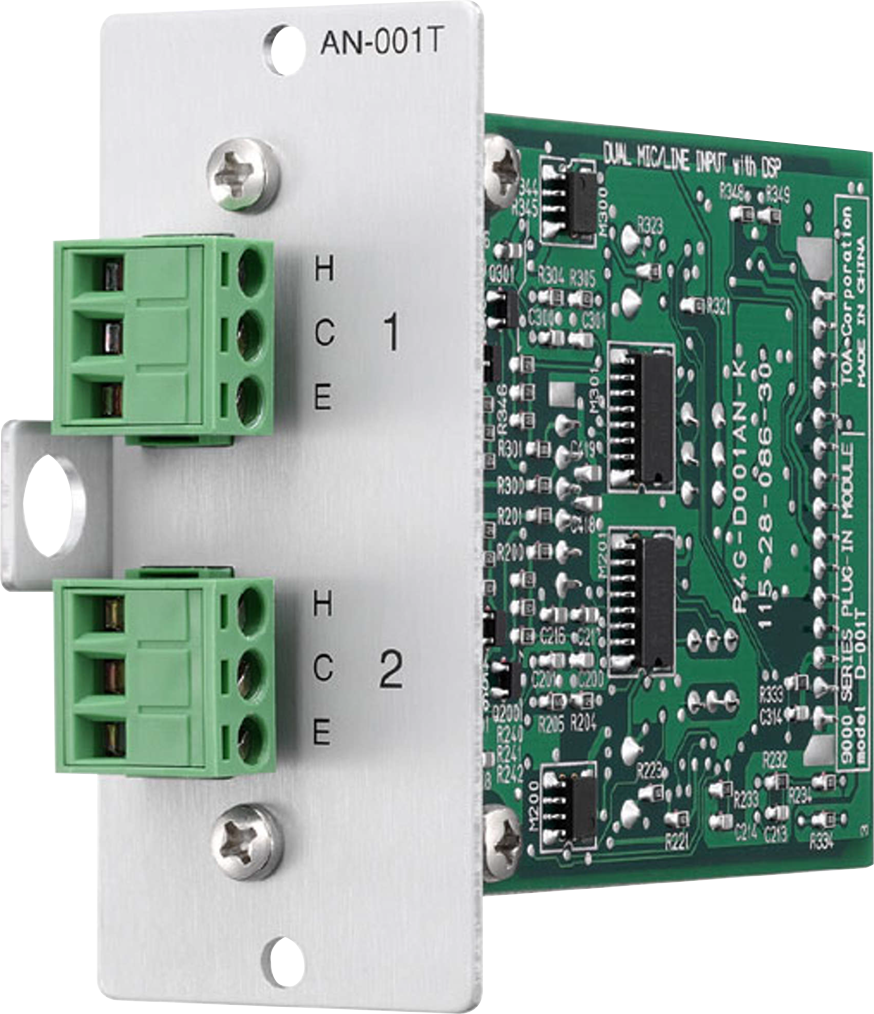

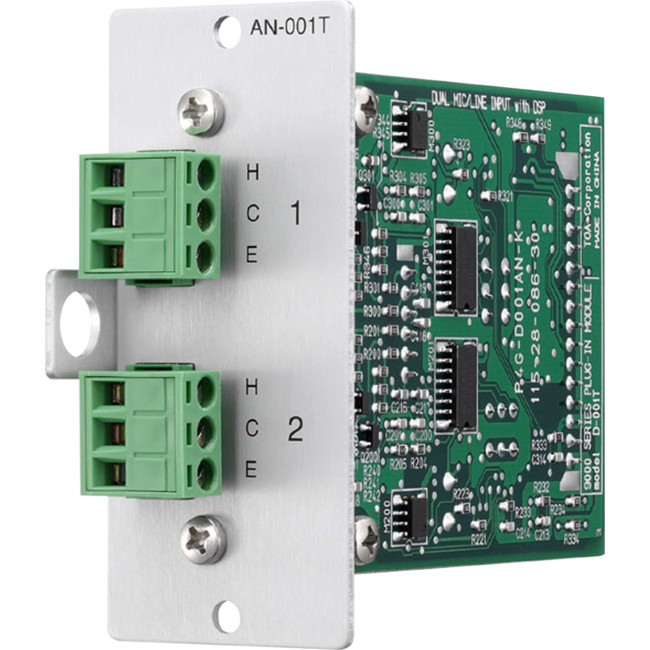

TOA AN-001T AMBIENT NOISE MODULE FOR 9000 SERIES

The AN-001T is a plug-in module of 2-channel ambient noise detector designed for use with the 9000 series amplifiers. It automatically adjusts the output volume in response to the change of ambient noise level. The AN-001T can handle input signals from microphone level (−60dB) to line level (−10dB) by controlling the gain in 9 steps. Phantom power (+24V) can be supplied for condenser microphone use.


Features

  • Automatically adjusts output gain to compensate for changes in ambient noise level
  • Each input can be assigned to control a specific output
  • Two inputs with +24VDC phantom power for condenser mics
  • 14 preset gain ratios
  • Noise sensing microphone available, model AN-9001
  • Maximum two per chassis

Specifications


Power Source+24V DC, −24 V DC, +6V DC
Current Consumption
  • 20mA (at +24V DC)
  • 20mA (at −24V DC)
  • 60mA (at +6V DC)
Input
  • Sensor input (Ambient noise sensor microphone input): 2 channels, 3 kΩ (when the phantom power is ON)
  • 10kΩ (when the phantom power is OFF), electronically-balanced, removable terminal block (3 pins)
Input Sensitivity−60, −54, −48, −42, −36, −30, −24, −18, −10dB (selectable)
Phantom Power+24V DC
A/D Converter24-bit ADC
Sampling Frequency48kHz
Ambient Noise Control
  • Sensor input reference level adjustment function Function Maximum output signal level control: −15 to 0dB
  • Minimum output signal level control: −18 to−3dB
  • Sample time setting: 10s, 15s, 20s, 30s, 1 min, 2 min, 3 min, 5 min Gain ratio setting
  • Ambient noise (Output signal level): 6:3, 5:3, 4:3, 3:3, 3:4, 3:5, 3:6, 6:−3, 5:−3, 4:−3, 3:−3, 3:−4, 3:−5, 3:−6
Operating Temperature−10°C to +40°C
FinishPanel: Aluminum, hair-line
Dimensions (W×H×D)35mm × 78mm × 91.5mm
Weight82g
Accessories
  • Removable terminal plug (3 pins) × 2
  • Module mounting screw × 2
OptionCeiling mount microphone: AN-9001
