M2 - Multimedia Audio Matrix
Audac's audio matrix products deliver comprehensive multi-zone solutions for nearly every situation.
With their large number of extension modules and configuration modes, they can be implemented into a large number of installations – large or small, simple or complex.
All matrixes can be controlled by means of additional control panels, integrated web-server interfaces, RS232 or the AUDAC Touch™ control app for iOS and Android devices.

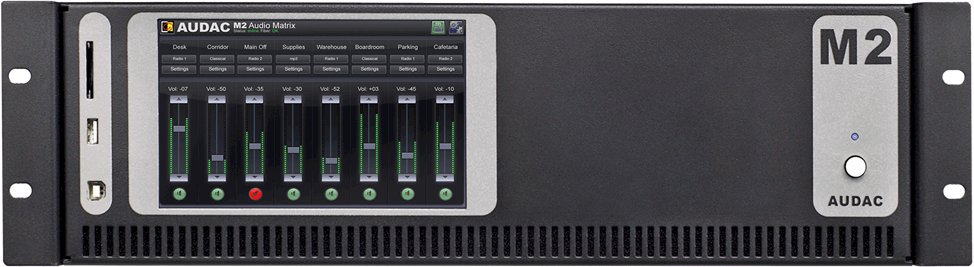

The M2 is a Multimedia audio distribution system which can effortlessly process, mix and route audio signals throughout multiple zones in modern environments.
In general, it is a 9 x 8 digital audio mixer which is based on 11 powerful DSP processors.
It is fully digitally controllable through a web browser interface, optional touch panel, wall panels, RS232 control and the Audac Touch™ control app for iOS and Android devices.
The built-in digital mixer makes it possible to mix all input signals together and patch them to any of the stereo output zones.
The OPT2 fiber interconnection interfaces allow multiple M2 units to be cascaded together, creating almost endless possibilities for large-scale multi-zone systems.
The use of optical fiber as the interface allows distribution over tremendous distances (One kilometre between each M2 Matrix!)
Various optional controllers can be added to the system including the M2DIS 7? touchscreen display which can be incorprated into the front panel of the M2 matrix.
The DW5066 is an ‘All-in-One’ Wall panel controller provides simple control of audio source and sceneselections, volume adjustment, tone control and zone muting.
Inbuilt microphone and line-level inputs allow connectionof local audio sources.
The DW3020 is a basic wall panel controller allowing the user the to select the desired audio source or scene and adjust the volume level for a single audio zone.
APM digital paging consoles are the perfect complement toM2 when multi-zone paging is required.
Their inbuiltcompressor / limiter and status indicators ensure the message is clear and audible in all situations.
Multiple console options are available, including models which feature either 4, 8, or 16 fully-programmable event buttons, which can be used for a multitude of features including zone selection, triggering pre-programmed voice files as well as controlling external functions.
The ARU Relays are specially designed, flexible relay modules which provide additional system functionality and control.
Multiple ARU units can be cascaded together, offering a wide range of possibilities for all kinds of applications.
