DT712 7-DAY VERSATILE DIGITAL TIMER

7 DAY DC DIGITAL TIMER

This versatile 7 day digital timer is ideal for use in any appliance which requires automation. It can be configured to switch at up to 8 different times during a 24 hour period. In addition, it can be programmed to operateon a wide variety of days. eg. Daily, Week days only, Weekends only, Every second day, or selected group of days.

The timer has three modes of operation. In the "auto" mode, the timer automatically switches at the pre-programmed times. In the "on" mode, the switch is always on regardless of the timer program setting.In the "off" mode, the timer will not switch regardless of the program settings. The mode of operation can only be changed when power is applied to the switch.

In the event of a power failure, the switch retains itsprogram data via an inbuilt long life lithium battery. Features a unique quick fixing mechanism which suits panels up to 7mm thick.

This model allows for Switch-on and switch-off times tobe set for each program. ie Allows a different "on" duration for each program.

BUTTONS:

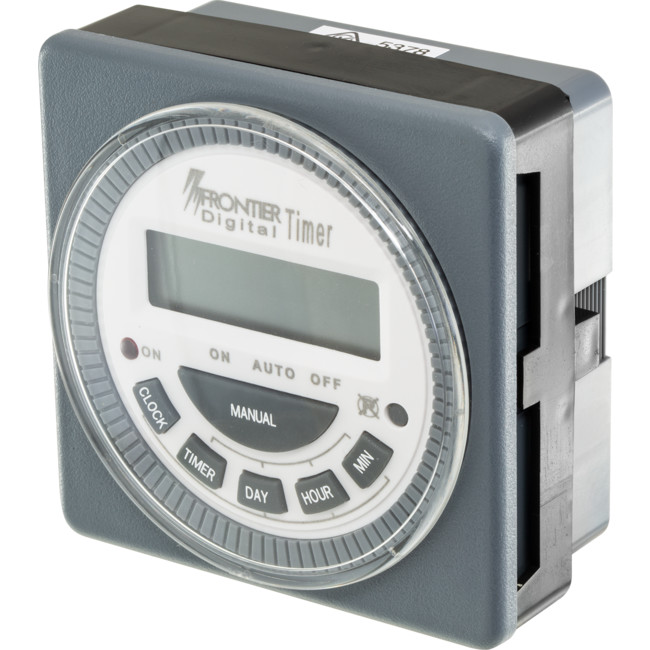

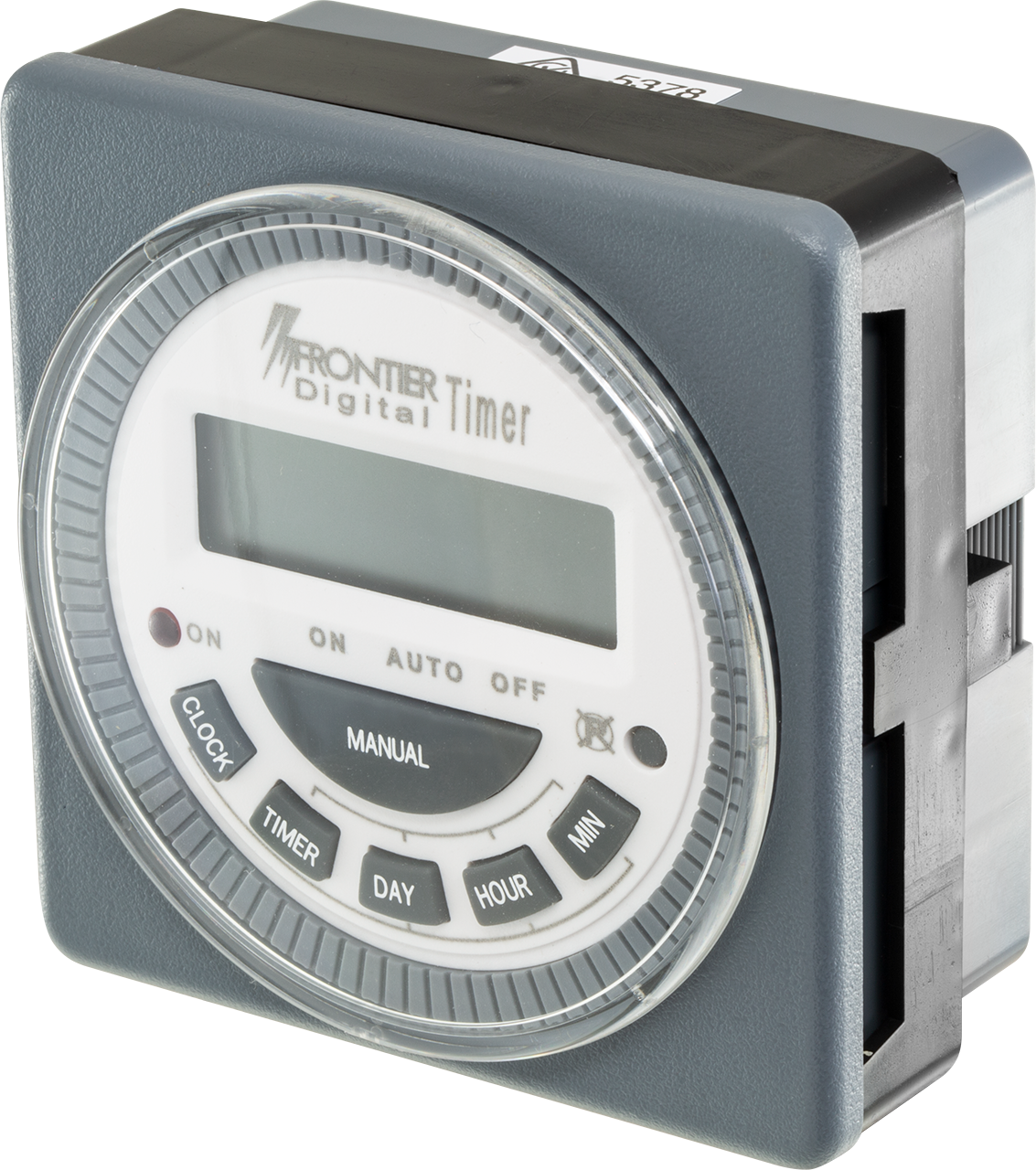

• Clock: Current time setting or show current time.
• Timer: Press this button to enter program mode.
• There are 8 on / 8 off programs lines.
• Day: Sets the day of the week.
• Hour: Sets the hour button. 24 HOUR MILITARY TIME
• Min: Set the minute button.
• Manual: ON/AUTO/OFF select mode.
• RESET Cancel all settings. It is the recessed button next to the circled ‘P’ with a n ‘X’ through it.
• Use ballpoint pen to push it.
• ON: RED LED indicator lamp. LED light on when the internal switch is turned on.

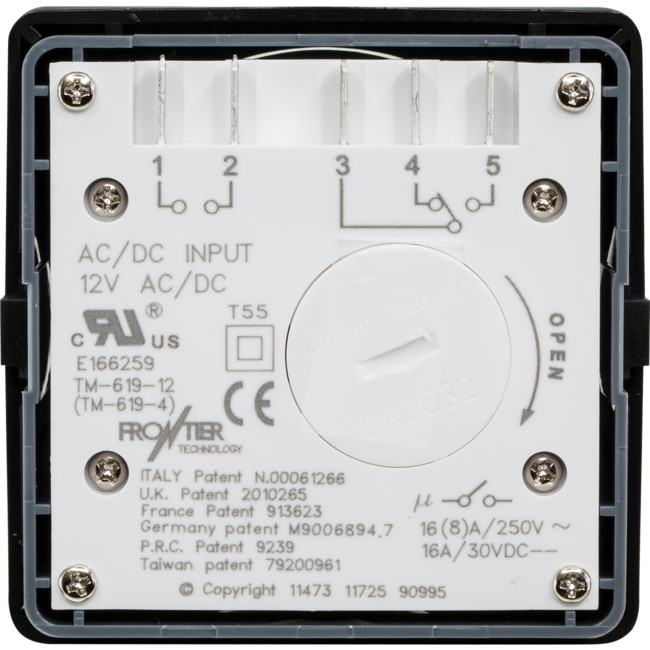

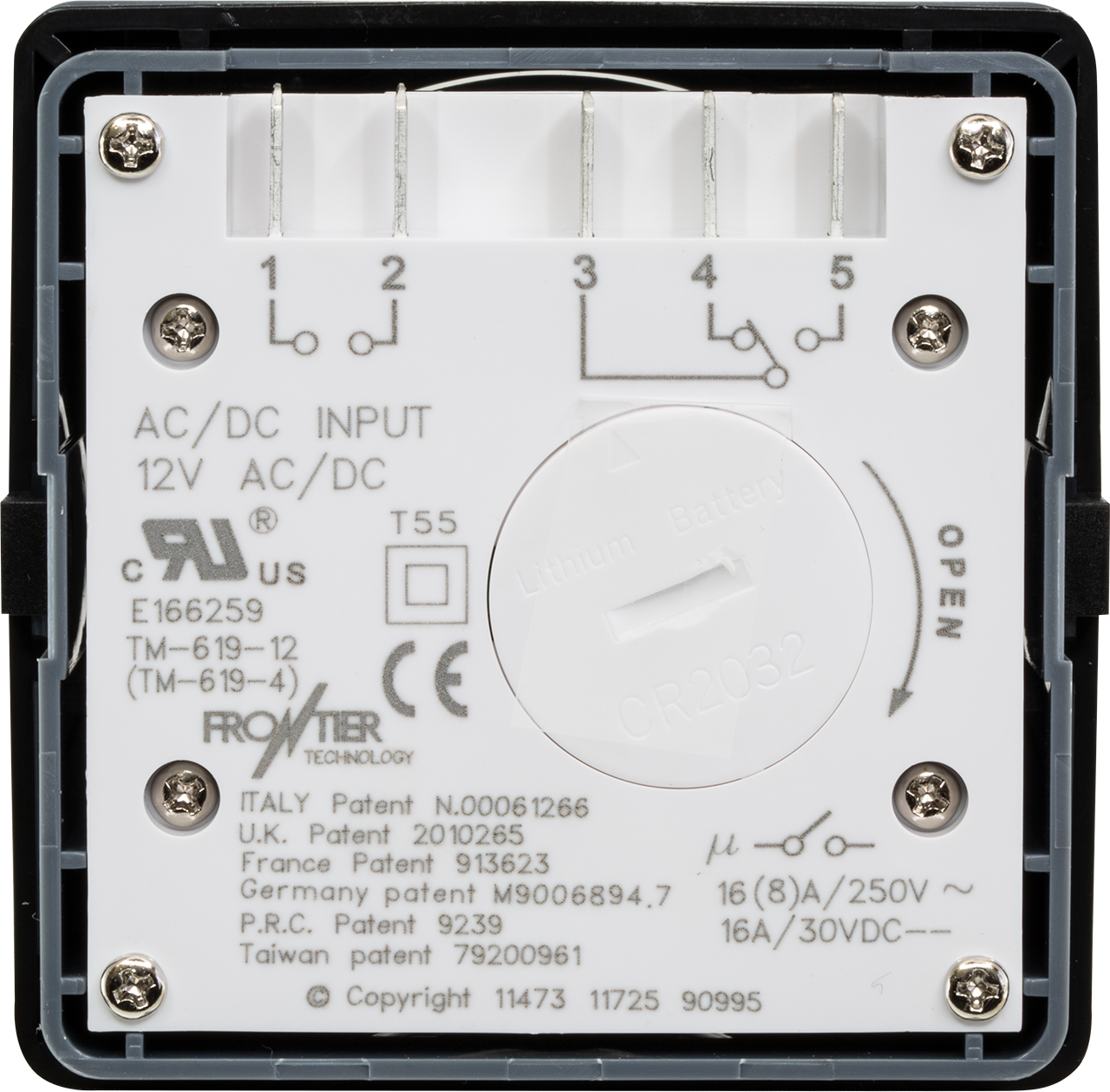

SPECIFICATIONS:

• Contact Rating: 16A @ 30VDC
• Operating Voltage: 12VDC
• Panel Thickness: <7mm
• Switch Type: SPDT
