106-168 LUX RADIO PIR WITH WHITE LED

15MT DETECTION RANGE MAX

Code: 01303552

0.1790 kg
EACH
Low Stock
$129 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

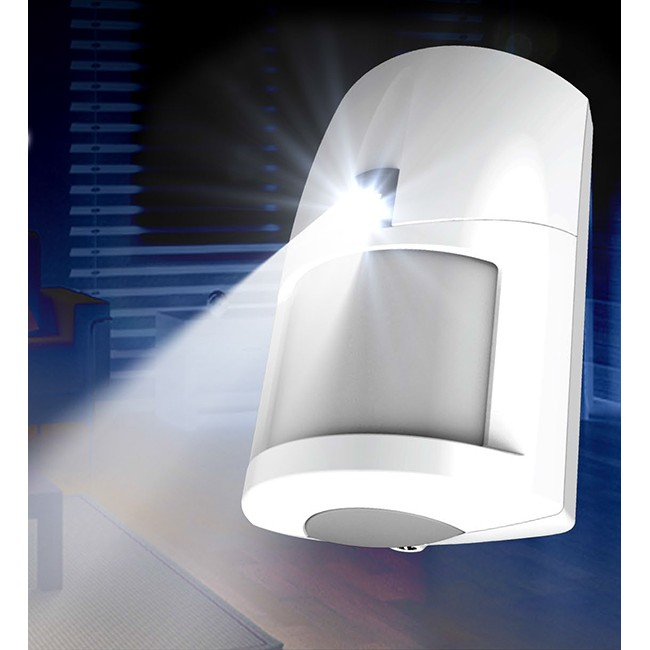

106-168 NESS LUX WIRELESS PIR

Ness LUX Radio PIR is a unique wireless motion detector with a white LED night-light especially designed for the latest generation of Ness radio control panels.

LUX shares all the features and benefits of the Ness Radio PIR range including 15m x 15m detection coverage, look-down creep zone, high RF immunity, white light immunity, adjustable range, adjustable pulse count and extremely long battery life, up to 10 years. Ceiling mounting is also available with the addition of a 106-169 bracket.

For safety and convenience, LUX?s night-light function provides a motion-activated cone of light to help you find your way at night. The night-light remains lit as long as itdetects motion and stays on for an extra 10 seconds after motion has stopped.

Features:

  • 15m x 15m wide angle coverage
  • Look down ?Creep Zone?
  • White LED motion activated night-light
  • Adjustable Pulse Count
  • Adjustable Range
  • High R.F. and E.S.D. immunity
  • High white light immunity
  • SAWR stabilised radio transmitter
  • Capsule design with sealed electronics
  • Front cover tamper protection
  • Long life Lithium batteries supplied
  • Low battery warning signal
  • Hourly Supervision radio signals
  • Includes wall mounting bracket
  • Optional ceiling bracket available (106-169)

Pack includes:

  • PIR
  • 2 x CR123A batteries
  • Manual
  • Wall Mounting Bracket

Specs:

DIMENSIONS 112(h) x 72(w) x 48(d) mm
MOUNTING HEIGHT 2.1m ? 2.4m
COVERAGE Up to 15m x 15m @ 90
DETECTOR ZONES 20 dual element zones
PULSE COUNT Selectable 1?2 or 3?4
RANGE Selectable High/Low. 15m max./12m max.
SENSOR Dual element pyroelectric
ALARM INDICATION Blue alarm LED
NIGHT-LIGHT White LED with adjustable threshold, Dark/Dim Light
ALARM PERIOD 5 seconds
OPERATING VOLTAGE 3V DC
BATTERY 2 x CR123A Lithium
QUIESCENT CURRENT < 14 A
RADIO FREQUENCY 304MHz / 868MHz depending on region
TRANSMIT POWER 100 W
