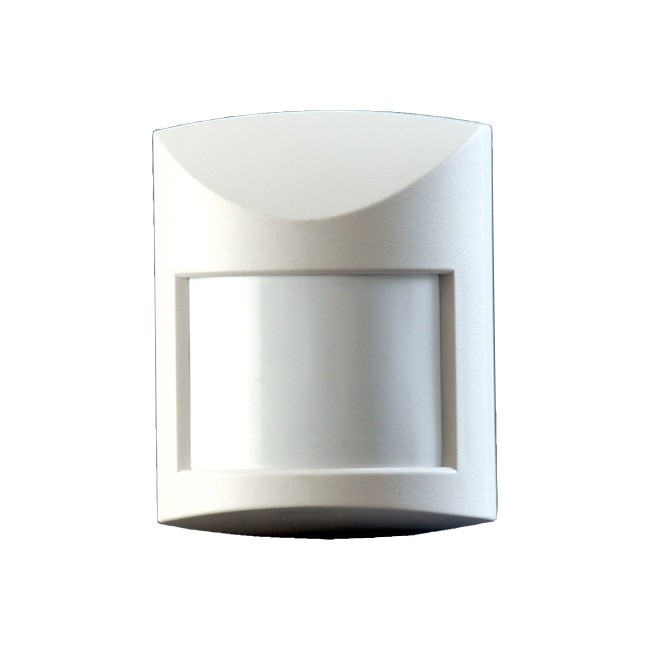

106-259 QUANTUM-Q PET AWARE PIR - NESS

The Ness Quantum -Q PET is the most popular PIR ever produced by Ness Corporation. Now boasting a QUAD Element Pyro Sensor it has a better detection rate and higher noise immunity for lower false alarms.
Quantum-Q is Australian designed and made using precision S.M.D. technology. With enhanced 15 metre wide angle coverage, selectable Pulse Count and Sensitivity adjustmentsproviding the flexibility to use the Quantum-Q in most environments.
Installed in rooms or in hallways, Ness Quantum-Q protectsyou by detecting intruders body temperature using infra-red technology. It offers quality, performance and reliability at the right price.
Pet Immunity is set typically for a single pet up to 18kg or multiple pets uo to 10kg total.
Very discrete in size, designed for all types of interiors with a detection range of 15m.

{tab Features}

• Quad element pyro sensor

• 15m x 15m wide angle coverage

• Standard (Std model refer Ness Part No. 106-079) and Pet Aware models

• Adjustable Pulse Count

• Adjustable Range

• High R.F. and E.S.D. immunity

• High white light immunity

• High quality patented Fresnel lens

• Front cover tamper protection

• Totally silent solid state relay with high immunity tomagnetic fields

• Optional mounting bracket available

• 9~15VDC Operation
• Optional Q100-243 bracket sold separately
