100-527 RR2 UNIVERSAL TRANSMITTER

{tab Overview}

RR2 UNIVERSAL TRANSMITTER - NESS

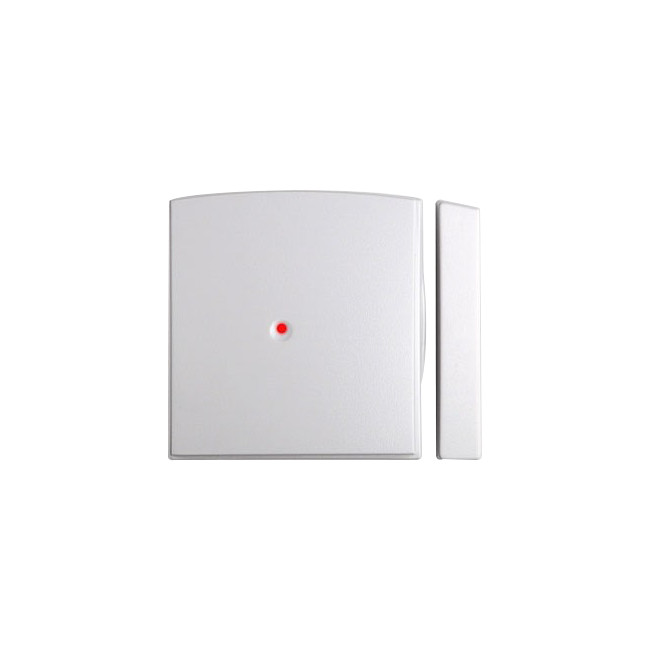

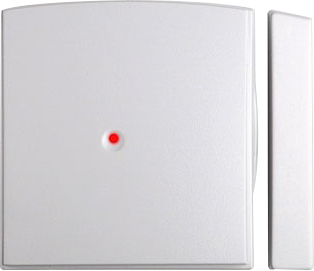

The 100-527 Ness Universal Transmitter is a 9V battery operated transmitter with onboard reed switch, an external input and
vibration analyser. The external input can be used to take inputs from normally closed reed switches or emergency buttons. This allows connection of any type of N.C. switch or button to trigger an alarm signal. The external input canalso be used to connect Nessensor? vibration sensors for completely wireless vibration sensing. The onboard vibrationanalyser can be easily adjusted for sensitivity. The onboardreed switch allows for standalone door or window protection without using the external input. (The Ness 100-662 RR1 miniature radio reed switch can also be used for this purpose). The Ness Universal transmitter also features radioencryption and supervision for total radio security

{tab Specifications}

• Dimensions 78(h) x 73(w) x 27(d) mm. (Excluding magnet).
• Operating voltage 9V Lithium battery (Ultralife U9VL).
• Signals transmitted: 1: Alarm/restore from reed switchor external input. 2: Tamper. 3: Low battery signal (~6V). 4: Learn message (on power up).
• Radio security: 1. Encrypted signals. 2. Supervised operation.* Input selection link: Internal reed or externalinput or both in series.
• Standby current draw <10 A
• Radio frequency 303.85MHz
• Transmit power 100 W
• External input Accepts N.C. devices. 400mm max cable length to input.
• Tamper switch Cover tamper switch.
• Reed switch Miniature glass envelope, matching magnet supplied.
• Vibration adjustment Rotary min/max sensitivity adjustment.
• Compatibility All Ness radio receivers.
• Encryption and radio supervision when used with a compatible Ness receiver/control panel.

{tab Application Ideas}

EXTERNAL REED SWITCH

• Coolroom door
• Emergency exit door
• Ceiling man hole
• Skylight grille
• Tradesman’s van parked at home
• Garden shed
• Garage roller/ tilt door
• Warehouse door
• Caravan or boat parked at home

NESSENSOR

• Door and window frames
• Cars in car yards
• Display cases in shops
• Jewellery cabinets
• Safes, strongroom doors

OTHER EXTERNAL INPUTS

• Refrigeration fail alarm
• Water pump monitoring
• Gate alarm
• Machinery alarms
