101-256 M1-KP2 LCD KEYPAD SUIT M1 NESS

Code: 01301243

EACH
Special
Buy-In
$198 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

The finest way to Control your M1 Panel

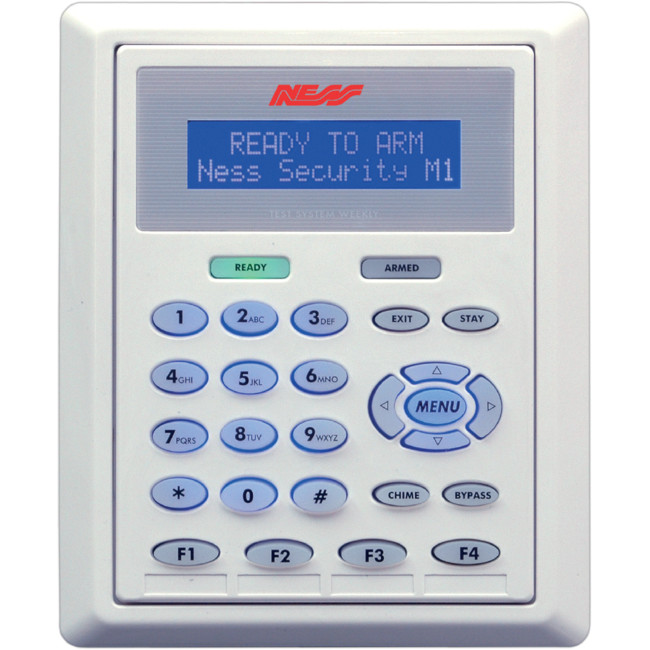

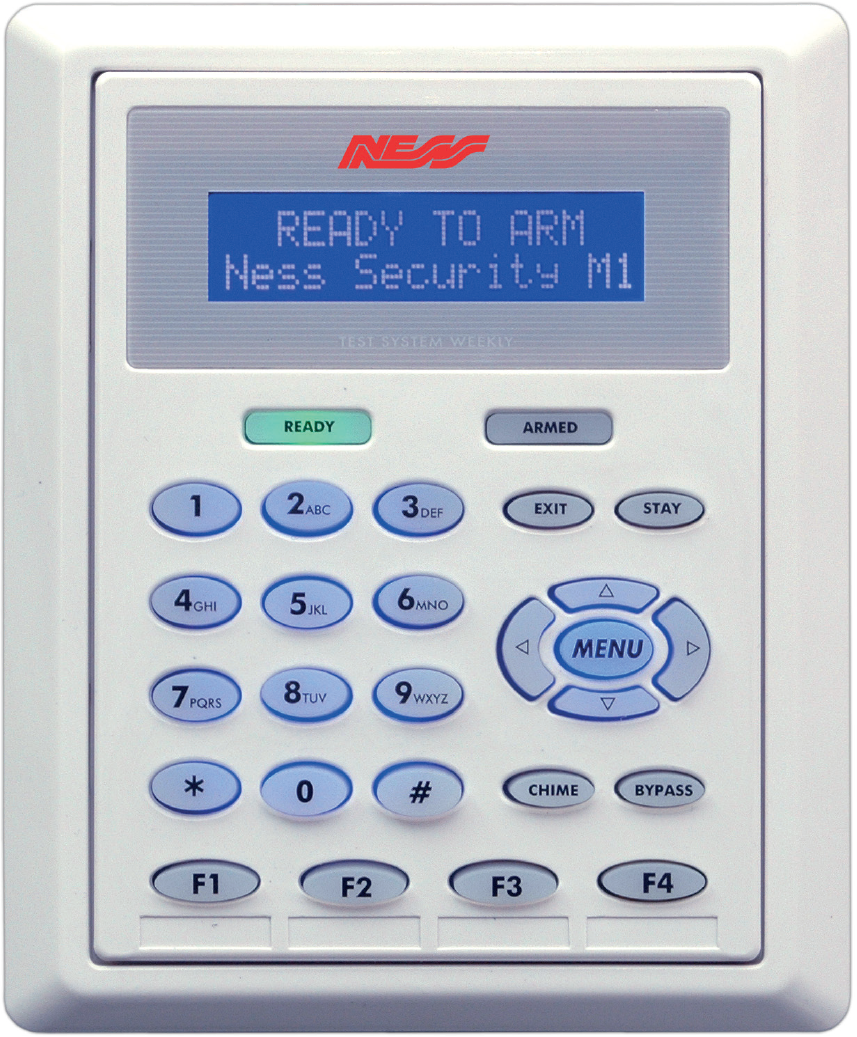

The Ness M1KP2 is a low profile, addressable LCD Keypad for the M1 Cross Platform Controls.
The M1KP2 is compatible with "external" proximity readers which utilises standard 26 Bit Wiegand format, allowing cards or fobs to be used for Arming, Disarming or door access control.
The user-friendly menu easily guides you through the full list of automation tasks, programming, systems diagnostics, and much more.
With the addition of an M1 Flush Mount Kit, the KP2 can be mounted discreetly and stylishly into any Gyprock wall.

Compatible With

  • Ness M1 Gold Panel 14" or 28"
  • Ness EZ-24 Panel



Supplied With

  • Keypad
  • Wire loom
  • Manual

Features

  • Blue/White Backlighted Hi-Contrast LCD Display
  • Four Programmable Function Keys
  • Unique Menu Navigation/Direction Keys
  • Operates on 4-Wires (M1G/M1EZ8 "RS485" Data Bus)
  • Built-in Piezo Sounder with Adjustable pitch
  • Accepts "External" 26 Bit Wiegand Prox Reader (Optional)
  • Input for 1 Supervised Zone
  • One Programmable "Switched Positive" Voltage Output
  • Exit, Stay, Chime, and Bypass Keys
  • Optional recess "Flush" mount kit available


DIMENSIONS (WxHxD) 118 x 140 x 24 mm
CONNECTION 6 Pin Plug-in "Flying Lead" Connector (Included)
COLOUR White
CURRENT DRAW ~30 mA Idle (low backlight level, sounder silent)
~85 mA Fully Active (max. backlight)
OPERATION VOLTAGE 13.8V DC supplied by the control panel
