K-9313 D16XCEL4G NAVIGATOR PANEL

{tab Overview}

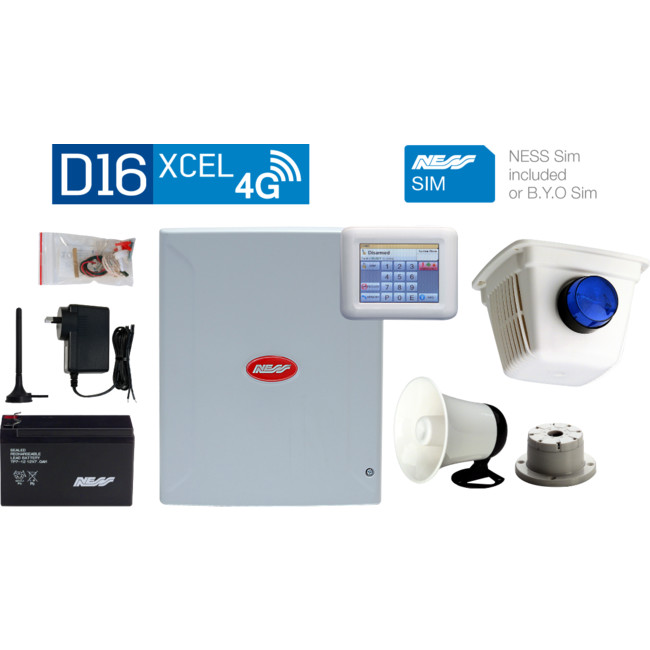

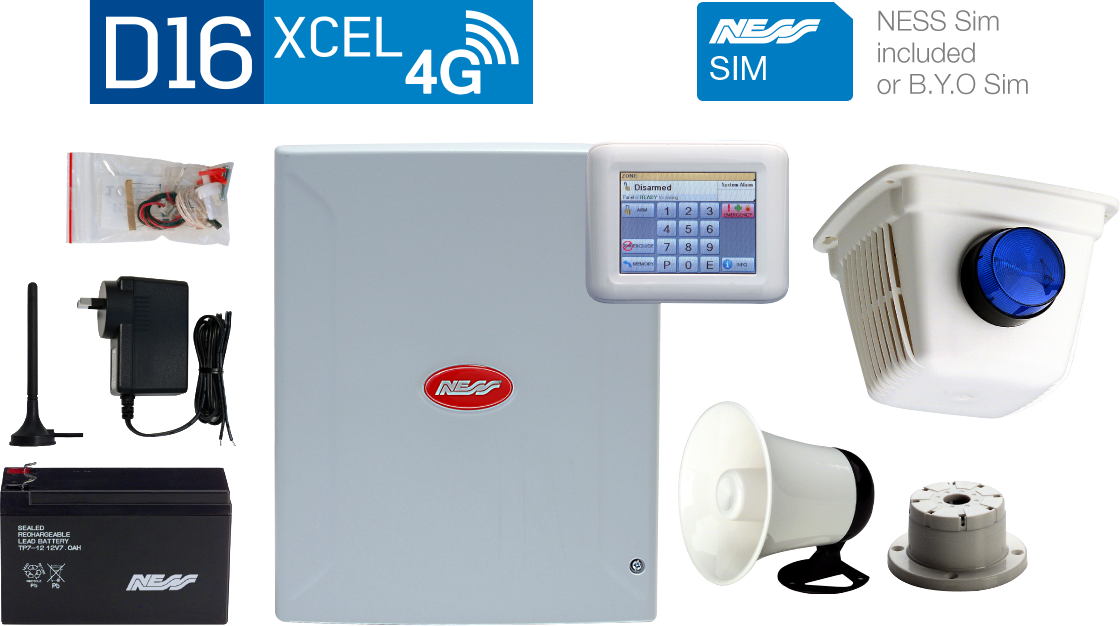

K-9313 D16XCEL4G NAVIGATOR PANEL & SIREN KIT WITH SIM -NESS

Ness D16x control panels offer the widest possible combination of standard features and options to provide users and installers with the most powerful and flexible security panels ever made by Ness.

New Features in XCEL 4G

• 4G Cellular Communicator onboard

• Operation via SMS messaging

• Programming via SMS

• Alarm reports via SMS self-monitoring or Central Station

• Central Station monitoring in Contact ID and ARMOR IP formats

• Remote operation and programming via the free NessXCELapp

• The panel is not network locked. Activate the suppliedNess SIM or BYO SIM

• New PCB layout, AUX5~8 header added

Features:

• 16 alarm zones D16XCEL4G

• Supports up to 3 mixed keypads (Navigator/Saturn/LCD)or 4 Navigator keypads

• 56 user codes can be programmed to operate by keypad PIN, radio key or access card.

• Optional Ness Radio Interface for fully integrated wireless security.

• Programmable Two Area partitioning can split the panel into two independent areas plus a common area.

• Real Time Clock with AutoTime features - auto arm/disarm, auto aux outputs, time based user control.

• 3 Door Access Controller onboard with support for Weigand prox or fingerprint readers.

• Supports control via internet using Ness iComms/aComms iPhone/iPad and Android apps and optional ethernet adapter.

• Home Mode allows partial arming, (eg, perimeter security overnight).

• Day Mode feature allows daytime monitoring of fire doors, coolrooms etc.

• Temporary Day Zone feature allows easy enabling/disabling of Day Mode.

• Keypad Panic and Duress feature.

• Two button arming feature.

• Fire Alarm feature with different siren tones.

• Highly flexible zone to output mapping.

• Onboard Vibration Sensor Analyser with programmable sensitivity. Use with Nessensor? vibration sensors.

• Multiple programmable EOL resistor values from 0k to 22k (2k2 resistors supplied).

• Siren chirp and strobe flash on arming with radio key.

• Quiet chirps option on arm/disarm by radio key.

• True Dynamic Battery Test actively tests the battery under load every hour and every time a keypad code is entered.

• 4 programmable auxiliary outputs (Up to 8 Aux outputsoptional).

• Optional output expander.

• Enhanced serial data input/output via RS232.

• Automatic reset fuses.

• Programmable Reset Output lockout.

• 30 event memory from KPX and Saturn keypads. 80 eventmemory can be accessed using Navigator keypad or NessComms?.

• Standard defaults to suit most applications.

• Easy programming by keypad or NessComms? software by direct connect.

• All programming data is permanently stored in a non-volatile memory.

• All inputs and outputs are heavily protected against lightning and high voltage supply transients.

• High efficiency DC power supply with dual 17VAC/20VDCpower input

Communicator

• 4G Communicator onboard

• Direct-connect upload/download using NessComms? software.

• View system status and arm/disarm using NessComms?.

• Remote control of outputs via telephone with voice prompts.

• Operation via SMS messaging

• Programming via SMS

• Alarm reports via SMS self-monitoring or Central Station

• Central Station monitoring in ARMOR IP and CID formats

• Remote operation via the free NessXCEL SMS app
