K-6311B D8XD DELUXE PANEL & NOISE KIT

NESS D8x PANEL & NOISE KIT (LCD KEYPAD)

• Flexible 8 Zone control panel & Dialler.
• The Ness D8x is the most versatile Ness 8 zone control panel ever!
• The D8x is available in Led keypad or LCD keypad models to suit any preference.supplied with keypad, plug pack, battery, telephone lead, housing and manuals.

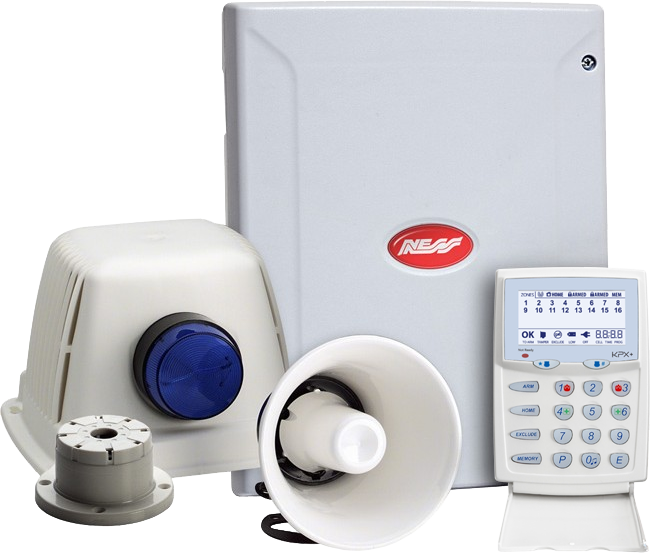

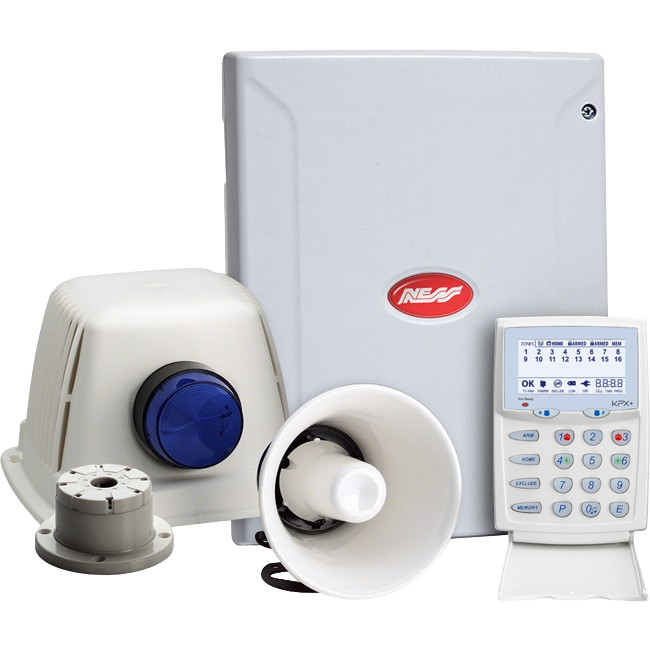

• Panel & Siren Kits include the control panel complete with keypad, plugpack, battery, plus external horn speaker, siren cover, strobe light and internal screamer.
• Choose your detectors from the Ness Quantum range.
• Easy and convenient to order control panel and sirenkits.
• Pre-packed for shipping.

FEATURES:

• 8 Zones Tamper
• Onboard 3 Door Access Controller
• Auto-Time Control via onboard Real-Time Clock
• Optional Radio Interface for integrated wireless security
• Onboard Vibration Sensor Analyser
• Multiple programmable EOL resistor values from 0k to 22k
• 4 programmable auxiliary outputs
• Direct Connect or Dial-up programming via NessComms™
• Contact ID and VOICE reporting dialler
• Remote control of outputs via telephone
• Up to 56 User Codes (PIN, RADIO KEY or PROX CARD)

SPECIFICATIONS:

• Box dimensions: 235w x 300h x 90d mm.

• Plug pack 240V Ac, output 17V Ac@1.4A.

• Power supply 13.8V Dc @ 800mA.

• Quiescent current draw 80mA with 1 keypad.

• Operating voltage 9.5V– 14V Dc.

• Rechargeable battery 12 volt 7.0 Amp/hour sealed lead Acid.

• Battery charging current 350mA maximum, current limited.

• Dynamic battery test backup battery is tested under load, hourly and on arming.

• Fuses:

1. 2 Amp auto resetting / siren output & reset output.

2. 500mA auto resetting / 12 volt auxiliary outputs.

3. 200 mA auto resetting / strobe output.


• Zone inputs: 8 2 x 24hr tamper inputs.

• End of line resistor choice of 12 programmable values including N/c. Default 2200 Ohms (2.2k)

• Maximum keypads: 3.

• Radio Header multi-pin connector for the Ness radio Interface.

• Serial Header serial data port for direct connect programming using Nesscomms™ software. Also 2 way serial data (V5.6 )

• Reader Header: multi-pin port for connecting up to 3 Ness proximity access card readers via 106-012 Weigand Interface.

• Siren output: on board siren driver with timed output maximum 3 x 8 Ohm horn speakers.

• Strobe output: 12V Dc timed output. maximum 2 x 1 Wattstrobe lights.

• Reset output: 12V Dc timed output. max. 3 x 12V piezo screamers.

• Equipment power output: 13.8V Dc output for powering detectors and other equip-ment. maximum 500mA.

• AuX Header: multi-pin connector provides outputs Aux1,Aux2, Aux3, Aux4, 12V Dc.
